KIOTI Premium Cab Tractor | Model RX7320 PCC | Width 77.2 in (1,960 mm) | 3‑point Cat 2 + rear PTO 540 | Horsepower 73 HP | For Tractor | For turf management, parks, municipalities, estates, sports field

Product Description

KIOTI Premium Cab Tractor | Model RX7320 PCC | Width 77.2 in (1,960 mm) | 3‑point Cat 2 + rear PTO 540 | Horsepower 73 HP | For Tractor | For turf management, parks, municipalities, estates, sports field

DESCRIPTION

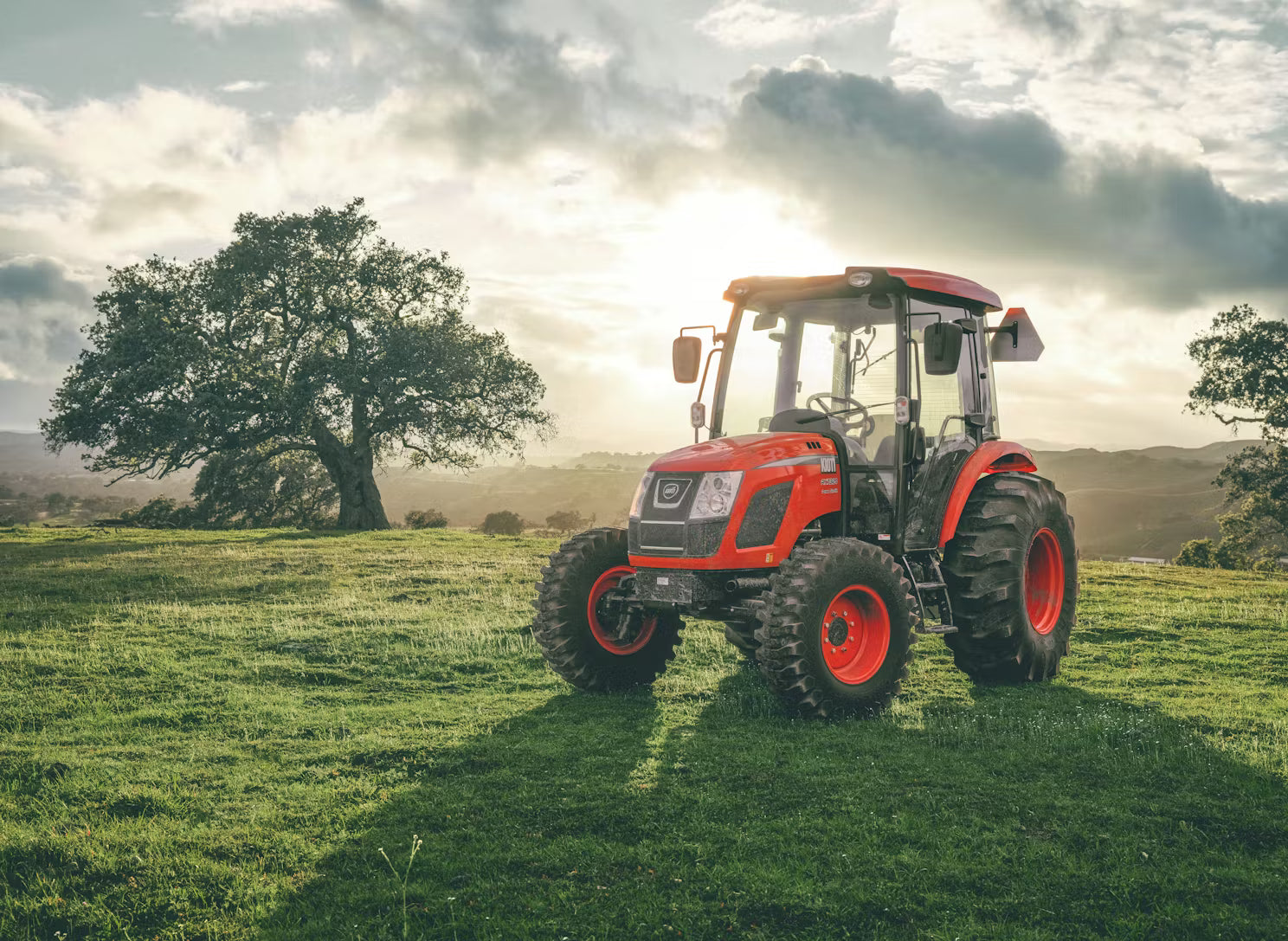

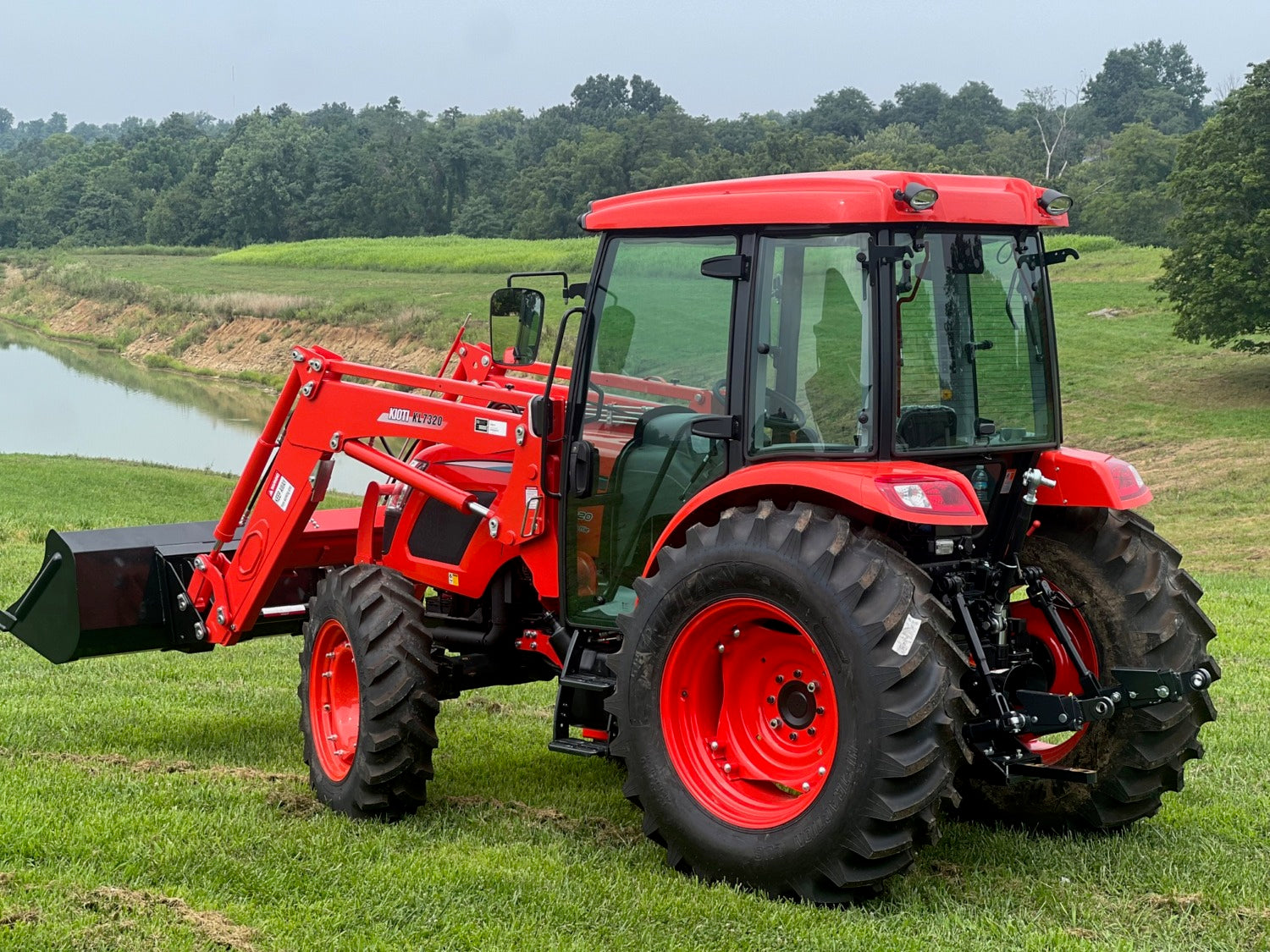

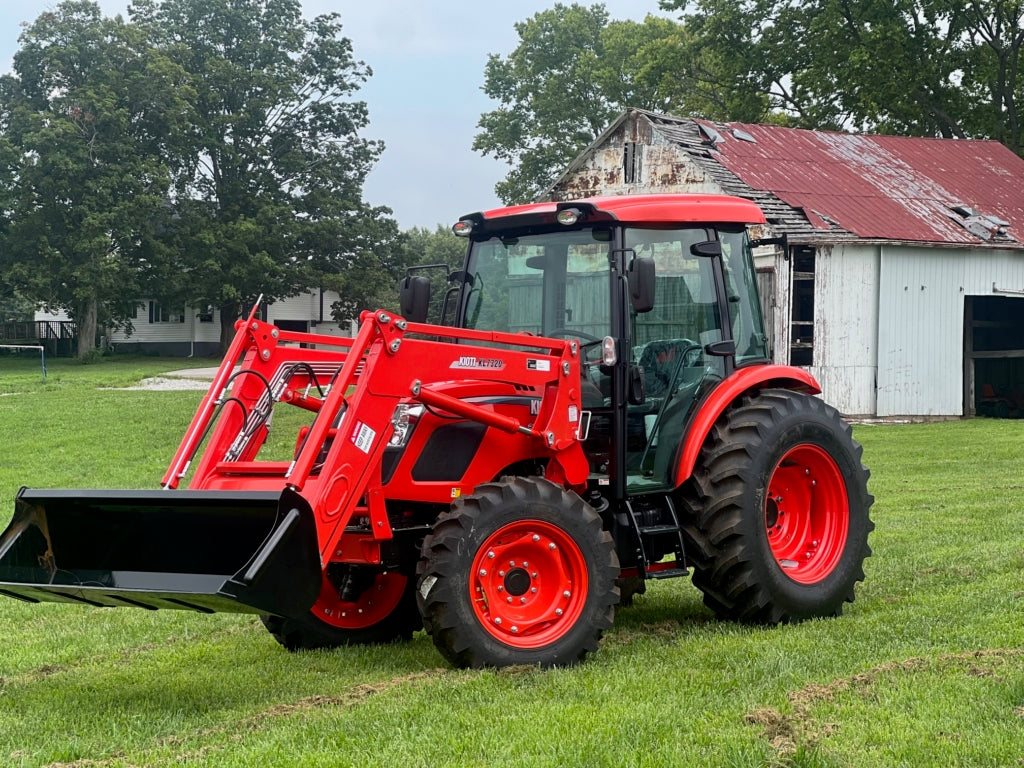

The KIOTI RX7320 PCC is a 73 hp, 4WD premium‑cab tractor built for high‑traction, low‑impact work on turf and finished grounds. A Power Shuttle transmission with creeper delivers 24F/24R speeds, from precise 1.01 mph trimming to a 23.53 mph transport top end. Independent PTO (63 hp) and a Category 2 three‑point hitch make it implement‑ready for mowing, aeration, spraying, and light tillage, while wet disc brakes and a wet clutch add durability under frequent direction changes. This unit is configured with turf tires/wheels, a second rear remote, and a 10‑weight front kit for balanced performance and gentle ground manners.

Key Features

• Model (RX7320 PCC)— RX series, 73 hp premium‑cab configuration with Power Shuttle and Creeper; factory‑equipped for turf work with a second rear remote and a 10‑weight front kit for balanced implement handling.
• Engine — 73 hp turbo‑diesel KIOTI 4F243T, 2.435 L at 2,600 rpm; efficient torque delivery for PTO and draft loads.

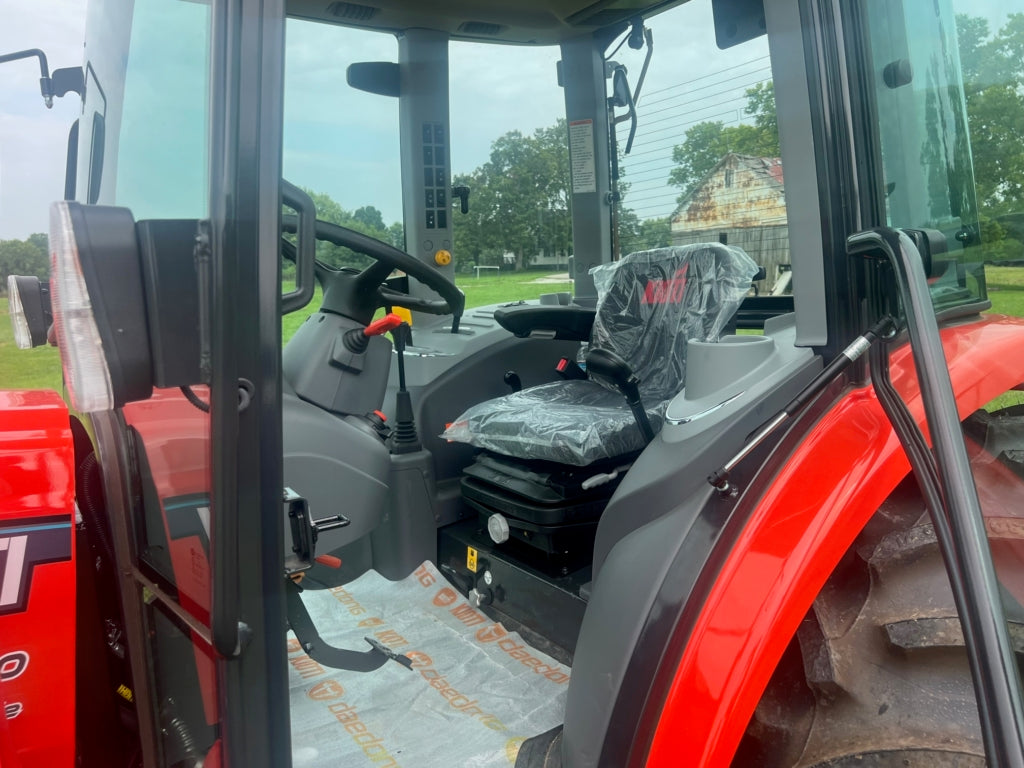

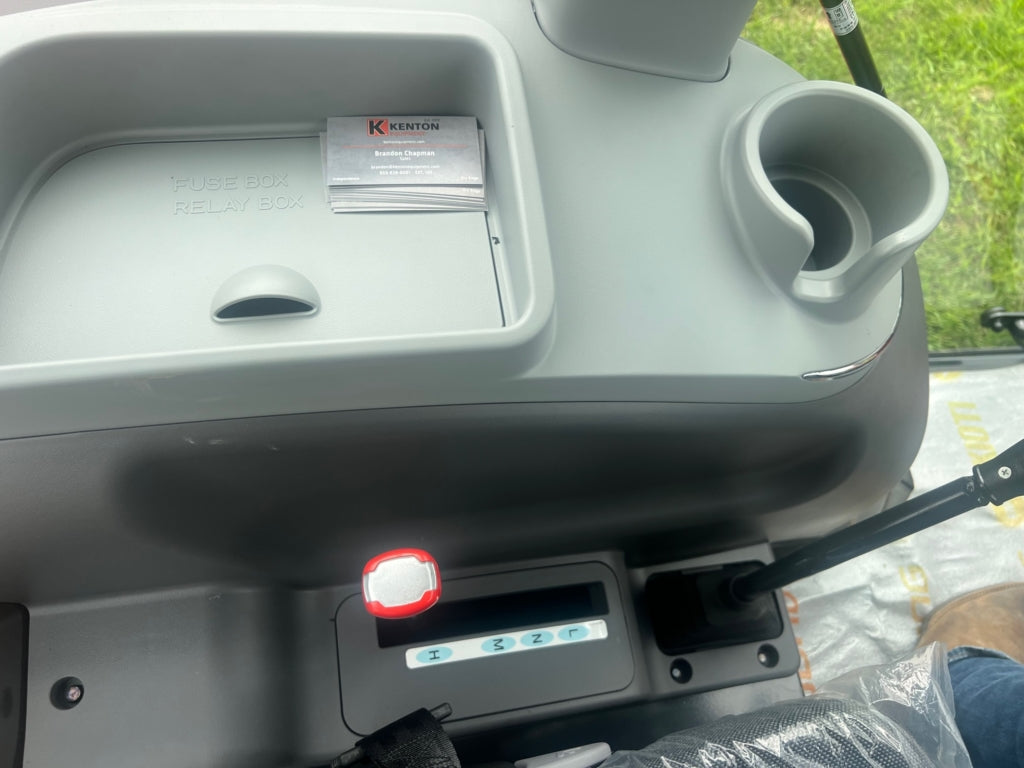

• Drivetrain and cab — Premium cab on a 4WD chassis for year‑round productivity and confident traction on varied surfaces.

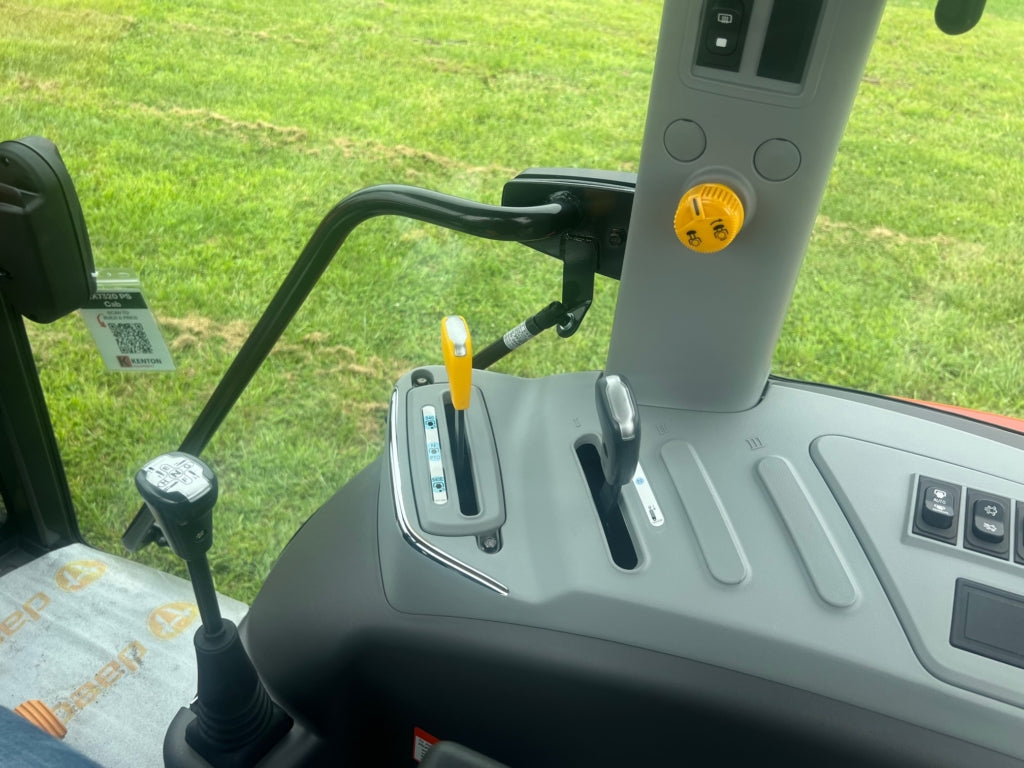

• Transmission — Power Shuttle with Creeper, 24F/24R, clutch‑less directional changes; creeper enables ultra‑low speeds for precision tasks.
• PTO — Independent, 63 hp; rear 540 rpm with electric/hydraulic engagement for smooth implement start‑ups.
• Hydraulics and remotes — 19.2 gpm total gear‑pump flow supports lift and auxiliaries; includes a second rear remote for dual‑circuit implements.

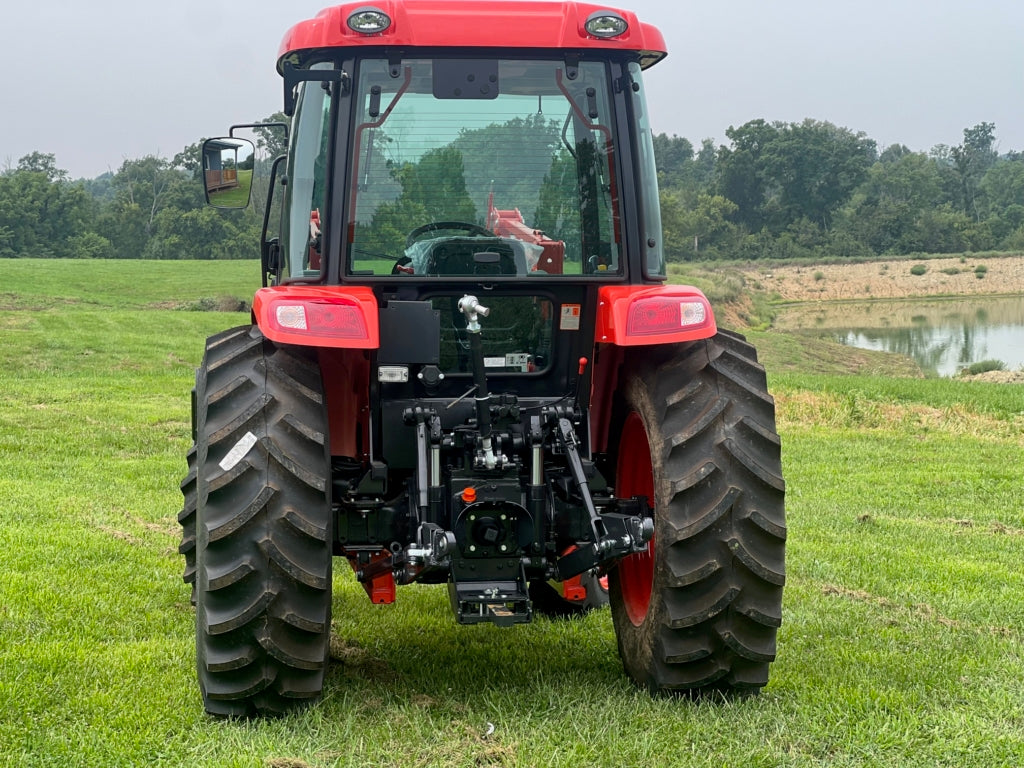

• Hitch and controls — Category 2 three‑point with position, draft, and mixed control for accurate depth and load management.
• Width (77.2 in / 1,960 mm) — Turf‑friendly stance that spreads ground pressure to minimize scuffing while maintaining lateral stability; fits most 7 ft gates and trailers.

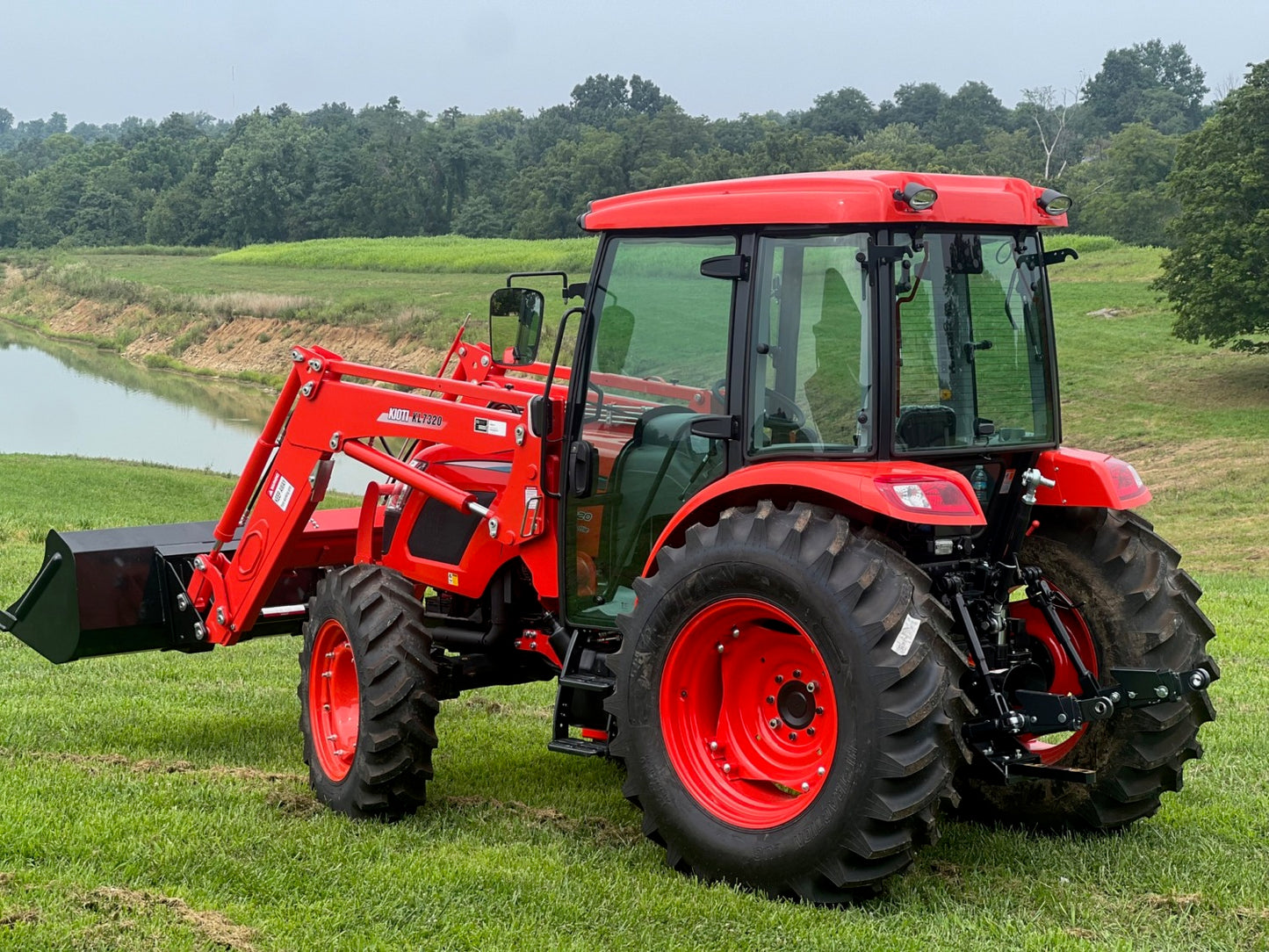

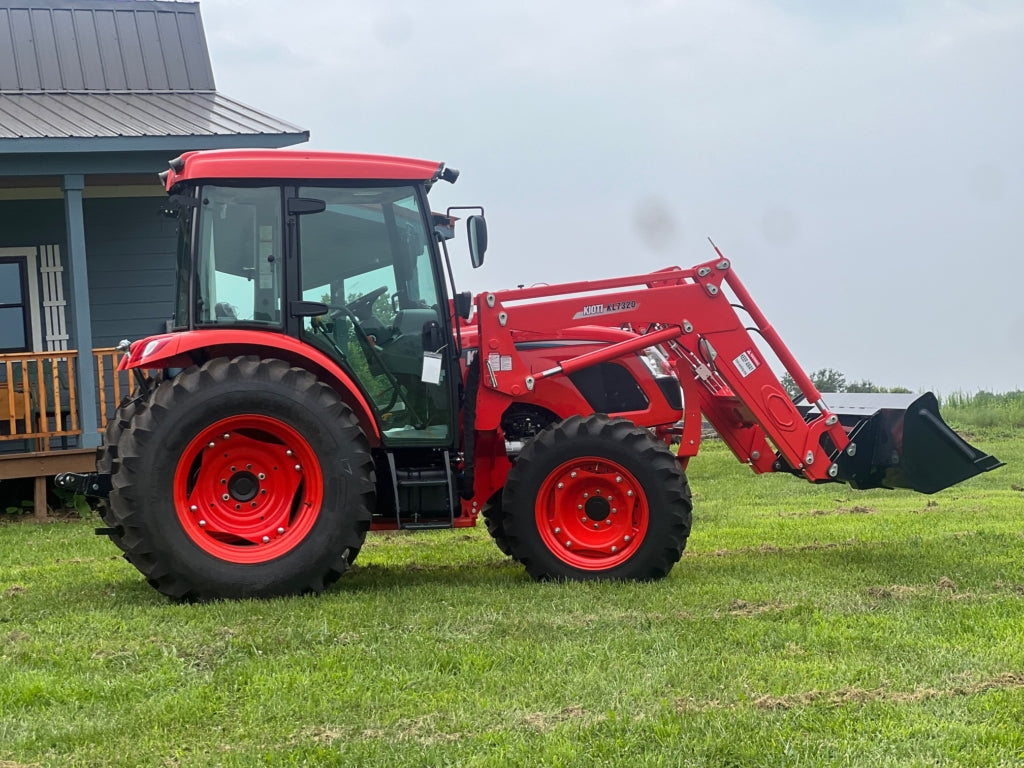

• Overall length (146.3 in / 3,715 mm) — Longer footprint improves fore‑aft stability with front loaders or rear implements and helps dampen pitching on rough turf.
• Overall height (104.5 in / 2,655 mm) — Clears typical 9 ft door headers; account for cab lights/antennas under trees and in enclosed trailers.
• Wheelbase (83.9 in / 2,130 mm) — Enhances ride quality, drawbar stability, and straight‑line traction while preserving a tight turning circle.
• Ground clearance (17.3 in / 440 mm) — Clears curbs, berms, and irrigation risers to prevent underbody strikes and turf gouging on headlands.
• Turning radius (11.2 ft / 3.40 m) — Tight U‑turns around trees, bunkers, and posts reduce overlap and speed up trim passes.
• Tread widths (Front 58.1 in / 1,465 mm; Rear 59.6 in / 1,515 mm) — Stable, turf‑protective stance that supports side‑hill confidence without excessive compaction.
• Operating weight and ballast (6,162 lb / 2,795 kg + front weights) — Natural traction and implement control on turf; added front kit improves front‑end stability during PTO and transport.
• Service‑ready design — Wet multi‑disc brakes and wet clutch handle frequent shuttling; simple, durable gear pump lowers maintenance complexity.


Detailed Specifications

Manuals & Documents

• Product Document

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

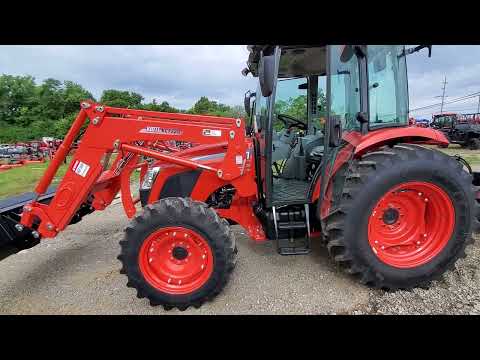

Videos
