Product Description
KIOTI Skid Steer Loader | Model SL750-LQ Cab | Width 74.4" | Length 144.7" | Height with Cab 81.2" | Hydraulic Flow 21.9 GPM | For Heavy-Duty Tasks
DESCRIPTION

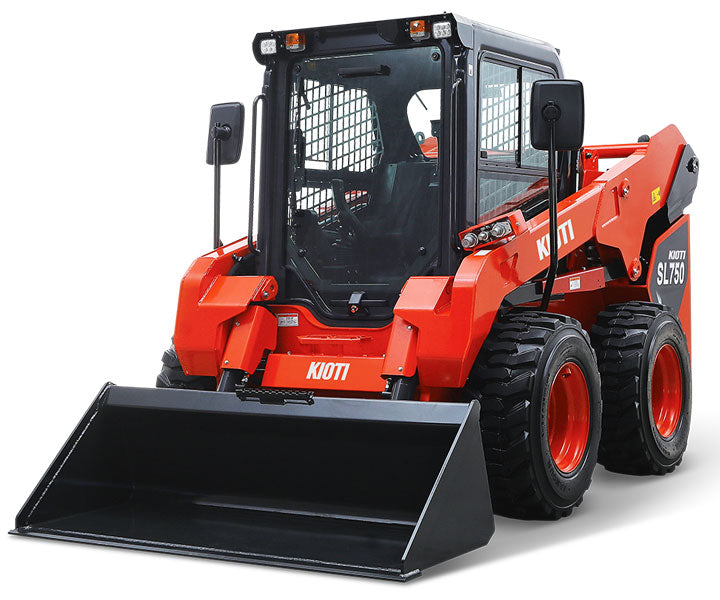

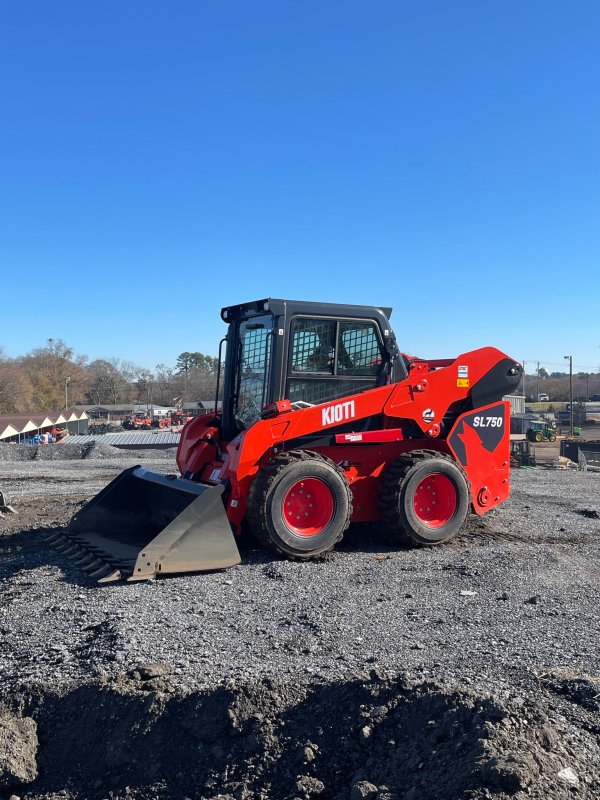

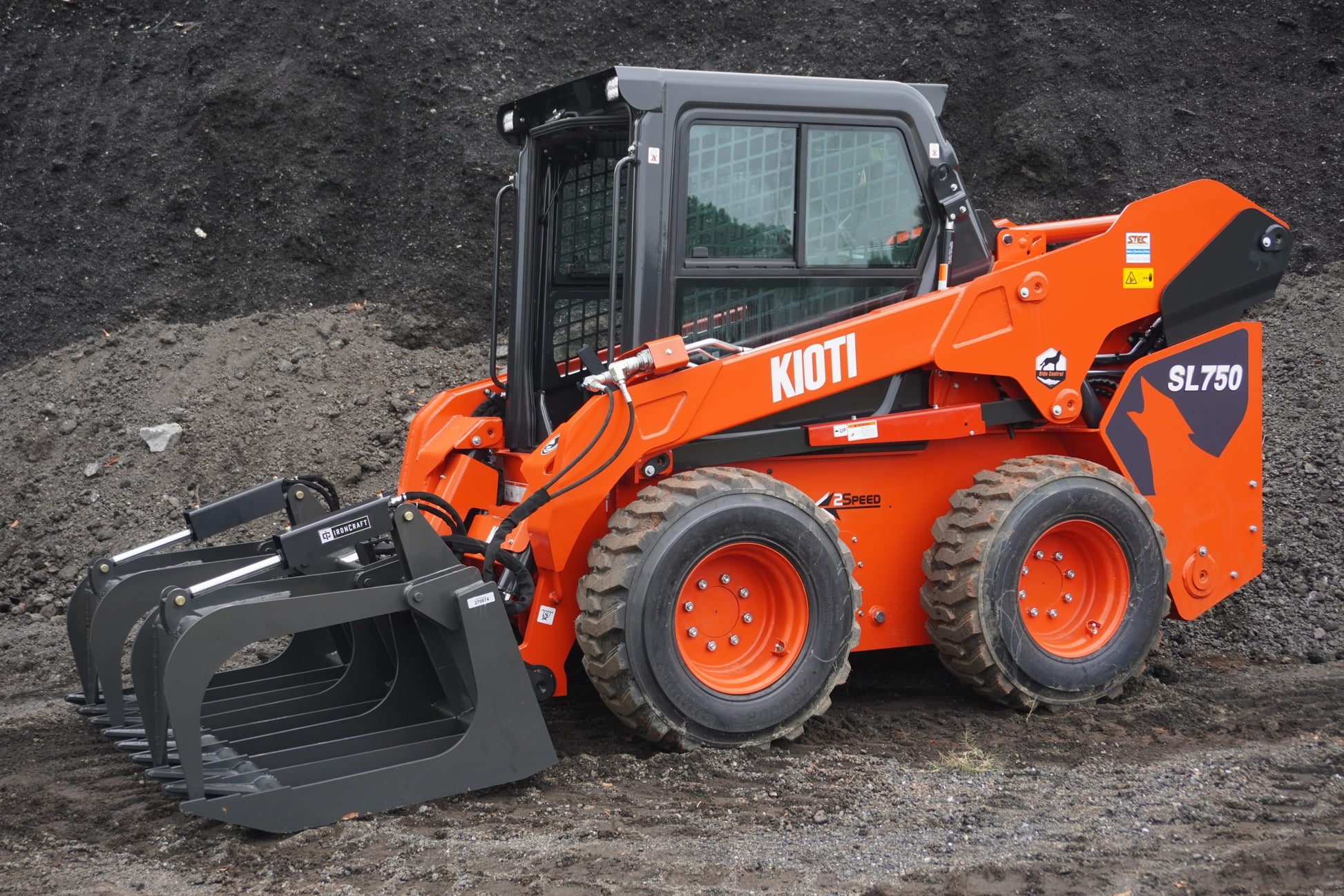

The KIOTI SL750-LQ Cab Skid Steer Loader is designed for professionals who demand power, comfort, and performance. Featuring a spacious enclosed cab with HVAC, a 74 HP KIOTI diesel engine, and Flow+ hydraulics delivering up to 21.9 GPM, this machine excels in lifting, pushing, and handling tough jobs efficiently.
With standard two-speed travel, pilot hydraulic joystick controls, and a rearview camera integrated into the digital display, the SL750-LQ ensures optimal visibility, control, and operator comfort, making it ideal for construction, landscaping, and material handling applications.
Key Features
- 74 HP KIOTI Diesel Engine: Delivers consistent power and reliability for heavy-duty operations.
- Spacious Enclosed Cab with HVAC: Ensures comfort and protection in all weather conditions.
- Pilot Hydraulic Joystick Controls: Provides intuitive, smooth machine operation with fingertip control for attachments.
- Standard Two-Speed Travel: Enables quick transitions between precision movement and high-speed transport.
- Integrated Rearview Camera: Displays on-demand visuals in the digital screen for enhanced operator awareness.
- Flow+ Auxiliary Hydraulics: Boosts power for light to medium-duty tasks with a cost-effective alternative to high-flow systems.
- LED Work Lights (Front & Rear): Improves visibility for safe operation in low-light conditions.

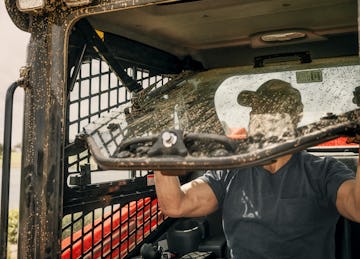

- Sliding Overhead Door: Allows for quick and convenient entry and exit, locking into an open position when needed.
- Vertical Lift Arm Path: Enhances lifting stability, ensuring efficient material handling and high breakout force.
- Rated Operating Capacity (50% Tip Load): 2,690 lbs, providing strong lifting capabilities for skid steer applications.
Detailed Specifications
| Feature | SL750-LQ Cab Skid Steer |
|---|---|
| Engine Power | 74 HP Diesel |
| Engine Model | KIOTI 4HTI4 |
| Engine Displacement | 148.6 cu. in. (2,435 cc) |
| RPM | 2,400 rpm |
| Fuel Capacity | 26.4 gal (100 L) |
| Hydraulic Pressure | 3,335 PSI (230 bar) |
| Hydraulic Flow (Flow+) | 21.9 GPM (82.9 LPM) |
| Lift Control | ISO Pilot Joystick |
| Tipping Load | 5,380 lbs (2,440 kg) |
| Rated Operating Capacity (50% Tip Load) | 2,690 lbs (1,220 kg) |
| Breakout Force – Tilt (Bucket) | 5,512 lbs (2,500 kg) |
| Breakout Force – Lift | 5,016 lbs (2,275 kg) |
| Traction Force | 6,347 lbs (2,879 kg) |
| Travel Speed (Min - Max) | 7.15 - 12.05 mph (11.50 - 19.40 km/h) |
| Wheelbase Length | 47.2 in (1,200 mm) |
| Length with Bucket | 144.7 in (3,675 mm) |
| Width with Bucket | 74.4 in (1,890 mm) |
| Height with Cab | 81.2 in (2,063 mm) |
| Height Max | 160.2 in (4,068 mm) |
| Ground Clearance | 7.7 in (195 mm) |
| Operating Weight (With Operator) | 8,633 lbs (3,916 kg) |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

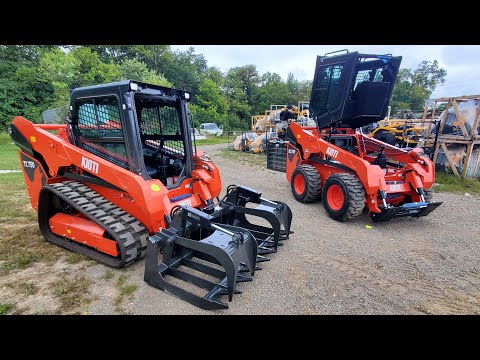

Videos
