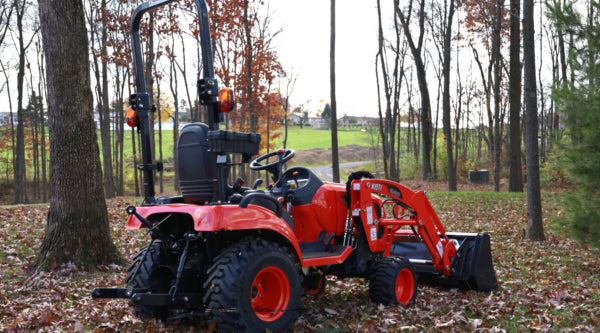

Kioti Tractor CS2520 Hydrostatic Sub-Compact Tractor
DESCRIPTION
Kioti Tractor CS2520 Hydrostatic Sub-Compact Tractor
20 Series models offer additional comfort and convenience features: tilt steering wheel, loader joystick on the fender, cruise control, metal floorboard with rubber mat, and phone charger.
Power and Performance
Fuel-efficient KIOTI 3-cylinder diesel engine with smooth-shifting hydrostatic transmission for optimal control. Standard differential lock ensures traction, while rear and mid PTOs and a category 3-point hitch let you attach a variety of implements with ease.
Hydrostatic Transmission
Infinite 2-range hydrostatic transmission for effortless control, twin pedals for intuitive forward and reverse movements, seamlessly adjusting speed without ever touching a clutch.
Streamlined Hood Design
Single-lever engaged 4WD is standard on the CS2210 tractor.
Ergonomic Operator Station
The ergonomically designed workstation places operator controls within easy reach for maximum comfort.
Foldable ROPS
The standard fold-down roll bar allows you to move into low clearance areas quickly and easily.
Headlights
55W lamps are the brightest in this tractor's class.
Control Levers
The HST with HI-LO range lever allows the tractor to overcome a wide range of load tasks. The rear PTO and mid PTO can be controlled separately or together with a simple in-line shifting lever. The height adjustment lever allows the operator to easily control the mid-mount mower grass cutting height.
Four Wheel Drive
Single-lever engaged 4WD is standard on the CS2210 tractor.
Twin HST Pedals
Twin HST pedals offer easy forward and reverse movement with smooth engagement, acceleration and deceleration. Pedal pressure is minimized which reduces operator fatigue during long hours of use.
Mid PTO
The standard mid PTO (2,200 rpm) allows you to use implements such as a mid-mount mower.
Illuminated Dashboard
The dashboard illuminates when the engine is started. The digital gauge package includes tachometer, fuel and temperature gauges along with a low fuel warning lamp.
FEATURES
Headlights
|
Foldable ROPS |
Rear PTO and 3-Point Hitch
|
Ergonomic Operator Station
|
Four Wheel Drive
|
Distinctive Hood Design
|
Twin HST Pedals
|
Mid PTO
|
Illuminated Dashboard
|
|
SPECIFICATIONS
Engine
Engine Model | 3C100LFH-U2 |
Engine Gross Power | 24.5 hp (18.3 kW) |
Rated Speed | 3,200 rpm |
No. of Cylinders | 3 |
Fuel Type | Diesel |
Displacement | 61.5 cu in. (1,007 cc) |
Fuel Tank Capacity | 6.7 gal. (25.5 L) |
Transmission
Transmission Type | Hydrostatic |
Main Gear | Hydrostatic |
No. Of Travel Speeds – Forward / Reverse | Infinite, 2 Range |
Min. Travel Speed Of Forward W/ Ag @ Engine Rated Speed | 0 Mph (0 Km/H) |
Max. Travel Speed Of Forward W/ Ag @ Engine Rated Speed | 9.57 Mph (15.4 Km/H) |
Power Take-Off
PTO Type | Independent |
PTO Power | 18.5 Hp (13.9 KW) |
Rear PTO Speeds(1st) | 540 Rpm |
Mid PTO Speeds | 2,200 Rpm |
Brakes and Clutch
Brakes | Wet Multi Disc |
Dimensions w/ AG Tire
Length W/ 3-Point Hitch | 99.3 In. (2,523 Mm) |
Width | 45.9 In. (1,168 Mm) |
Height From Top Of The Highest Point | 88 In. (2,226 Mm) |
Wheelbase | 55.1 In. (1,400 Mm) |
Ground Clearance | 6.4 In. (162 Mm) |
Front Tread Ag Tires – Min | 44.6 In. (1,133 Mm) |
Rear Tread Ag Tires – Min | 46 In. (1,168 Mm) |
Turning Radius W/ Brake | 8.2 Ft. (2.54 M) |
Hydraulics
Total Pump Flow | 6.97 Gpm (26.4 L/Min) |
3-Point Hitch
Standard Category | Category 1 |
Maximum Lifting Capacity (24”Aft. Of Hitch) | 700 Lbs. (318 Kg) |
Control Type | Position |
Weight
Weight W/ Ag Tires W/ ROPS | 1,554 Lbs. (705 Kg) |
