Kioti Tractor DK4520M Manual Tractor with Loader 44.9 hp (33.5 )
DESCRIPTION
Check out the new Dk4520! This is the new version of the Dk4510.
- CRDI Diesel Engine with Daedong ECO Technology: The new Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the DK20 Series offers the operator a quiet work environment with powerful performance.
- Projection and Working Lamp: With the new projection head and working lamp, the operator will experience safer and easier operation after the sun goes down.
- Deluxe Suspension Seat: Ergonomically designed, fully adjustable suspension seat allows the operator to ride in comfort no matter what the task may be. A pocket on the back of the seat allows easy access for the operator’s manual.
- Fender Grip: The fender grip, available on both sides, makes it easier get in and out of the tractor.
- Large Capacity Hydraulic Pump: The large capacity hydraulic pump (14.5 gpm) combined with high lift capacity (2,716 lbs.) increases productivity.
- PTO Cruise: With the electronically controlled engine, the PTO rpm can be maintained at the set value even with variable load conditions.
- Tail Lamp: The stylish tail lights improve operator safety by increasing visibility of the operator.
- High Ground Clearance: The maximum ground clearance of 15.2 in. (387 mm) makes usage on rocky or uneven terrain simpler.
- Center Marker: The center marker on the hood assists with maintaining straight rows.
- Power and Tilt Steering: The standard power steering minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of a lever, allowing easy adjustment to fit the operator needs.
FEATURES
- Engine Gross Power: 44.9 hp (33.5 )
- PTO Type: Independent
- Transmission Type: Synchronized Shuttle
- Shuttle: Dry Single Stage
- Open Station (ROPS)
- Rear differential lock
- Push-button hydraulic independent PTO
- Category I three-point hitch
- PTO guard
- NOTE: Front fenders not available in North America.
***Model pictured has a bale spear****
SPECIFICATIONS
Engine
Engine Model |
3HT-TM4B |
Engine Gross Power: |
44.9 hp (33.5 kW) |
Rated Speed: |
2,600 rpm |
No. of Cylinders: |
3 |
Fuel Type: |
Diesel |
Aspiration: |
Natural |
Displacement: | 111.4 cu.in. (1,826 cc) |
Fuel Tank Capacity: | 11.9 gal. (45 L) |
Transmission
Transmission Type | Synchro Shuttle |
Shuttle | Dry Type Single Stage |
Main Gear | |
No. Of Travel Speeds – Forward / Reverse | 8 X 8 |
Min. Travel Speed Of Forward W/ Ag @ Engine Rated Speed | 1.29 Mph (2.08 Km/H) |
Max. Travel Speed Of Forward W/ Ag @ Engine Rated Speed | 16.71 Mph (26.9 Km/H) |
Power Take-Off (PTO)
PTO Type Trans | Independent |
PTO Power | 38.9 Hp (29 KW) |
Rear PTO Speeds (1st) | 540 Rpm |
Brakes and Clutch
Brakes | Wet Multi Disc |
Clutch | Dry Single Plate |
Dimensions w/ AG Tire
Length W/ 3-Point Hitch | 124.3 In. (3,157 Mm) |
Width | 62.8 In. (1,596 Mm) |
Height From Top Of ROPS Cab | 96.8 In. (2,458 Mm) |
Wheelbase | 71.3 In. (1,810 Mm) |
Ground Clearance | 14.5 In. (368 Mm) |
Front Tread Ag Tires – Min | 49.4 In. (1,254 Mm) |
Rear Tread Ag Tires – Min | 49.3 In. (1,251 Mm) |
Turning Radius W/ Brake | 102.8 In. (2,610 Mm) |
Hydraulics
Pump | Gear |
Pump Capacity (Max. Flow Rate) | 14.56 Gpm (55.1 L/Min) |

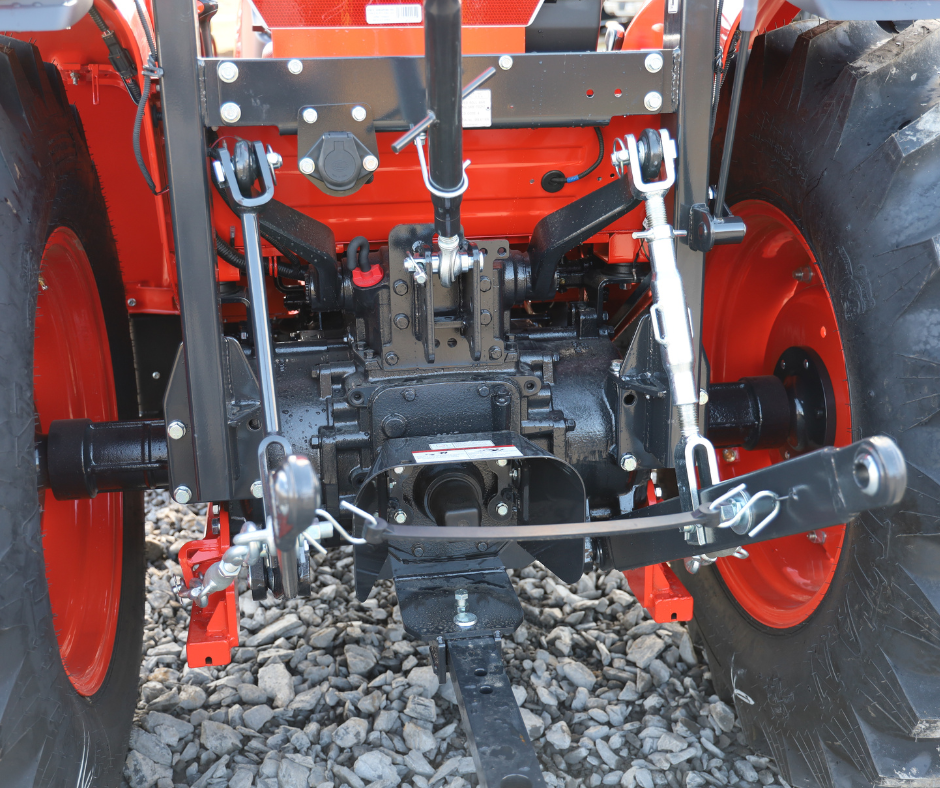

3-Point Hitch
Standard Category | Category I |
Lift Capacity, 24″ Aft Of Hitch | 2,716 Lbs. (1,232 Kg) |
Control Type | Position |
Weight
Weight With Ag Tires | 3,373 Lbs. (1,530 Kg) |
