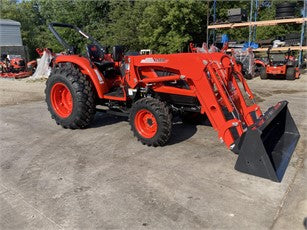

Kioti NS6010 4WD Hydrostatic Tractor | 60 HP Gross Power | 3-Range HST, and High Ground Clearance
Kioti NS6010 4WD Hydrostatic Tractor | 60 HP Gross Power | 3-Range HST, and High Ground Clearance
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Kioti NS6010 4WD Hydrostatic Tractor | 60 HP Gross Power | 3-Range HST, and High Ground Clearance
Description
The Kioti NS6010 4WD Premium Tractor is built for both the weekend farmer and the seasoned professional. With a 60 HP eco-friendly diesel engine and advanced HST transmission, this model delivers powerful, fuel-efficient performance while maintaining a quiet operation. Its three-range transmission and twin-pedal HST operation provide smooth, intuitive control, making it ideal for a variety of tasks, from fieldwork to landscaping.
Equipped with features like an independent hydraulic PTO, rear remote hydraulic valve, and single-lever joystick, the NS6010 offers superior versatility and user-friendly operation. High ground clearance and rugged tires make it capable of navigating challenging terrains, while advanced safety features, including wet disc brakes and a PTO safety interlock, ensure secure, hassle-free usage. With optional tire configurations and a variety of attachments, the NS6010 is designed to handle any job.
These tires were made for working. And that’s just what they’ll do.
|
Agricultural Front: 10-16.5 Rear: 13.6-24 |
 |
|
Industrial Front: 10-16.5 Rear: 14.9-24 |
 |
|
R14 Front: 10-16.5 Rear: 14.9-24 |
 |
|
Turf Front: 29-12.5-15 Rear: 21.5L-16.1 |
 |
Key Features
- Eco-Friendly Engine: 60 HP, Tier 4 CRDI diesel for efficient power
- Hydrostatic Transmission: Three-range HST for smooth operation
- 4WD System: Enhanced traction on tough terrain
- Single Lever Joystick: Precise loader control with float position
- Independent PTO: Hydraulic control for easy attachment use
- Rear Remote Valve: Standard for hydraulic implements
- High Ground Clearance: 13.4 inches for navigating uneven terrain
- Wet Disc Brakes: Reliable stopping power
- Cruise Control: For consistent speed during extended tasks
- Full Lighting: Headlights and working lights for low-light visibility
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | |
| Model | 3HT-S4TM58A |
| Gross Power | 60 HP (44.8 kW) |
| PTO Power | 36.6 HP (27.3 kW) |
| Rated Speed | 2,600 RPM |
| Fuel Type | Diesel |
| Aspiration | Natural |
| Displacement | 111.4 cu.in. (1,826 cc) |
| Fuel Capacity | 13.2 gal (50 L) |
| Transmission | |
| Type | Hydrostatic |
| Shuttle | Hydrostatic |
| Forward Speeds | 3 |
| Reverse Speeds | 3 |
| Max Speed (Forward) | 31.3 mph (19.4 km/h) |
| Max Speed (Reverse) | 13.6 mph (21.9 km/h) |
| PTO | |
| Type | Independent |
| Rear PTO Speed | 540 RPM |
| Mid PTO Speed (Optional) | 2,000 RPM |
| Drive Train | |
| Brakes | Wet Multi Disc |
| Clutch | None |
| Hydraulics | |
| Pump Type | Gear |
| Max Flow Rate | 16.5 GPM (62.4 L/min) |
| 3-Point Hitch | |
| Type | Category II |
| Control | Position with Draft Control |
| Lift Capacity | 2,716 lbs (1,232 kg) |
| Dimensions | |
| Length with Hitch | 136.4 in (3,465 mm) |
| Width | 67.1 in (1,705 mm) |
| Height with Cab | 98.4 in (2,500 mm) |
| Wheelbase | 75.5 in (1,918 mm) |
| Ground Clearance | 13.4 in (340 mm) |
| Front Tread | 51.1 in (1,297 mm) |
| Rear Tread | 54.3 in (1,380 mm) |
| Turning Radius | 11.04 ft (3.37 m) |
| Weight | |
| Weight | 4,027 lbs (1,827 kg) |
In Package
- Kioti NS6010 Tractor with Hydrostatic Transmission
- Operator’s Manual and Quick Start Guide
Available Options
- Tire Options: Turf, Industrial, R14
- Sunshade for open station
- Front weights for added stability
