Product Description
Kioti NS6010 Cab 4WD Tractor | 60 HP Gross Power | Hydrostatic Transmission, Climate-Controlled Cab
Description

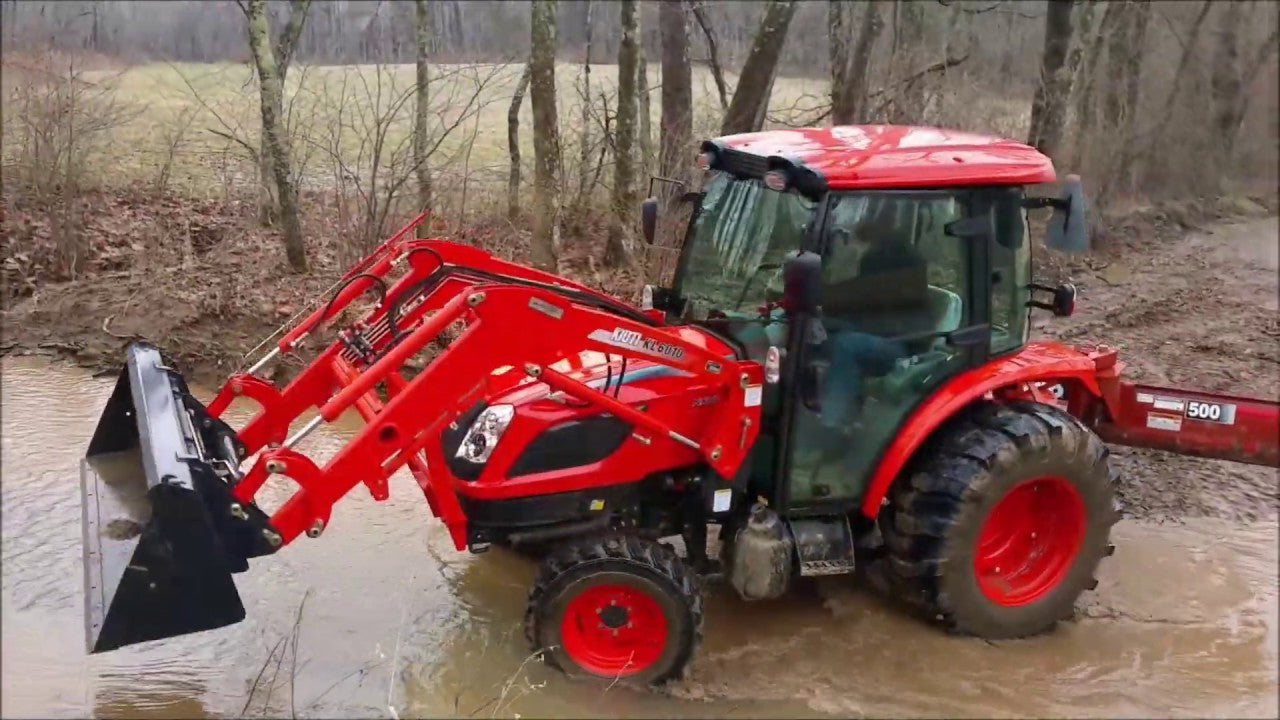

The Kioti NS6010 Cab 4WD Premium Tractor offers the perfect balance of power, efficiency, and comfort for various land management tasks. Equipped with a 60 HP Tier 4 CRDI diesel engine, this tractor provides high fuel efficiency, minimal noise, and robust performance. Its HST transmission with three travel ranges (Hi/Mid/Low) and twin-pedal control offers smooth and responsive operation, making it ideal for both heavy-duty and precision work.
This tractor features an independent hydraulic PTO for easy implement management, a rear remote hydraulic valve, and a single-lever joystick for precise loader operation. With a comfortable, climate-controlled cab, wet disc brakes, and enhanced lighting, the NS6010 is designed for safe, reliable use in all conditions. Optional tire configurations and cruise control further enhance its versatility, making it suitable for demanding jobs on any terrain.
These tires were made for working. And that’s just what they’ll do.
|
Agricultural Front: 10-16.5 Rear: 13.6-24 |
 |
|
Industrial Front: 10-16.5 Rear: 14.9-24 |
 |
|
R14 Front: 10-16.5 Rear: 14.9-24 |
 |
|
Turf Front: 29-12.5-15 Rear: 21.5L-16.1 |
 |
Key Features
- Eco-Friendly Engine: 60 HP Tier 4 CRDI for fuel efficiency
- Hydrostatic Transmission: Three-range HST with twin-pedal control
- 4WD System: Enhanced traction for various terrains
- Comfortable Cab: Climate-controlled with ergonomic seating
- Independent PTO: Rear PTO with auto and manual modes
- Joystick Control: Single-lever for smooth loader operation
- Rear Hydraulic Valve: Standard for hydraulic implement use
- Wet Disc Brakes: Reliable braking on rough terrain
- Cruise Control: Maintains steady speed for long tasks
- Enhanced Lighting: Projection and work lights for night tasks
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | |
| Model | 3HT-S4TM58A |
| Gross Power | 60 HP (44.8 kW) |
| PTO Power | 36.6 HP (27.3 kW) |
| Rated Speed | 2,600 RPM |
| Fuel Type | Diesel |
| Aspiration | Turbocharged |
| Displacement | 111.4 cu.in. (1,826 cc) |
| Fuel Capacity | 13.2 gal (50 L) |
| Transmission | |
| Type | Hydrostatic |
| Shuttle | Hydrostatic |
| Travel Speeds | 3 forward, 3 reverse |
| Max Speed (Forward) | 18.5 mph (29.7 km/h) |
| Max Speed (Reverse) | 13.6 mph (21.9 km/h) |
| PTO | |
| Type | Independent |
| Rear PTO Speed | 540 RPM |
| Mid PTO Speed (Optional) | 2,000 RPM |
| Drive Train | |
| Brakes | Wet Multi Disc |
| Clutch | None |
| Hydraulics | |
| Pump Type | Gear |
| Max Flow Rate | 16.5 GPM (62.4 L/min) |
| 3-Point Hitch | |
| Type | Category II |
| Control | Position with Draft Control |
| Lift Capacity | 2,932 lbs (1,330 kg) |
| Dimensions | |
| Length with Hitch | 136.4 in (3,465 mm) |
| Width | 70.4 in (1,789 mm) |
| Height with Cab | 93.7 in (2,380 mm) |
| Wheelbase | 75.5 in (1,918 mm) |
| Ground Clearance | 11.8 in (300 mm) |
| Front Tread | 51.3 in (1,303 mm) |
| Rear Tread | 56.9 in (1,444 mm) |
| Turning Radius | 11.16 ft (3.4 m) |
| Weight | |
| Weight | 4,614 lbs (2,093 kg) |
In Package
- Kioti NS6010 Cab Tractor with HST Transmission
- Operator’s Manual and Quick Start Guide
Available Options
- Tire Options: Turf, Industrial, R14
- Sunshade for open station
- Front weights for enhanced stability
