Product Description
Kioti NX5510M Manual Utility Tractor | 55 HP Gross Power |Synchro Shuttle, High Lift Capacity
Description

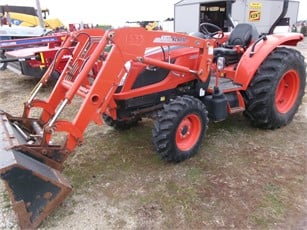

The Kioti NX5510M Manual Utility Tractor combines robust 55-horsepower performance with the versatility needed for tough property maintenance tasks. Equipped with a synchro shuttle transmission, spacious operator area, and independent PTO, this tractor is ideal for demanding jobs. Its eco-friendly Tier 4 CRDI diesel engine provides efficient power while keeping noise and emissions to a minimum, making it a quiet yet powerful companion for extended work sessions.
With PTO cruise control, torque compensation, and hydrostatic power steering, the NX5510M ensures smooth and precise operation. Features like projection headlamps for night work, a spacious operator platform, and an adjustable steering wheel enhance both comfort and productivity. This model’s high lift capacity and versatile 3-point hitch make it perfect for handling a wide range of implements and tasks.
Key Features
- Eco-Friendly Engine: 55 HP turbocharged diesel with low emissions
- Synchro Shuttle Transmission: 24 forward and reverse speeds
- High Lift Capacity: Supports up to 3,177 lbs on Category I & II hitch
- PTO Cruise Control: Maintains steady speed for implements
- Projection Headlamp: Enhanced visibility for night work
- Hydrostatic Power Steering: Smooth steering with tilt adjustment
- Torque Compensation: Steady power for consistent performance
- Independent PTO: Operates rear and optional mid PTO
- Spacious Operator Area: Comfortable open platform with ROPS
- High Ground Clearance: 15.7 inches for better maneuverability
Detailed Specifications
| Category | Specification |
|---|---|
| Engine Model | 3F183T |
| Engine Power | 55 HP (41 kW) |
| Rated Speed | 2,600 rpm |
| Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbocharged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 gal (56 L) |
| Transmission | Manual, Synchronized Shuttle |
| Travel Speeds (F/R) | 24 Forward / 24 Reverse |
| Min/Max Travel Speed | 0.12 mph to 17.35 mph (0.19-27.93 km/h) |
| PTO Power | 46 HP (34.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Plate |
| Dimensions (L x W x H) | 139.6 x 65.7 x 103.1 in |
| Wheelbase | 75.6 in |
| Ground Clearance | 15.7 in |
| Front/Rear Tread | 53.3 / 52.1 in |
| Turning Radius w/ Brake | 9.97 ft (3.04 m) |
| Hydraulic Pump Type | Gear, 16.5 GPM (62.4 L/min) |
| 3-Point Hitch Category | Category I & II |
| Lift Capacity (24" Aft) | 3,177 lbs (1,441 kg) |
| Weight | 4,209 lbs (1,909.2 kg) |
In Package
- Kioti NX5510M Manual Utility Tractor
- Loader Attachment
- Owner’s Manual and Quick Start Guide
Available Options:
- Mid PTO Speed: 2,000 rpm (optional)
- Tire Options: Ag, Turf, Industrial
