Kioti RX6020PCB 4WD Utility Premium Cab Tractor | 60 HP Gross Power | Shuttle With Creep Gear
Kioti RX6020PCB 4WD Utility Premium Cab Tractor | 60 HP Gross Power | Shuttle With Creep Gear
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Kioti RX6020PCB 4WD Utility Premium Cab Tractor | 60 HP Gross Power | Shuttle With Creep Gear
Description
The Kioti RX6020PCB 4WD Utility Premium Cab Tractor is designed for small to mid-sized farms and demanding tasks requiring power, comfort, and efficiency. Equipped with a 60 HP turbocharged Daedong diesel engine, this tractor operates smoothly and quietly, with minimal vibration and maximum fuel efficiency. Its power shuttle transmission with creep gear provides precision control and versatility, featuring 12 forward and 12 reverse speeds for various work conditions.

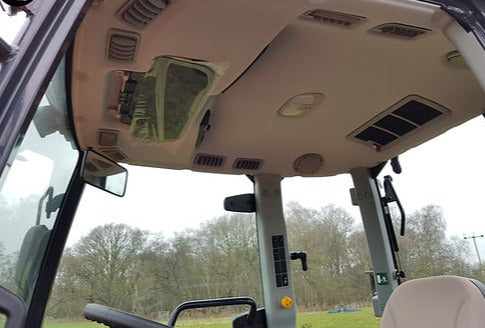

The RX6020PCB’s deluxe cab, with heat and air conditioning, ensures operator comfort in all seasons, while a single-lever joystick offers easy control over loader functions. Safety is prioritized with wet disc brakes, differential lock, and enhanced visibility through full lighting. Standard features such as a Category II 3-point hitch and independent PTO make it suitable for multiple attachments, providing a reliable solution for diverse farming needs.
Key Features
- High Power: 60 HP Daedong turbocharged diesel engine
- Power Shuttle Transmission: 12 forward/reverse speeds with creep gear
- Comfortable Cab: Climate-controlled with heat and AC
- Independent PTO: 540/540E RPM with manual and auto modes
- 4WD & Differential Lock: Improved traction on tough terrain
- Single Lever Joystick: Simplified loader operation
- Enhanced Hydraulics: 17.9 GPM flow rate for various attachments
- Eco-Friendly Engine: Low noise and emissions with high efficiency
- Wet Disc Brakes: Reliable braking under load
- Easy Maintenance: Accessible engine compartment
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | |
| Model | 4F243T |
| Gross Power | 60 HP (44.8 kW) |
| PTO Power | 57.6 HP (43 kW) |
| Rated Speed | 2,600 RPM |
| Fuel Type | Diesel |
| Aspiration | Turbocharged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Capacity | 25 gal (95 L) |
| Transmission | |
| Type | Power Shuttle |
| Shuttle | Synchronized |
| Travel Speeds | 12 forward, 12 reverse |
| Min Speed | 0.94 mph (1.51 km/h) |
| Max Speed | 21.79 mph (35.07 km/h) |
| PTO | |
| Type | Independent |
| Rear PTO Speed | 540/540E RPM |
| Drive Train | |
| Brakes | Wet Multi Disc |
| Clutch | Wet Disc |
| Hydraulics | |
| Pump Type | Gear |
| Max Flow Rate | 17.9 GPM (67.6 L/min) |
| 3-Point Hitch | |
| Type | Category II |
| Control | Position, Draft, Mixed Control |
| Lift Capacity | 3,594 lbs (1,630 kg) |
| Dimensions | |
| Length with Hitch | 145 in (3,685 mm) |
| Width | 70.9 in (1,800 mm) |
| Height with Cab | 103.6 in (2,630 mm) |
| Wheelbase | 82.7 in (2,100 mm) |
| Ground Clearance | 16.5 in (420 mm) |
| Front Tread | 57.7 in (1,465 mm) |
| Rear Tread | 55.7 in (1,415 mm) |
| Turning Radius | 10.2 ft (3.1 m) |
| Weight | |
| Weight | 5,732 lbs (2,600 kg) |
In Package
- Kioti RX6020PCB Cab Tractor with Power Shuttle and Creep Gear
- Operator’s Manual and Quick Start Guide
Available Options
- Tire Options: Turf, Industrial, Agricultural
- Sunshade for added operator comfort
- Front weights for stability in heavy lifting
