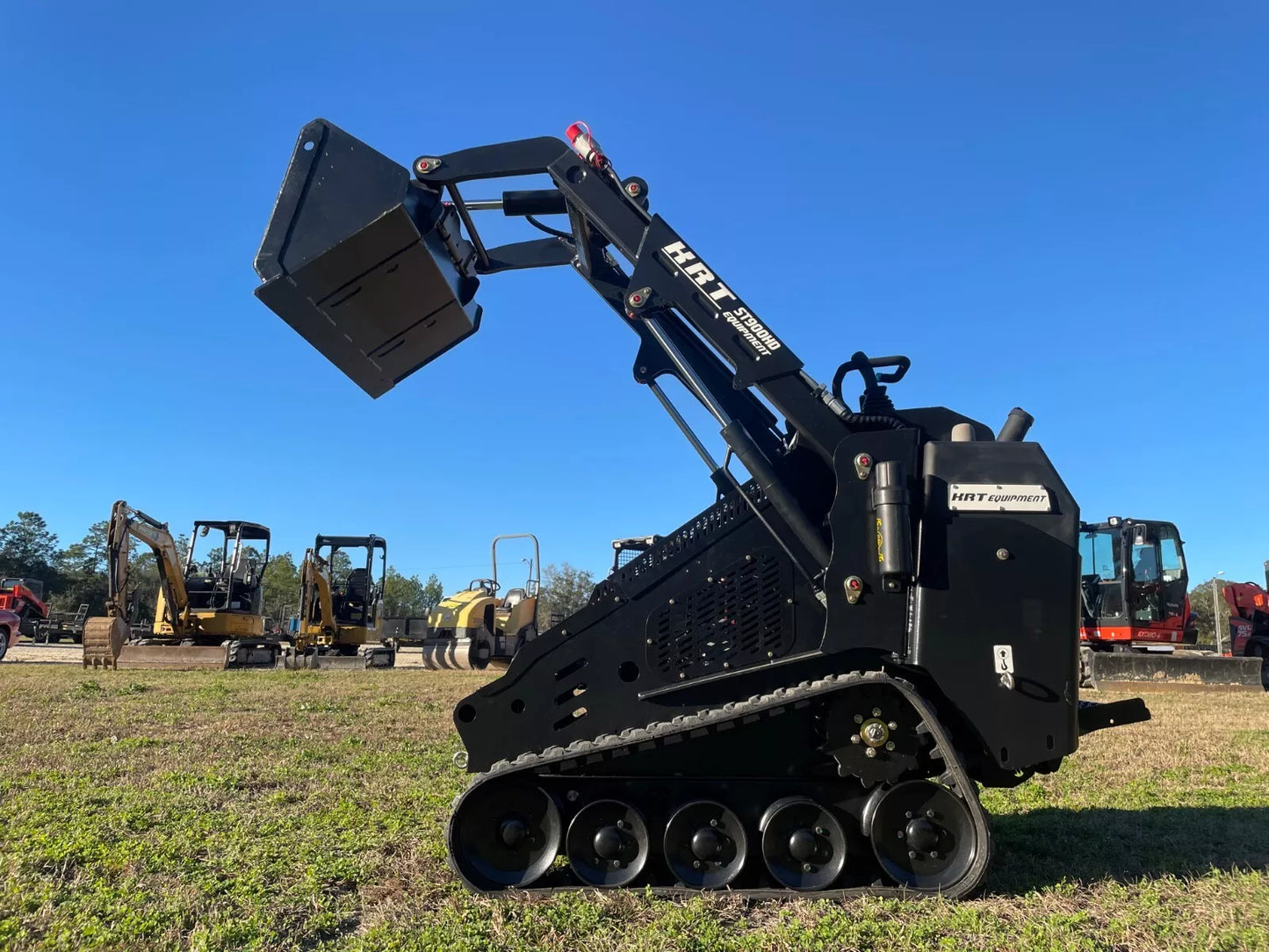

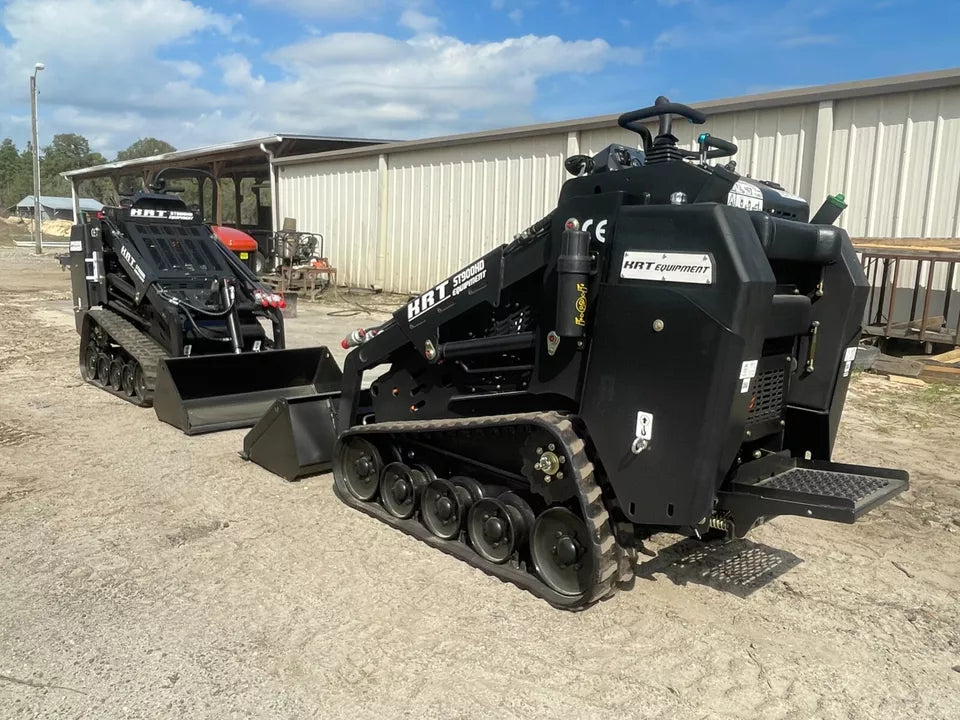

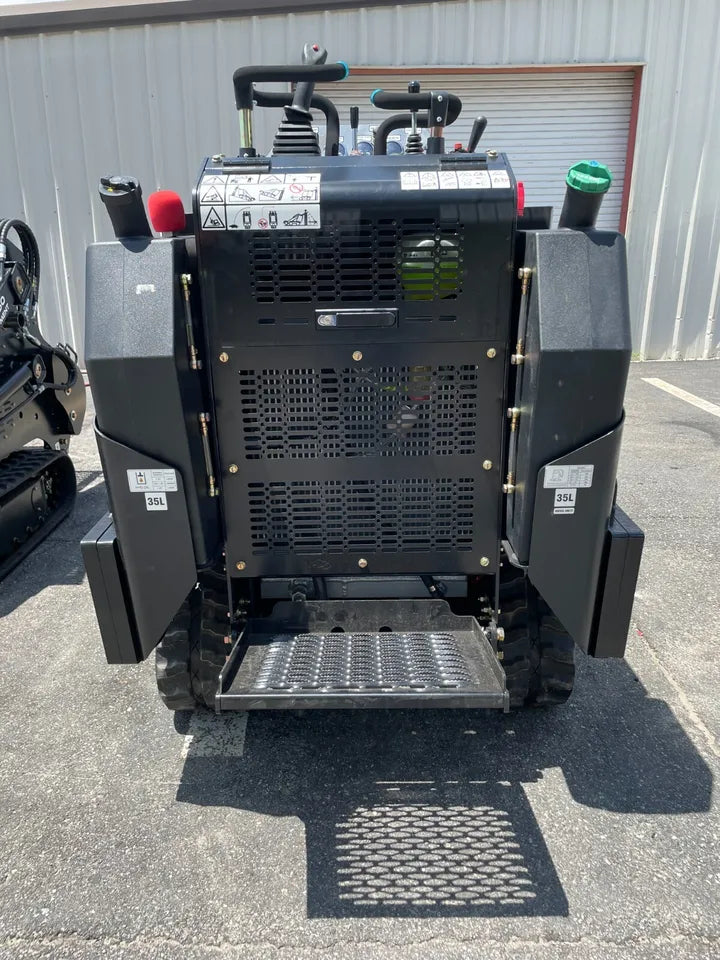

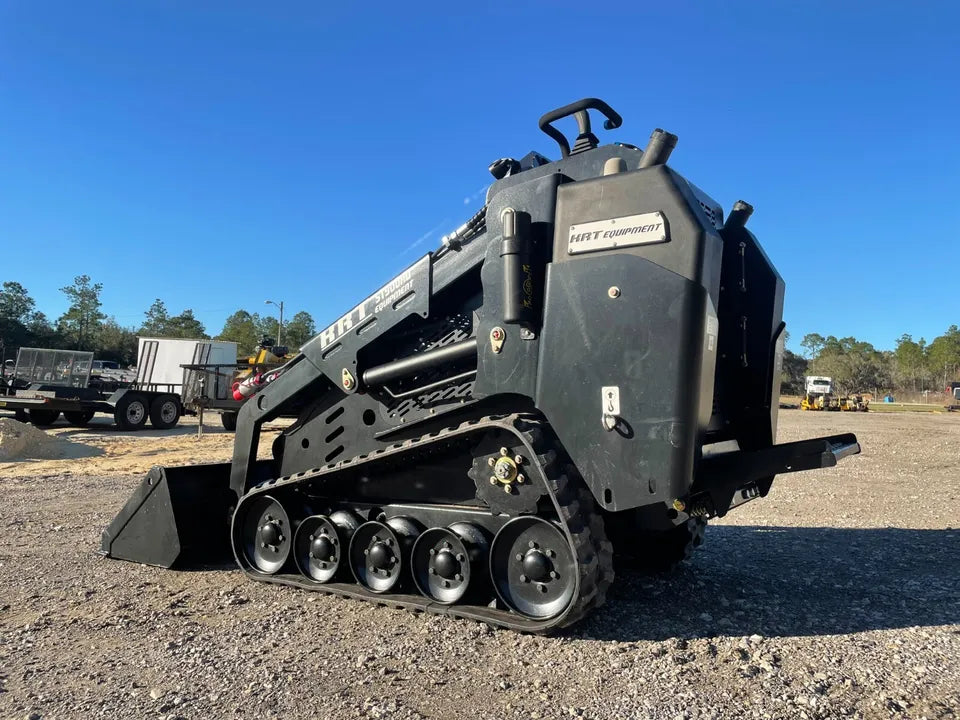

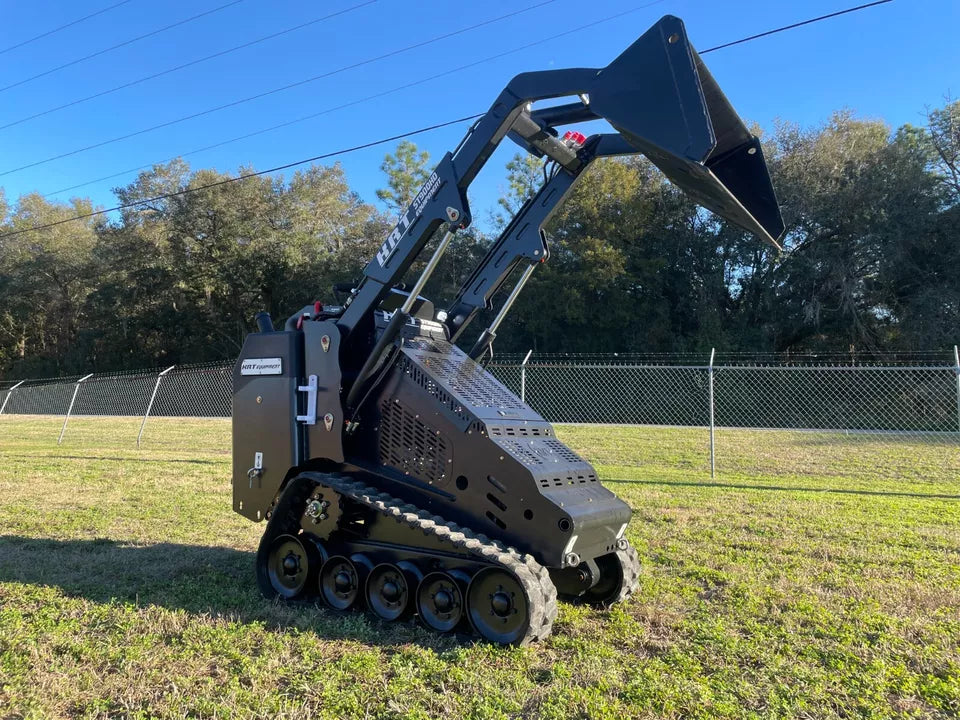

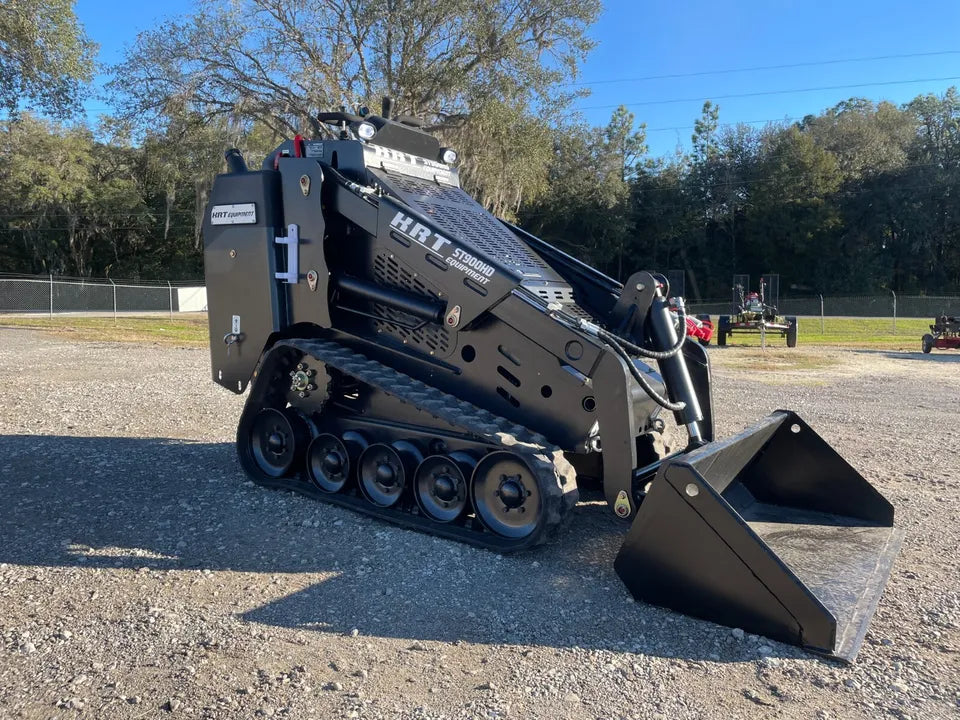

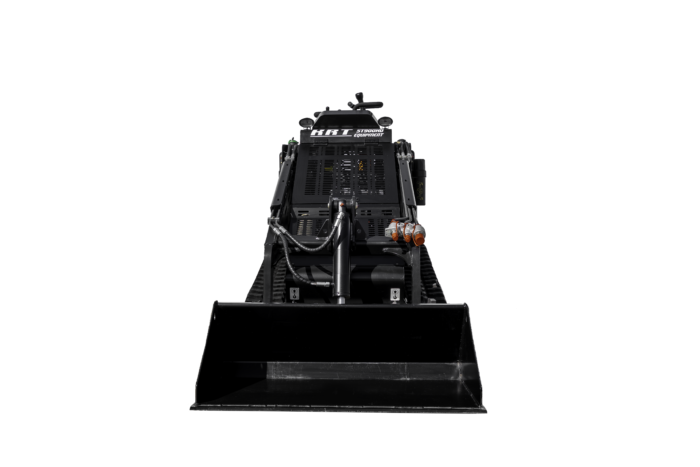

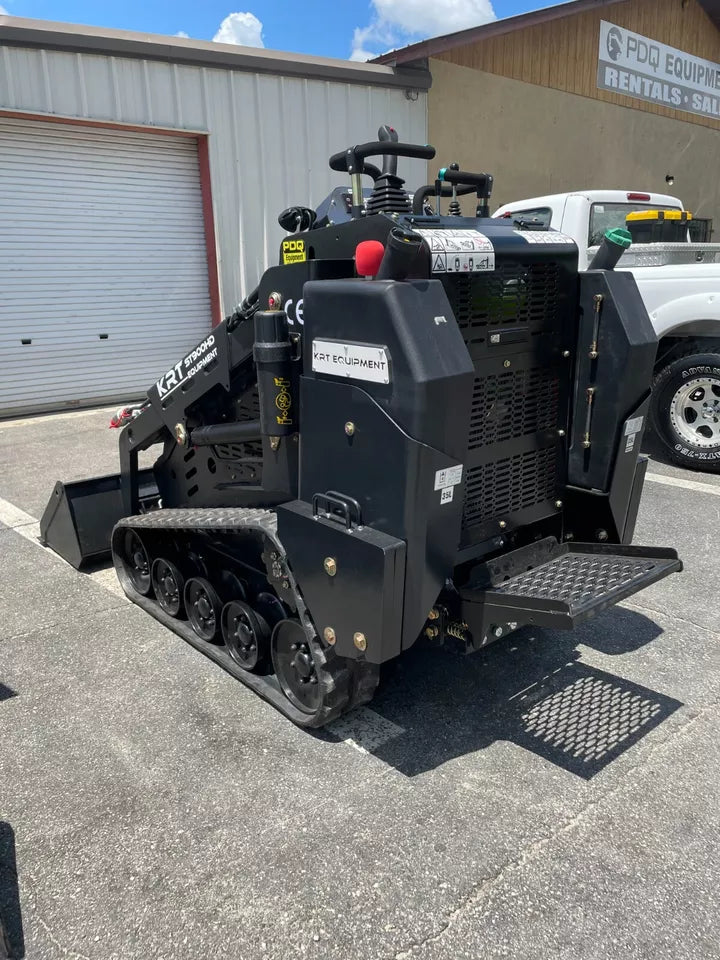

KRT Equipment Compact Track Loader | Model ST 900 HD | Loading Capacity 1,102 Lbs | 25 HP | For Mini Skid Steer
KRT Equipment Compact Track Loader | Model ST 900 HD | Loading Capacity 1,102 Lbs | 25 HP | For Mini Skid Steer
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

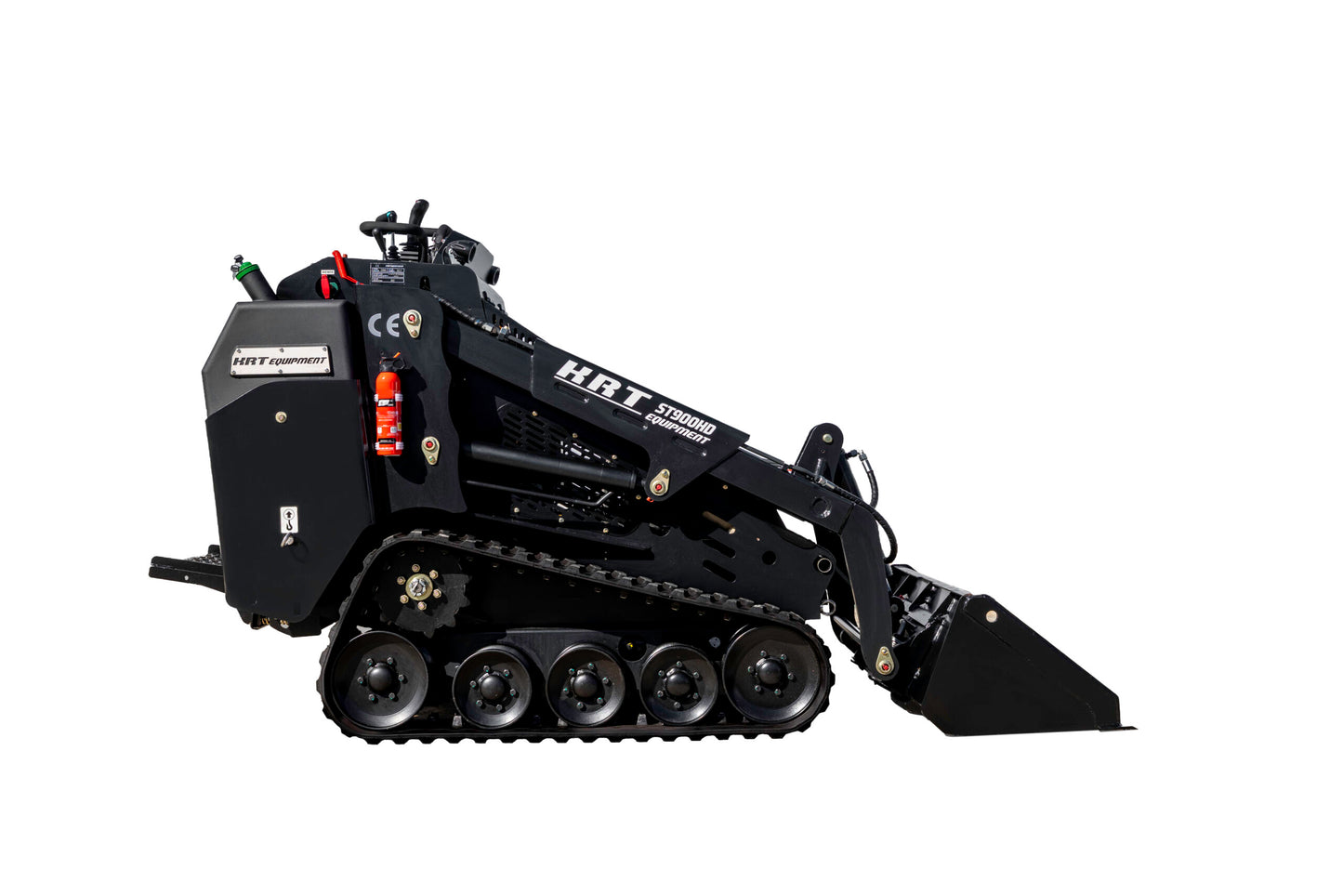

KRT Equipment Compact Track Loader | Model ST 900 HD | Loading Capacity 1,102 Lbs | 25 HP | For Mini Skid Steer
DESCRIPTION

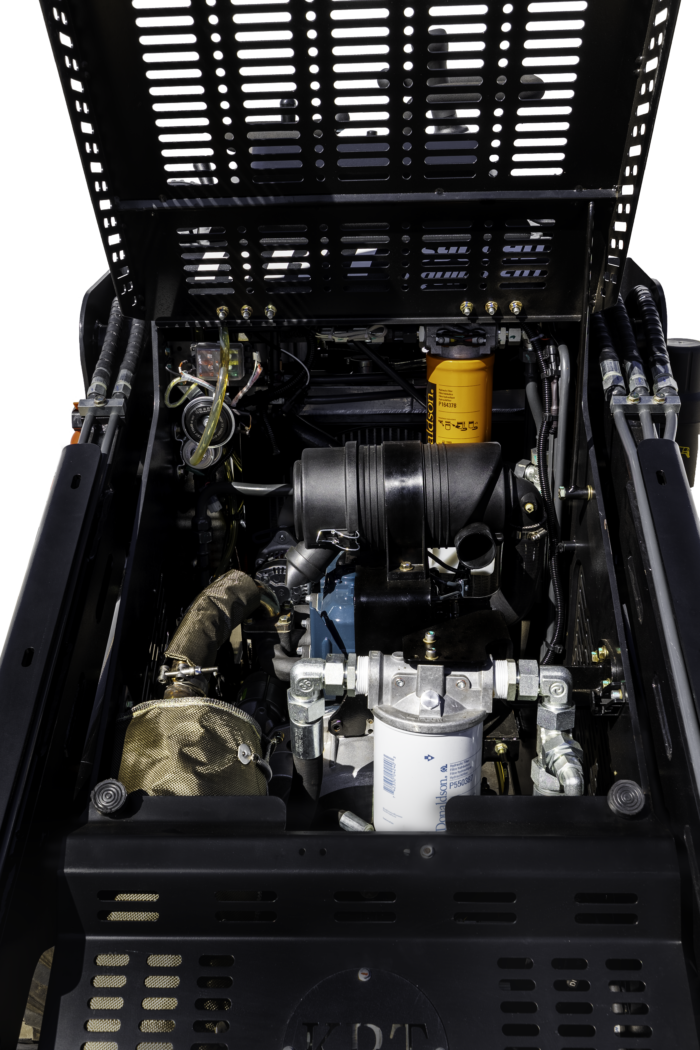

The KRT Equipment ST 900 HD Mini Skid Steer is designed for outstanding performance, reliability, and versatility, tailored to meet the demands of both construction and landscaping projects. This robust mini skid steer is built to tackle a wide range of heavy-duty tasks with ease, thanks to its impressive 1,102 lbs loading capacity and compact 41-inch width, allowing access to narrow or confined areas. Operators can choose between a Perkins Diesel Engine (25 HP, Tier 4 EPA compliant) and a Kubota Diesel D1703 Engine (24.8 HP, Tier 4 EPA compliant) for added power.
The machine's advanced hydraulic system, featuring Hansa Italian-made triple pumps and two Danfoss drive motors, ensures smooth and powerful operation across applications. With a ground clearance of 3.75 inches and ground speed of 4.3 mph, the ST 900 HD balances power with mobility, making it the perfect choice for demanding tasks across construction, material handling, and landscaping.
Key Features
- Loading Capacity: Capable of lifting up to 1,102 lbs, making it ideal for various heavy-duty tasks.
- Engine Options: Comes with a Perkins Diesel Engine (25 HP, Tier 4 EPA approved) and an upgrade option to the Kubota Diesel D1703 Engine (24.8 HP, Tier 4 EPA approved) for an additional $1,749.
- Compact Design: At an overall width of 41 inches, it offers easy maneuverability in tight spaces.
- Heavy-Duty Performance: Operating weight of 3,527 lbs and hinge pin height of 83 inches, perfect for high-lift applications.
- Durable Hydraulic System: Equipped with Hansa triple pump and Danfoss hydraulic drive motors for powerful and efficient operation.
Detailed Specifications
| Specification | Details |
|---|---|
| Loading Capacity | 1,102 lbs |
| Engine Options | Perkins Diesel Engine: 25 HP, Tier 4 EPA approved Kubota Diesel D1703 Engine: 24.8 HP, Tier 4 EPA approved (additional cost of $1,749) |
| Operating Weight | 3,527 lbs |
| Overall Width | 41 inches |
| Bucket Width | 44 inches |
| Hinge Pin Height | 83 inches |
| Overall Length (without bucket) | 82 inches |
| Overall Length (with bucket) | 106 inches |
| Wheelbase | 42.5 inches |
| Ground Clearance | 3.75 inches |
| Ground Speed | 4.3 mph |
| Track Size | 200 x 72 x 45 |
| Track Width | 7.78 inches |
| Hydraulic Output Flow | 16.5 GPM |
| Hydraulic Triple Pump | Hansa Italian-made |
| Hydraulic Valve | Italian HC Control Valve |
| Hydraulic Drive Motors | Danfoss (2) |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

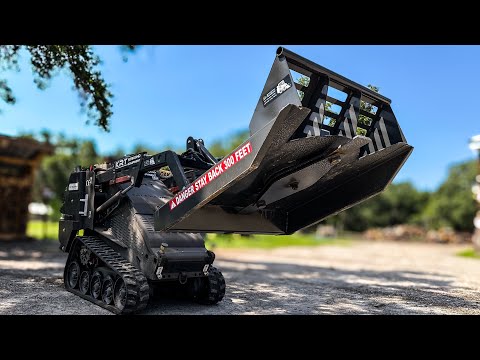

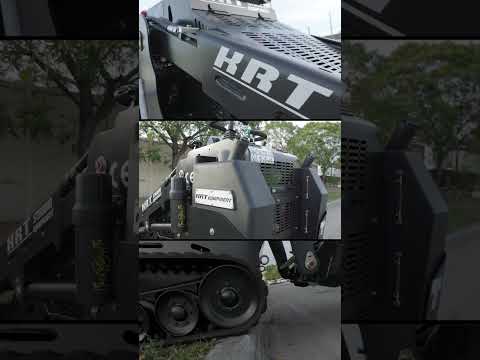

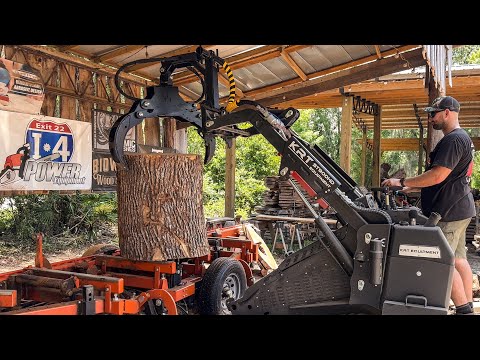

Videos
