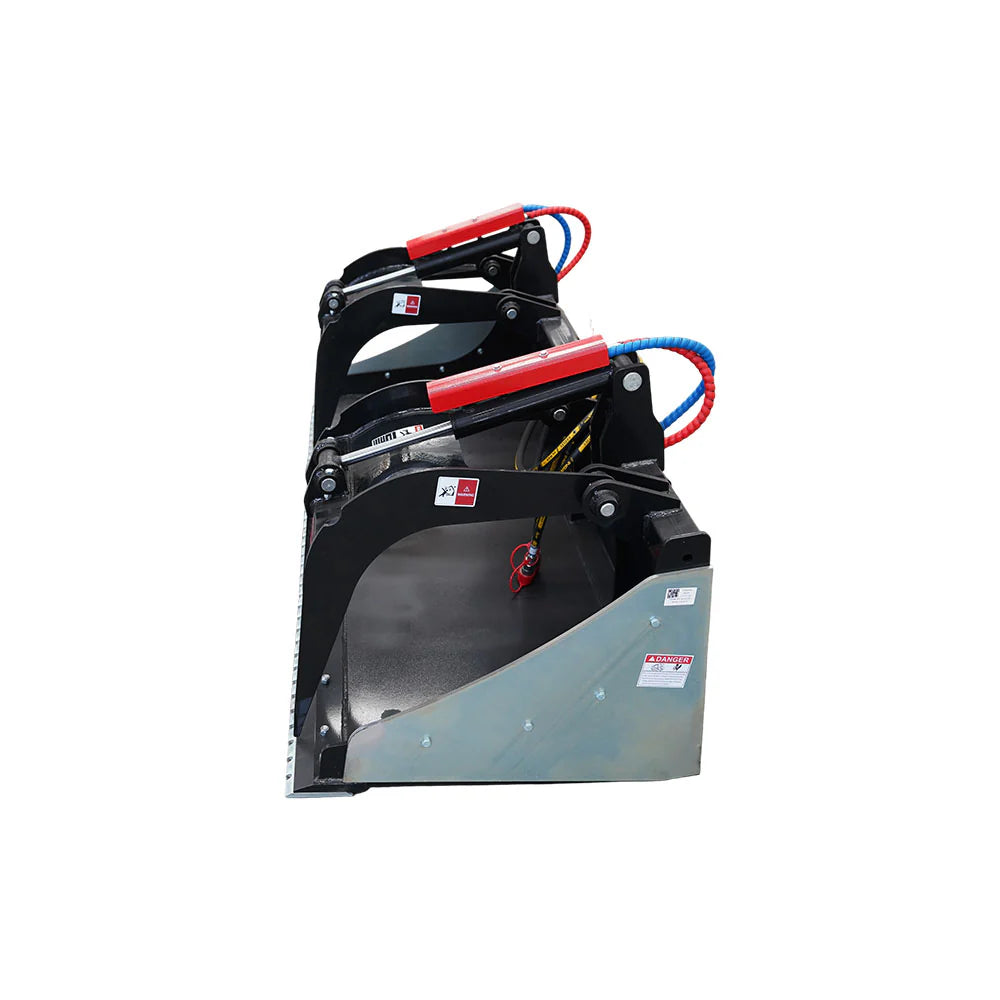

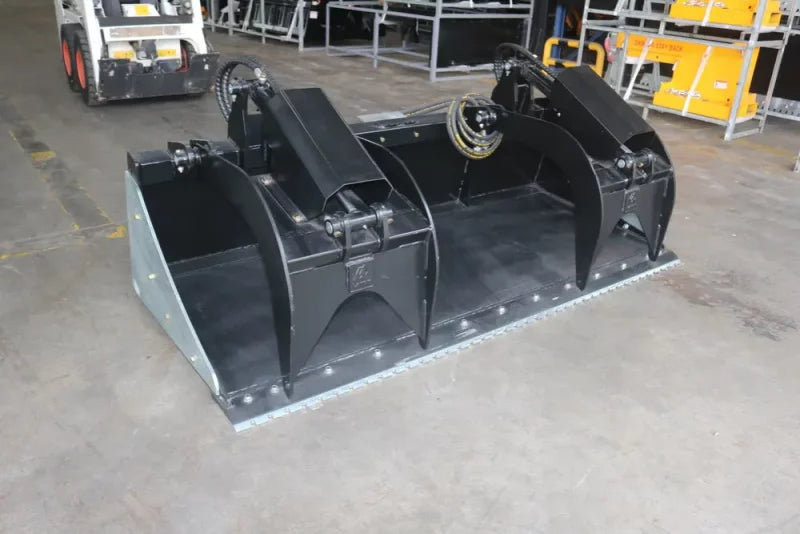

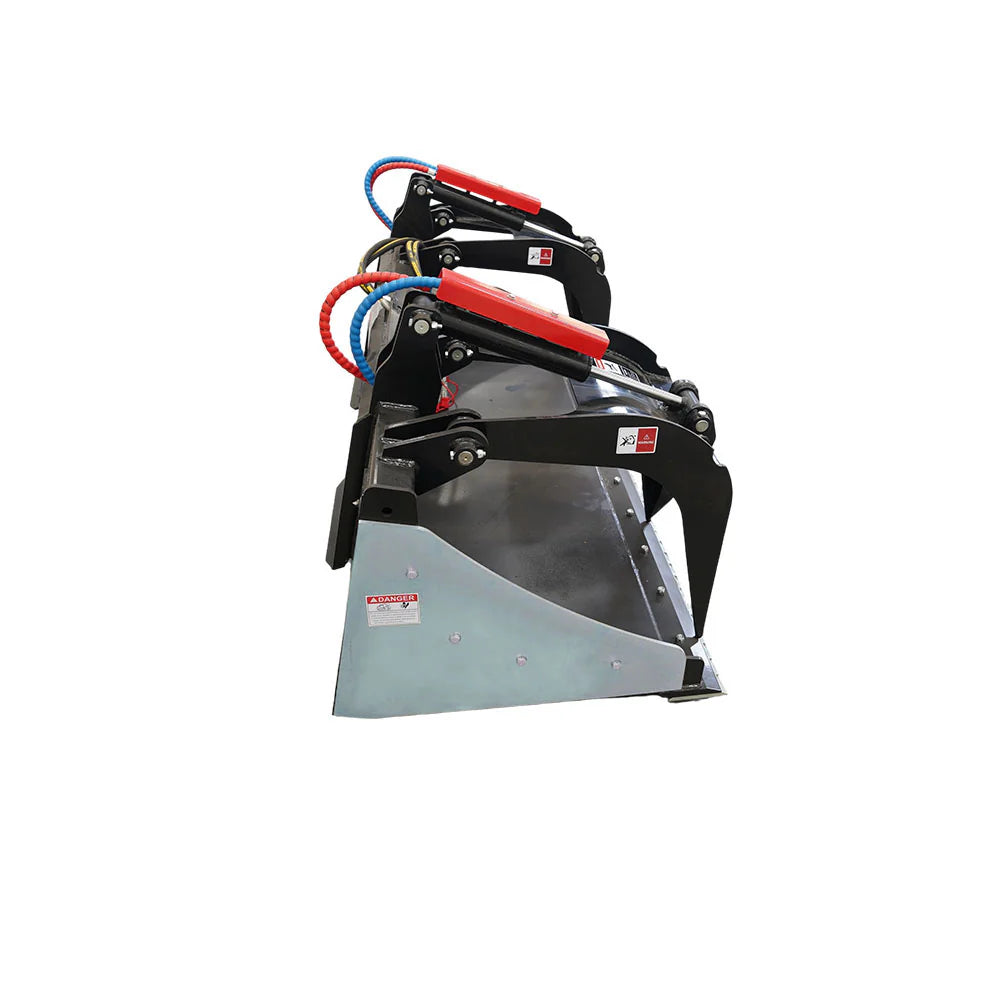

Landy Attachments Grapple Bucket | Widths 78" & 85" | 25-40 HP | 16 GPM | For Skid Steers, Tractors, ATVs & UTVs

Landy Attachments Grapple Bucket | Widths 78" & 85" | 25-40 HP | 16 GPM | For Skid Steers, Tractors, ATVs & UTVs

Regular price $3,469.00
Regular price Sale price $3,469.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Width: 78" or 85" options available.
  • Hydraulic Flow: 15.85–16 GPM required.
  • Weight: 1086.5 lbs (78") & 1135 lbs (85").
  • For Skid Steers, Tractors, ATVs, UTVs with quick attach.
  • Safe Working Load: 3493 lbs (78") & 3801 lbs (85").
View full details

Product Description

Landy Attachments Grapple Bucket | Widths 78" & 85" | 25-40 HP | 16 GPM | For Skid Steers, Tractors, ATVs & UTVs

DESCRIPTION

The Landy Attachments Skid Steer Grapple Bucket is the ultimate solution for heavy-duty material handling, offering two versatile size options: the 78-inch and 85-inch models. These high-performance grapple buckets are designed to make your loading, leveling, and debris management tasks more efficient, whether you're working with a skid steer, tractor, ATV, or UTV. Equipped with dual hydraulic grapple arms, these buckets deliver impressive gripping and lifting capabilities, making them ideal for both large and irregular loads.

The 78-inch model boasts a Safe Working Load (SWL) of 3493.34 lbs, while the 85-inch model offers an upgraded SWL of 3801 lbs, both ensuring durability and reliability. With reinforced bodies, high-flow hydraulic systems, and welded cutting edges, these buckets provide the strength and precision needed for tough jobs. The 38.6-inch grapple opening allows for easy handling of bulky materials, and the quick attach mounting system ensures compatibility with a wide range of machines.

Whether you're in construction, landscaping, or forestry, the Landy Grapple Bucket will help you get the job done efficiently. These buckets feature 15.85 GPM hydraulic flow and operating pressures of 16 MPa, ensuring smooth and powerful operation. Choose the Landy Grapple Bucket for a robust, versatile attachment that maximizes productivity and minimizes effort.

Key Features

  • Heavy-Duty Construction Built with 1/4-inch reinforced body and 1/2-inch tines, these buckets offer unmatched durability for demanding tasks.

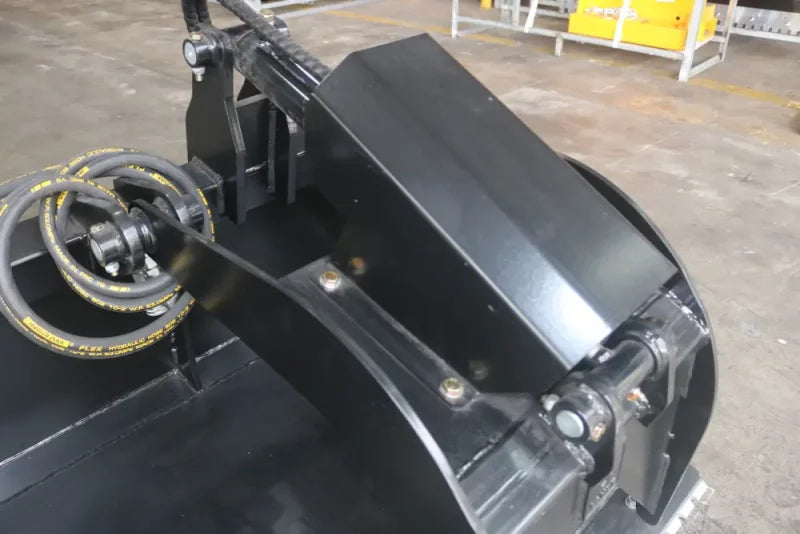

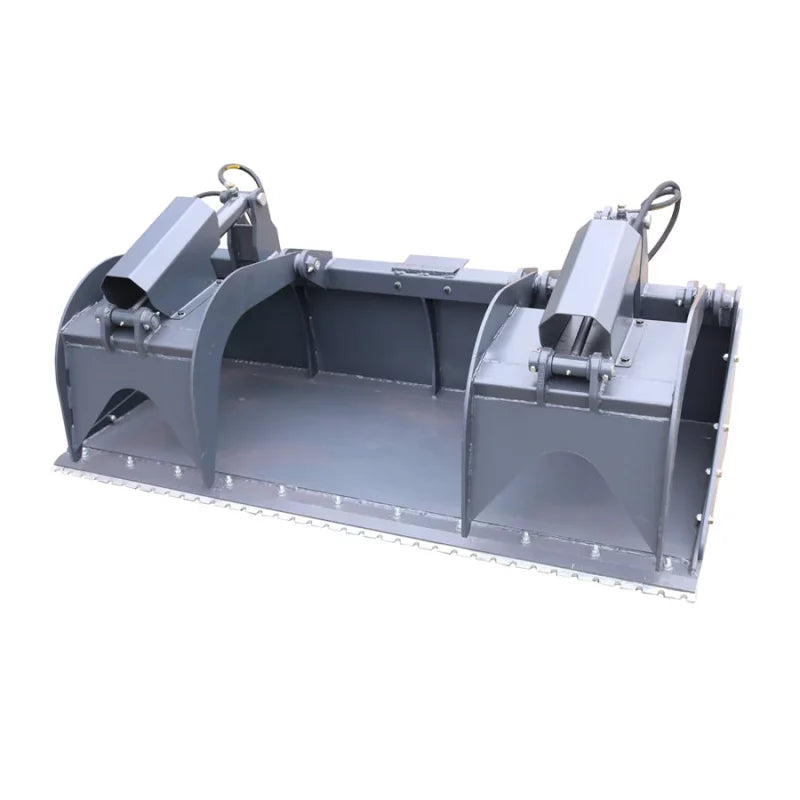

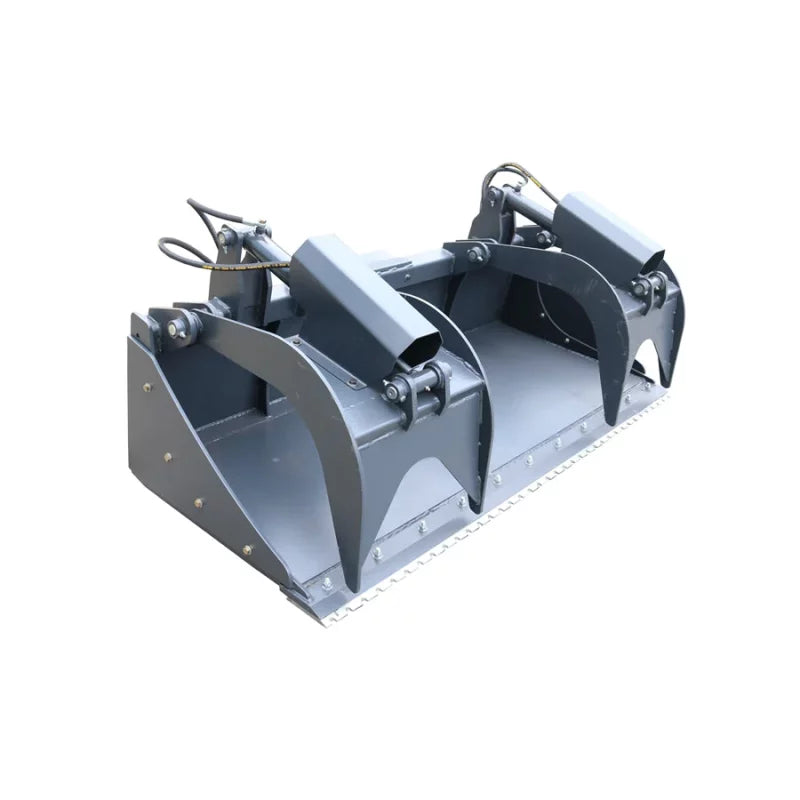

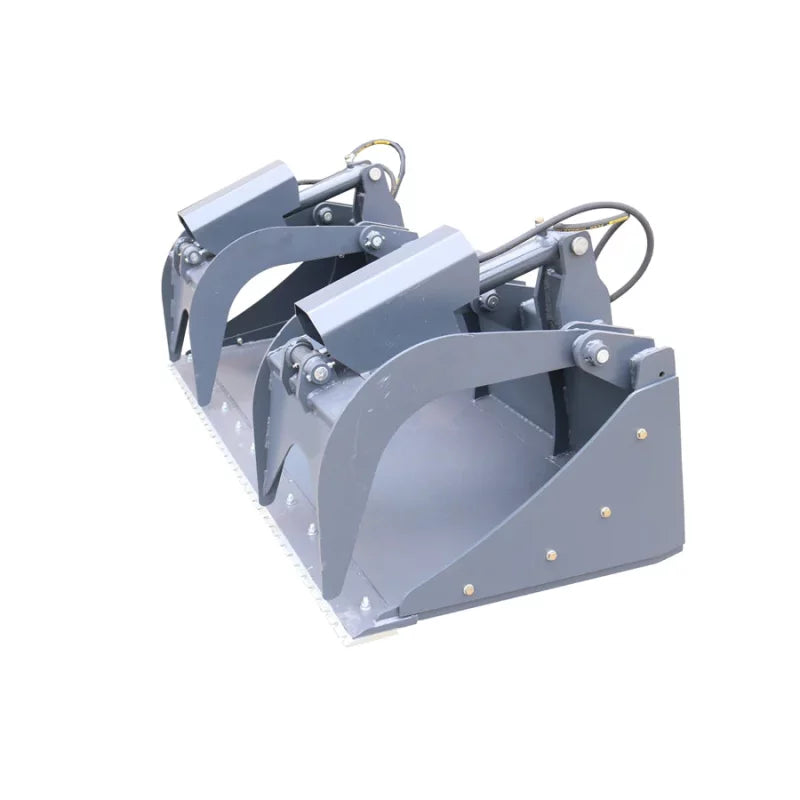

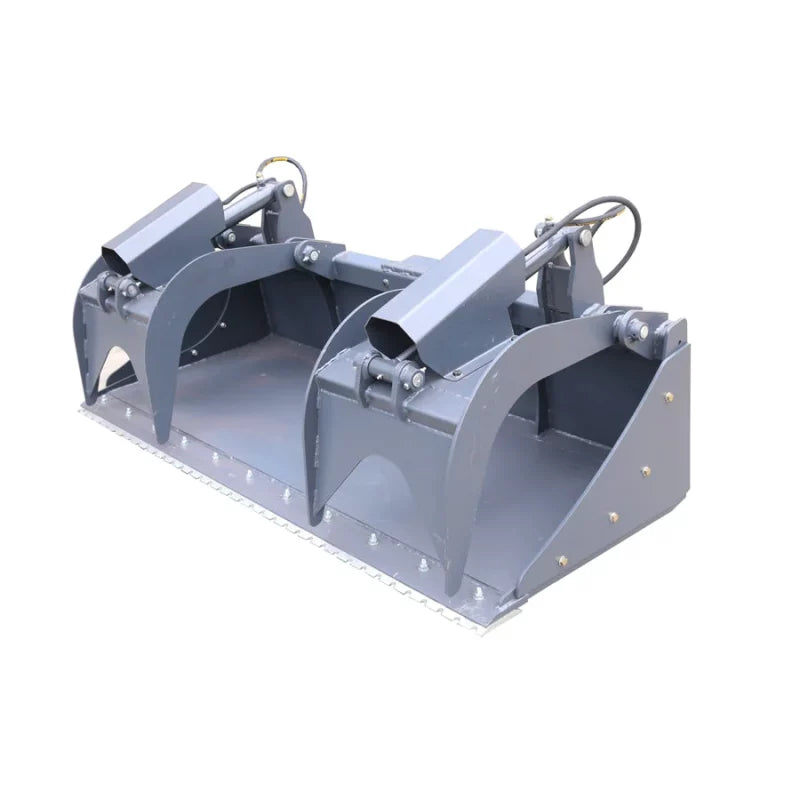

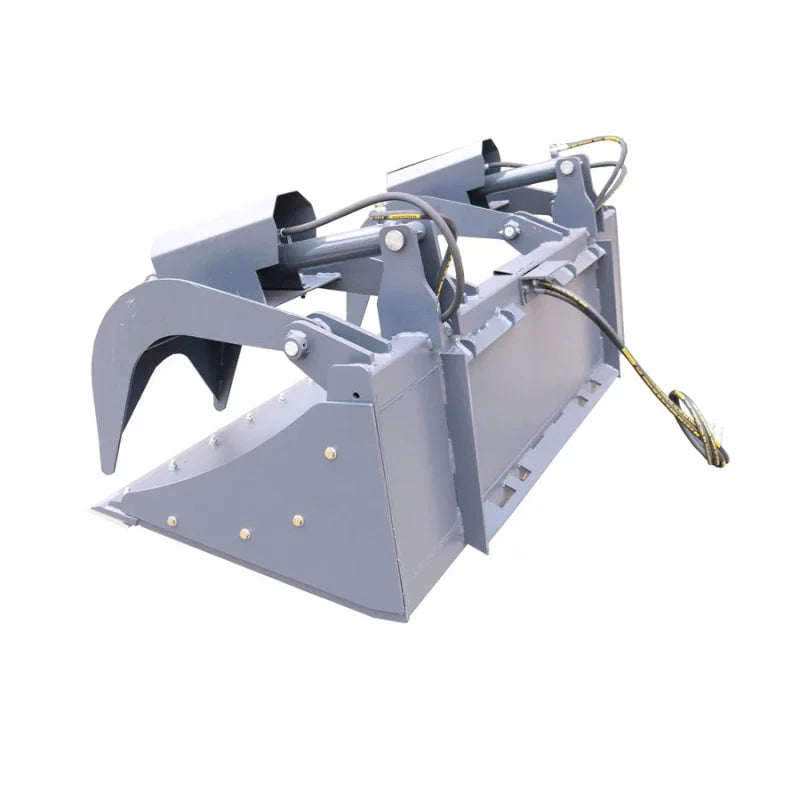

  • Dual Hydraulic Grapples Two independent hydraulic arms ensure exceptional gripping power and flexibility for handling large, uneven materials.
  • Large Grapple Opening With a 38.6-inch opening, these buckets can easily grab and lift a variety of materials, including logs, rocks, and debris.

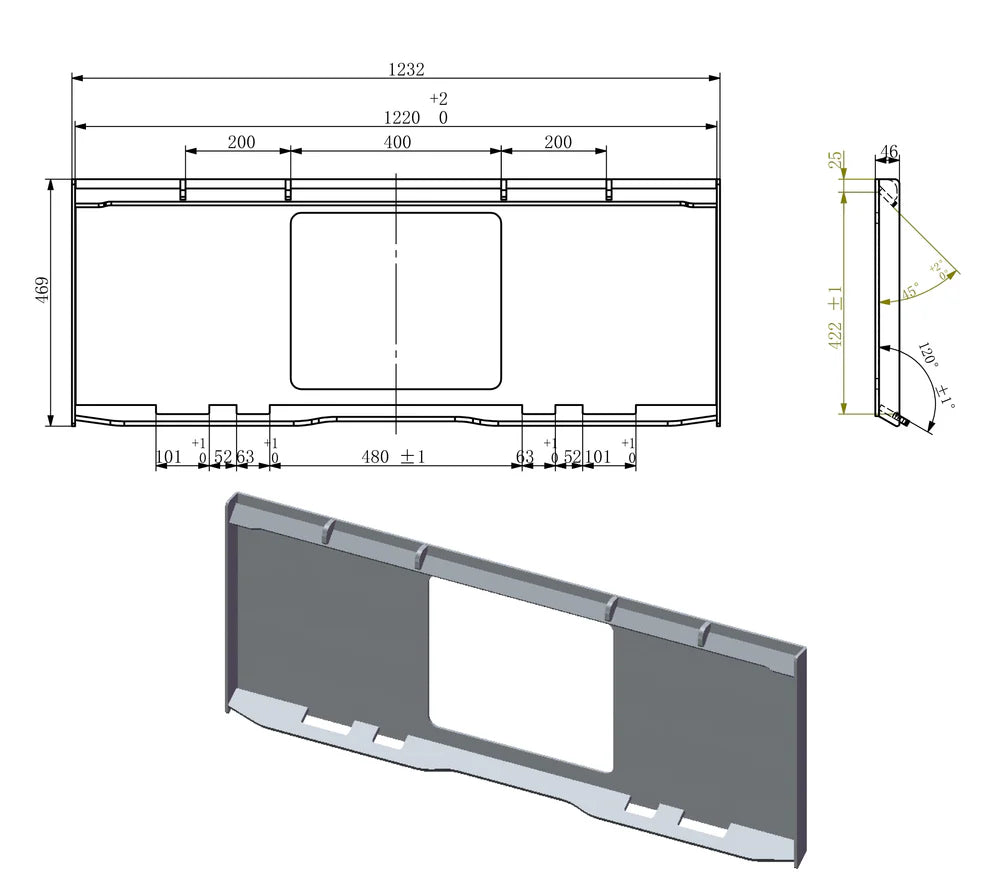

  • Quick Attach Mount Universal skid steer quick attach system ensures easy installation and compatibility with most loaders and machinery.
  • Versatile Sizing Options Choose from the 78-inch model with a SWL of 3493 lbs or the 85-inch model with a SWL of 3801 lbs to suit your specific material handling needs.

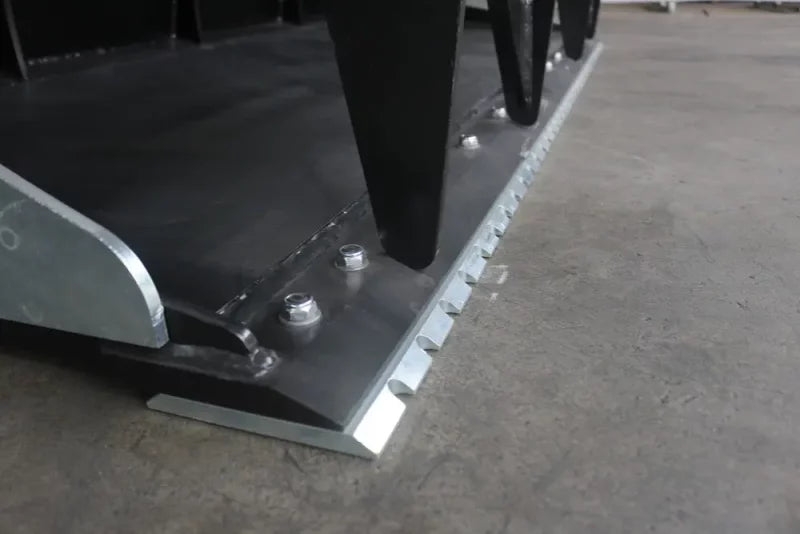

  • Reinforced Cutting Edge The 3/4 x 6-inch welded cutting edge ensures smooth grading and digging, even under heavy use.
  • High-Performance Hydraulic System With a 15.85 GPM flow rate and 16 MPa pressure, these buckets offer reliable, smooth operation in a range of environments.
  • Optimized for Heavy Loads The SWL of 3493.34 lbs (78") and 3801 lbs (85") guarantee you can lift and move substantial materials with ease.
  • All-Purpose Use Perfect for Skid Steers, Tractors, ATVs, and UTVs, allowing versatility across various applications such as construction, landscaping, and forestry.
  • Efficient Material Handling Quickly and efficiently move debris, logs, rocks, and more with the superior grip and control provided by dual hydraulic grapples.
  • Maximized Load Control The two-cylinder system gives you precise control over material handling, ensuring greater stability and maneuverability.
  • Durable Tines and Plates 0.39-inch main plate thickness and 1/2-inch tines deliver excellent strength and resistance to wear in tough environments.
  • Minimal Maintenance The design is built for longevity with minimal maintenance required, and optional rod covers are available for additional protection.
  • Reduced Operating Effort The powerful hydraulic system allows for effortless gripping, lifting, and unloading, enhancing your machine's performance.
  • Cost-Effective & High-Value Designed for both professional and industrial users, the Landy Grapple Bucket provides exceptional value, performance, and reliability at an affordable price.

Detailed Specifications

Specification S-GB1980 (78IN) S-GB2160 (85IN)
Model S-GB1980 (78IN) S-GB2160 (85IN)
Attachment Type Skid Steer Grapple Bucket Skid Steer Grapple Bucket
Width 78 inches 85 inches
Safe Working Load (SWL) 3493.34 lbs 3801 lbs
Grapple Opening 0 - 38.6 inches 0 - 38.6 inches
Main Plate Thickness 0.39 inches 0.39 inches
Cutting Edge 3/4 x 6 inches 3/4 x 6 inches
Hydraulic Flow 15.85 GPM 16 GPM
Horsepower 25 To 40 HP 25 To 40 HP
Required Operating Pressure 16 MPa (2320 PSI) 16 MPa (2320 PSI)
Weight 1086.5 lbs 1135 lbs

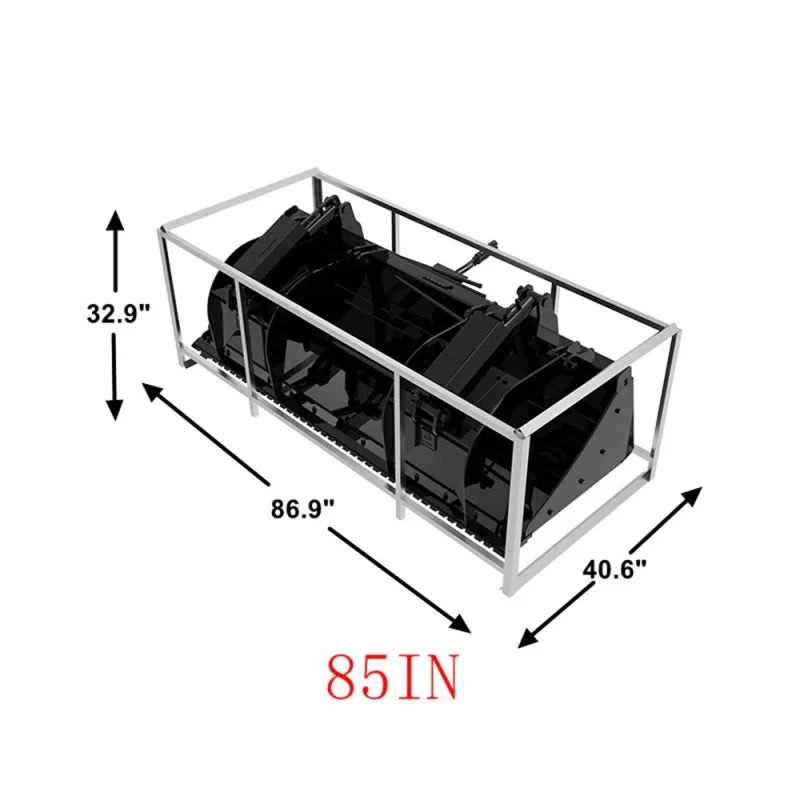

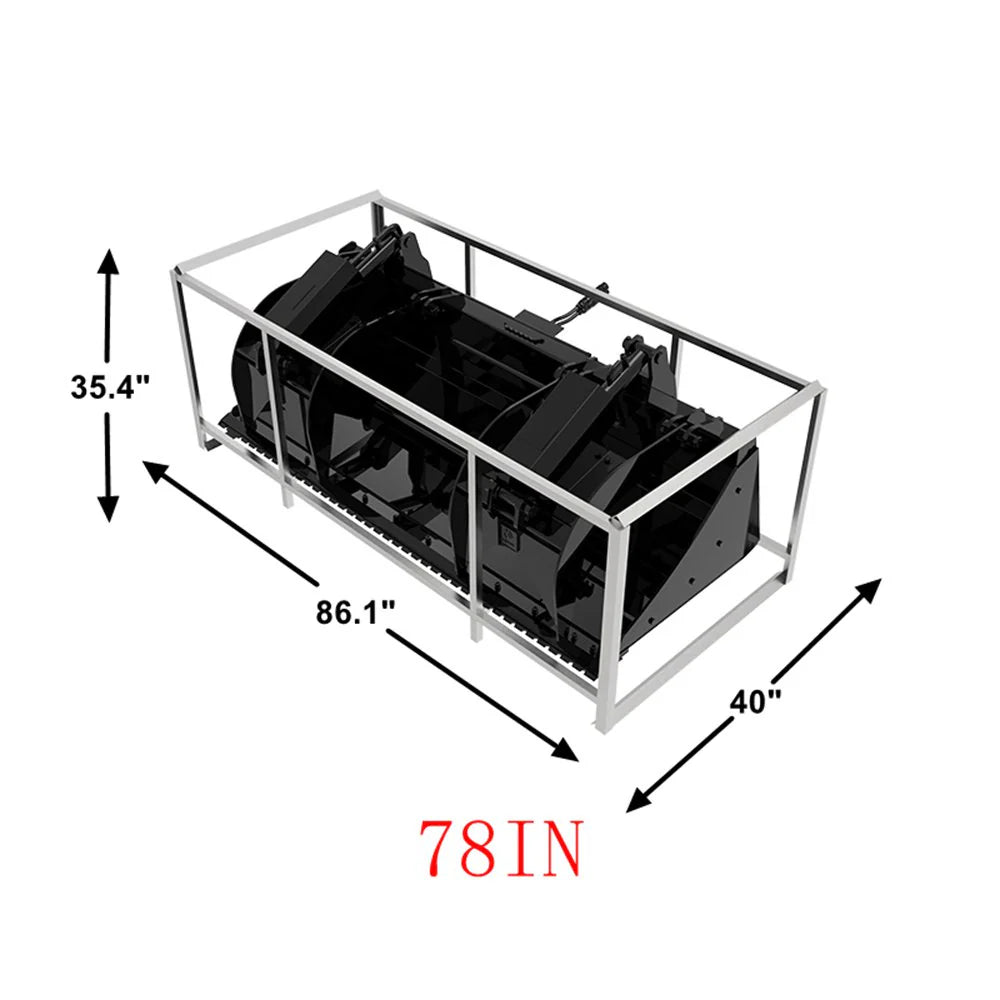

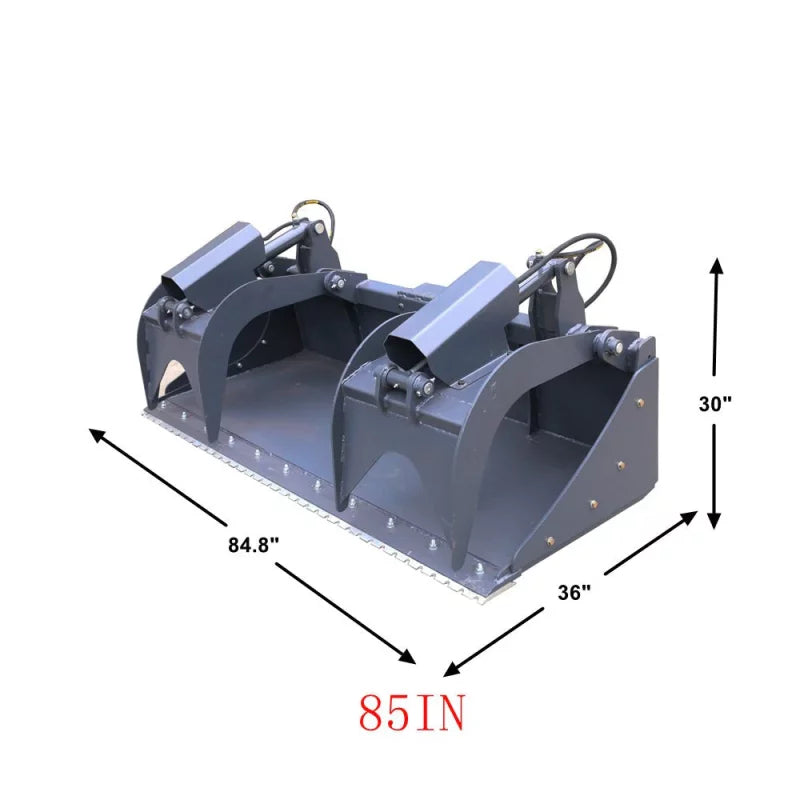

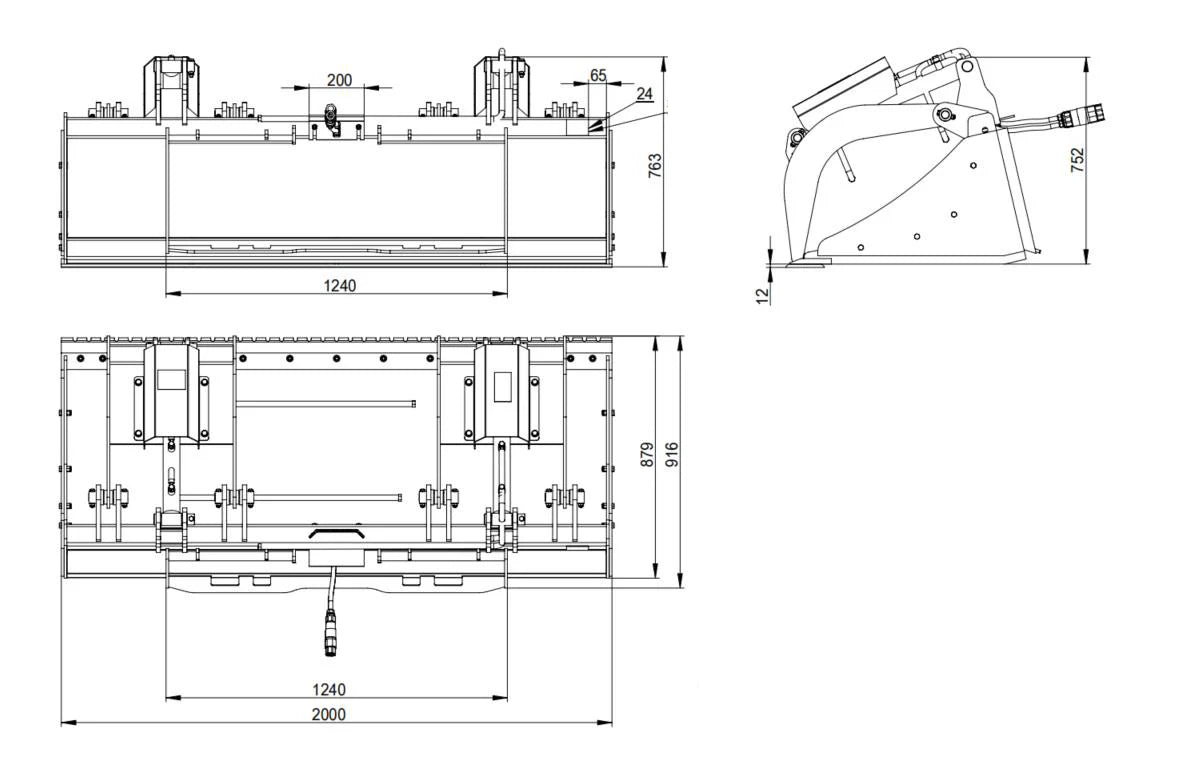

Dimensions (L x W x H) 77.22 x 36.20 x 32.69 inches 84 x 35.9 x 29.8 inches
Tine Thickness 1/2 inch 1/2 inch
Material Thickness (Body) 1/4 inch reinforced 1/4 inch reinforced
Mount Type Quick Attach (Universal Skid Steer) Quick Attach (Universal Skid Steer)
Compatible Equipment Skid Steers, Tractors, ATVs, UTVs Skid Steers, Tractors, ATVs, UTVs
