Larson Electronics 1.8KW Solar Power Generator w/ Pneumatic Light Tower Mast - (4) LED Lights - 64000 Lumens - 36 Hours

Description

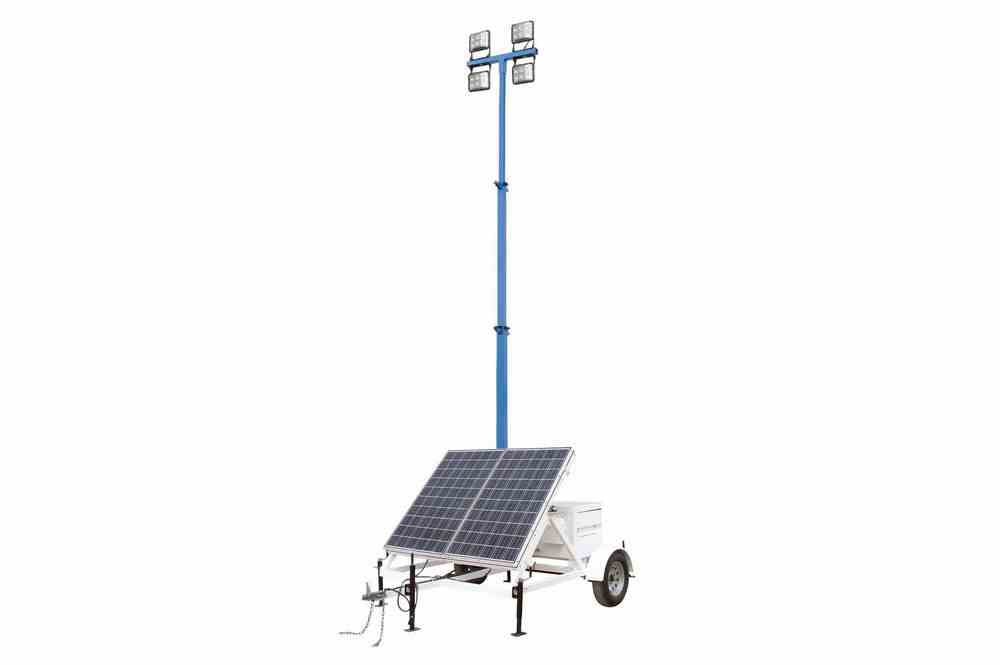

The Larson Electronics SPLT-1.8K-1000A-30-4X16K-LED-AT-BC Solar Powered LED Light Plant offers a robust, eco-friendly lighting solution for remote or off-grid operations. With four 135W LED light fixtures, a 30-foot pneumatic mast, and 1,000 aH AGM battery bank, it provides continuous operation for up to 36.5 hours on a single charge. Ideal for applications such as construction, events, and security, this unit can be set to operate via a dusk-to-dawn sensor or built-in timers, maximizing flexibility in the field.

 Key Feature

• Sustainable Power: 1.8KW solar-powered generator, no fuel required
• Powerful Illumination: Four 135W LED lights delivering 64,000 lumens
• Long Runtime: Up to 36.5 hours of operation at 25% light output
• Automated Deployment: Hydraulic actuators for solar panels and pneumatic mast operation
• Weather-Resistant Construction: IP67-rated lights, NEMA 3R control housing
• Versatile Operation: Automated dusk-to-dawn sensor and timer for lighting control

Detailed Specifications

Solar and Battery System

• Solar Panels: Six 300W polycrystalline panels, hydraulic actuated for optimal sun exposure
• Battery Bank: Eight 12V 250aH AGM batteries (1000aH total, 500aH usable)
• Alternate Charging: 120V/240V AC rapid battery charger included
• Run Time: 36.5 hours @ 25%, 18.25 hours @ 50%, 12.15 hours @ 75%, 9.125 hours @ 100% output

Lighting

• Lamps: Four 135W Cree LED lights
• Total Lumens: 64,000 (16,000 per lamp)
• Adjustable Output: 0%, 25%, 50%, 75%, or 100% with control box
• Lifespan: 50,000 hours, 70% lumen retention

Pneumatic Mast

• Height: 8.25 to 30 feet
• Rotation: 360° with locking capability
• Weight Capacity: Supports up to 150 lbs of equipment

Trailer Specs

• Dimensions: 16' L x 6' W with a 3,500 lb axle
• Safety: DOT-compliant lights, electric brakes, breakaway device, reflective tape
• Hitch Options: 2" ball coupler or 3" pintle hitch

Applications

This solar-powered light plant is ideal for:

• Remote Sites: Reliable lighting for areas without grid access
• Outdoor Events: Sustainable lighting for concerts, festivals, and sports events
• Security and Surveillance: Durable, weather-resistant for long-term outdoor use
