Larson Electronics 100' Self-Contained Megatower™ - 90 lb Payload Cap. - NEMA 3R Rated Control Panel, 92" x 92" Base - Visible Height Indicators

DESCRIPTION

The LM-SMWB-ELM100-7S-FE-90LB-M2 equipment tower is a self-contained tower package. This unit operates on single-phase 208-240 V AC, 60 Hz (three phase and other voltages are available) and includes an electric telescoping light mast which can elevate up to 90 lb of equipment to heights up to 100'. This mobile tower package is ideal for large scale event illumination, construction, mining, industrial operations, and more.

This telescoping seven stage equipment mast from Larson Electronics is designed to allow operators to quickly and safely deploy up to 90 lb of lights, cameras, antennas and other equipment to heights up to 100'. This light boom can be collapsed to 21.2' for applications where a smaller footprint is required. The tower is constructed of heat treated aluminum tubing. The mast is elevated using an included electric hoist system.

The tower does not have a mast head for mounting customer-provided equipment. We can include and customize one at an additional cost.

Telescoping Boom: The telescoping boom is constructed of heat treated aluminum with a galvanized finish and extends up to 100'. This boom is raised and lowered via an electric hoist. A safety limit switch prevents the tower from being extended when not in a fully vertical position. We recommend adding guy wires to the mast in an extended position when deployed in high wind environments.

Visual Height Indicators: The LM-SMWB-ELM100-7S-FE-90LB-M2 is equipped with a series of visual height indicators that offer the operator to quickly and easily know the current height of the mast during the raising or lowering process. There are visual indicators at the following mast heights: 50ft, 60ft, 70ft, 80ft, and 90ft.

Wiring/Controls: A NEMA 3R rated control panel with NRTL listed to UL508A and CSA C22.2 No 14 rated controls is available on the side of the base and allows the mast to be installed and used outdoors. This control panel allows operators to change the horizontal and vertical orientations of the mast, as well as raising and lowering the tower. An electronic stop feature is activated when the mast reaches full height. It is possible to lower and extend the height of the mast at any point in between its minimum and maximum heights. We can install sensors or pre-programmed settings for raising at specific heights (this feature comes with additional costs).

Voltage Options: The LM-SMWB-ELM100-7S-FE-90LB-M2 operates on single-phase 208-240V AC, 60 Hz. Three phase and other voltages are available. Please make your selection below when ordering.

Grounding Rod Package: This mast system includes a grounding rod package for lightning strikes. The LM-SMWB-ELM100-7S-FE-90LB-M2 is fully capable of operating outdoors and in the rain. The grounding rod package adds an extra layer of protection in the event of a storm or lightning strike. The operator must install the lightning rod probe into the ground near where the mast is installed.

Base: The mast system has a 92" x 92" weighted base, which requires customers to install one concrete pad for stability. A second section must also be installed for the mast catcher. A single concrete pad is sufficient or two separate pads with a smaller pad for the mast catcher. The mast system is then installed on the concrete pad(s) via customer provided anchor bolts through the bast of the mast.

Custom builds can be provided for higher wind speed resistance when fully raised. We also offer a choice of finishing, equipped light heads, and with or without gensets. These towers can be fitted with Larson Electronics line of high output light heads, or with a customized mast head to meet the mounting requirements for your equipment. Optional diesel generators and fuel cells can be equipped from factory, or retrofitted after purchase.

Suggested Applications: Temporary lighting, construction site illumination, outdoor event lighting, job site lighting, and any other application that requires a self-contained source of illumination capable of covering a very large area effectively.

SPECIFICATIONS

LM-SMWB-ELM100-7S-FE-90LB-M2 Outdoor Megatower™

Mast Specs

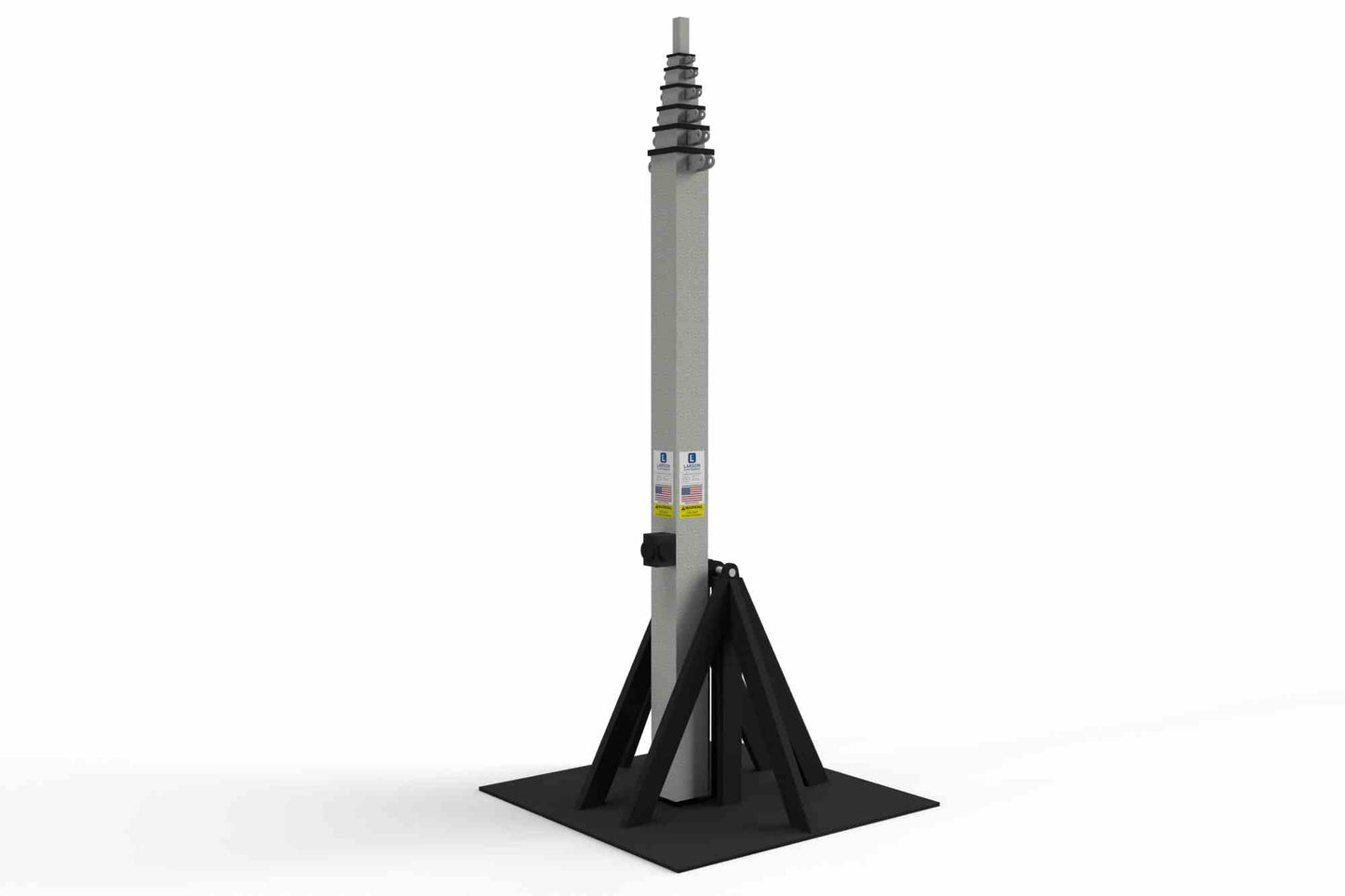

• Tower Length (Upright): 21.2' to 100'

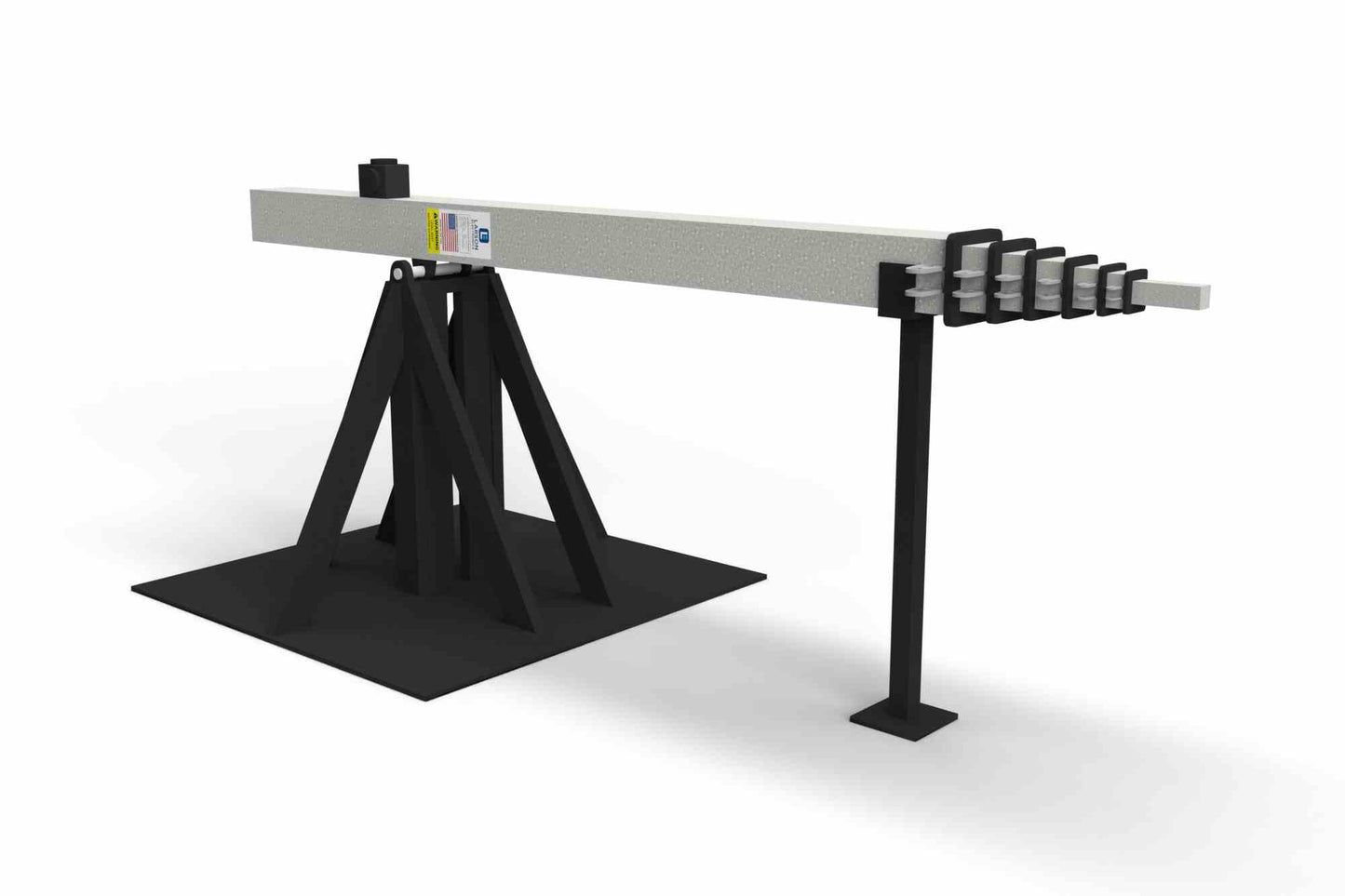

• Tower Dimensions (Folded Over): 8.8'-H x 21'-L    CSA C22.2 No 14 - Controls
• Tower Base: 92" x 92"
• Payload Capacity: 90 lb
• Voltage: Single Phase 208-240 V AC, 60 Hz - Three Phase and Other Voltages Available
• Amp Draw: -    Visual Height Indicators
• Mast Head: Not Included    Grounding Rod Package
• Control Panel: Mast Horizontal/Vertical Orientation and Raising/Lowering Controls
• Mast Safety: Limit Switches for Mast Extension
• Materials: Heat Treated 6063B/T5 Aluminum
• Finish: Fully Galvanized
• Operation: Electric Hoist
• Weighted Base: Customer Provided 92" x 92" Concrete Base and a Second Section for the Mast Catcher
• Installation: Customer Provided Anchor Bolts Through Base of Mast
• Shipping: Common Freight
• Shipping Weight: -

Quick Summary

• 21.2' to 100' Light Mast
• NRTL Listed to UL 508A - Controls
• NRTL Listed to UL 508A - Controls
• Aluminum Mast
• Electric Hoist Operation
• NEMA 3R Rated Control Panel
