Larson Electronics 112' Hydraulic Megatower™ Mast - 33' Trailer - 45kW Generator, Red LED Strobe Light, Antenna Mount - Auto Retract

Larson Electronics 112' Hydraulic Megatower™ Mast - 33' Trailer - 45kW Generator, Red LED Strobe Light, Antenna Mount - Auto Retract

Regular price $574,276.23
Regular price Sale price $574,276.23
Sale Sold out
Customizable
Fast
24/7 Support
  • High Elevation Capability: Extends to 100 feet, providing expansive coverage for large areas.
  • Heavy-Duty Carbon Steel Construction: Hydraulic telescoping mast offers robust durability.
  • Reliable Power Supply: 45kW generator with a 150-gallon fuel cell for continuous operation.
  • Wind Speed Auto-Retract: Automatically retracts at 40 mph winds for enhanced safety.
  • Integrated Communication Shelter: 8' x 12' shelter with IT racks and coax cable reel for organized equipment housing.
View full details

Product Description

Larson Electronics 112' Hydraulic Megatower™ Mast - 33' Trailer - 45kW Generator, Red LED Strobe Light, Antenna Mount - Auto Retract

 Description

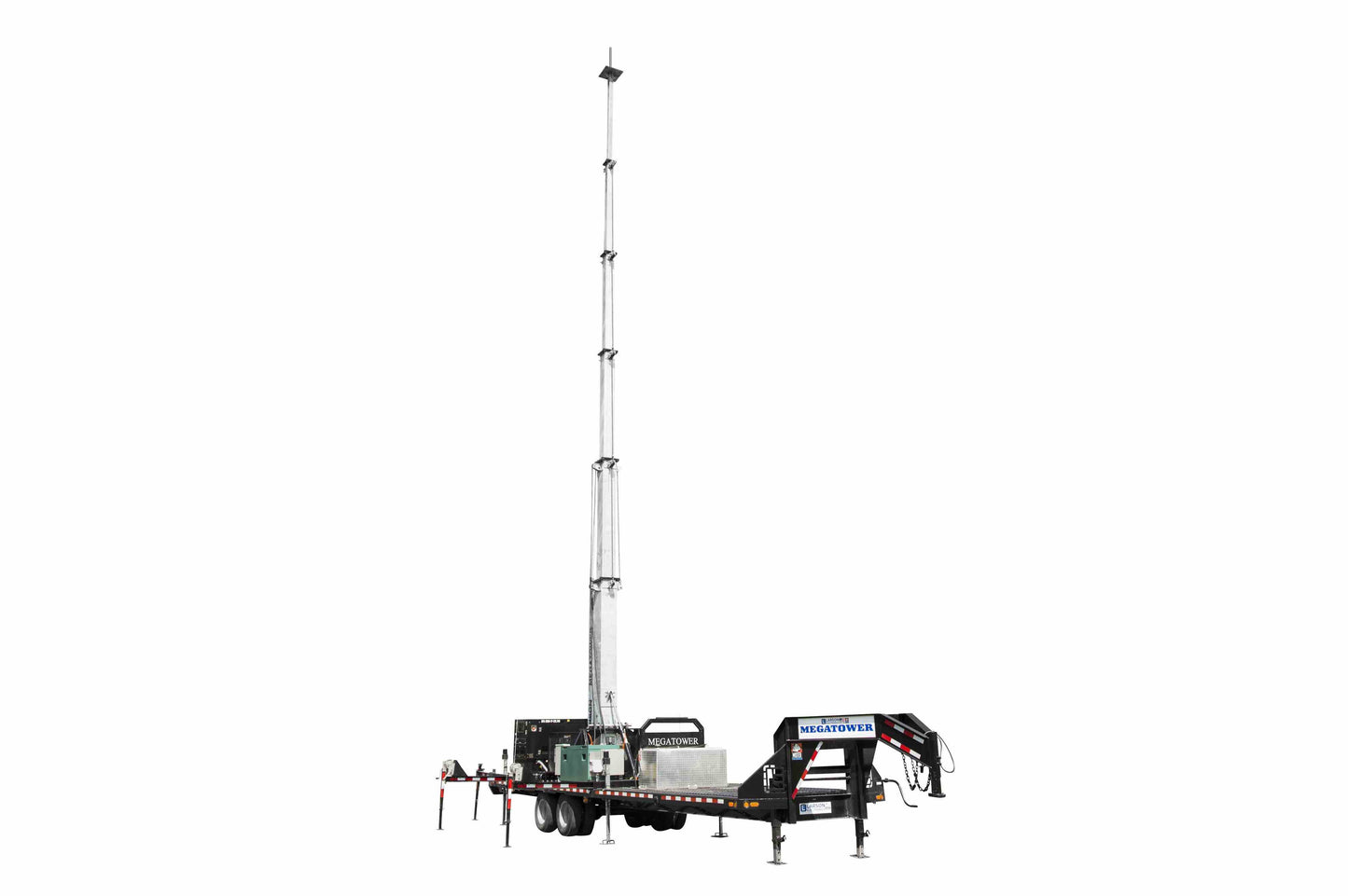

The Larson Electronics WCDE-45-HLM100-ATM-WSM-MOD1 is a robust, trailer-mounted Megatower™ designed for high-elevation mounting of customer-supplied equipment, including antennas and other devices, up to 100 feet. Equipped with a 45kW generator and 150-gallon fuel cell, this hydraulic mast ensures sustained power and stability, even in remote or challenging environments. The auto-retract feature provides safety by automatically lowering the mast when wind speeds exceed 40 mph, protecting mounted equipment.

An 8' x 12' communication shelter integrated into the unit includes three 19" x 7' IT racks and a multi-coupler system for efficient equipment storage and management. The carbon steel mast and galvanized finish offer extreme durability, withstanding rigorous field conditions. The dual tandem axle trailer supports easy towing, while electric brakes and a gooseneck hitch ensure secure transportation.

Key Features

  • Hydraulic Mast with Auto-Retract: Extends to 100' for elevated equipment and retracts automatically in high winds.
  • 45kW Generator: Provides consistent single-phase 120/240V power; 200A breaker enclosure for multiple connections.
  • Cold Weather Package: Equipped for extreme cold, with de-icing and insulated hydraulic system.
  • 8' x 12' Communication Shelter: Houses IT racks and cabling, ensuring organized equipment deployment.
  • Heavy-Duty Trailer: 12" I-beam construction with manual leveling jacks and a 6-point outrigger system for stability.

Detailed Specifications

Specification Details
Max Mast Height 100'
Mounting Platform Capacity 3,000 lbs
Wind Safety Feature Auto-retract at 40 mph
Generator Power 45 kW standby, 42 kW continuous
Fuel Cell Capacity 150 gallons
Trailer Dimensions 33' L x 8' W
Cold Weather Package Included, rated to -65°C
Outriggers Six 12' x 12" I-beams with 7,000 lb jacks

Suggested Applications:

  • Elevated antenna and communication device mounting
  • Remote site power and communication infrastructure
  • Industrial job sites, outdoor events, and temporary lighting
  • Reliable signal transmission in extreme weather

Package Includes:

  • WCDE-45-HLM100-ATM-WSM-MOD1 Trailer-Mounted Antenna Tower
  • Communications Shelter with IT Racks
  • Wind Monitoring and Auto-Retract System
  • Integrated 45kW Generator and 200A Breaker Enclosure

Important Notes:
Product specifications may differ from images shown. For precise details, refer to provided documentation.
