Larson Electronics 12,000 Watt, Water Cooled Diesel Generator - 30' Telescoping Tower - 4, 1000W Metal Halide

Product Description

Larson Electronics 12,000 Watt, Water Cooled Diesel Generator - 30' Telescoping Tower - 4, 1000W Metal Halide

Description

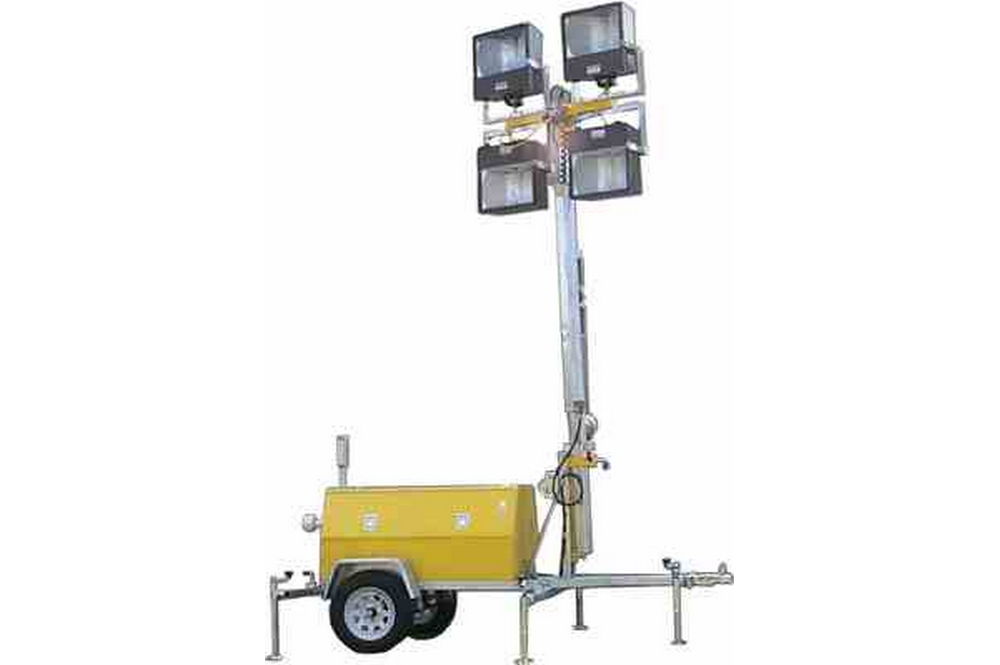

The HAL-WCDE-12KW-4X1000 Mobile Light Tower by Larson Electronics is a portable, towable lighting unit powered by a water-cooled diesel engine that drives a 12kW generator. Equipped with four 1,000-watt metal halide lamps, this light tower outputs a powerful 440,000 lumens, illuminating up to 7 acres continuously for up to 12 hours on a single tank of fuel. This robust lighting system is ideal for large-scale outdoor events, construction sites, emergency services, and other demanding applications.

Key Features

• High-Intensity Output: 440,000 lumens from four 1,000W metal halide lamps
• Extended Coverage: Illuminates up to 7 acres
• 12kW Generator: Diesel-powered, produces 120/240V at 60Hz
• Durable Construction: Galvanized steel telescoping mast, powder-coated for corrosion resistance
• Explosion-Proof Design: Includes Class 1, Division 2 lamps and receptacles, meeting rigorous safety standards
• Stabilizing Outriggers: Three-point system, withstanding winds up to 65 mph when fully extended
• Quiet Operation: Operates at a low 63 dB noise level at 23 feet

Detailed Specifications

Lighting System

• Lamps: 4 x 1,000W Metal Halide
• Total Light Output: 440,000 lumens
• Efficiency: 110 lumens per watt
• Coverage Area: 5 to 7 acres
• Explosion-Proof Rating: Class I, Division 2, Groups A, B, C, D

Generator

• Output: 12,000 watts (12kVA), 120/240V, 1-phase, 60Hz
• Fuel Capacity: 20 gallons for 12-hour runtime
• Engine: Water-cooled diesel with electric start and 1800 RPM
• Safety Features: Automatic shut-off for low oil pressure and high engine temperature
• Receptacles: (2) 120V Class I, Division 1 plugs (15A); (2) 240V Class I, Division 1 plugs (20A)

Telescoping Mast

• Height: 30 feet maximum
• Rotation: 360 degrees adjustable
• Construction: Galvanized steel with powder coating
• Wind Resistance: Withstands 65 mph winds with outriggers deployed
• Outriggers: Three-point system with rear adjustable swivel jacks (1,500 lbs capacity)

Trailer and Housing

• Materials: 14-gauge steel housing, powder-coated for corrosion resistance
• Noise Level: 63 dB at 23 feet
• Mounting: Towable trailer with 3,500 lbs axle, 15” wheels, and 2-inch ball hitch
• Dimensions: 13 feet long, 8 feet wide, and 6 feet tall
• Weight: 1,850 pounds

Controls and Safety Features

• Control Panel: Centrally located with individual light switches, hour meter, and battery indicators
• Safety: Spark arrestor, insulated muffler, external grounding, and explosion-proof plugs
• Operational Monitoring: Hour meter and charge indicator for maintenance tracking

Applications

This high-powered light tower is suited for:

• Large-Scale Events: Providing reliable illumination for expansive areas
• Construction and Mining Sites: Ideal for rugged outdoor settings
• Emergency Services: Dependable lighting solution for disaster relief
• Industrial Operations: Suitable for environments requiring explosion-proof standards
