Larson Electronics 12kW Diesel Generator - 30' Telescoping Tower - (8) LED Lamps - 60 Gal Fuel Cell

Product Description

Larson Electronics 12kW Diesel Generator - 30' Telescoping Tower - (8) LED Lamps - 60 Gal Fuel Cell

Description

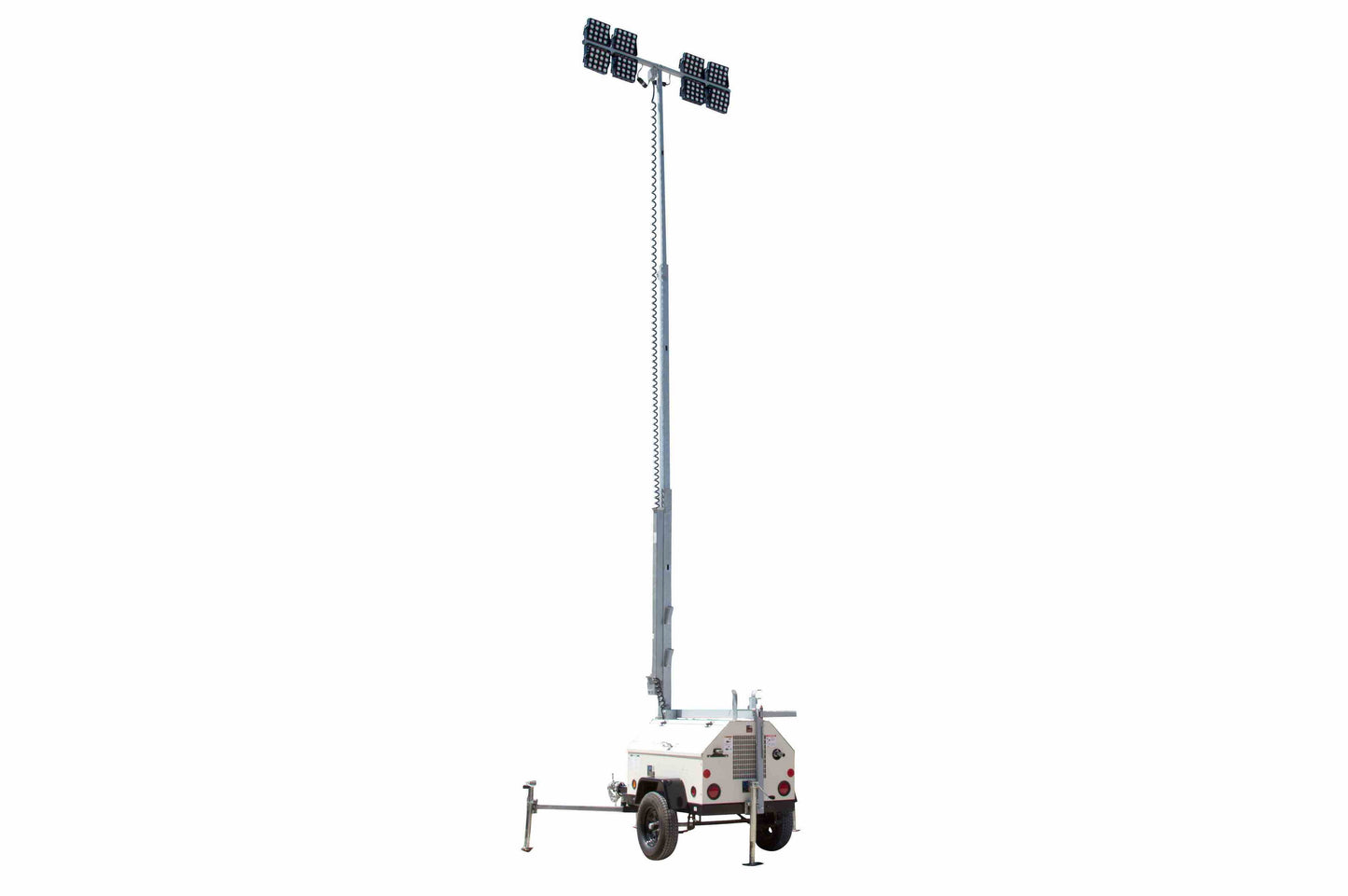

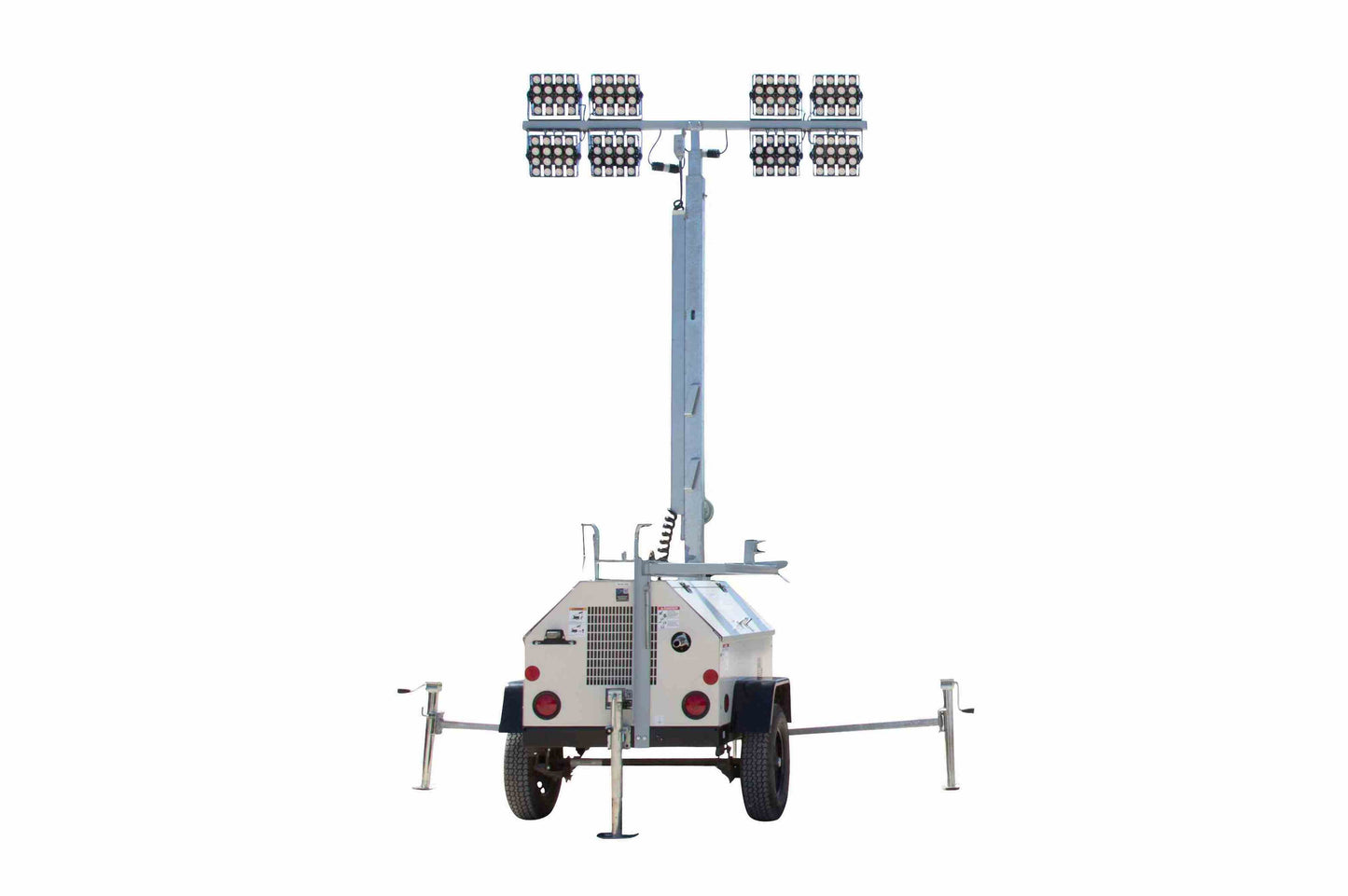

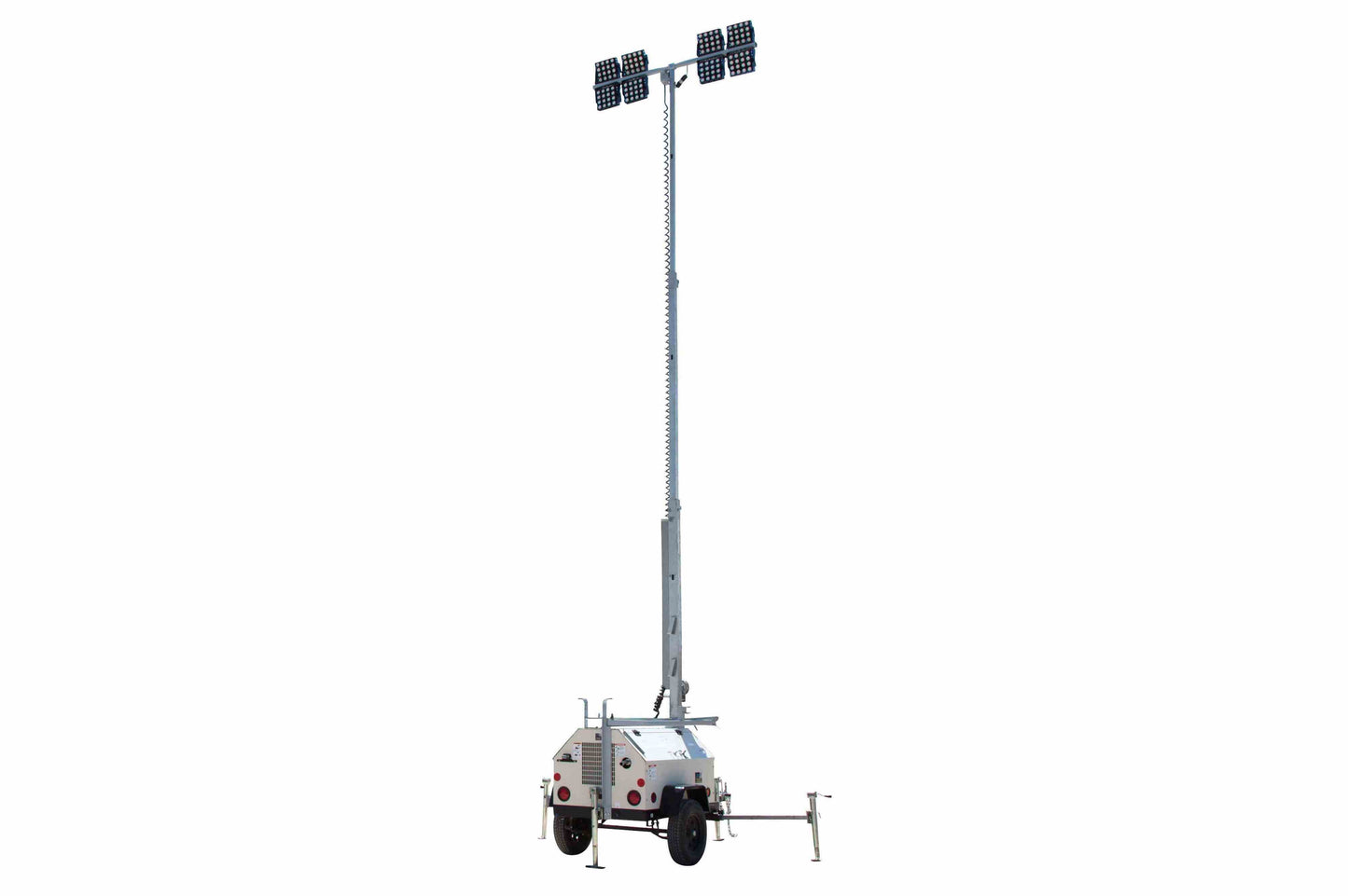

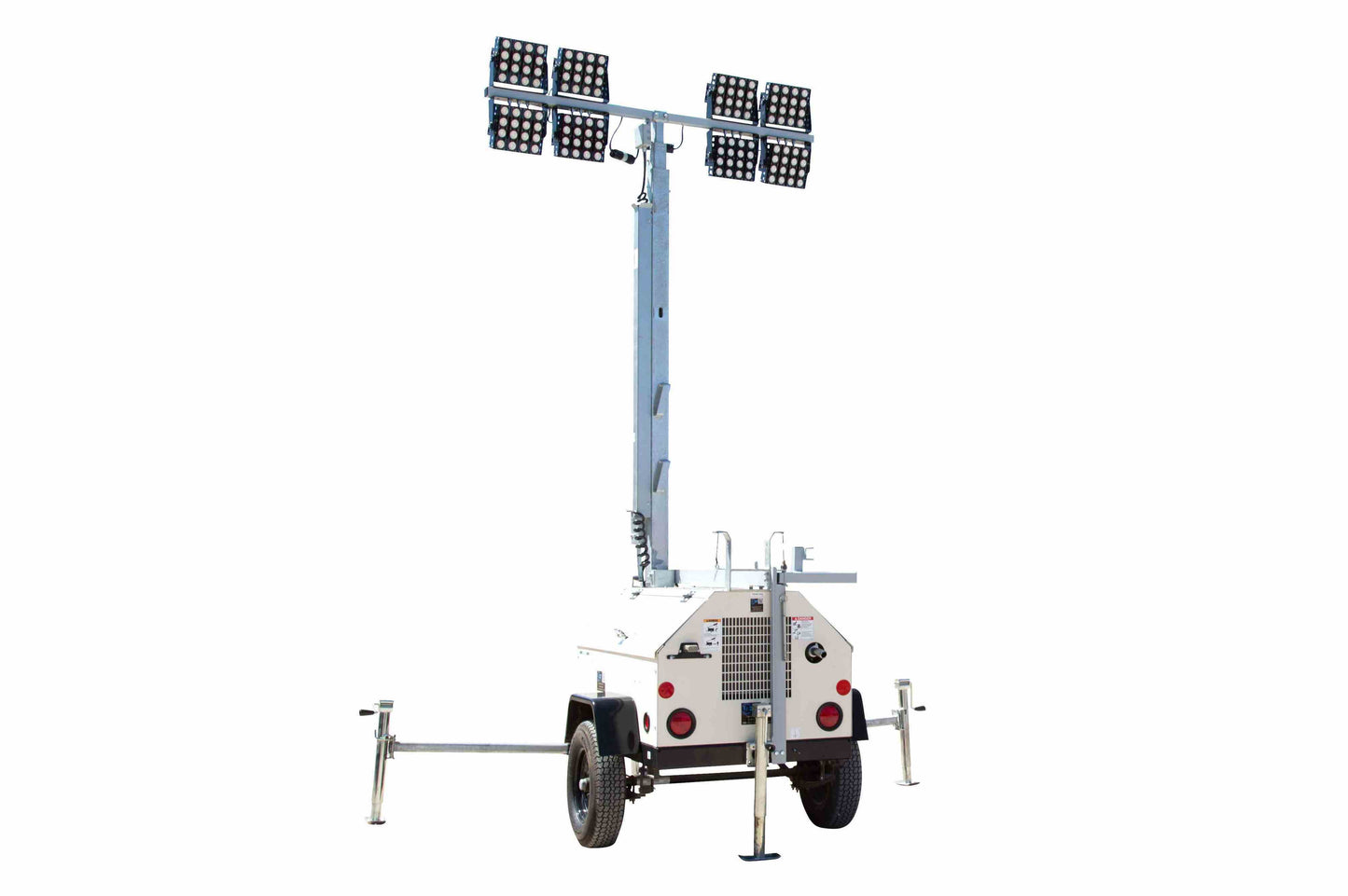

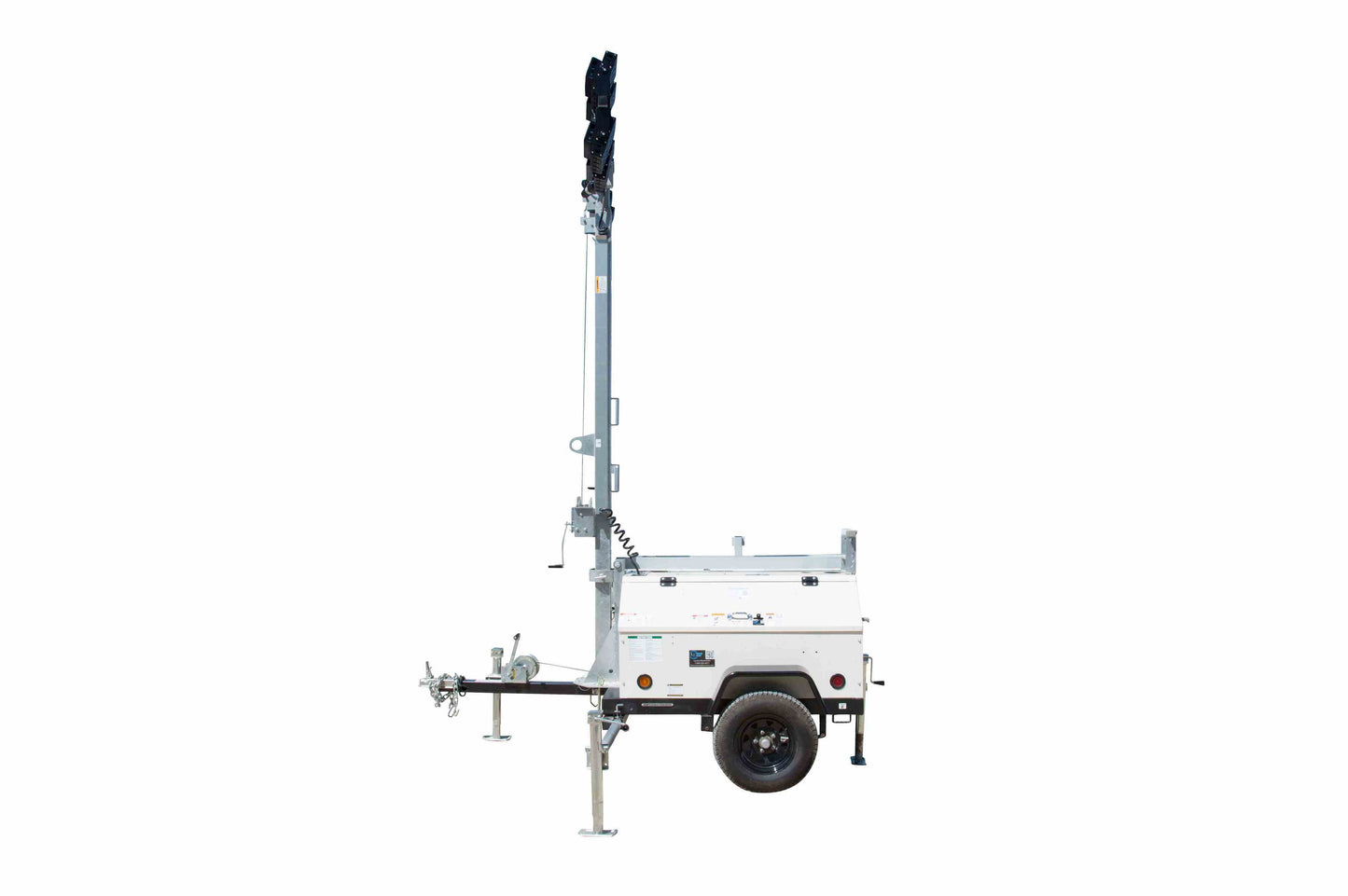

The WCDE-12KW-8X250LTL-LED-2.L09-2.N10-M1 is a towable mobile light tower powered by a 12kW generator. Featuring eight 240W LED lamps, this tower generates an impressive 259,200 lumens of illumination, covering up to 8-9 acres. Designed for prolonged outdoor operations, the light tower extends up to 30 feet in height and includes a Deepsea controller for real-time monitoring, making it ideal for large-scale events, construction, emergency services, and remote applications.

Key Features

• High Lumen Output: 259,200 lumens from eight 240W LED lamps
• Extended Runtime: Supported by a 12kW Kubota diesel generator with a 60-gallon fuel tank
• Heat Management: Efficient individual heat sinks for each LED bank to extend lamp life
• Weather-Resistant: IP67 rating, ensuring durability in harsh environments
• 360° Adjustable Mast: Rotates 360° and withstands winds up to 50 mph at full extension
• Quiet Operation: Low noise level of approximately 65 dB at 23 feet
• Durability: Heavy-duty 14-gauge steel housing with weather protection and forklift pockets

Detailed Specifications

Lighting System

• Total Power: 1,920W (240W per lamp)
• Brightness: 259,200 lumens
• LED Efficiency: 135 lumens per watt
• Color Temperature: 4000K or 5000K
• Waterproof Rating: IP67, resistant to dust and moisture
• Coverage Area: 8-9 acres

Generator

• Model: Kubota V1505-BG, 4-cylinder diesel engine
• Power Output: 12 kW at 120/240V
• Fuel Capacity: 60 gallons, with extended runtime capabilities
• Fuel Efficiency: Consumption rates:
  • 0.46 gal/hr at 25% load
  • 0.73 gal/hr at 50% load
  • 1.19 gal/hr at full load
• Control System: Deepsea DSE3110 controller for monitoring frequency, battery voltage, and runtime
• Safety Features: Automatic shutdown for low oil, high temperature, and voltage issues

Telescoping Mast

• Type: Four-section, manual crank-up
• Height Range: 8.25 feet (collapsed) to 30 feet (extended)
• Rotation: 360° adjustable
• Wind Resistance: Stable in winds up to 50 mph with outriggers deployed
• Construction: Rust-resistant aluminum with dual self-braking winch for secure operation

Heat Management & Durability

• Heat Sinks: Individual heat sinks on each LED bank for optimal cooling
• Longevity: Rated at 70% lumen maintenance after 80,000 hours
• Durability: IP67-rated, die-cast aluminum housing, PMMA optics with 98% light transmittance, and vibration-resistant LEDs

Trailer Specifications

• Materials: 14-gauge steel enclosure with industrial-grade paint
• Dimensions: 137” L x 93.3” W x 53.9” H
• Axle: Single 2,200 lbs axle with 2,000 lbs double-eye leaf springs
• Outriggers: Four-point stabilization with manual leveling jacks
• Hitch: 2-inch ball hitch with safety chains for towing
• Lights: DOT-approved tail, brake, and directional lights

Applications

This mobile light tower is designed for:

• Construction and Industrial Sites
• Large Outdoor Events
• Military and Emergency Services
• Remote and Off-Grid Locations
