Larson Electronics 2.21KW Solar Powered Security Light Tower - (4) 160W LED Lights - Day/Night - 8Hrs - Manual Mast

Product Description

Larson Electronics 2.21KW Solar Powered Security Light Tower - (4) 160W LED Lights - Day/Night - 8Hrs - Manual Mast

Description

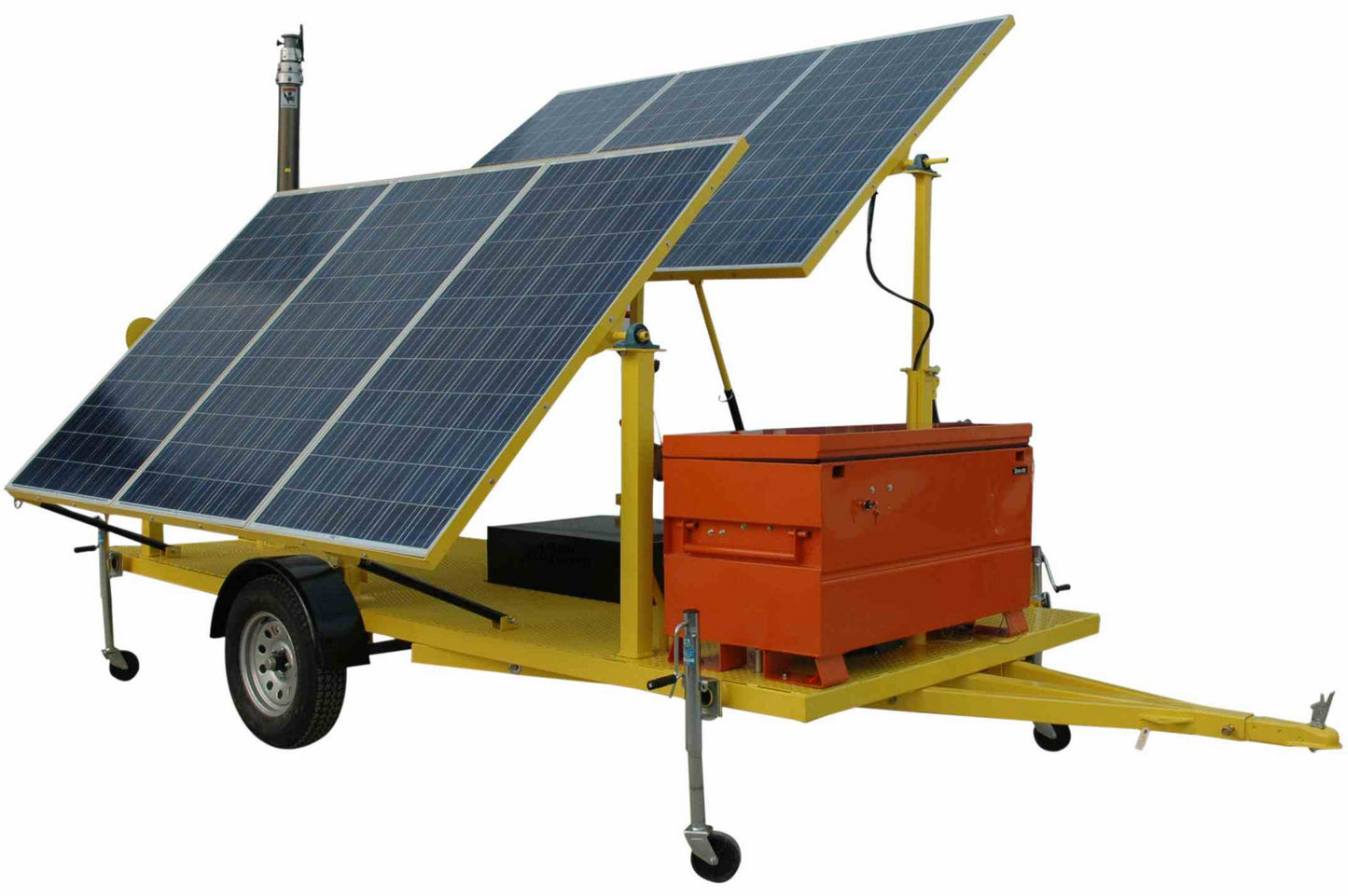

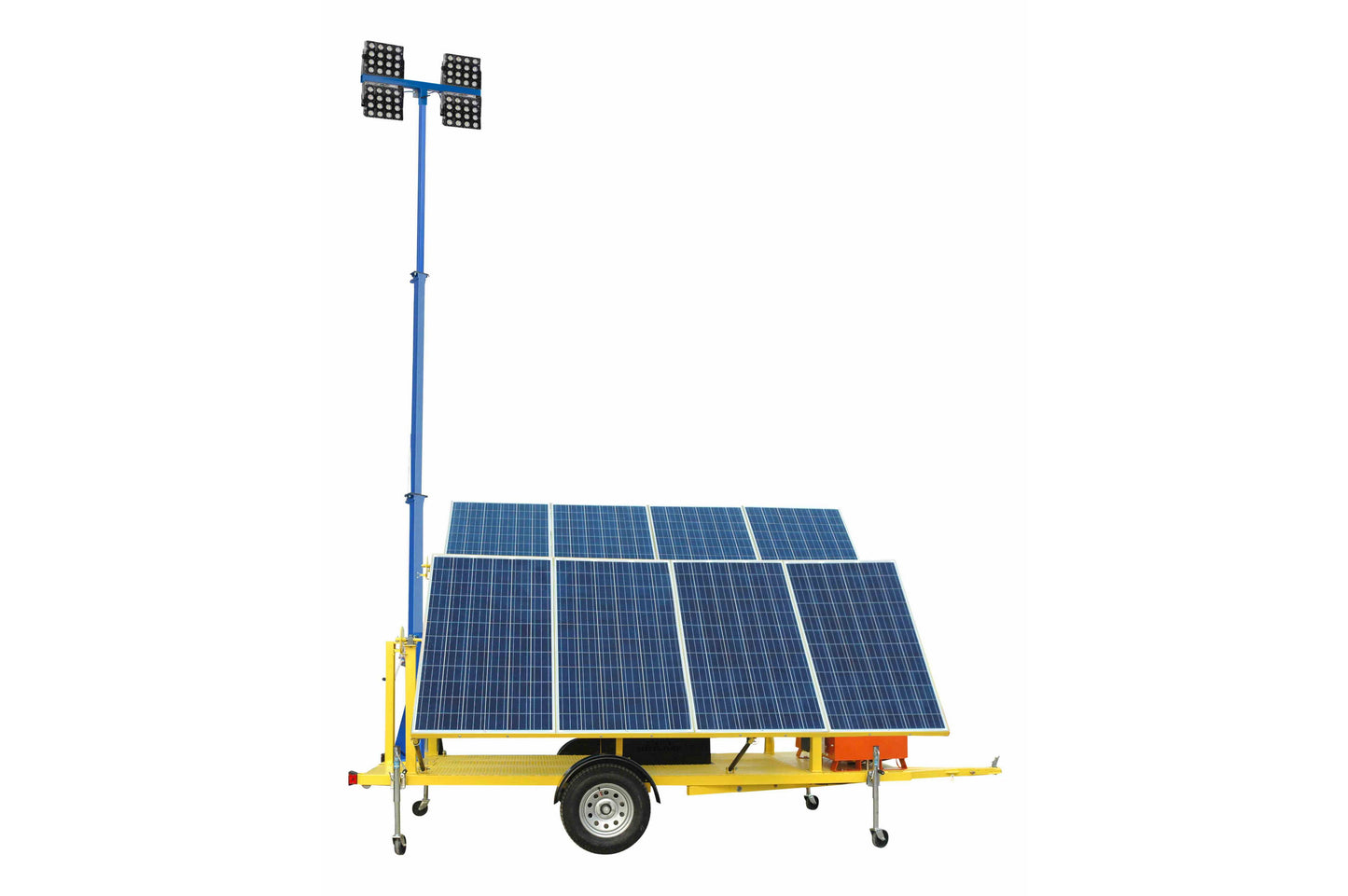

The SPLT-2.1K-1000A-30-4X160W-LED-DNS light tower is a solar-powered, trailer-mounted system that provides 86,400 lumens of LED light for extensive coverage. This self-contained unit requires no generator, eliminating noise and making it ideal for off-grid locations. With a dusk-to-dawn sensor, it offers reliable eight-hour operation. The trailer allows for easy transportation, while its collapsible design ensures simple deployment

Key Features

• High Lumen Output: Four 160-watt LED lights producing a combined 86,400 lumens, covering a wide area.
• Fully Solar Powered: No generator required, minimizing noise and fuel dependency.
• Three-Stage Mast: Adjustable height from 12 to 20 feet, allowing for flexible light positioning.
• Weather Resistant: Can withstand winds up to 125 mph with outriggers deployed.
• Efficient Power Storage: Includes an advanced 1000aH battery bank, capable of 8 hours of continuous operation.
• Advanced Control System: Outback Extreme charge controller, with high-heat resistance and monitoring features.
• Secure Transport: Outriggers and removable tongue, designed for stability during transport and operation.

Detailed Specifications

Lighting System

• Total Wattage: 640W (4 x 160W LED heads)
• Brightness: 86,400 lumens, illuminating up to 4 acres.
• Waterproof Rating: IP67
• Light Operation: Dust-to-dawn sensor for automatic control with an option for manual override.

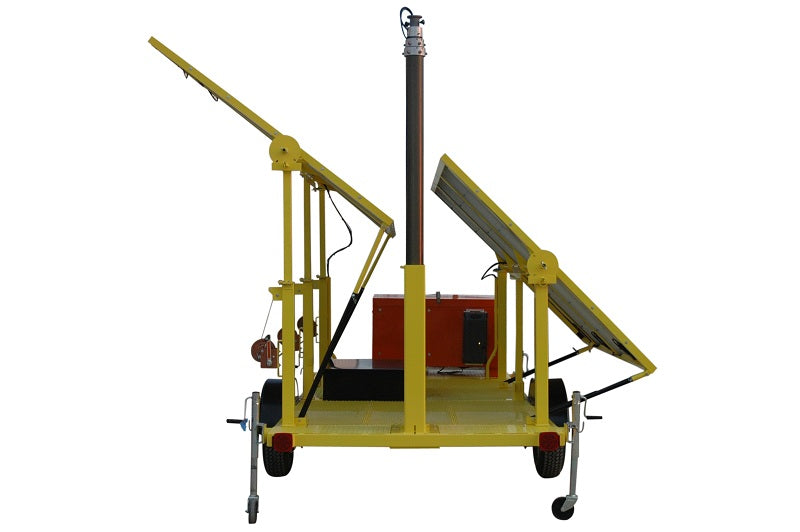

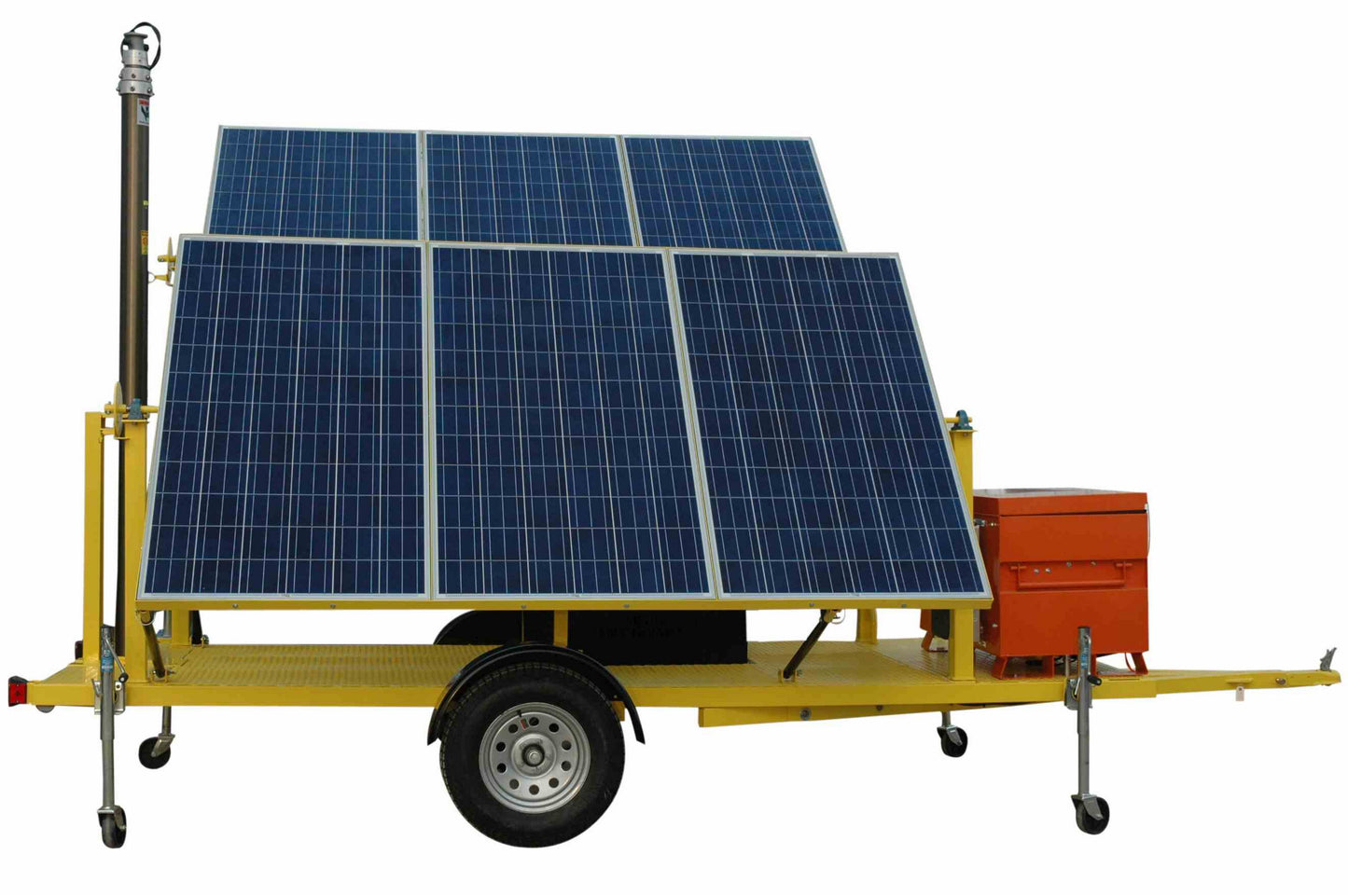

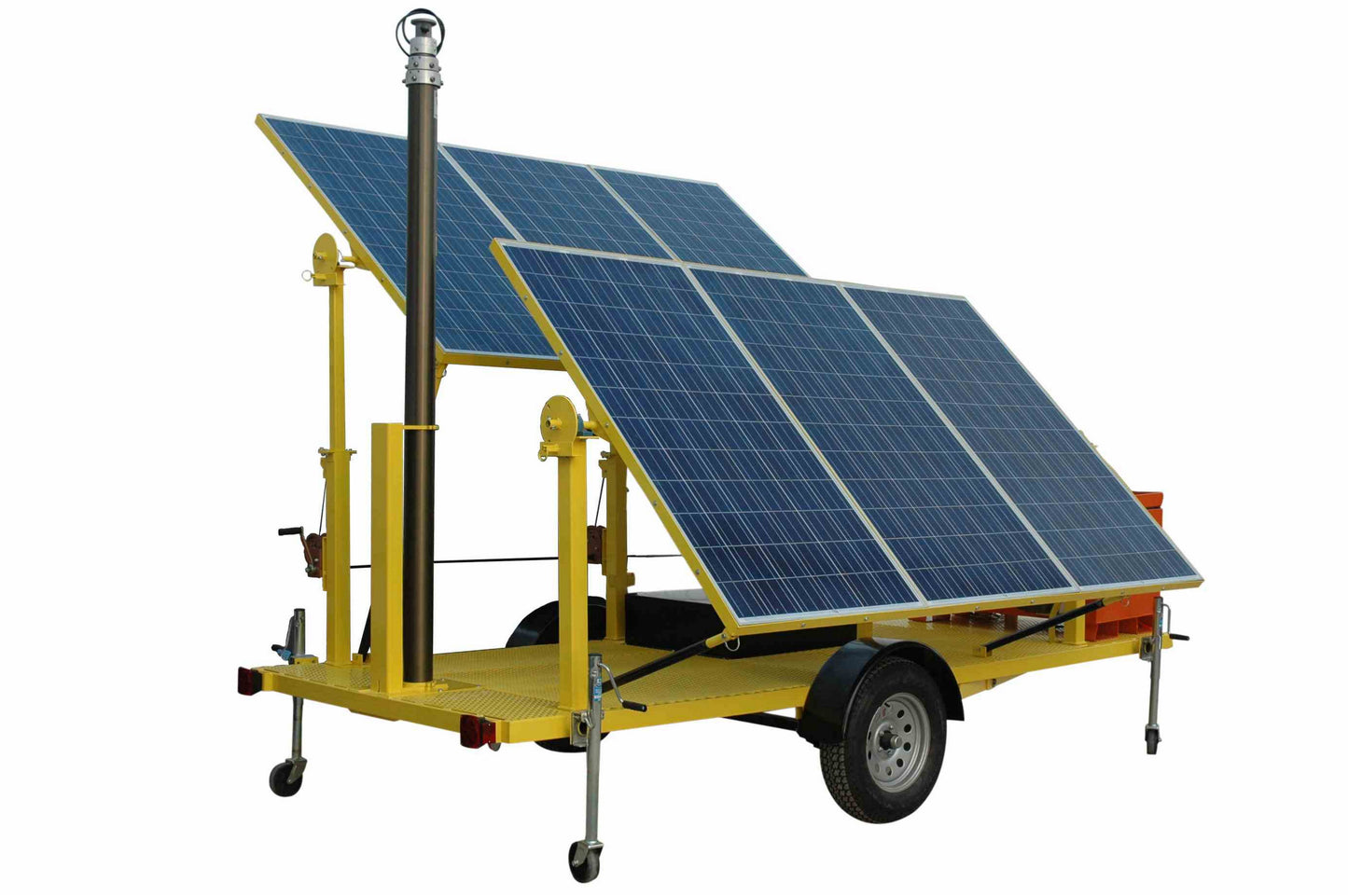

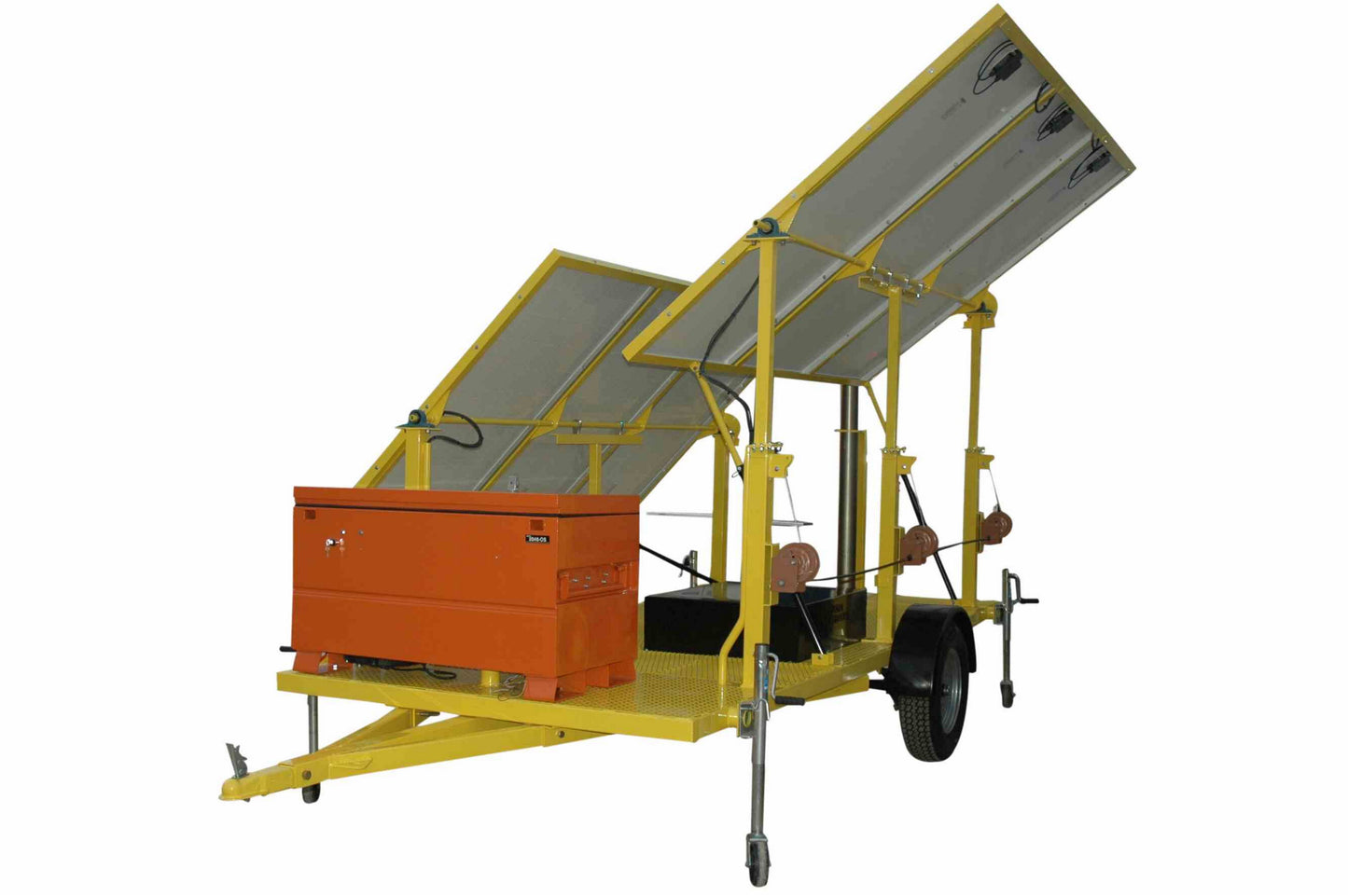

Solar Panel Assembly

• Panels: Eight 265-watt solar panels; total output of 2.12 kW.
• Positioning: Adjustable, allowing seasonal angle adjustments for optimal sun exposure.
• Deployment: Manual winch-operated positioning for easy setup by one person.

Battery and Charging System

• Battery Bank: 1000aH at 24V, using eight 250aH 12V SLA batteries.
• Charging Capacity: Generates approximately 500 amp-hours in 5.5 hours under optimal sunlight.
• Charge Controller: Outback Extreme 80-amp controller, with cooling system for high-temperature environments.
• Battery Protection: Equipped with min/max voltage sensors, ground fault protection, and 50% discharge threshold to prevent overuse.

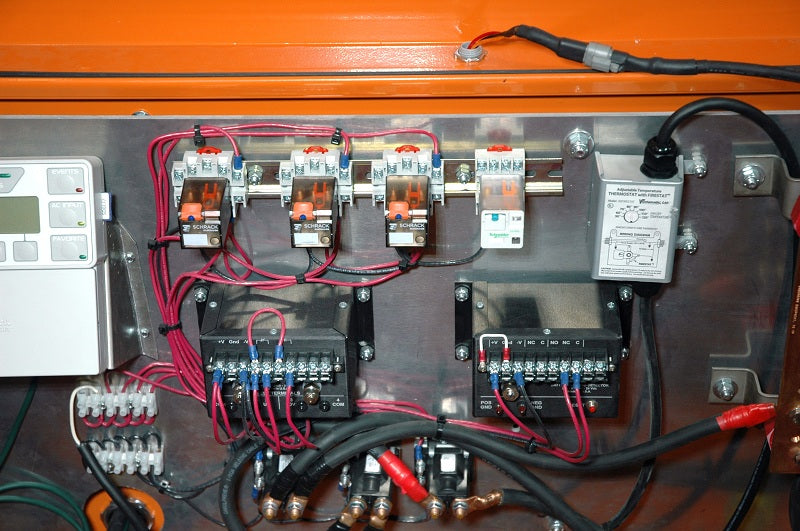

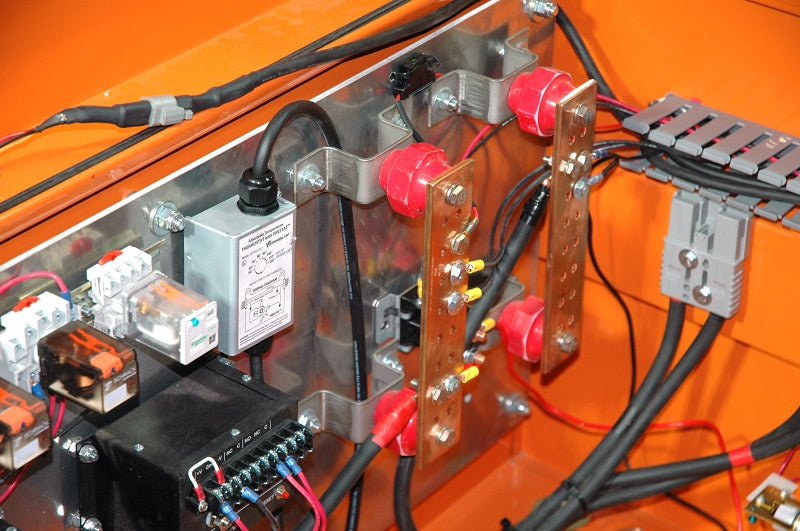

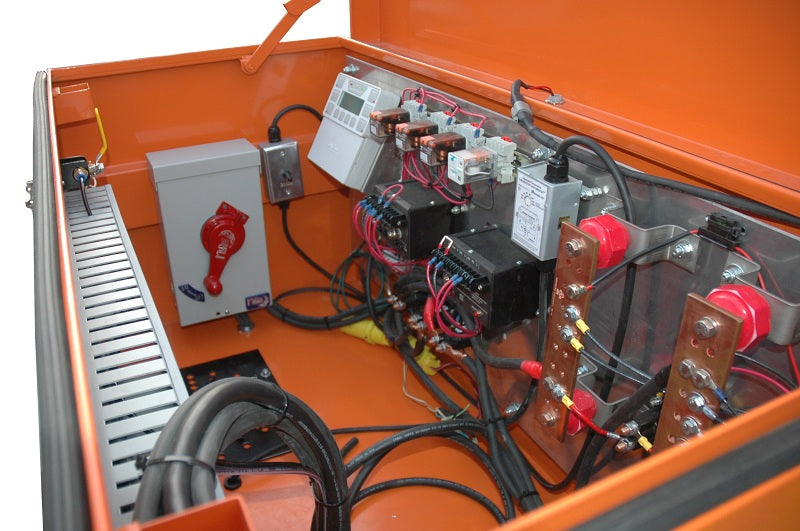

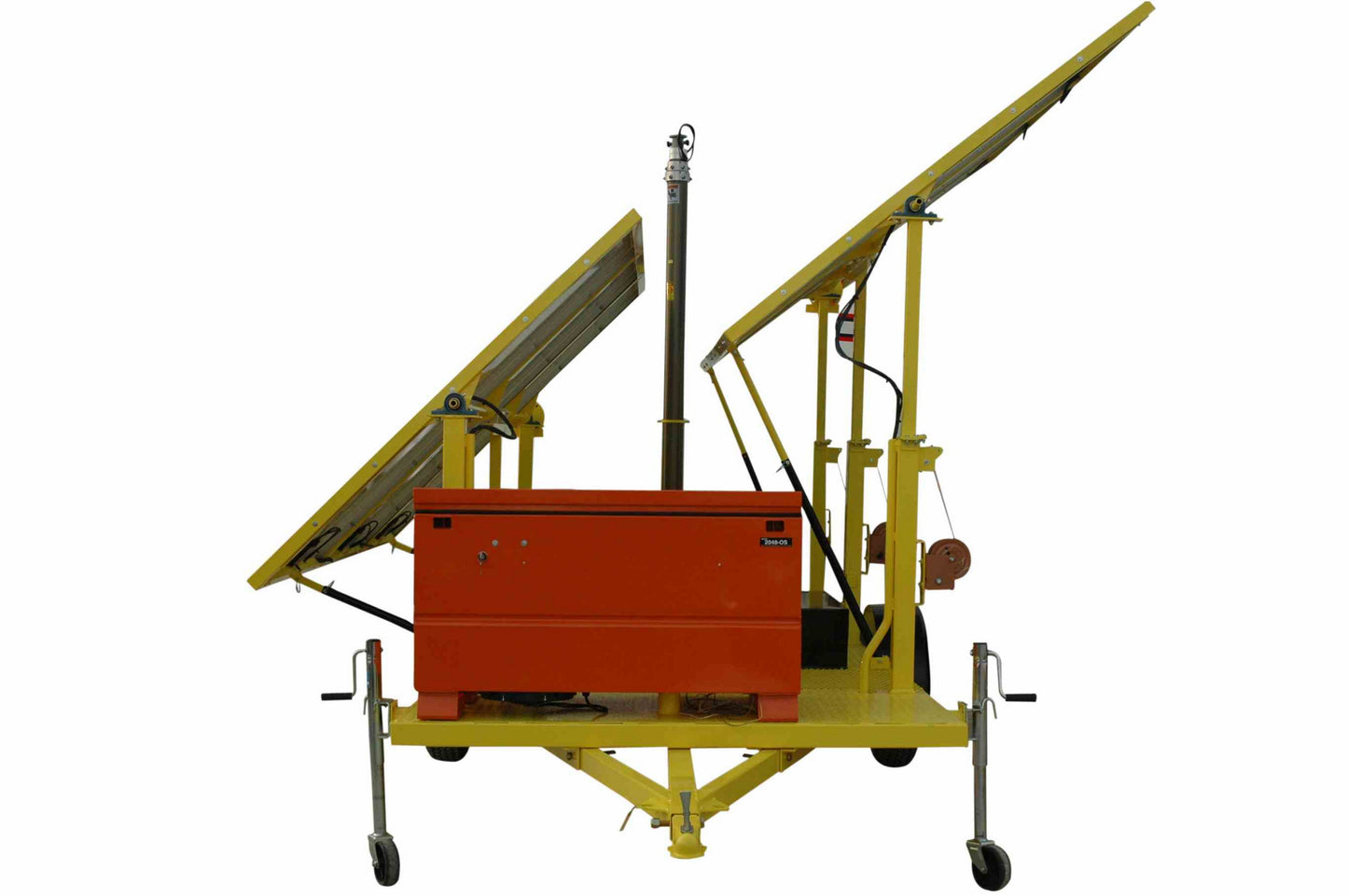

Component Control Center

• Job Box: NEMA 3R enclosure with secure locking, housing all electronics.
• Cooling: Built-in 1,400 CFM fan activates at 90°F for temperature regulation.
• Outback Mate 3 Monitoring: Monitors charging and battery levels, with SD card logging for diagnostics.

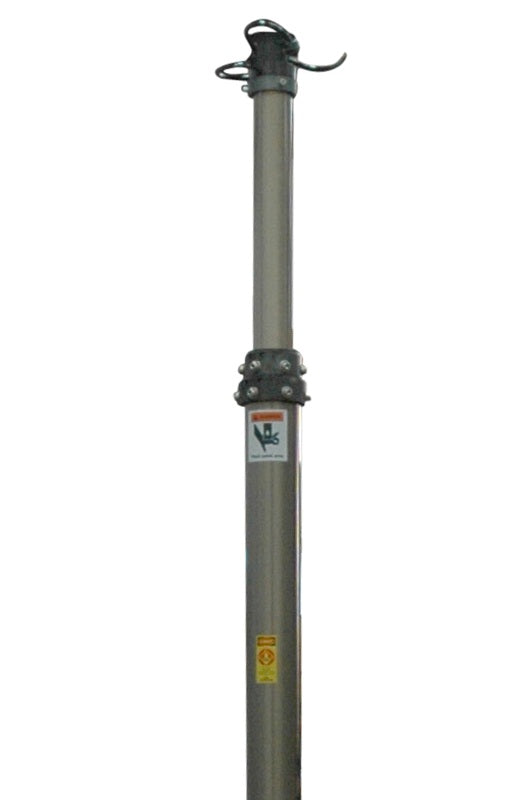

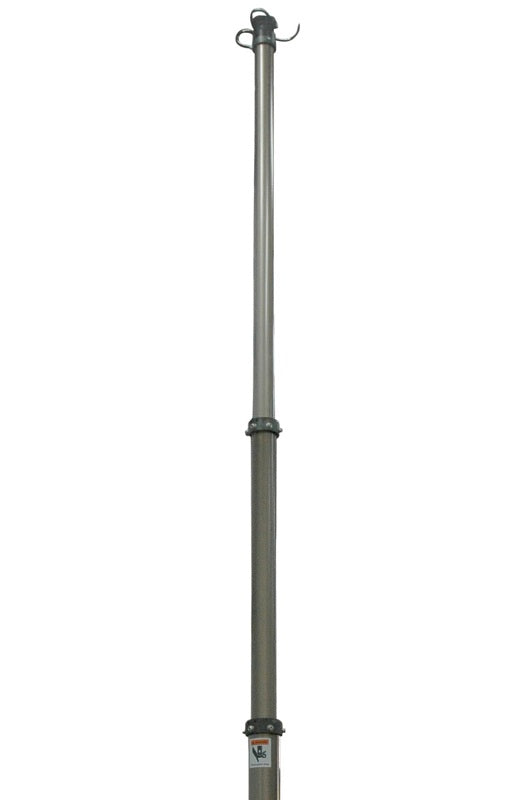

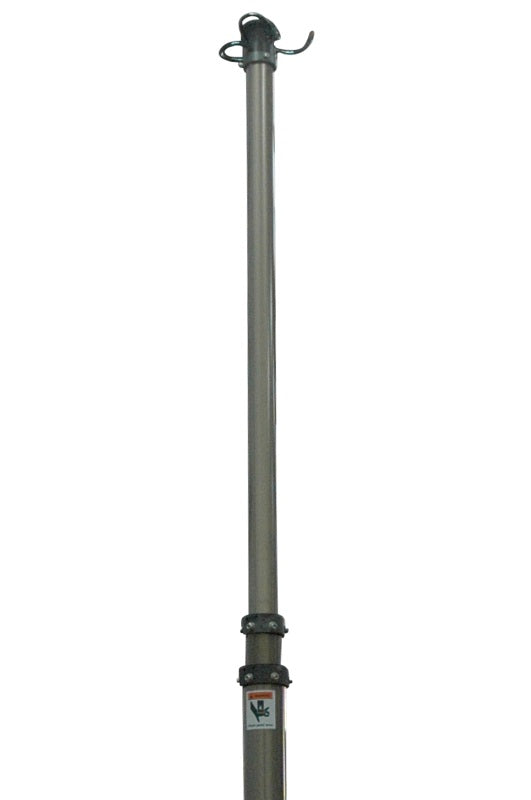

Three-Stage Telescoping Mast

• Height: Adjustable from 12 to 20 feet using a 1,000 lbs hand crank.
• Stability: Withstands high winds up to 125 mph when fully deployed.
• Construction: Powder-coated steel with corrosion-resistant finish.
• Rotation: 360° with T-Handle locking mechanism for easy directional adjustment.

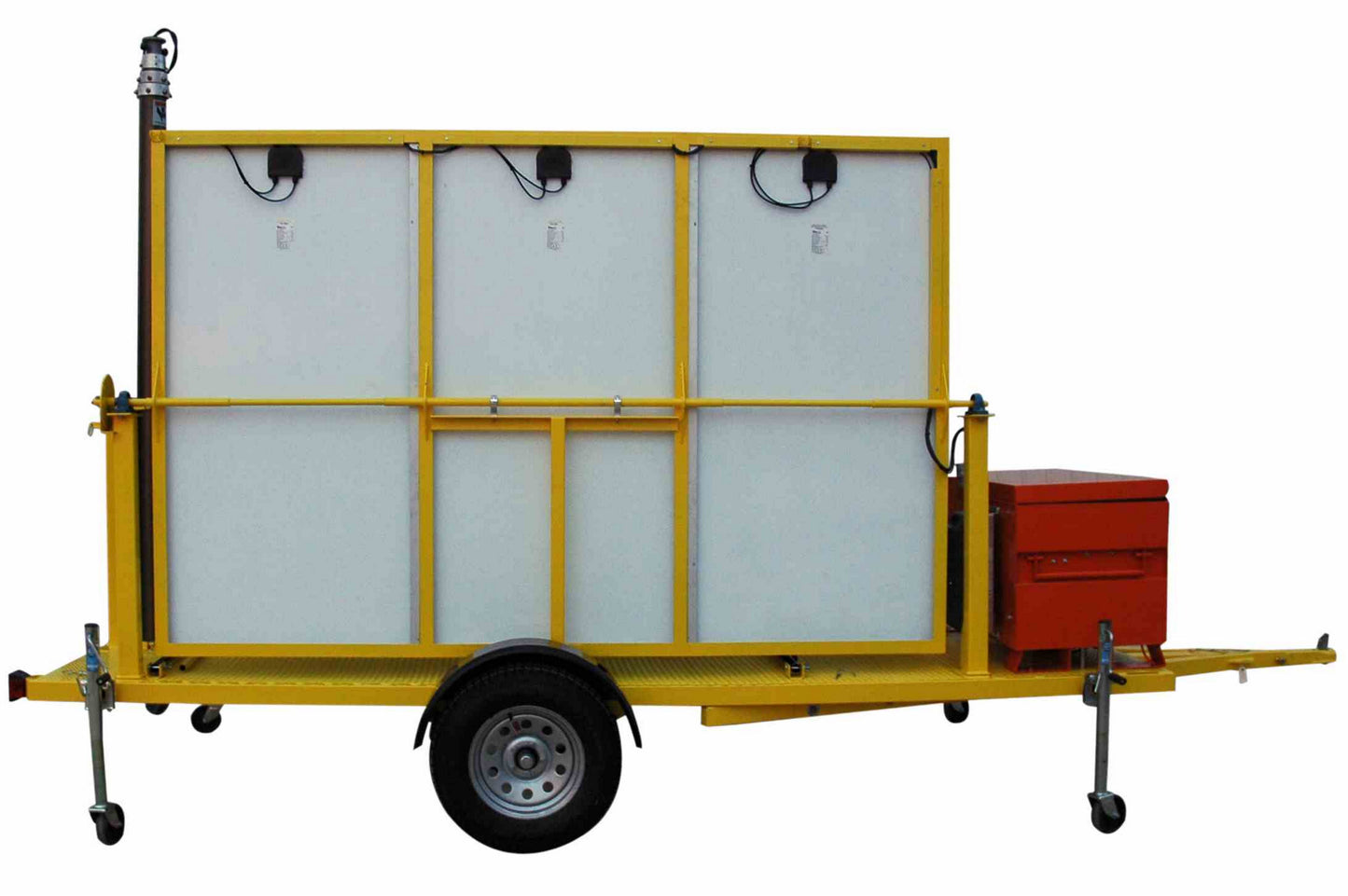

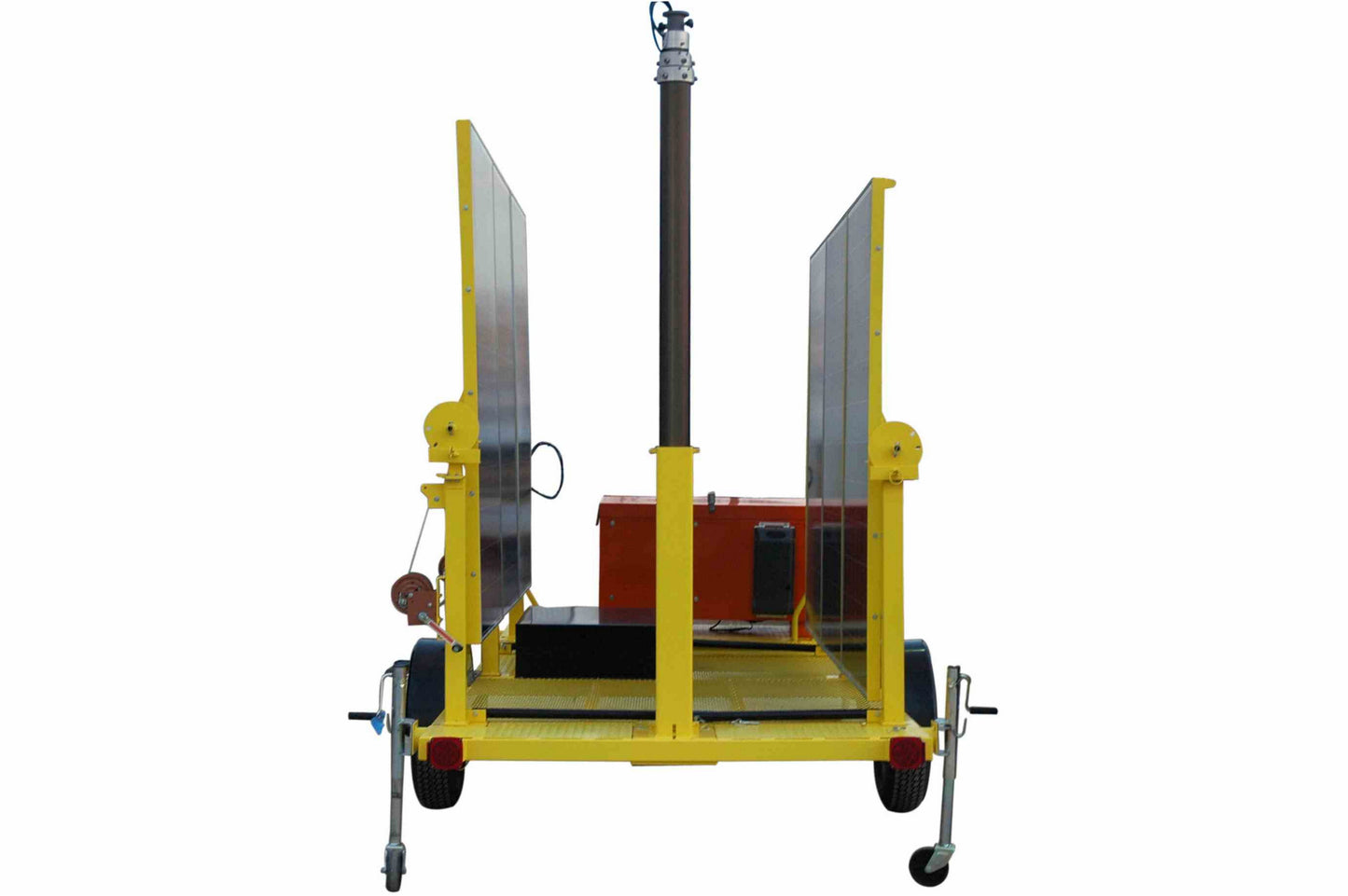

Trailer Specs

• Dimensions: 16 feet long x 6 feet wide.
• Axle: 3500-lb rated.
• Safety: Equipped with a pintle hitch, removable tongue, and safety chains.
• Finish: Industrial AL82807 yellow paint for high visibility.
• Additional Features: Optional removable wheels and lockable outriggers for added security.

Applications

• Construction Sites: Ideal for illuminating large work areas.
• Emergency Response: Provides reliable lighting for disaster zones and emergency response efforts.
• Remote Security: Equipped with a motion sensor, enhancing surveillance in secluded areas.
• Industrial Use: Suitable for industrial projects requiring dependable, mobile lighting.
