Larson Electronics 20' Telescoping Balloon LED Tower w/ 20kW Generator - (2) 12' Portable LED Quadpods, Spare Tire

Product Description

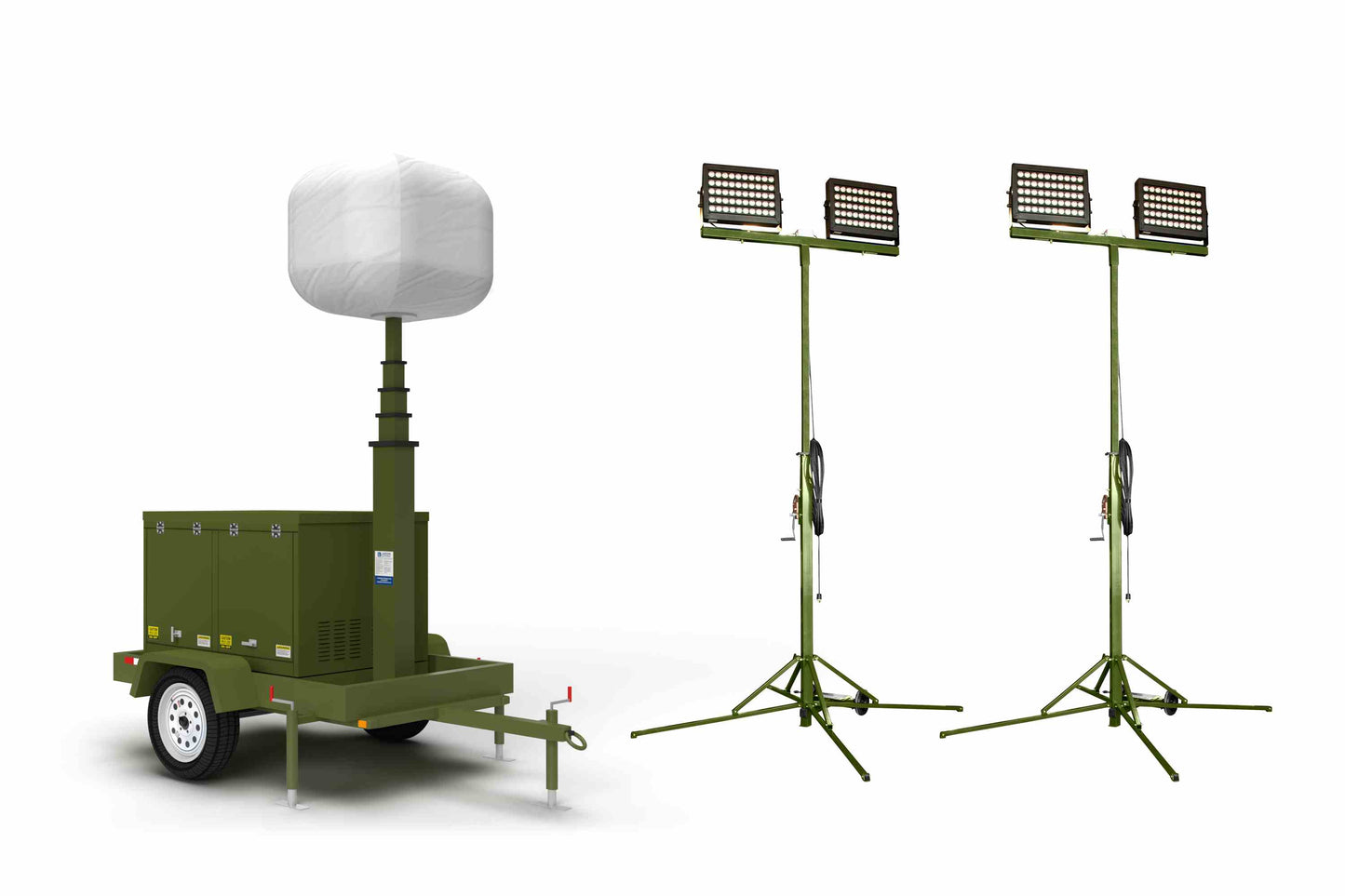

Larson Electronics 20' Telescoping Balloon LED Tower w/ 20kW Generator - (2) 12' Portable LED Quadpods, Spare Tire

Description

The WCDE-4-20KW-4X500LTL-LED-LBC-M1 Telescoping Balloon LED Tower from Larson Electronics is a towable, heavy-duty lighting solution ideal for remote and industrial environments. Featuring a 20-foot telescoping mast and 20kW generator, this unit illuminates up to 7 acres with its high-efficiency LED balloon light and two adjustable LED quadpod towers. Built with robust features, the light tower operates in a range of conditions, with extended run times and durable military-grade construction.

Key Features

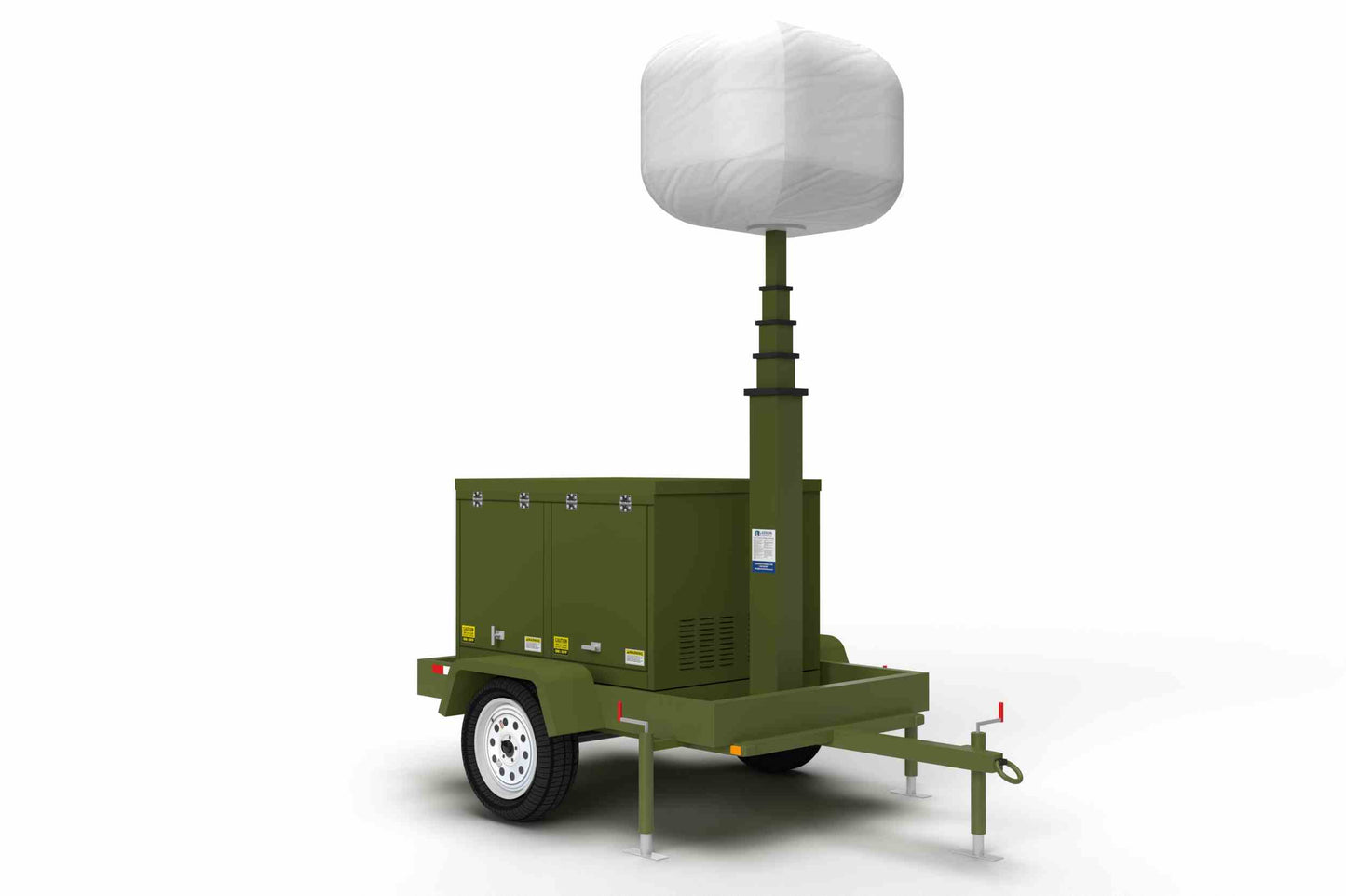

• High-Output LED Balloon Light: 2,000W balloon light providing 208,000 lumens, illuminating up to 7 acres.

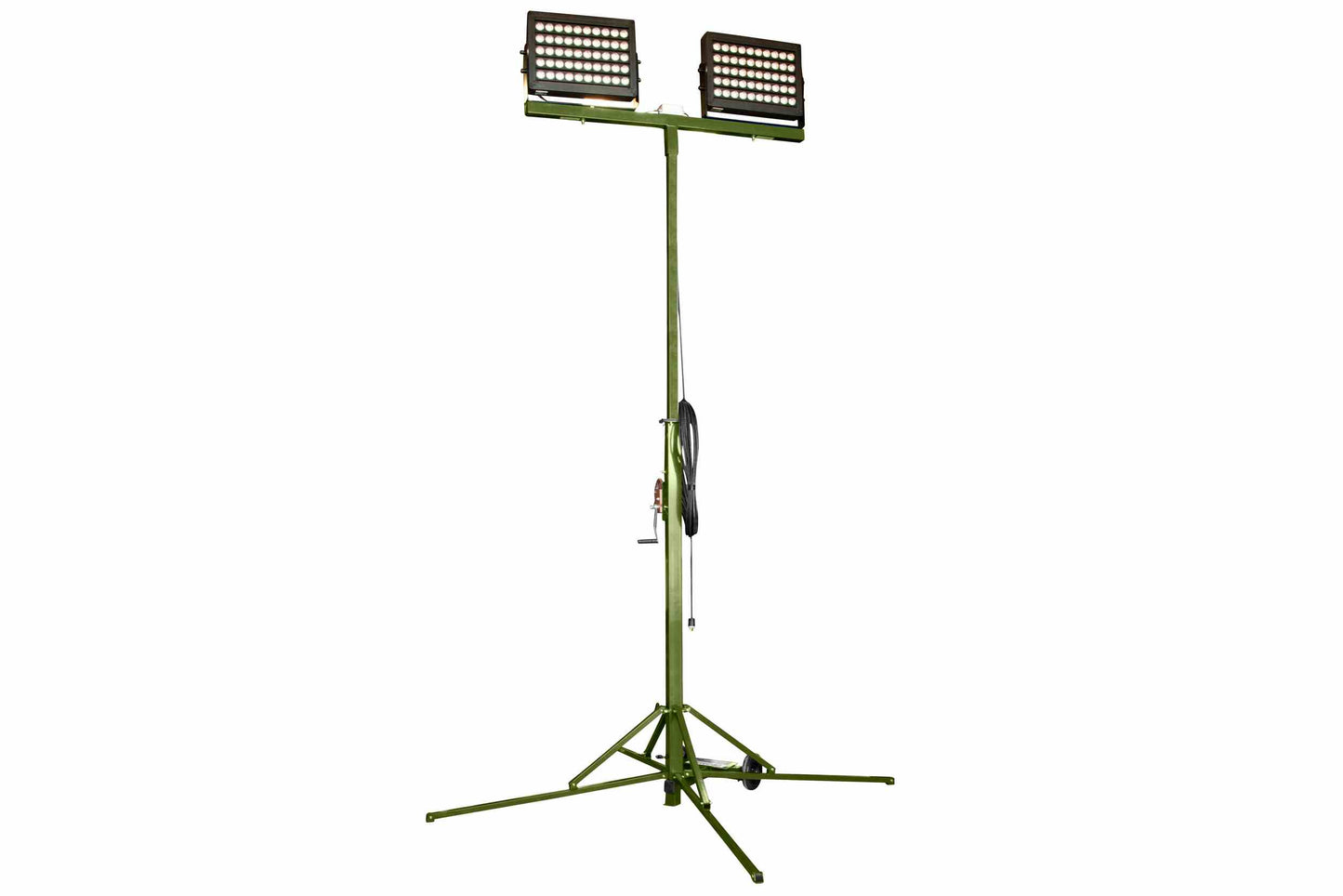

• Portable Quadpods: Two 12-foot quadpod towers, each equipped with two 500W LED lamps totaling 240,000 lumens.
• 20kW Diesel Generator: Kubota-powered, low-rpm generator with JP8 fuel compatibility and a 60-gallon fuel tank for 19+ hours of continuous operation.
• Military Specifications: Built to MIL-STD-209K, MIL-STD-1366, and MIL-STD-1223 standards, with Mil-spec Lusterless Forest Green finish, making it ready for extreme applications.
• Automatic Controls: Equipped with a Deepsea controller for real-time monitoring and safety notifications.

Detailed Specifications

Generator

• Engine: Diesel, 1,800 rpm, JP8 compatible
• Rated Power: 20 kW (standby 22 kW)
• Fuel Capacity: 60 gallons, extended runtime
• Voltage: 120/240V, 3-phase, 60 Hz
• Safety: Automatic shutoff for high temp, low oil, and more

Lighting

• Balloon Light Output: 208,000 lumens (2,000W)
• Quadpod Output: 240,000 lumens (total)
• LED Life Expectancy: 80,000 hours
• Mast Height: 20 feet, with 50 mph wind resistance when fully deployed

Construction

• Trailer: 14-ga steel with Mil-spec coating, equipped with 2,200 lbs leaf spring axle
• Hitch Type: 3" adjustable Lunette ring for towing
• Wind Resistance: Rated for 50 mph
• Transportation: Air transport-ready, compatible with C-130, C-17, and C-5 aircraft

Applications

Ideal for military bases, remote sites, emergency response, construction, and events where extended lighting and durability are required.

Compliance & Standards

• UL 508A: Control System
• UL 1640: Power Distribution
• Buy American Compliant: Made in Texas, USA
• Corrosion Control: MIL-STD-1223 compliant

What’s Included

• 2,000W Balloon Light and 2 LED Quadpods
• 20kW Diesel Generator
• Heavy-Duty Trailer with Forklift Pockets
• Deepsea Controller
