Product Description
Larson Electronics 20kW Diesel Generator - 30' Telescoping Tower - (8) LED Lamps - 60 Gal Fuel Cell
Description

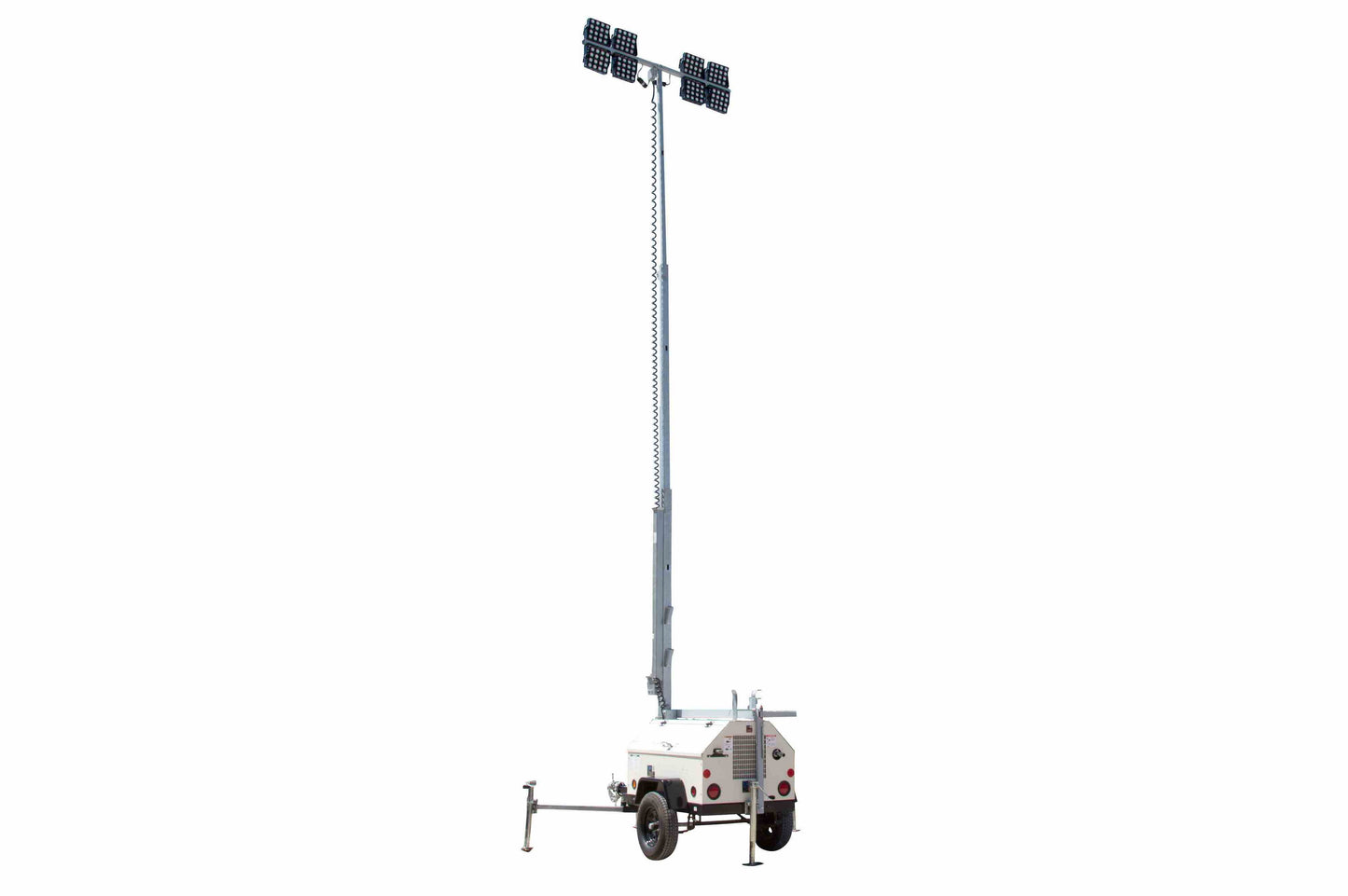

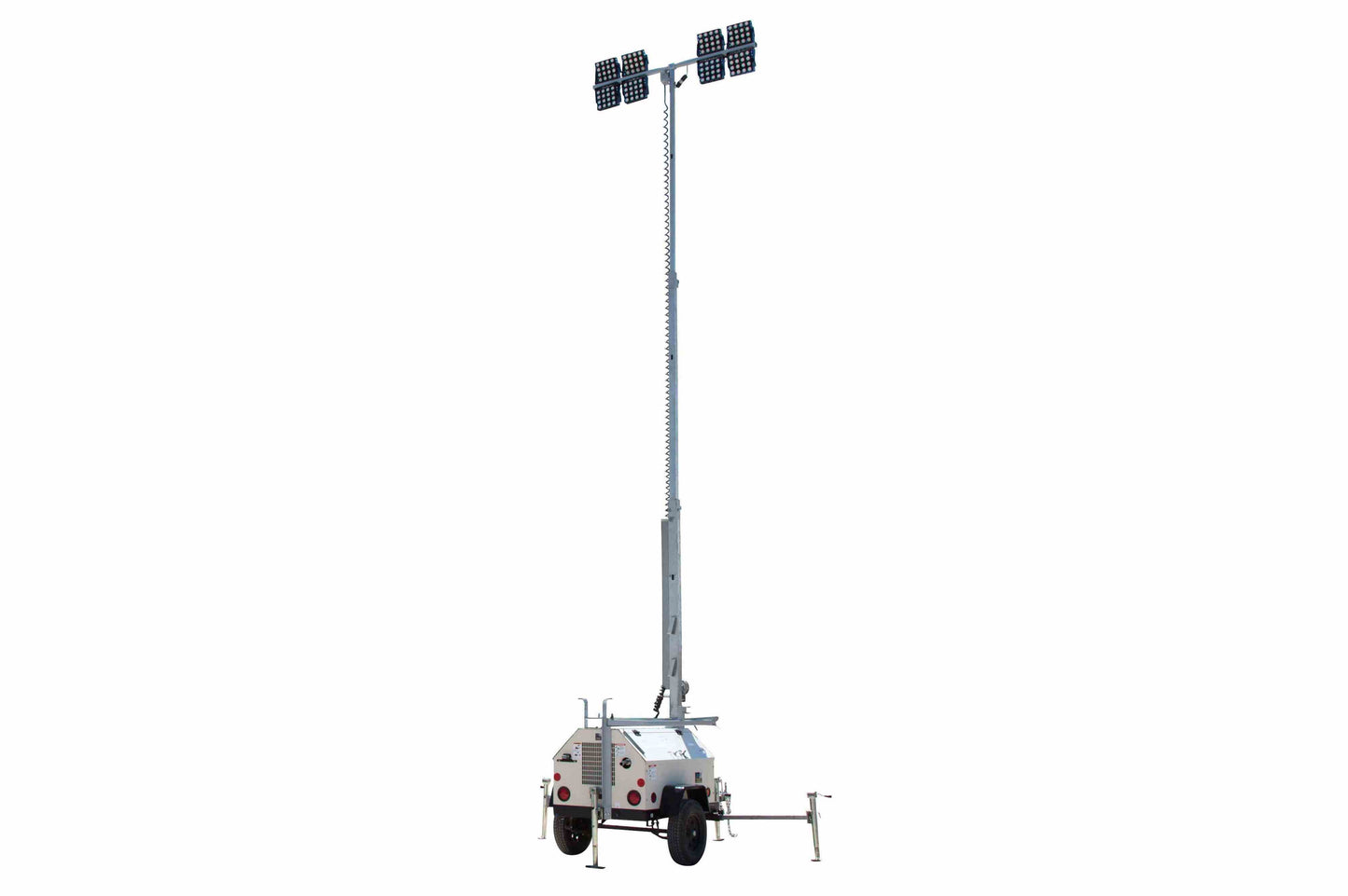

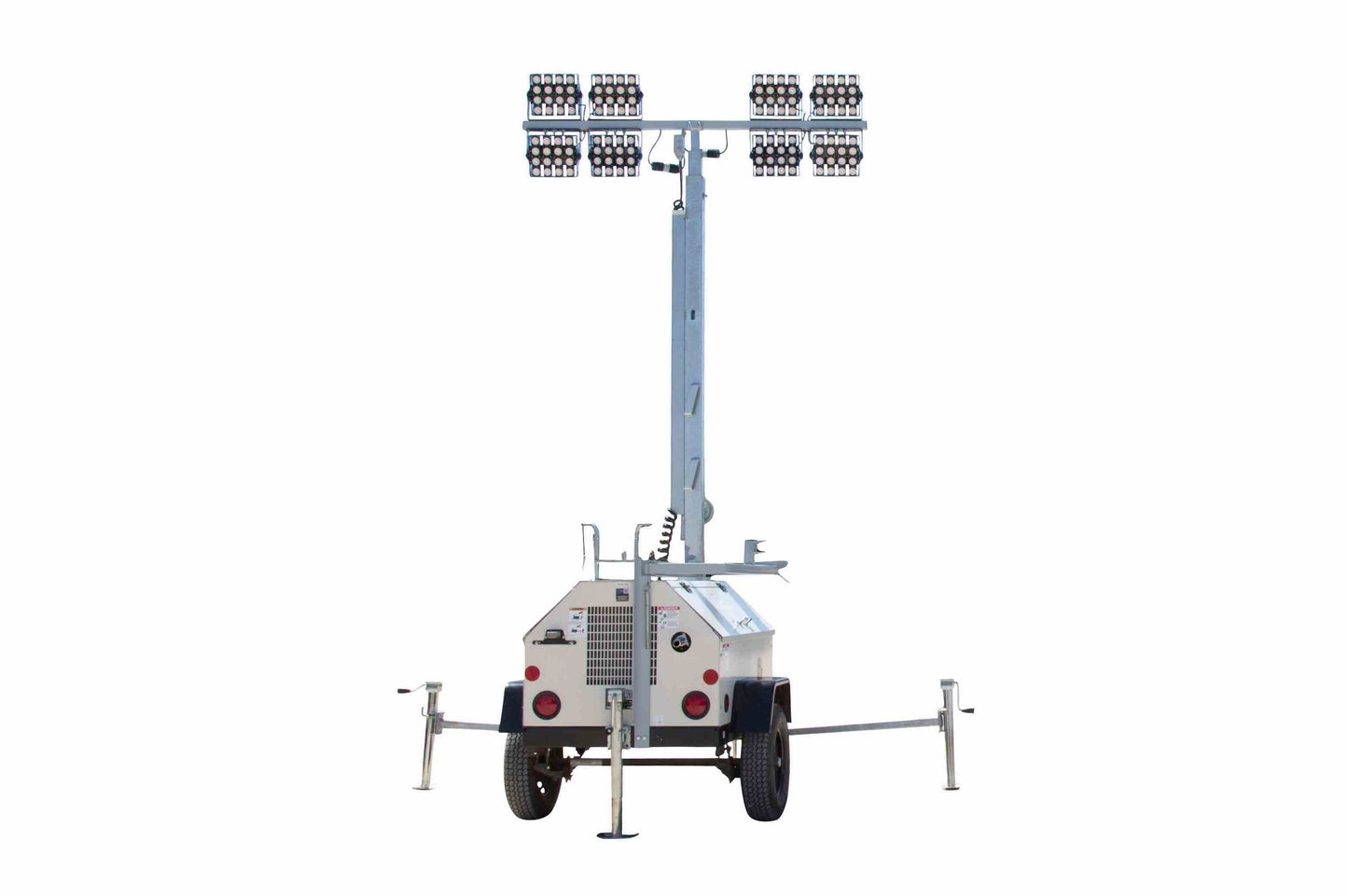

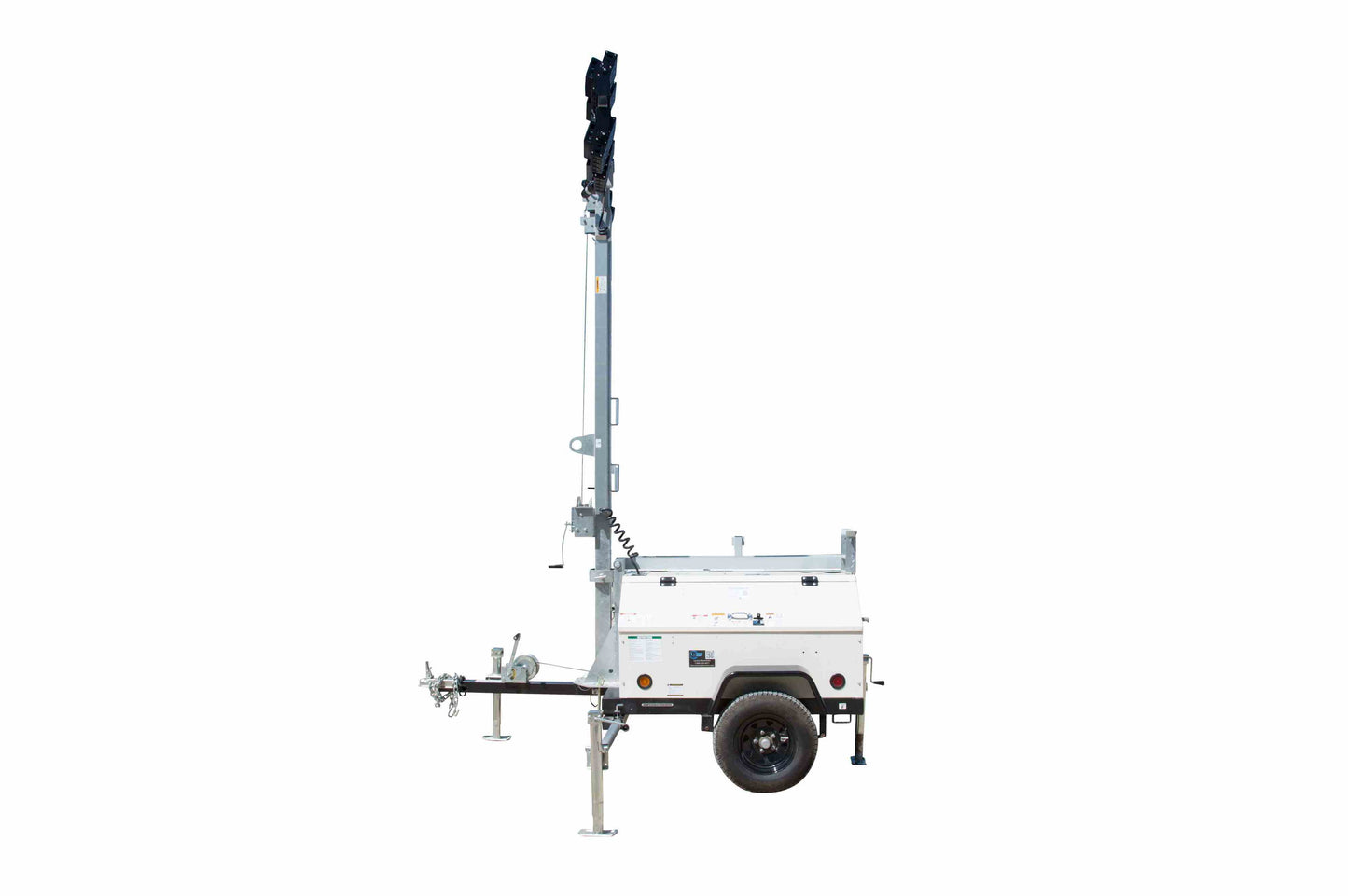

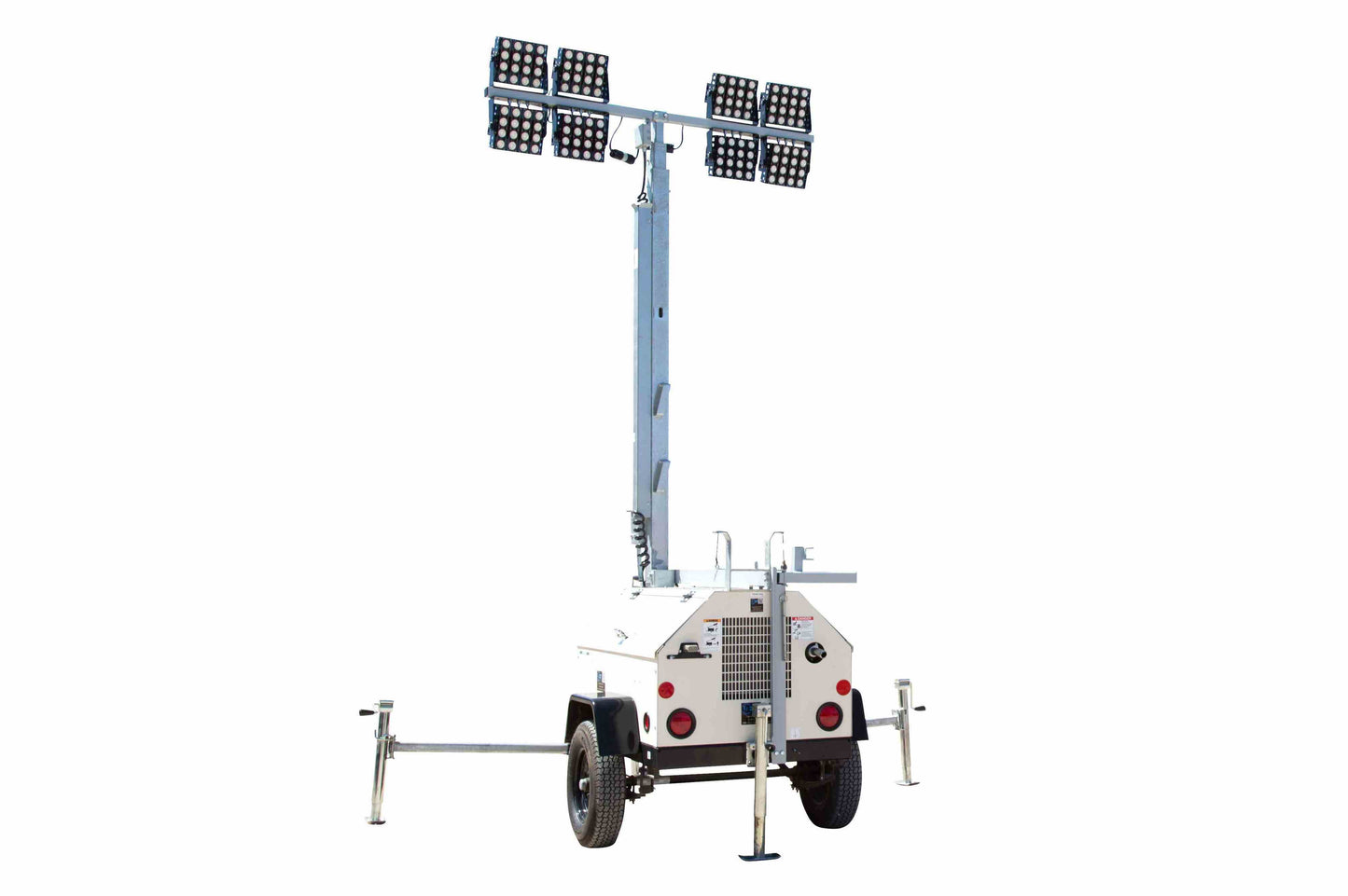

The WCDE-20KW-8X250LTL-LED-2.L09-1.L22-2.N10-M1 Mobile Light Tower by Larson Electronics is a high-performance, towable lighting solution ideal for large, remote applications. Powered by a robust 20kW generator and featuring eight LED lamps totaling 259,200 lumens, this unit ensures consistent illumination over a wide 8-9 acre area. The mobile lighting system includes a 30-foot telescoping mast with 360° rotation and provides hours of uninterrupted lighting.
Key Features
-
High-Intensity Lighting: Eight 240-watt LED lamps produce 259,200 lumens combined, illuminating up to 9 acres.
-
Fuel Efficiency: Equipped with a 20kW Kubota generator, 31.3 HP motor, and a 60-gallon fuel tank, ensuring long runtimes.
-
Enhanced Durability: Built with IP67-rated die-cast aluminum housings and high-transmittance PMMA optics for challenging conditions.
-
User-Friendly Controls: Includes Deepsea DSE3110 controller for monitoring operational status, protective alerts, and real-time adjustments.
-
Optimal Heat Management: Heat sinks per LED bank prevent overheating, extending LED life up to 80,000 hours.
-
Reliable Mast and Trailer Design: 30-foot aluminum telescoping mast, dual winch system, and sturdy two-wheel trailer with safety chains.
Detailed Specifications
Generator
-
Engine: Kubota D1105-BG, 3-cylinder, turbocharged diesel
-
Fuel Capacity: 60 gallons
-
Voltage: 120/240V, single-phase, 60Hz
-
Power Output: 20kW
-
Breakers/Receptacles: (2) 30A NEMA L6-30R 250V, (1) 30A NEMA L14-30R 250V, (2) 20A NEMA 5-20R 125V GFCI
Lighting
-
Total Output: 259,200 lumens
-
Color Temperature: 4000K/5000K
-
Lamp Life: 80,000 hours
-
Mounting: Trunnion Mount U-Bracket
-
Coverage: Up to 9 acres
Telescoping Mast & Trailer
-
Height: 30 feet
-
Rotation: 360°
-
Material: Aluminum
-
Trailer Dimensions: 137" x 93.3" x 53.9"
-
Axle Capacity: 2,200 lbs
Compliance and Safety
- Made in the USA, TAA Compliant, UL 1640 NRTL Certified
Applications
Ideal for remote locations, emergency services, construction, and events, providing high output and reliable illumination.
