Larson Electronics 20kW Generator - Water Cooled Diesel Engine - 25' Hydraulic Tower - (6) 500W LED Lamps - 25 Gal Tank

 Products Description

Larson Electronics 20kW Generator - Water Cooled Diesel Engine - 25' Hydraulic Tower - (6) 500W LED Lamps - 25 Gal Tank

Description

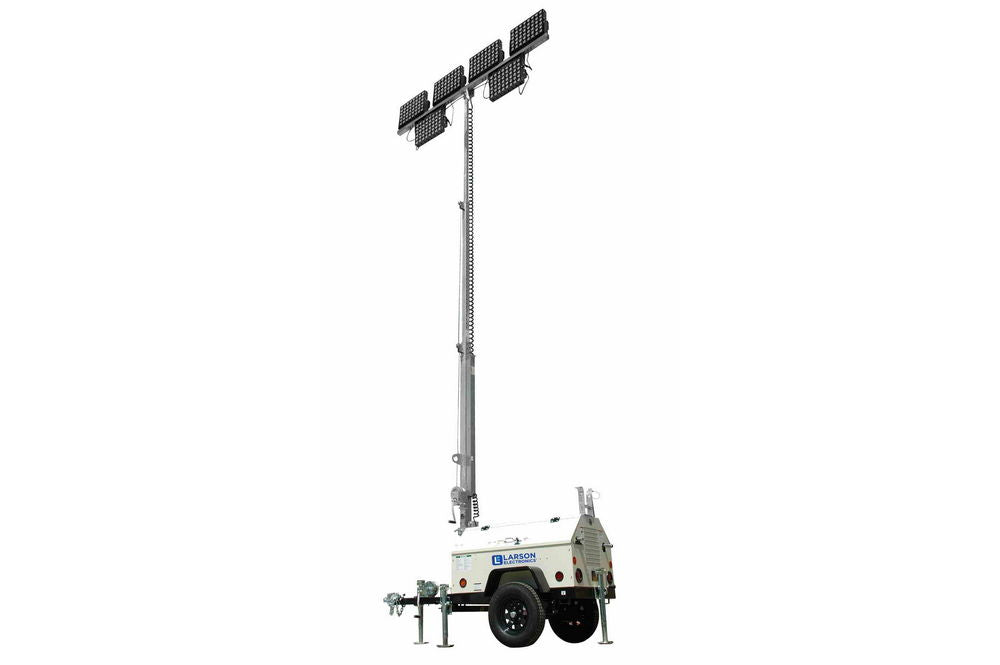

The WCDE4-20KW-4X500LTL-LED-CPR-M2 mobile light tower from Larson Electronics is a towable lighting system powered by a 20 kW generator. Equipped with four 400-watt lamps producing a combined 208,000 lumens, it can illuminate 6-7 acres for over 200 hours continuously without refueling, thanks to its 50-gallon fuel tank. Designed for remote outdoor locations, the unit features a Deepsea controller for real-time monitoring and comes with receptacles for additional power needs.

Key Features

• Primary Lighting: Four 400-watt LED lamps (208,000 lumens total)
• Power: 20 kW generator, 22 kW standby power
• Fuel Capacity: 50-gallon fuel tank for 200+ hours of continuous use
• Low RPM Operation: Quieter and more durable than higher RPM models
• Safety Features: Low fuel beacon, engine shutdown sensors, spill containment
• Genset: Perkins/404D-22G engine, EPA Tier 4 compliant
• Telescoping Boom: Extends up to 25 feet with 360° light rotation
• Durability: IP67 rated, weatherproof, and resistant to dust and extreme temperatures

Applications:

• Remote camps
• Construction sites
• Military bases
• Industrial operations
• Emergency services

 Detailed Specifications

Genset Specs:

• Engine: Perkins/404D-22G EPA Tier 4
• Engine Type: 4-cycle, water-cooled, direct injection
• Rated Power: 20 kW (22 kW standby)
• Voltage: 120/240V 50Hz, single-phase
• Fuel Capacity: 50 gallons
• Runtime: 200+ hours before refueling
• Noise Level: <58 dBA at 30 ft
• Safety Features: Low fuel, spill beacon, engine shutdown spill sensor

Lighting:

• Lamp Type: Bridgelux® LED
• Total Watts: 1,600W (400W per lamp)
• Total Lumens: 208,000 (52,000 per lamp)
• Luminous Efficiency: 130 lumens/watt
• LED Life Expectancy: 80,000 hours
• Waterproof Rating: IP67
• Coverage: 6-7 acres
• Heat Management: Individual heat sinks for LED units

Trailer:

• Material: 14ga sheet steel enclosure, 12ga steel chassis
• Hitch: Combo hitch for 2" ball/2.5" pintle hook
• Axle: 2,200 lbs capacity
• Suspension: 2,000 lbs double-eye leaf springs
• Outriggers: Four adjustable with 2,000 lbs manual leveling jacks

Protection and Efficiency:

• Low Oil, High Engine Temp Auto Shut-off
• Multiple LED Banks for Heat Dispersion
• Deepsea Controller for system monitoring
• External grounding
• 70% lumen retention after 80,000 hours
• Withstands winds up to 50 mph at full extension

Larson Electronics offers a wide variety of customizable products. Images displayed are a general representation of the form factor for the product line and may not reflect the exact configuration of this unit. Specifications provided should be reviewed prior to ordering.
