Larson Electronics 20kW Generator - Water Cooled Diesel Engine - 25' Hydraulic Tower - (8) LED Lamps - 25 Gal Tank

Products Description

Larson Electronics 20kW Generator - Water Cooled Diesel Engine - 25' Hydraulic Tower - (8) LED Lamps - 25 Gal Tank

Description

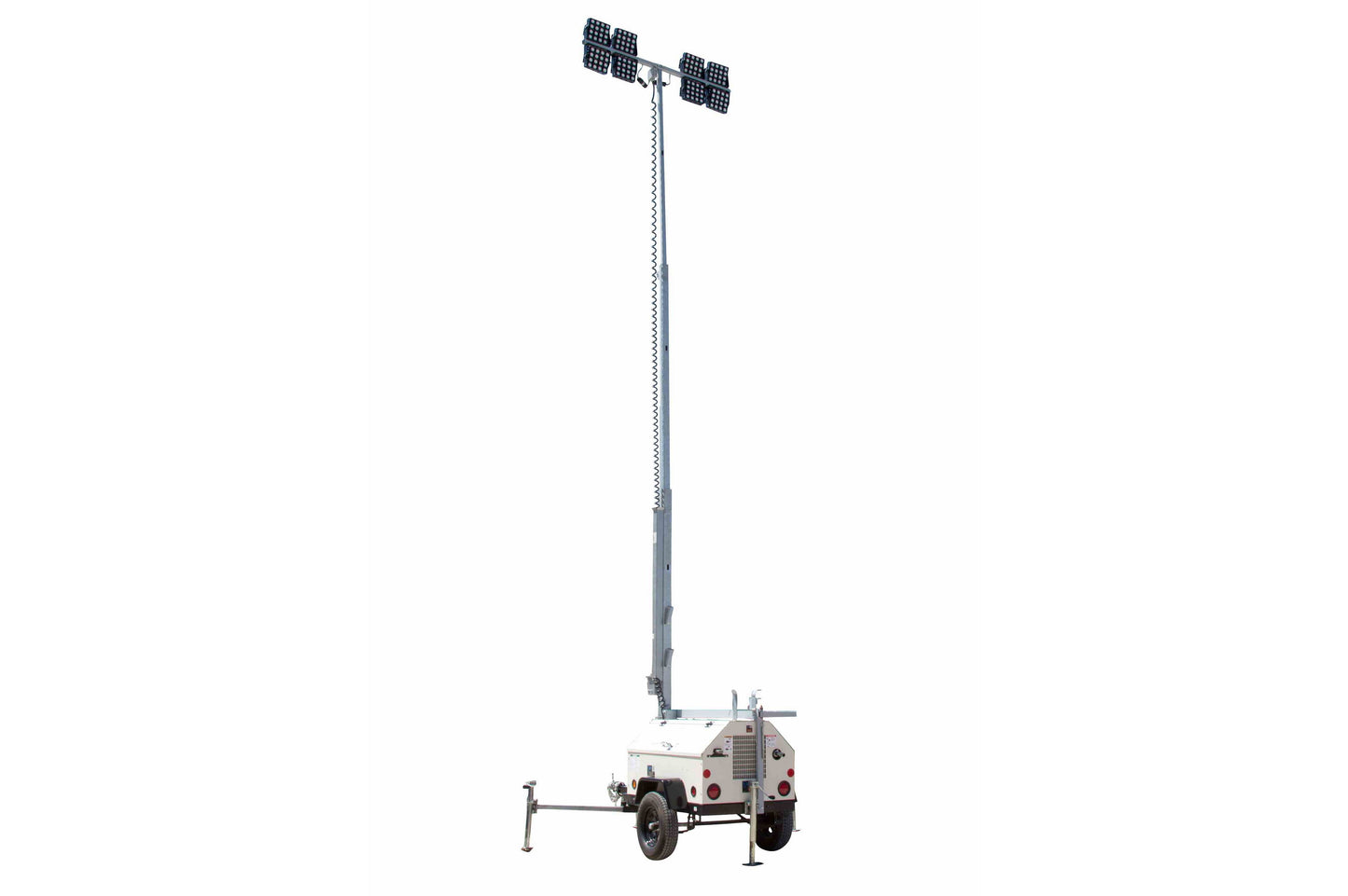

The WCDE-4-20KW-4X500LTL-LED-CPR-M2 mobile light tower from Larson Electronics is a towable lighting package powered by a 20 kW generator. With four 400-watt lamps producing 208,000 lumens, it illuminates 6-7 acres continuously for over 200 hours. Equipped with a 50-gallon fuel tank and receptacles, this unit features a Deepsea controller for real-time monitoring and safety shutdowns. The IP65-rated unit is designed for remote locations, emergency services, construction, and industrial operations.

Key Features

• Primary Lighting: Four 400-watt LED lamps (208,000 lumens)
• 20 kW Perkins diesel generator
• 200+ hours runtime with a 50-gallon fuel tank
• Electro-hydraulic telescoping mast up to 25 feet
• Deepsea controller for system monitoring and adjustments
• Receptacles: Two 15A 5-15R 125V duplex, two 30A L6-30R 250V twist-lock
• Low fuel, spill beacon, and engine shutdown sensor

Applications:

• Remote locations
• Temporary camps
• Construction and mining
• Military bases
• Areas without reliable power access

Protection Features:

• Low oil, high engine temperature auto shut-off
• Hour meter, circuit breakers
• External grounding
• Individual light switch circuit breakers
• Dial-in adjustability per light head

Detailed Specifications

Genset Specs:

• Engine: Perkins/404D-22G EPA Tier 4
• Engine Type: 4-cycle, water-cooled, direct injection
• Engine Speed: 1800 RPM
• Cylinders: 4
• Rated Power: 20 kW (22 kW standby)
• Voltage: 120/240V, 50Hz, 1PH
• Fuel Capacity: 50 gallons
• Runtime: 200+ hours
• Noise Level: <58 dBA @ 30 ft
• Battery: 12V @ 60Ah

Light Mast Specs:

• Mast Type: Manual crank-up
• Height: Up to 25 feet
• Material: Aluminum
• Stages: Four
• Operation: Dual winch system
• Wind Resistance: 50 mph at full extension

Primary Light Specs:

• Lamp Type: Bridgelux® LED
• Total Lumens: 208,000 lumens (52,000 lumens per lamp)
• Luminous Efficiency: 130 lumens per watt
• LED Color Temperature: Cool white (5500-6500K)
• LED Life Expectancy: 80,000 hours
• Waterproof Rating: IP67
• Coverage: 6 to 7 acres

Trailer Specs:

• Material: 14ga steel enclosure, 12ga steel chassis
• Hitch: Combo hitch for 2" ball and 2.5" pintle hook
• Axle Capacity: 2,200 lbs
• Suspension: 2,000 lbs double-eye leaf springs
• Outriggers: Four adjustable outriggers with 2,000 lbs manual leveling jacks
• Dimensions: 137" L x 93.3" W x 53.9" H

Larson Electronics LLC specializes in custom-built lighting products. Please review specifications before ordering, as images may not fully represent the exact configuration.
