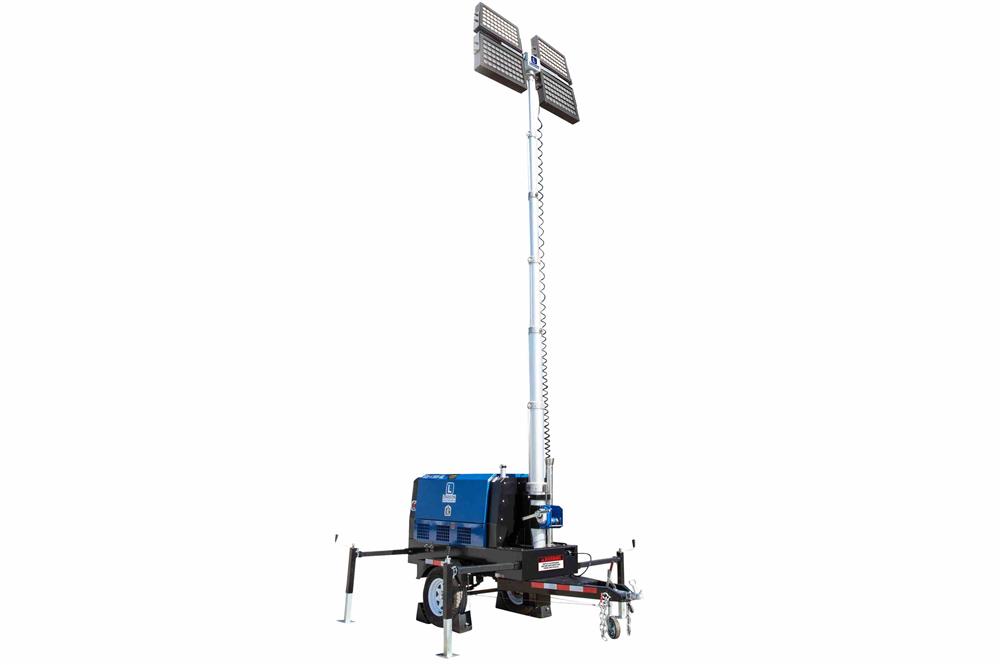

Larson Electronics 20kW Generator - Water Cooled Diesel Engine - 25' Telescoping Tower - (4) LED Lamps - 50 Gal Tank

Productt Description

Larson Electronics 20kW Generator - Water Cooled Diesel Engine - 25' Telescoping Tower - (4) LED Lamps - 50 Gal Tank

Description

The WCDE-4-20KW-4X500LTL-LED-CPR-M2 mobile light tower from Larson Electronics is a robust, towable lighting system powered by a 20 kW generator. This unit features four 400-watt LED lamps producing 208,000 lumens, capable of illuminating 6-7 acres continuously for 200+ hours. Equipped with a 50-gallon fuel tank and multiple receptacles, the system offers efficient, extended illumination for outdoor and remote locations. A Deepsea controller enables real-time monitoring, and the IP65-rated unit is designed to withstand harsh conditions.

Key Features

• Primary Lighting: Four 400-watt LED lamps (208,000 lumens)
• Runtime: 200+ hours on a 50-gallon fuel tank
• 20 kW Perkins diesel generator
• 120/240V 50Hz power support with multiple receptacles
• Deepsea controller for real-time monitoring and control
• Durable construction with IP67-rated LED lamps and weather-resistant materials
• Aluminum telescoping mast up to 25 feet, rotating 360°
• Four-point stabilizing outriggers for windy conditions up to 50 mph

Applications:

• Remote work sites
• Construction
• Emergency services
• Mining
• Large-scale event lighting

Detailed Spacification

Genset Specs

• Engine: Perkins/404D-22G EPA Tier 4
• Engine Type: 4-cycle, water-cooled, direct injection
• Engine Speed: 1800 RPM
• Cylinders: 4
• Rated Power: 20 kW (22 kW standby)
• Voltage: 120/240V, 50Hz
• Fuel Capacity: 50 gallons
• Runtime: 200+ hours
• Noise Level: 58 dBA @ 30 ft
• Safety Features: Low fuel, spill sensor, shutdown, fuel level gauge
• Receptacles: (2) 15A 5-15R [125V], (2) 30A L6-30R [250V]

Light Mast Specs:

• Mast Type: Manual crank-up with dual self-braking winches
• Height: Up to 25 feet
• Material: Aluminum
• Stages: Four
• Rotation: 360 degrees
• Wind Resistance: 50 mph when fully extended

Lighting Specs:

• Lamp Type: Bridgelux® LED
• Total Watts: 1,600W (400W per lamp)
• Total Lumens: 208,000 lumens (52,000 per lamp)
• LED Color Temperature: Cool white (5500-6500K)
• LED Life Expectancy: 80,000 hours
• Waterproof Rating: IP67
• Coverage: 6-7 acres
• Heat Management: Individual heat sinks for extended operation

Trailer Specs:

• Materials: 14ga sheet steel enclosure, 12ga formed steel chassis
• Hitch: Combo hitch (2" ball/2.5" pintle hook)
• Axle Capacity: 2,200 lbs
• Suspension: 2,000 lbs double-eye leaf springs
• Outriggers: Four adjustable outriggers with 2,000 lbs manual leveling jacks
• Dimensions: 137" x 93.3" x 53.9"
• Lighting: DOT-approved tail, side, brake, and directional lights
• Wheels: (2) 13" 5x4.5 steel rims

Protection Features:

• Low oil, high engine temperature auto shut-off
• External grounding
• Hour meter and circuit breakers
• Spill containment (up to 110%)

This mobile light tower is ideal for rugged environments, offering reliable, extended illumination for remote operations.
