Larson Electronics 20kW Generator - Water Cooled Diesel Engine - 25' Telescoping Tower - (4) LED Lamps - 50 Gal Tank - 50HZ

Products Description

Larson Electronics 20kW Generator - Water Cooled Diesel Engine - 25' Telescoping Tower - (4) LED Lamps - 50 Gal Tank - 50HZ

Description

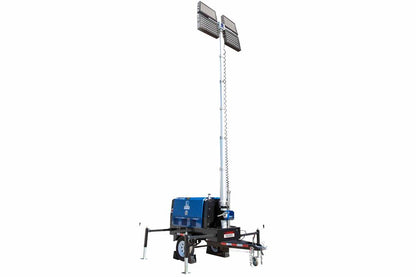

The WCDE-4-20KW-4X500LTL-LED-CPR-M2 mobile light tower from Larson Electronics is a towable lighting solution powered by a 20 kW generator. Equipped with four 400-watt LED lamps producing 208,000 lumens, this unit can illuminate an area of 6-7 acres for 200+ hours continuously without refueling. Designed for use in remote, outdoor locations, the unit includes a 50-gallon fuel tank, multiple receptacles, and a Deepsea controller for real-time monitoring.

Key Features

• Lighting: Four 400-watt LED lamps (208,000 lumens total)
• Runtime: 200+ hours of continuous illumination
• Fuel Capacity: 50-gallon tank
• Perkins 404D-22G diesel engine (22 kW standby, 20 kW prime)
• Deepsea controller for robust system monitoring
• Safety features: Low oil, high engine temperature auto shut-off, low fuel shutdown, and spill containment

Detailed Specifications

• Engine: Perkins/404D-22G EPA Tier 4
• Rated Power: 20 kW (22 kW standby)
• Engine Speed: 1800 RPM
• Voltage: 120/240V, 50Hz (single-phase)
• Fuel Delivery: Electric
• Fuel Cell Capacity: 50 gallons
• Runtime: 200+ hours
• Receptacles: Two 15A 5-15R 125V outlets, two 30A L6-30R 250V twist-lock outlets
• Noise Level: < 58 dBA @ 30 ft

Light Tower Specifications:

• Total Lumens: 208,000 lumens (52,000 lumens per lamp)
• LED Efficiency: 130 lumens per watt
• LED Life Expectancy: 80,000 hours
• Color Temperature: Cool white (5500-6500K)
• Heat Management: Independent heat sinks for extended operation and lifespan
• IP Rating: IP67 waterproof
• Coverage: 6-7 acres
• Mounting: Stainless steel trunnion U-brackets
• Telescoping Mast: Up to 25 feet with 360° rotation, supported by a dual self-braking winch system

Trailer Specifications:

• Material: 14-gauge steel enclosure with 12-gauge formed steel chassis
• Axle: 2,200 lbs capacity with 2,000 lbs double-eye leaf springs
• Hitch: Combo hitch for 2" ball/2.5" pintle hook
• Outriggers: Four adjustable outriggers with manual leveling jacks
• DOT-approved lighting for road use

Applications:

• Remote camps, construction sites, military bases
• Emergency lighting and large event illumination
• Suitable for powering heavy-duty tools, laptops, and mobile devices

This mobile light tower is an ideal solution for extended operations requiring powerful, efficient lighting in challenging environments.
