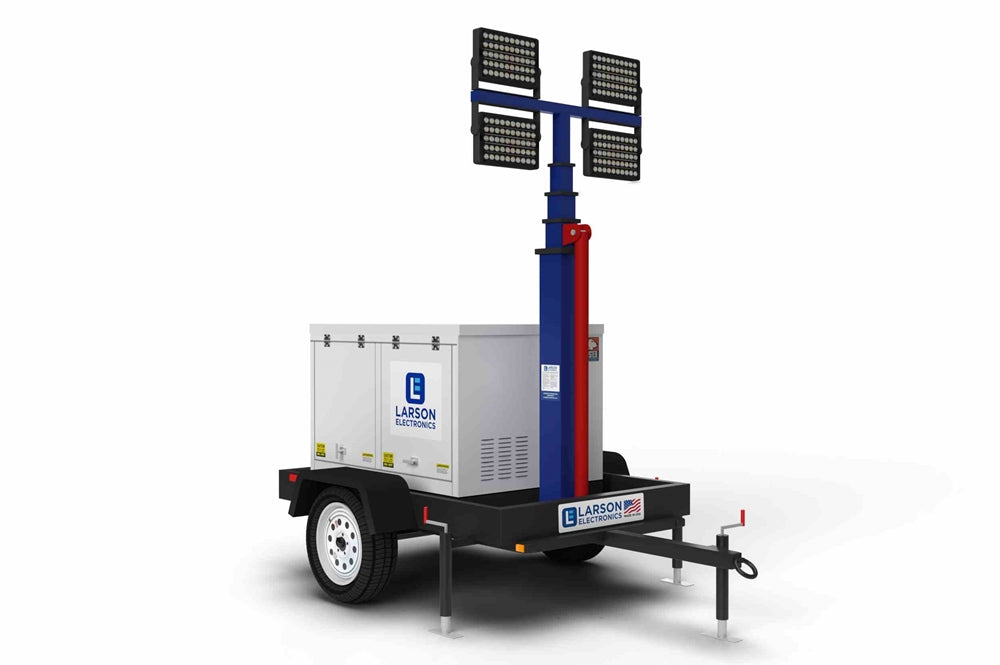

Larson Electronics 24' Mobile Light Tower w/ Diesel Generator - (4) LED Lights - 9kW Genset/39.9 Gallon Poly Fuel Tank - Digital Control Panel

Products Description

Larson Electronics 24' Mobile Light Tower w/ Diesel Generator - (4) LED Lights - 9kW Genset/39.9 Gallon Poly Fuel Tank - Digital Control Panel

Description

The WCDE-HAL-6-4X150RT-LED Explosion Proof Telescoping Tower from Larson Electronics is a mobile LED light plant designed for hazardous locations and combustible work environments. Powered by a water-cooled diesel engine and a 6,000-watt generator, it delivers 120/240V @ 60Hz. Featuring four 150-watt C1D2 LED lamps, this unit produces a total of 70,000 lumens, covering 3-4 acres. The light tower can operate for up to 120 hours on a single tank of fuel and includes a spark arrestor for enhanced safety.

Key Features

• Explosion Proof LED Lamps: Four 150-watt C1D2 lamps, 70,000 total lumens
• 120-hour runtime with a 30-gallon fuel tank
• 6,000-watt generator (120/240V @ 60Hz)
• Kubota water-cooled diesel engine (1,800 RPM)
• Telescoping mast extends up to 25 feet
• Manual crank winch system for elevation
• Three-point adjustable outrigger system
• IP67-rated LED fixtures with 60,000-hour lifespan
• Spark arrestor for hazardous environments

Applications:

• Hazardous locations (C1D2/C2D1)
• Explosive work sites
• Oil and gas operations
• Mining, construction, security, and perimeter lighting

 Detailed Specifications

Genset Specs:

• Engine: Kubota D1105-BG-ET01
• Engine Type: 4-cycle, water-cooled, diesel
• Engine Speed: 1800 RPM
• Cylinders: 3
• Generator: Marathon Pancake 6KW, 4-pole brushless
• Voltage: 120/240V, single-phase
• Fuel Capacity: 30 gallons
• Fuel Delivery: Electric
• Noise Level: 63 dB @ 23 ft
• Battery: 12V

Light Mast Specs:

• Mast Type: Manual crank-up
• Height: Up to 25 feet
• Material: Galvanized steel
• Winches: Two 1,500 lbs self-braking winches

LED Light Specs:

• Lamp Type: Cree® LED
• Total Watts: 600W (150W per lamp)
• Total Lumens: 70,000 lumens (17,500 lumens per lamp)
• Luminous Efficiency: 116.67 lm/W
• Color Temperature: 5,000K (optional 3000K and 4000K)
• IP Rating: IP67
• Temperature Rating: -50°C to +65°C
• Mounting: 3/4" pendant and swivel mount

Trailer Specs:

• Enclosure: Plastic LMDPE, 12-gauge steel chassis
• Hitch: 2" ball coupler and 3" pintle hitch
• Axle Capacity: 2,000 lbs
• Suspension: Double eye leaf springs (2,000 lbs)
• Outriggers: Four adjustable with 2,500 lbs manual leveling jacks
• Wheels: 13" steel rims (5x4.5 pattern)
• Tires: ST175/80/D13
