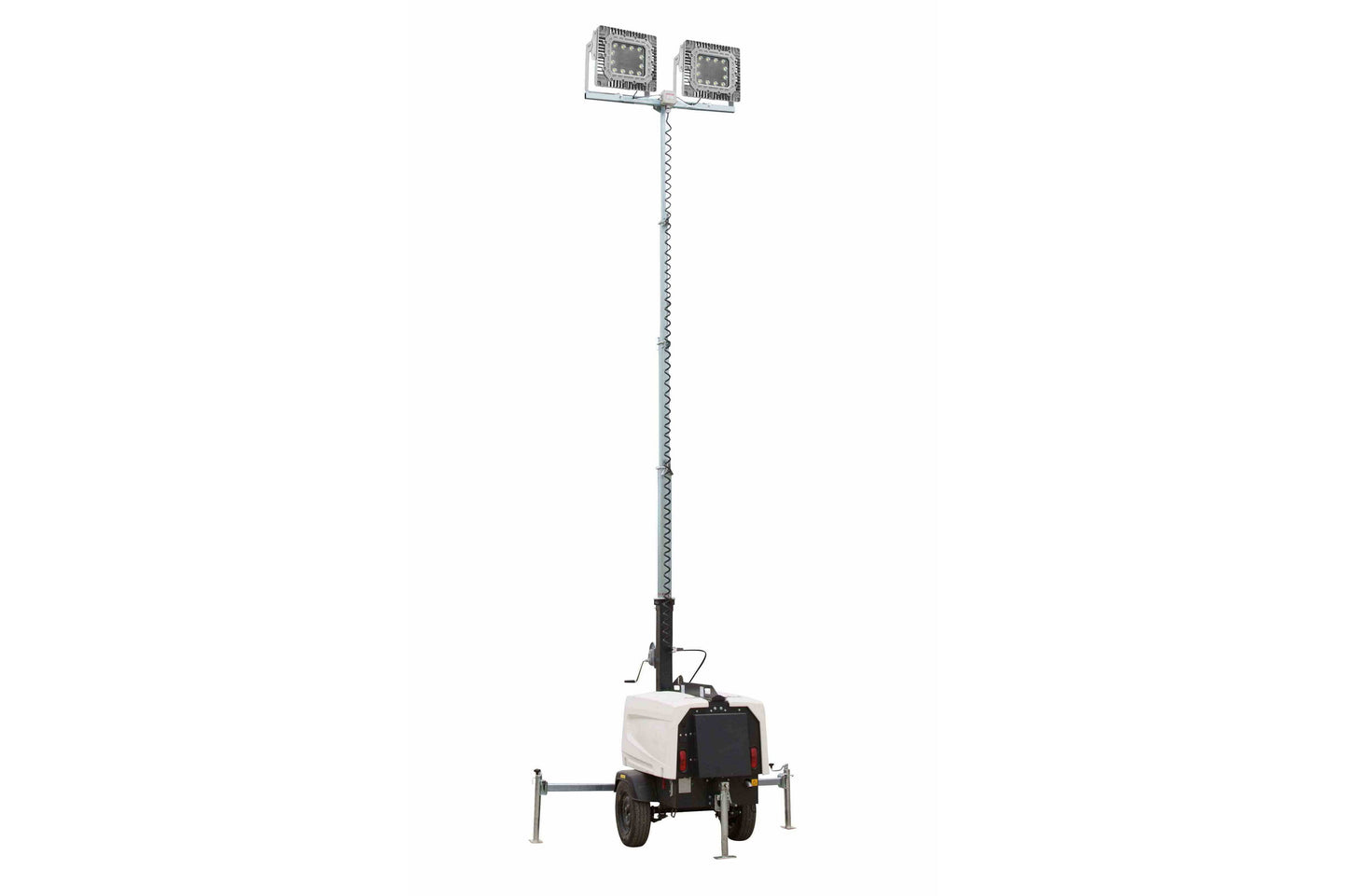

Larson Electronics 25' Explosion Proof Telescoping Tower - C1D2 - 6kW Generator, Spark Arrestor - (2) 150W LED Lamps

Product Description

Larson Electronics 25' Explosion Proof Telescoping Tower - C1D2 - 6kW Generator, Spark Arrestor - (2) 150W LED Lamps

Description

The WCDE-HAL-6-4X150RT-LED Explosion Proof Telescoping Tower from Larson Electronics is a towable, self-contained LED light tower designed for hazardous locations and combustible work sites. Powered by a water-cooled Kubota diesel engine, this unit generates 6,000 watts of power at 120/240V, 60Hz through a Marathon 4-pole brushless generator. Equipped with four 150-watt C1D2 LED lamps, it delivers a combined total of 70,000 lumens, capable of illuminating 3-4 acres continuously for 120 hours without refueling. It features a 30-gallon fuel tank, spark arrestor, and explosion-proof components, making it a robust lighting solution for hazardous and flammable environments.

Key Features

• Explosion-proof lighting: Four 150-watt Class 1 Division 2 LED lamps (17,500 lumens each)
• 120+ hour continuous runtime with a 30-gallon fuel tank
• Kubota water-cooled diesel engine (1800 RPM)
• 6,000-watt generator with 120/240V output
• 25-foot telescoping boom with 360° rotation
• Designed for C1D2/C2D1 flammable work sites and hazardous locations

Applications:

• Flammable work sites
• Hazardous locations
• Oil and gas, petrol processing
• Construction, mining, and security
• Perimeter lighting and elevated outdoor lighting

Detailed Specifications

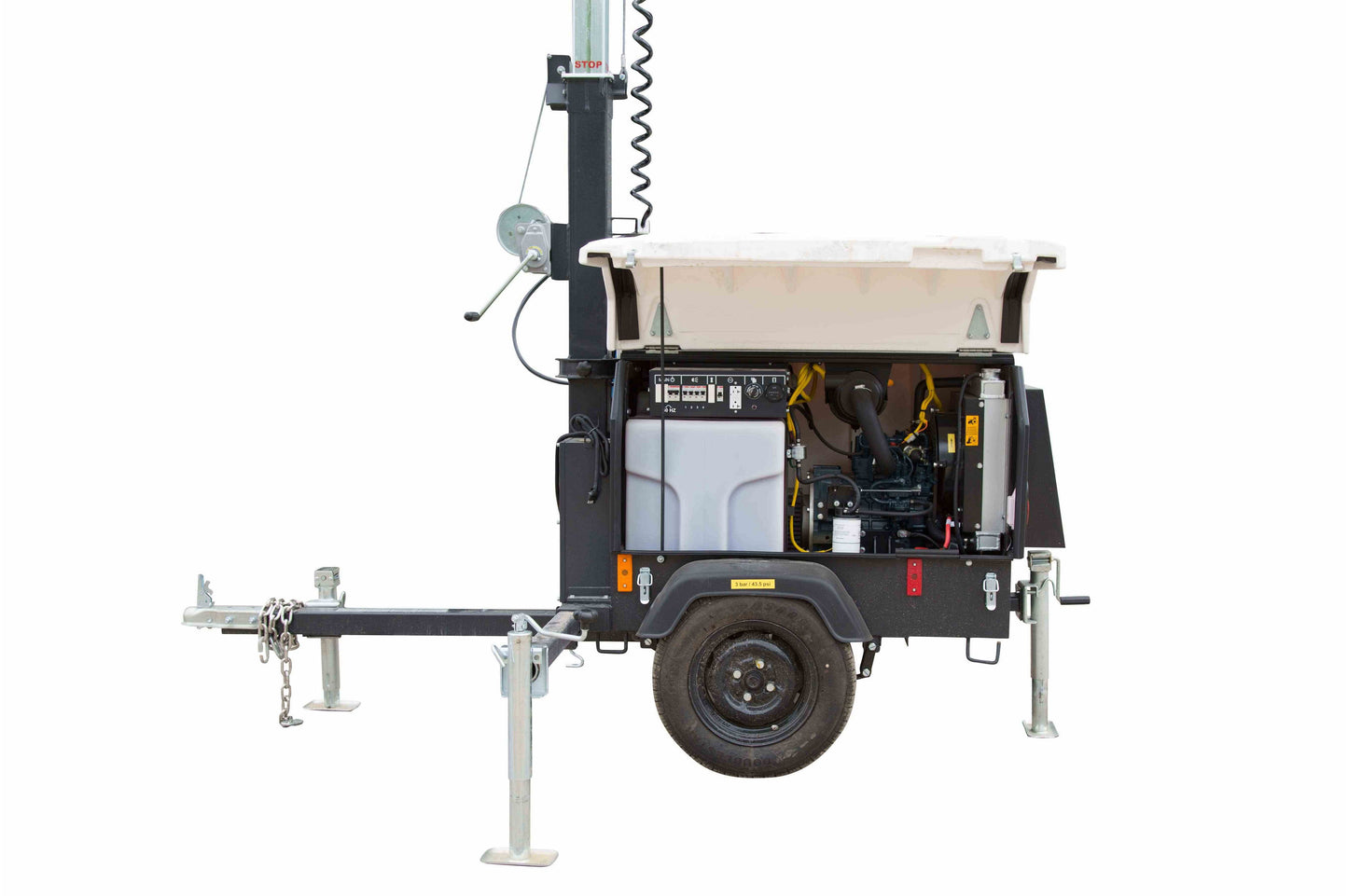

Genset Specs:

• Engine: Kubota D1105-BG-ET01
• Engine Type: Vertical, water-cooled, 4-cycle diesel
• Engine Speed: 1800 RPM
• Cylinders: 3
• Generator: Marathon Pancake 6KW, 4-pole, brushless
• Voltage: 120/240V, single phase
• Fuel Capacity: 30 gallons
• Runtime: 120+ hours
• Noise Level: 63 dB @ 23 ft
• Auxiliary Power: 120V duplex receptacle, 240V twist lock
• Safety: Spark arrestor, low oil pressure, high engine temp auto shut-off

Light Mast Specs:

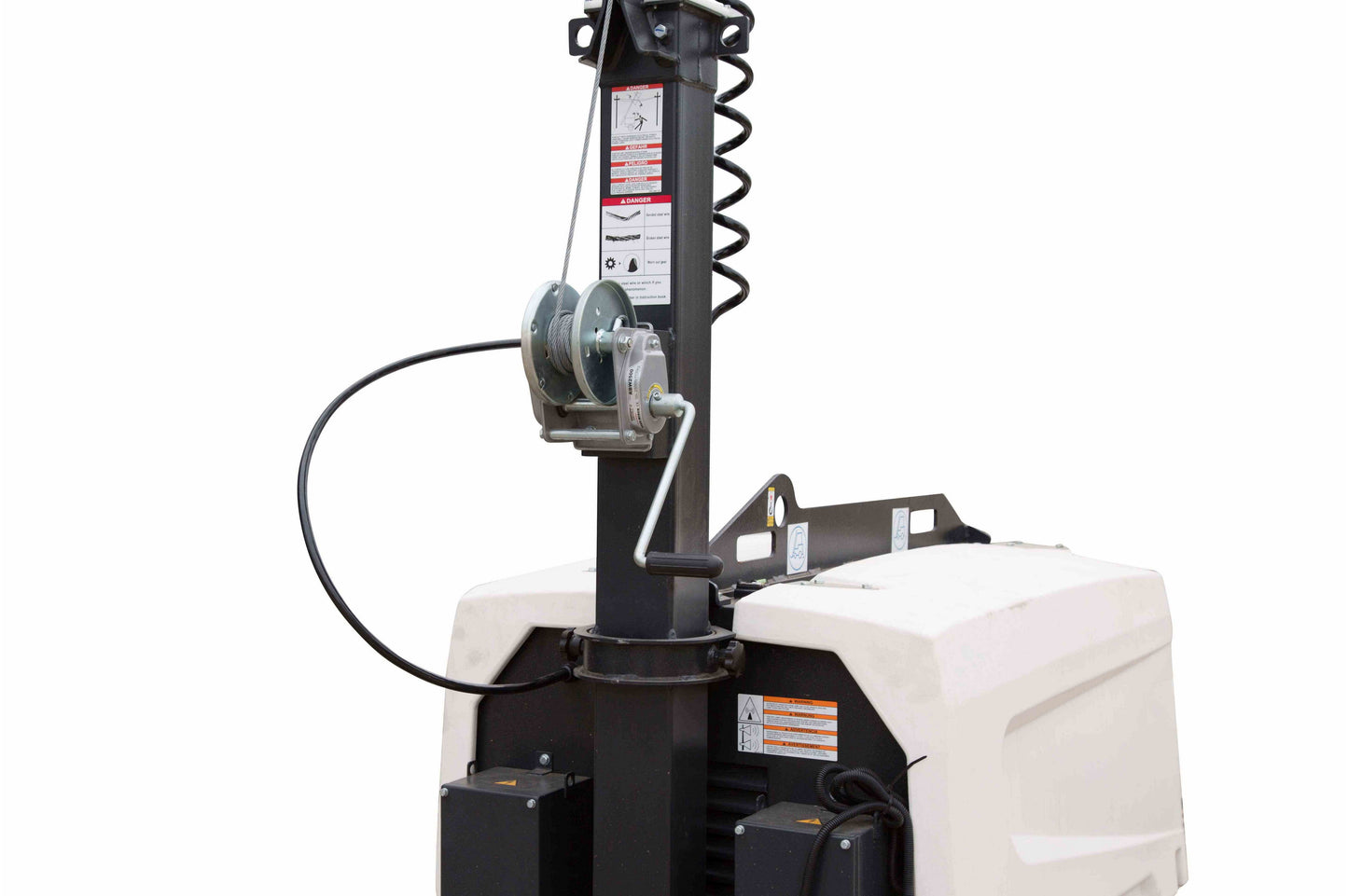

• Mast Type: Manual crank-up telescoping
• Height: Up to 25 feet
• Material: Galvanized steel
• Winches: Two 1,500 lb self-braking winches
• Stages: Three

LED Light Specs:

• Lamp Type: Cree® LED
• Total Watts: 600W (150W per lamp)
• Total Lumens: 70,000 (17,500 per lamp)
• Luminous Efficiency: 116.67 lm/W
• Color Temperature: 5000K
• Beam Angle: 60° or 125°
• LED Lifespan: 60,000+ hours
• Waterproof Rating: IP67
• Temp Rating: T5
• Certifications: Class I Div 2, Class II Div 1&2, Class III Div 1

Trailer Specs:

• Enclosure Material: LMDPE plastic (recyclable, corrosion-resistant)
• Chassis: 12ga formed steel
• Hitch: 2" ball coupler and 3" pintle hitch
• Axle: 2,000 lbs leaf spring

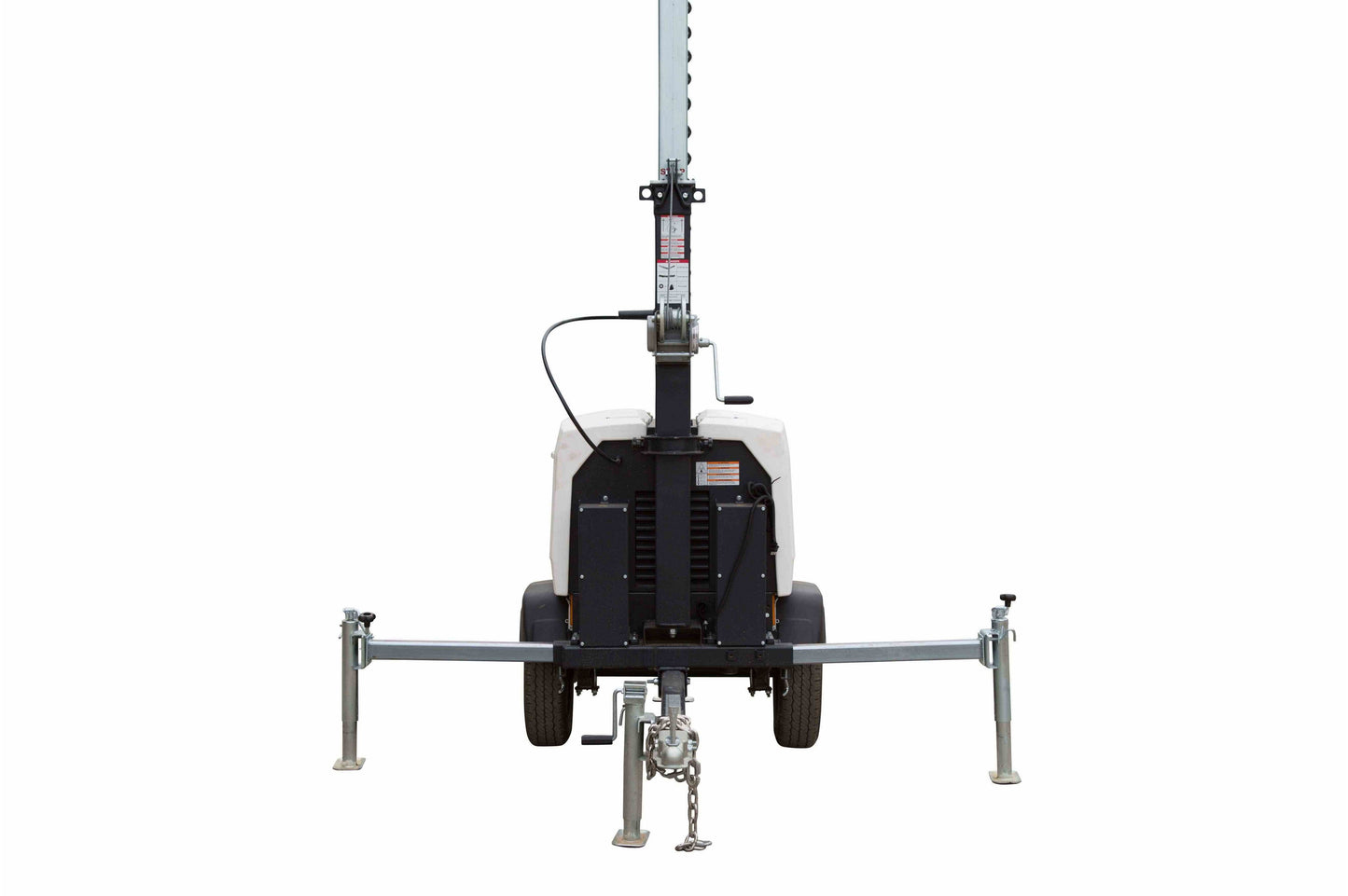

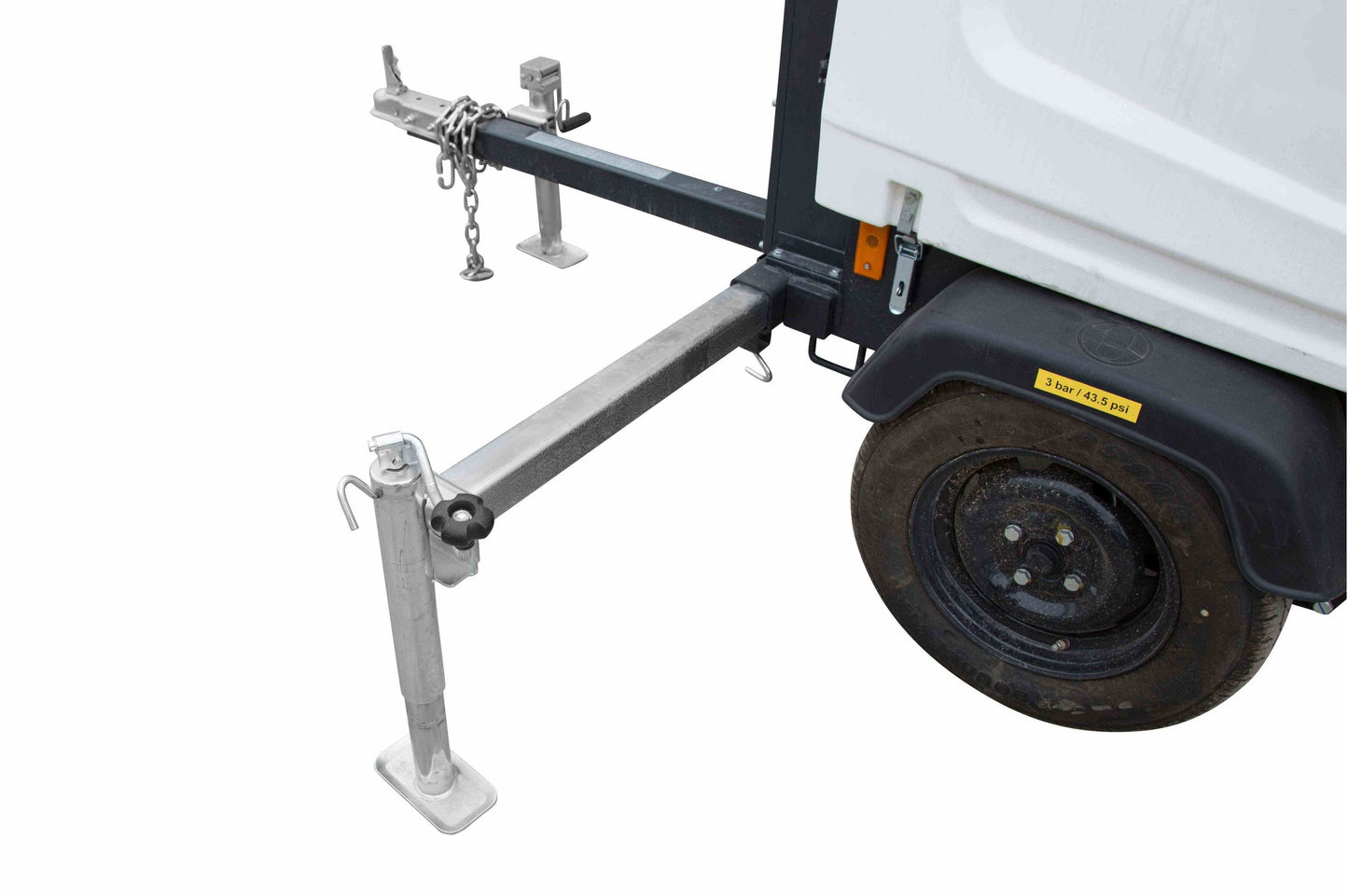

• Outriggers: Three-point system, adjustable with 2,500 lbs manual leveling jacks
• Dimensions: 137" x 93.3" x 53.9"
• Wheels: 13" steel rims with ST175/80/D13 tires
• Lighting: DOT-approved tail, side, brake, and directional lights

Protection and Safety Features:

• Explosion-proof certification: Class I Div 2, Class II Div 1&2
• Spark arrestor for safe operation in hazardous environments
• External grounding and safety shut-offs for high engine temperature and low oil pressure
• Waterproof IP67-rated LED fixtures
• Withstands 65 mph winds at full extension with stabilizers deployed
• Durable plastic enclosure for corrosion and impact resistance
