Larson Electronics 25' Explosion Proof Telescoping Tower - C1D2 - 6kW Generator, Spark Arrestor - (4) 150W LED Lamps
Larson Electronics 25' Explosion Proof Telescoping Tower - C1D2 - 6kW Generator, Spark Arrestor - (4) 150W LED Lamps
Regular price
$61,505.51
Regular price
Sale price
$61,505.51
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

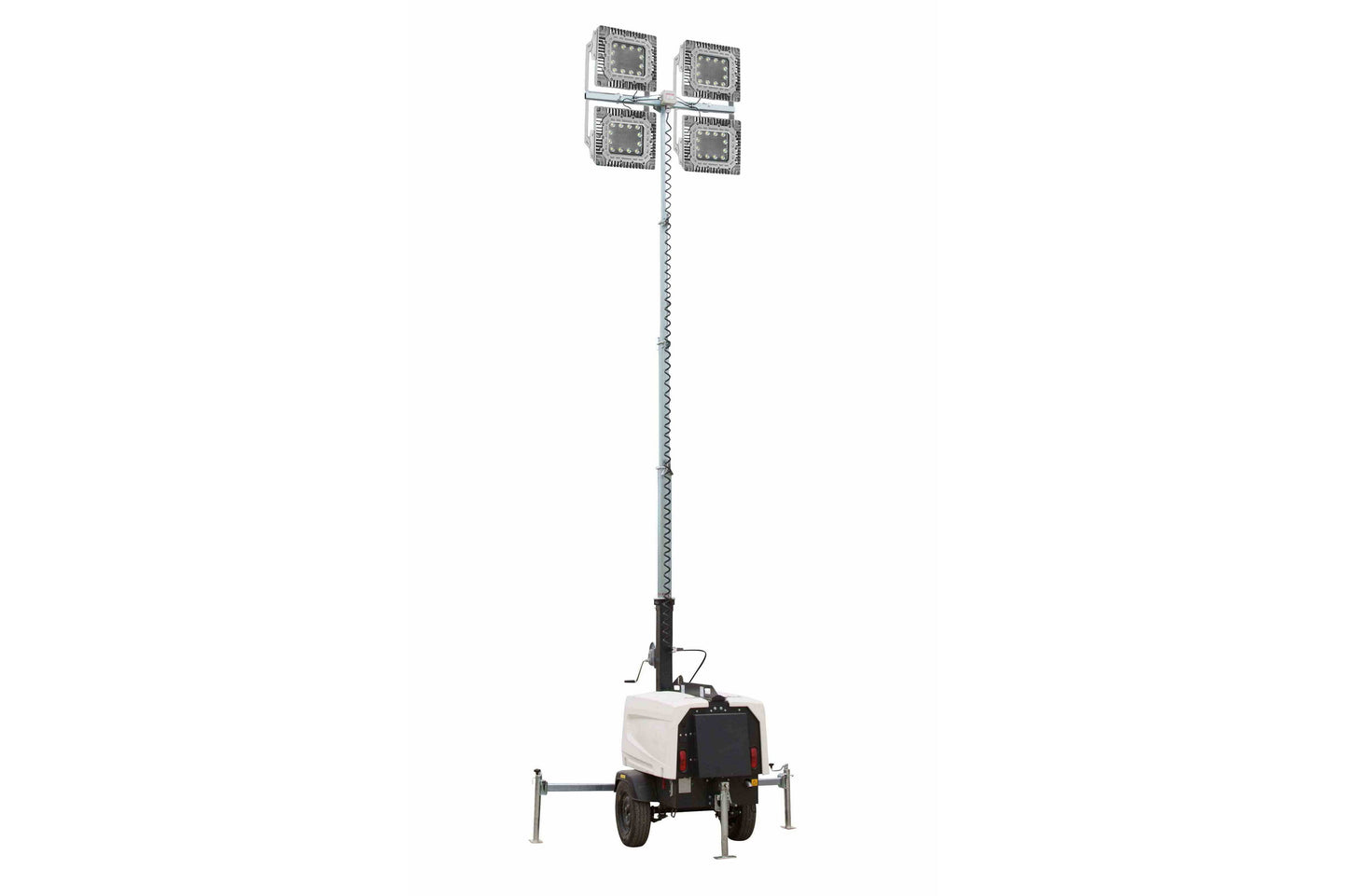

Larson Electronics 25' Explosion Proof Telescoping Tower - C1D2 - 6kW Generator, Spark Arrestor - (4) 150W LED Lamps
Description

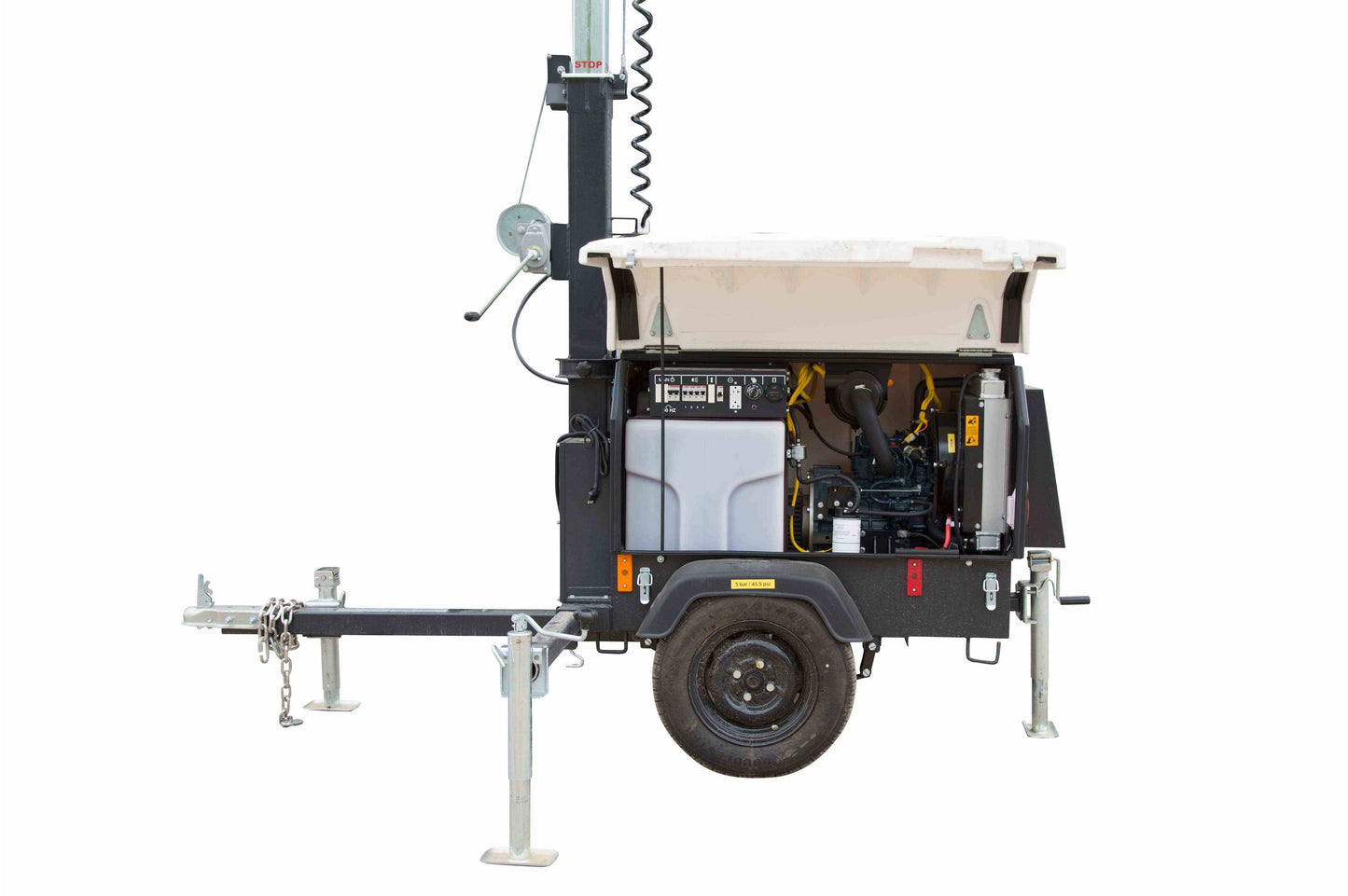

The WCDE-HAL-6-4X150RT-LED Explosion Proof Telescoping Tower from Larson Electronics is a towable, self-contained LED light plant powered by a water-cooled diesel engine and a 6,000-watt generator. Designed for hazardous locations and combustible work sites, this unit includes four 150-watt Class 1 Division 2 LED lamps, producing a total of 70,000 lumens, capable of illuminating 3-4 acres. It runs continuously for up to 120 hours on a 30-gallon fuel tank. This explosion-proof lighting system is ideal for locations requiring reliable, extended-operation lighting solutions.
Key Features
- Explosion Proof Lighting: Four 150W LED lamps, 70,000 lumens
- 6,000W Diesel Generator: Water-cooled Kubota engine
- Runtime: Up to 120 hours on a 30-gallon fuel tank
- Spark Arrestor: Prevents ignition in combustible environments
- 25-foot Telescoping Boom: Manual crank, galvanized steel, withstands 65 mph winds
- Durable Construction: IP67-rated explosion-proof lights and rugged plastic enclosure
Applications:
- Hazardous locations (C1D2/C2D1)
- Oil and gas fields
- Mining, construction, and industrial sites
- Security and perimeter lighting for combustible areas
Detailed Specifications
| Category | Specification |
|---|---|
| 🔌 Genset Specs | |
| Engine | Kubota D1105-BG-ET01 (water-cooled, 4-cycle diesel) |
| Engine Speed | 1800 RPM |
| Cylinders | 3 |
| Generator | Marathon Pancake 6KW, 4-Pole Brushless |
| Voltage | 120/240V Single Phase |
| Fuel Capacity | 30 gallons (up to 120-hour runtime) |
| Noise Level | 63 dB @ 23 ft |
| Combustible Safety | Spark arrestor |

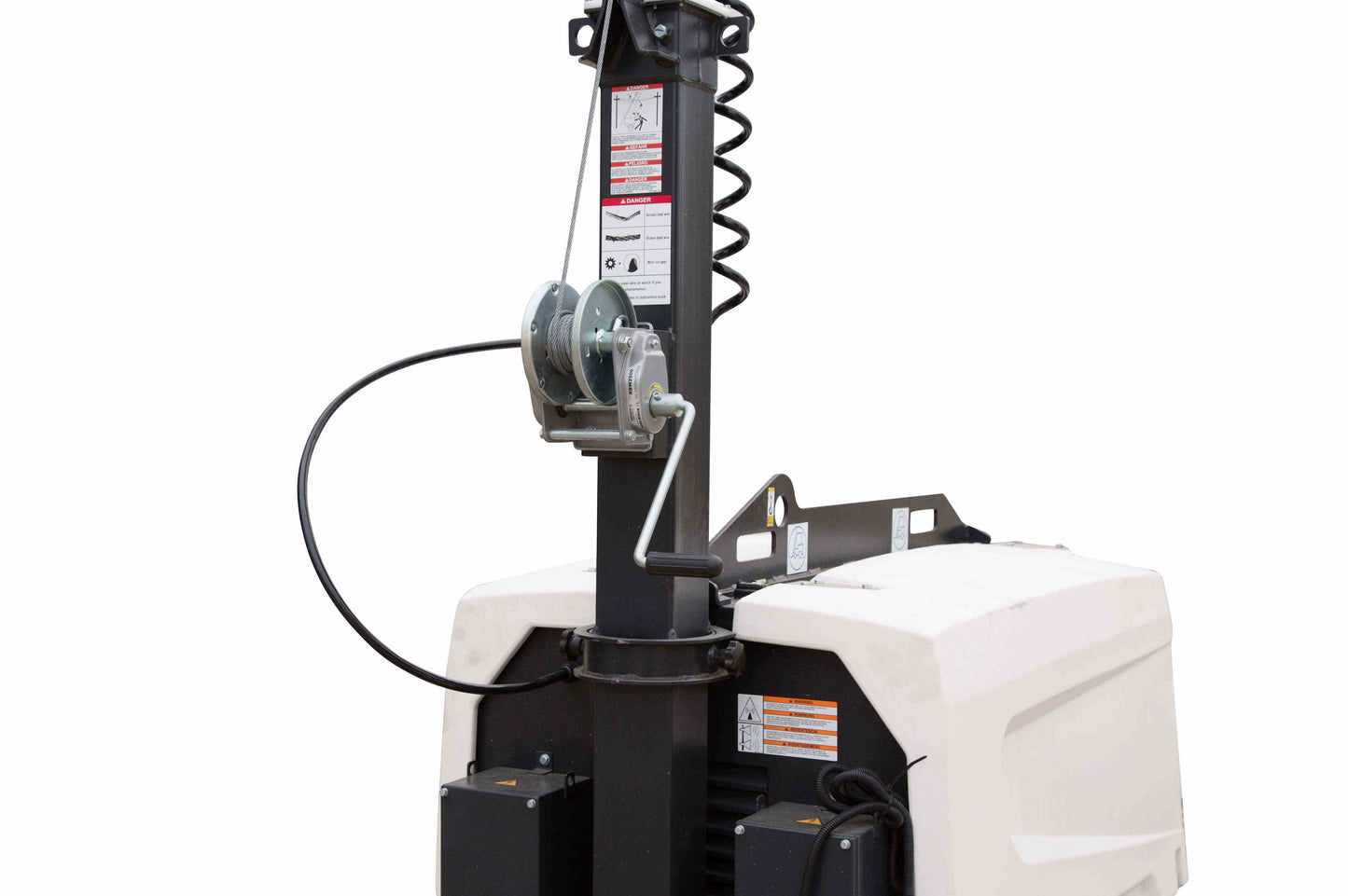

| 📡 Light Mast Specs | |
| Mast Type | Manual crank-up, galvanized steel |
| Height | Up to 25 feet |
| Stages | Three |
| Operation | Two 1500 lb self-braking winches |
| Wind Rating | Withstands 65 mph winds |
| 💡 LED Light Specs | |
| Lamp Type | Cree® LED |
| Total Wattage | 600W (150W per lamp) |
| Total Lumens | 70,000 (17,500 lumens per lamp) |
| Luminous Efficiency | 116.67 lumens per watt |
| Color Temperature | 5000K (natural daylight) |
| Lifespan | 60,000+ hours with 80% lumen retention |
| Waterproof Rating | IP67 (dustproof, protected from high-pressure jets and submersion) |

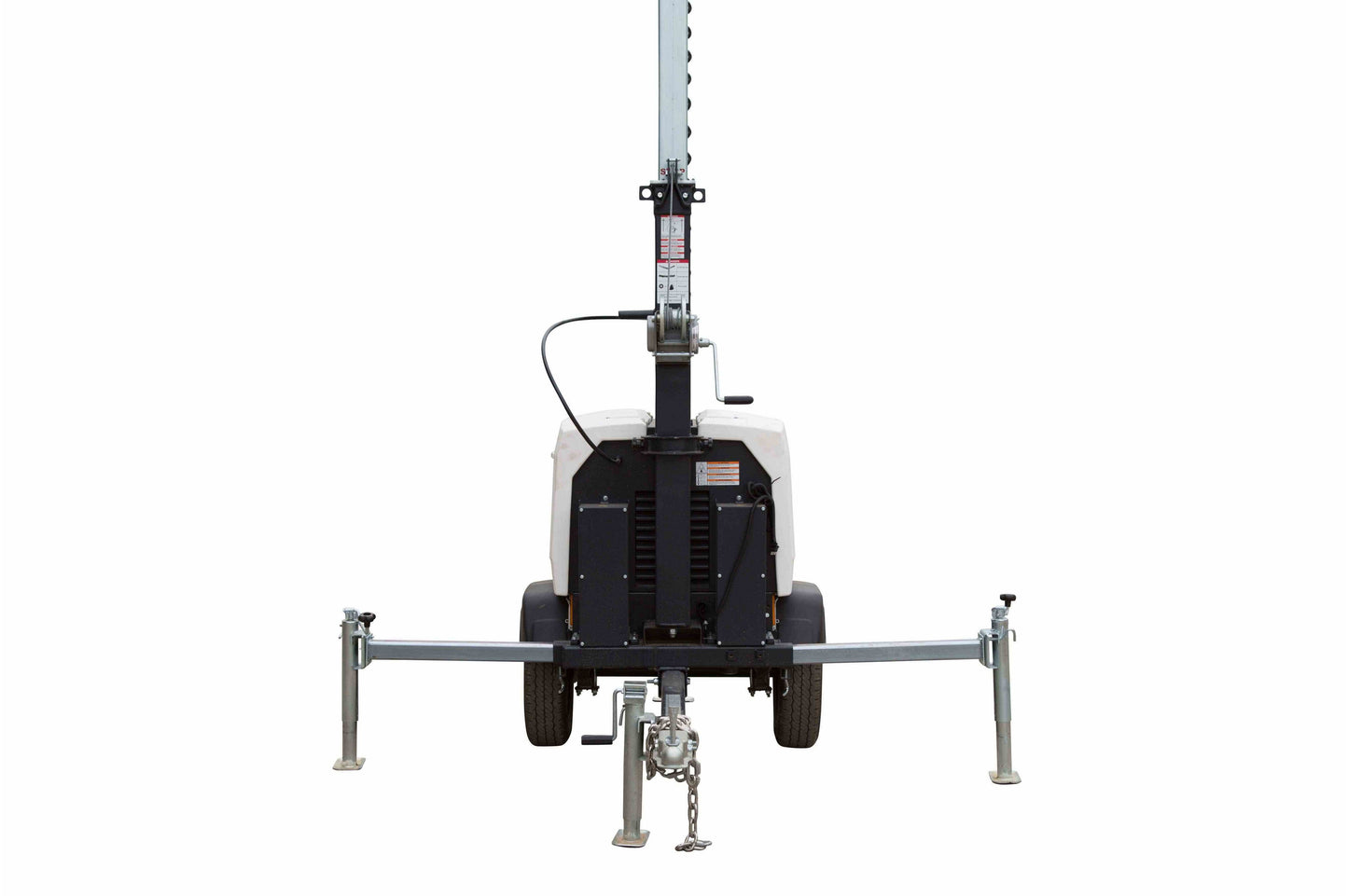

| 🚚 Trailer Specs | |
| Materials | Plastic enclosure, 12ga steel chassis |
| Hitch | 2" ball coupler, 3" pintle hitch |
| Axle Capacity | 2,000 lbs |
| Suspension | Double eye leaf springs |

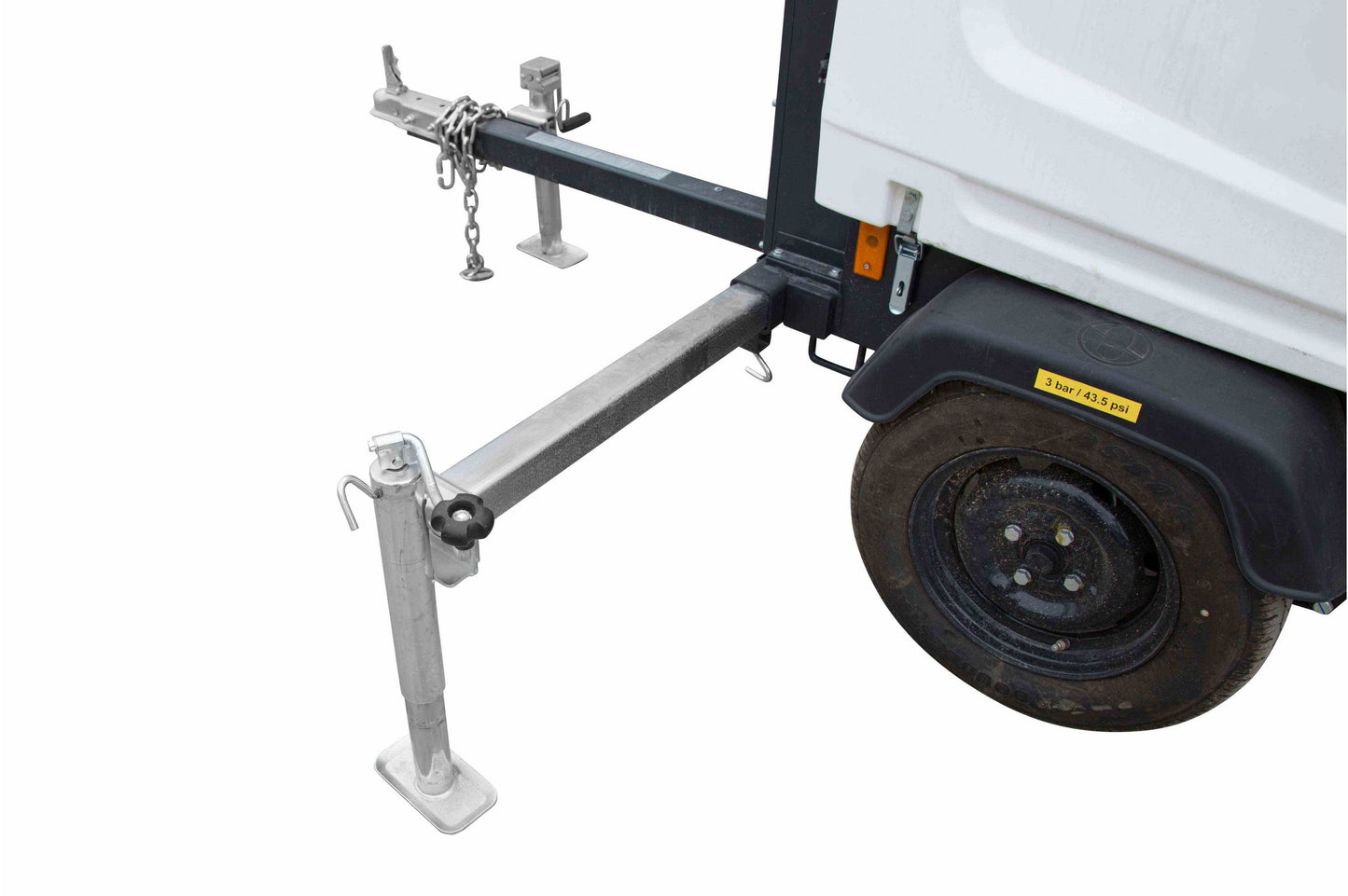

| Outriggers | Three adjustable with 2,500 lb manual leveling jacks |

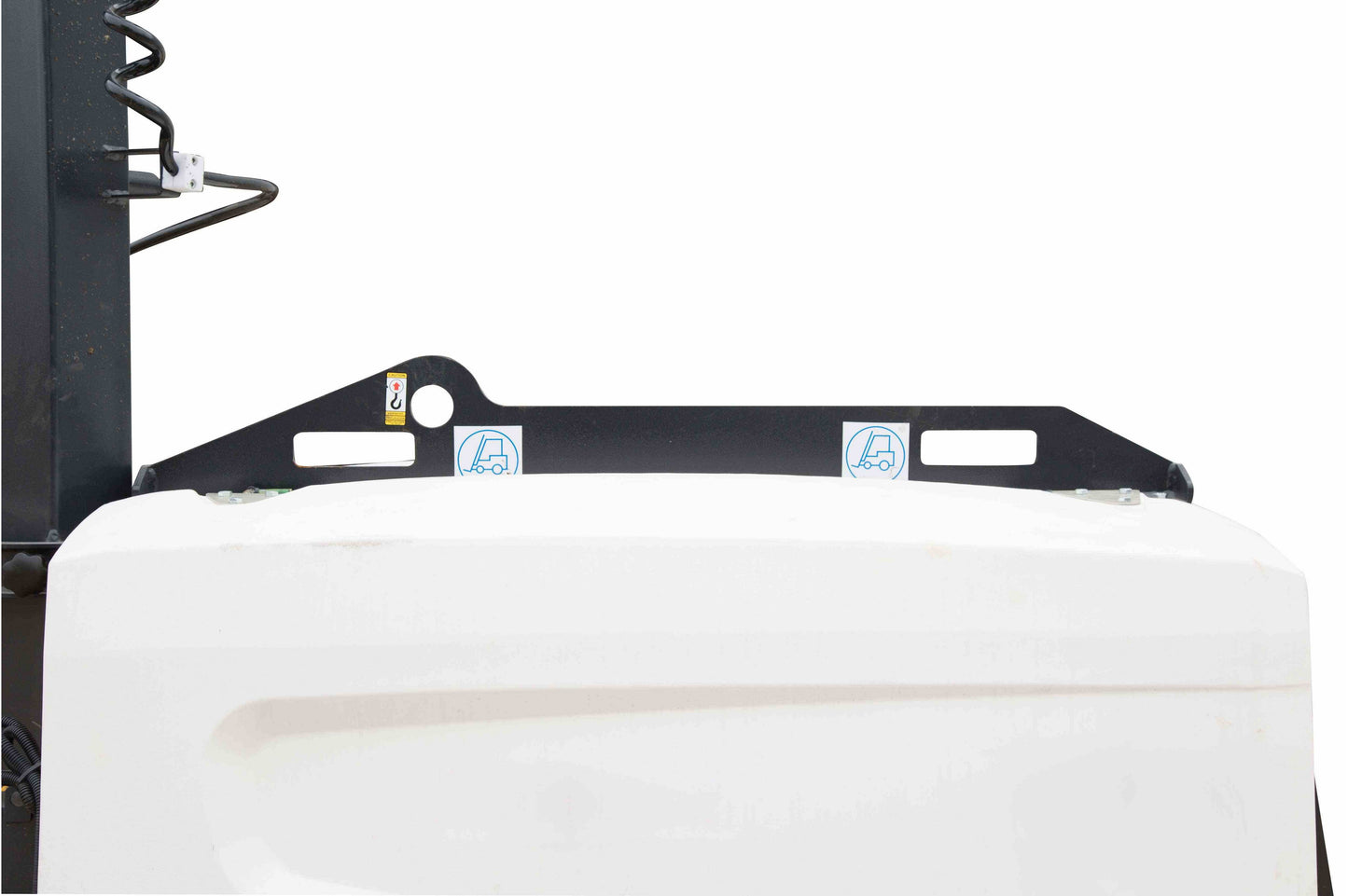

| Dimensions | Includes forklift sleeves for loading |
| 🛡️ Protection & Safety | |
| LED Fixture Rating | Explosion Proof: Class I Div 2 (C, D); Class II Div 1 & 2 (E, F, G); Class III |
| Auto Shut-Off | Low oil and high engine temperature |
| Monitoring | Hour meter and alternator warning |
| Lumen Retention | 70% after 80,000 hours |
| Wind Resistance | Withstands 65 mph winds when fully extended |
| Grounding | External grounding terminal |
