Larson Electronics 25' LED Light Tower - 20kW Diesel Gen - (4) LED Lamps - 220V/50Hz - (2) Aux LED Towers - Red
Description

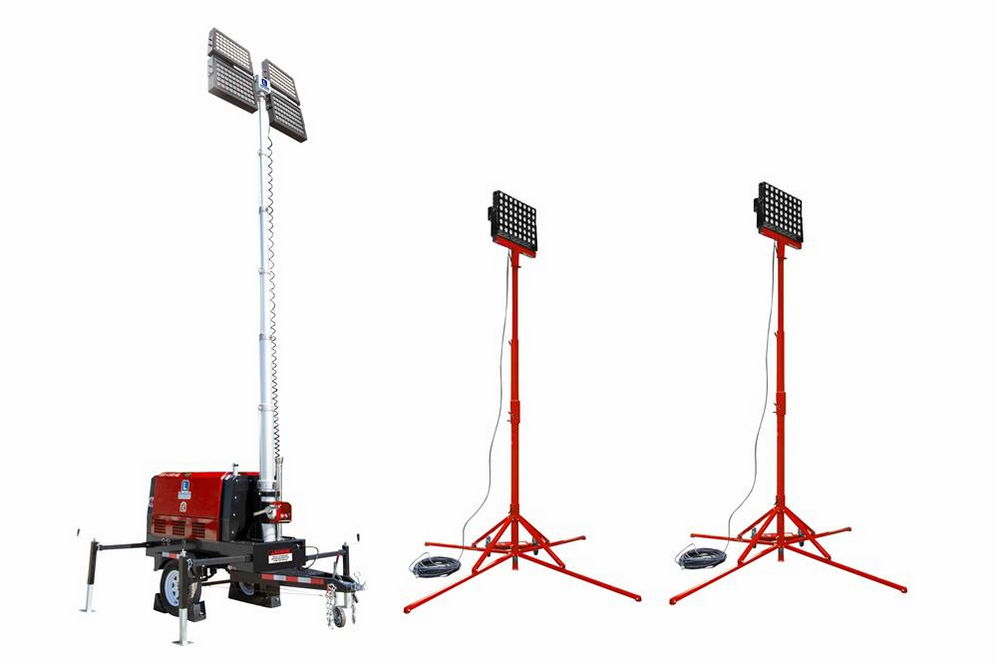

The WCDE-4-20KW-220V.50HZ-4X500LTL-LED-CPR-2XQP.500LTL mobile light tower from Larson Electronics is a towable lighting system powered by a 20 kW generator. It features four 400-watt lamps producing 208,000 lumens, capable of illuminating 6-7 acres continuously for over 19 hours. A Deepsea controller offers real-time monitoring of the IP65-rated unit. The system also includes two auxiliary fire brigade glossy red LED light towers emitting 60,000 lumens each with 50-meter cords managed by electric cord reels.
Key Features
- Primary Lighting: Four 400-watt LED lamps (208,000 lumens)
- Auxiliary Lighting: Two 500-watt auxiliary LED light towers (60,000 lumens each)
- 20 kW Perkins diesel generator
- 19+ hours runtime with a 25-gallon fuel tank
- Electro-hydraulic telescoping mast up to 25 feet
- Deepsea controller for system monitoring and adjustments
- Cord reels for auxiliary LED towers with 50-meter cords
- Fire Brigade Glossy Red finish on auxiliary towers
Applications:
- Emergency services
- Large-scale event illumination
- Construction and mining
- Industrial operations
- Remote locations without reliable power access
Detailed Specifications
| Category | Specification |
|---|---|
| 🔌 Genset Specifications | |
| Engine | Perkins 404D-22G, EPA Tier 4 compliant |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Engine Speed | 1800 RPM |
| Cylinders | 4 |
| Rated Power | 20 kW (22 kW standby) |
| Rated Amps | 100A |
| Voltage Output | 220V, 50Hz |
| Fuel Capacity | 25 gallons |
| Noise Level | 65 dB @ 23 ft |
| Battery | 12V @ 60Ah |
| 📡 Light Mast Specifications | |
| Mast Type | Electro-hydraulic, foldable mast |
| Height | Up to 25 feet |
| Material | Aluminum |
| Stages | Four |
| Operation | Dual winch system |
| Boom Features | 360° rotation, coiled mast cord, fork pockets |
| 💡 Primary Light Specifications | |
| Lamp Type | Bridgelux® LED |
| Total Wattage | 1,600W (400W per lamp × 4 lamps) |
| Total Lumens | 208,000 lumens (52,000 lumens per lamp) |
| Luminous Efficiency | 130 lumens per watt |
| Color Temperature | Cool white (5500–6500K) |
| LED Life Expectancy | 80,000 hours |
| Waterproof Rating | IP67 |
| Coverage Area | 6 to 7 acres |
| Panel Controls | Tilt, rotate, voltage regulation |
| 💡 Auxiliary LED Tower Specifications | |
| Lamp Type | CREE LED |
| Adjustable Height | 7 to 12 feet |
| Voltage | 220V AC, 50Hz |
| Total Lumens | 120,000 lumens (60,000 per tower) |
| Beam Angle Options | 10°, 24°, 38°, 60°, 90° |
| Mounting | Aluminum tripod with wheels for portability |
| 🚚 Trailer Specifications | |
| Material | 14ga sheet steel enclosure, 12ga formed steel chassis |
| Hitch | 2" ball hitch and 3" NATO pintle hitch |
| Axle Capacity | 2,200 lbs |
| Suspension | 2,000 lbs double-eye leaf springs |
| Brakes | Auto-reversing, cable-operated drum brakes with hand lever parking brake |
| Outriggers | Four adjustable outriggers with 2,000 lbs manual leveling jacks |
| Dimensions | 137" L × 93.3" W × 53.9" H |
Protection Features:
- Low oil, high engine temp auto shut-off
- External grounding
- Deepsea controller for advanced system monitoring
- 70% lumen retention after 80,000 hours
- Withstands 50 mph winds when fully extended
- Fire Brigade Glossy Red finish on auxiliary towers
