Larson Electronics 25' Telescoping Tower - (4) LED Lamps, 6kW Generator w/ Water Cooled Diesel Engine, 60 Gal Fuel Tank
Larson Electronics 25' Telescoping Tower - (4) LED Lamps, 6kW Generator w/ Water Cooled Diesel Engine, 60 Gal Fuel Tank
Regular price
$71,319.91
Regular price
Sale price
$71,319.91
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Products Description
Larson Electronics 25' Telescoping Tower - (4) LED Lamps, 6kW Generator w/ Water Cooled Diesel Engine, 60 Gal Fuel Tank
Description

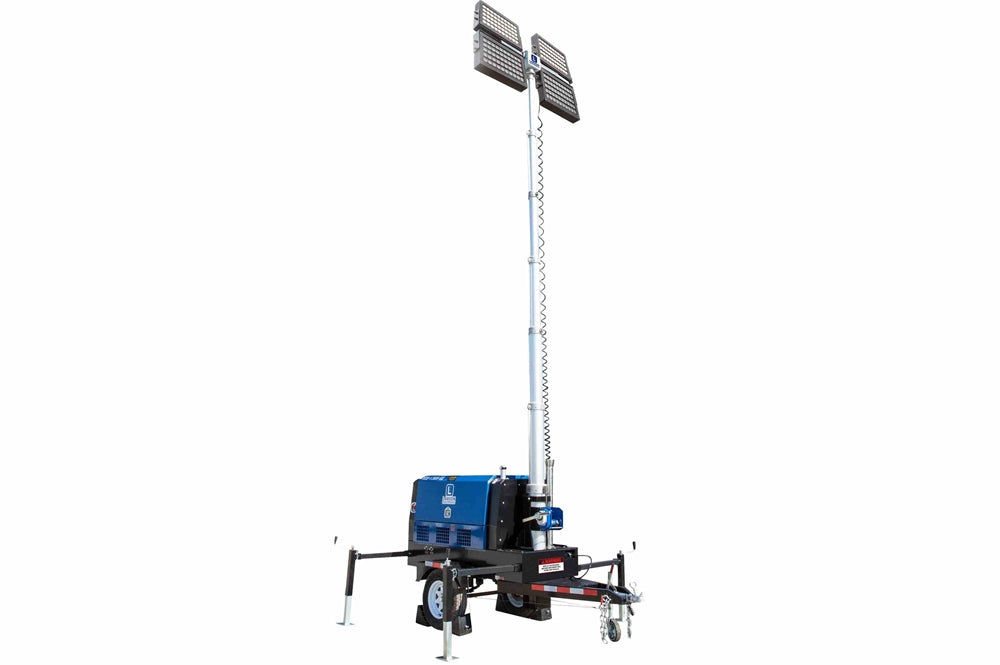

The WCDE-6KW-4X500LTL-LED-DNS-M1 mobile light tower from Larson Electronics is a towable, high-performance lighting system equipped with a 6 kW generator. With four 480-watt LED lamps providing a total of 259,200 lumens, this system can illuminate up to 6-7 acres continuously for over 19 hours. It includes a dusk-to-dawn sensor for automatic generator start/stop and a cold weather package for optimal performance in harsh environments.
Key Features
- Four 480-watt LED lamps providing 259,200 lumens
- 6 kW Cummins diesel engine generator with a 60-gallon fuel tank
- 19+ hours runtime on a single fuel tank
- Dusk-to-daw1``n sensor for autostart operation
- Cold weather package with glow plugs, coolant heater, fuel warmer, battery blankets, and 0W-40 synthetic oil
- 25-foot telescoping mast with 360-degree rotation and dual winch system
- IP67 waterproof-rated LED lights for durability in extreme conditions
Applications:
- Emergency response
- Construction sites
- Mining operations
- Large-scale events
- Industrial and remote outdoor operations
Detailed Specifications
| Category | Details |
|---|---|
| 🧾 General | |
| Manufacturer | Larson Electronics |
| Model | WCDE-6KW-4X500LTL-LED-DNS-M1 |
| Country of Origin | USA |
| Compliance | Tier 4 Final exhaust system |
| 🔌 Generator System | |
| Engine | Cummins Diesel Engine with Onan Alternator |
| Engine Type | 4-cycle, water-cooled, direct injection, natural intake |
| Engine Speed | 1,800 RPM |
| Cylinders | 4 |
| Rated Power | 6 kW |
| Voltage Output | 120/240V, 60Hz |
| Receptacle | (1) L6-30R [240V], protected by (1) 30A 1-pole circuit breaker |
| Battery | 12V @ 60Ah |
| Fuel Capacity | 60 gallons |
| Fuel Delivery | Electric |
| Auto Start Feature | Dusk-to-dawn sensor (<3 foot candles ON, >8 foot candles OFF) |
| Cold Weather Package | Glow plugs, coolant heater, fuel warmer, battery blankets, 0W-40 synthetic oil |
| 💡 Lighting System | |
| Lamp Type | LED |
| Total Wattage | 1,920 watts |
| Single-Lamp Wattage | 480 watts |
| Total Lumens | 259,200 lumens (64,800 lumens per lamp) |
| Luminous Efficiency | 135 lumens per watt |
| LED Life Expectancy | 80,000 hours |
| Beam Angle | Wide floodlight coverage |
| Waterproof Rating | IP67 |
| Temperature Range | -40°C to +80°C |
| LED Color Temperature | Cool white (5500–6500K) |
| 📡 Mast Specifications | |
| Type | Manual crank-up fold-over mast |
| Height | Up to 25 feet |
| Material | Aluminum |
| Operation | Dual winch system (1,500 lbs self-braking) |
| Stages | Three |
| Rotation | 360° with adjustable positioning |
| Wind Resistance | Up to 50 mph |
| 🚚 Trailer Specifications | |
| Material | 14ga sheet steel enclosure, 12ga formed steel chassis |
| Hitch | 2" ball hitch |
| Axle Capacity | 2,200 lbs |
| Suspension | 2,000 lbs double-eye leaf springs |
| Outriggers | Two stabilization outriggers with 4-point leveling jacks |
| Lighting | DOT-approved tail, side, brake, and directional lights |
| Wheels | (2) 13" steel rims with 155R13 tires |
| Dimensions | 137" L × 93.3" W × 53.9" H |
| 🛡️ Protection & Monitoring | |
| Safety Features | Low oil and high engine temperature auto shut-off |
| Grounding | External grounding |
| Controller | Deepsea controller (real-time monitoring, auto/manual start) |
| Stabilization | Stabilizing outriggers and 4-point leveling jacks |
| Lighting Adjustability | Independently adjustable light heads |
Additional Features:
- 19+ hour runtime without refueling
- High-output LED floodlights with field serviceable banks of six LEDs per lamp
- Dusk-to-dawn auto operation for efficient lighting management
- Cold weather package for reliable operation in low temperatures
- 50 mph wind resistance when fully extended
