Larson Electronics 30' Portable LED Light Tower - 12kW Diesel Generator w/ 50 Gal Tank, (4) LED Lamps, EW - Trailer Mount

DESCRIPTION

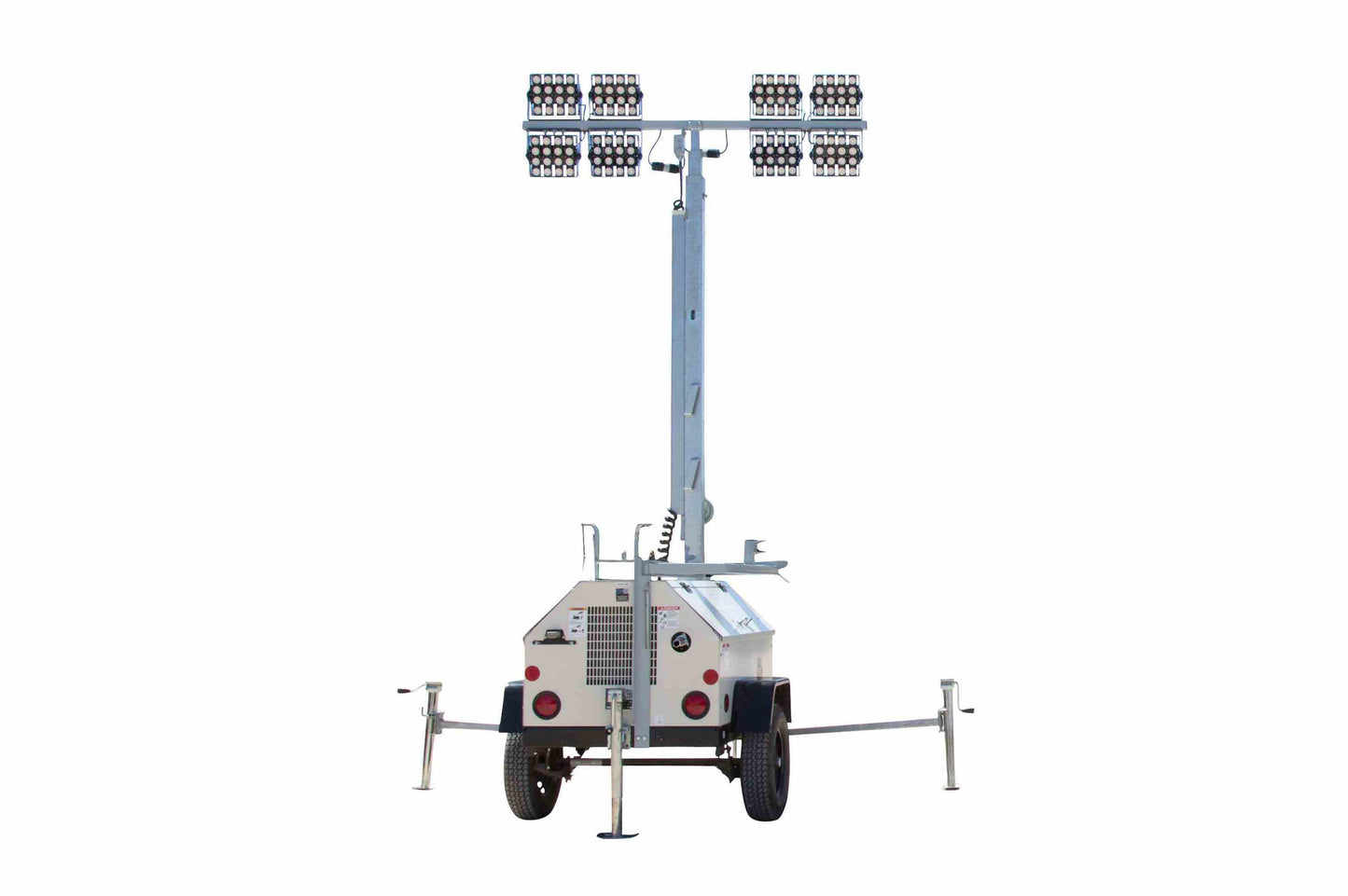

The WCDE-LE-12KW-4X500LTL-LED-EW-M1 Portable LED Light Tower from Larson Electronics is a towable lighting package powered by a 12 kW generator. This system features a 30' telescoping mast with electric winch operation for elevating four LED floodlights. With four 480-watt lamps producing 259,200 total lumens, this unit will illuminate an outdoor area continuously without refueling. This mobile light tower is made in USA (made in Texas) and is BAA compliant.

The WCDE-LE-12KW-4X500LTL-LED-EW-M1 mobile light tower is a powerful lighting solution for outdoor, remote locations. This unit is supported by a water cooled, diesel generator which supplies the current to four 480-watt LED lamps producing 64,800 lumens each for a combined total of 259,200 lumens of light. The light mast can provide hours of continuous illumination, at extended heights up to 30 feet.

This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed. The system is FAR 52.225-2 compliant, Buy American Act Compliant and BAA compliant.

Generator: With engine speeds of 1,800 rpm, the four-cylinder unit is capable of generating 12 kW prime power during use. As a low-rpm generator, it operates quieter than 3,600 rpm "throw-away" models. Because 3,600 rpm generators have higher speeds, the units wear out faster and require less copper during operation.

The WCDE-LE-12KW-4X500LTL-LED-EW-M1 is equipped with a 50-gallon polyethylene fuel tank. It features single-phase 120/240V, as well as a 4-position key activated switch (off, run, glow and start). This unit will automatically shut down in the event of an abnormal condition related to low oil pressure and high coolant pressure. This system comes with an hour meter and glow plugs.

Receptacles: An included 60-amp main breaker features four receptacles protected by breakers: one 30-amp breaker protecting one 30-amp L6-30R 250V NEMA twist-lock receptacle, one 30-amp breaker protecting one 30-amp L14-30R 125/250V NEMA twist-lock receptacle and two 20-amp breakers protecting two 5-15R/5-20R 120V NEMA T-slot duplex outlet.

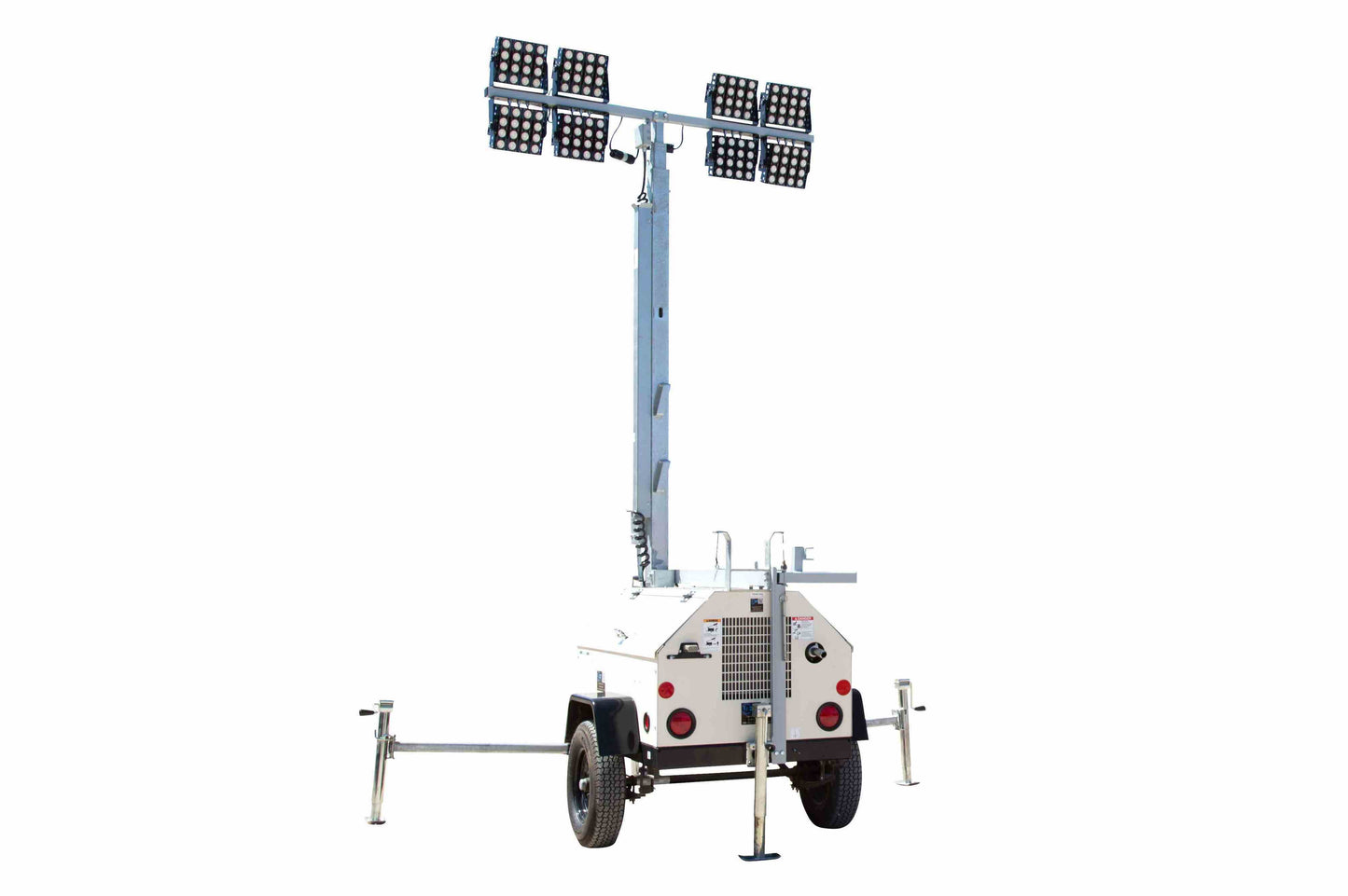

Lights: The lighting system on this unit is comprised of four, 480-watt LED lamps producing 64,800 lumens of high intensity light each. Forty-eight high output LEDs producing 1,350 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights.

Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours.

Durability: As well as unparalleled heat control, the LED lights from Larson Electronics offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The LEDs help these units achieve resistance to vibration and are rated at 70% lumen maintenance after 80,000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.

Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.

Light Controls: Operators can access individual on/off controls for individual fixtures. These LED floodlights are protected by a 15-amp breaker per circuit.

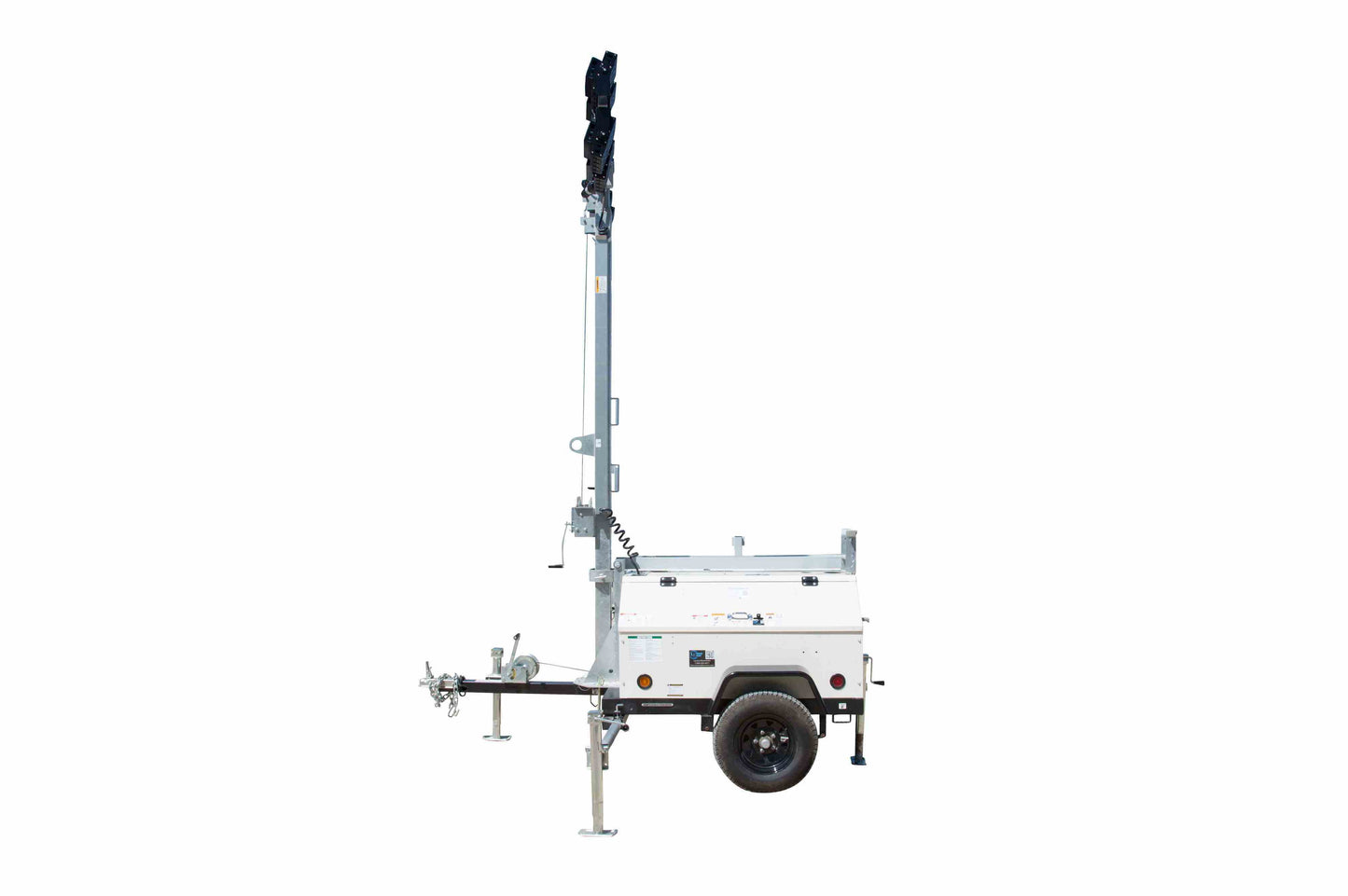

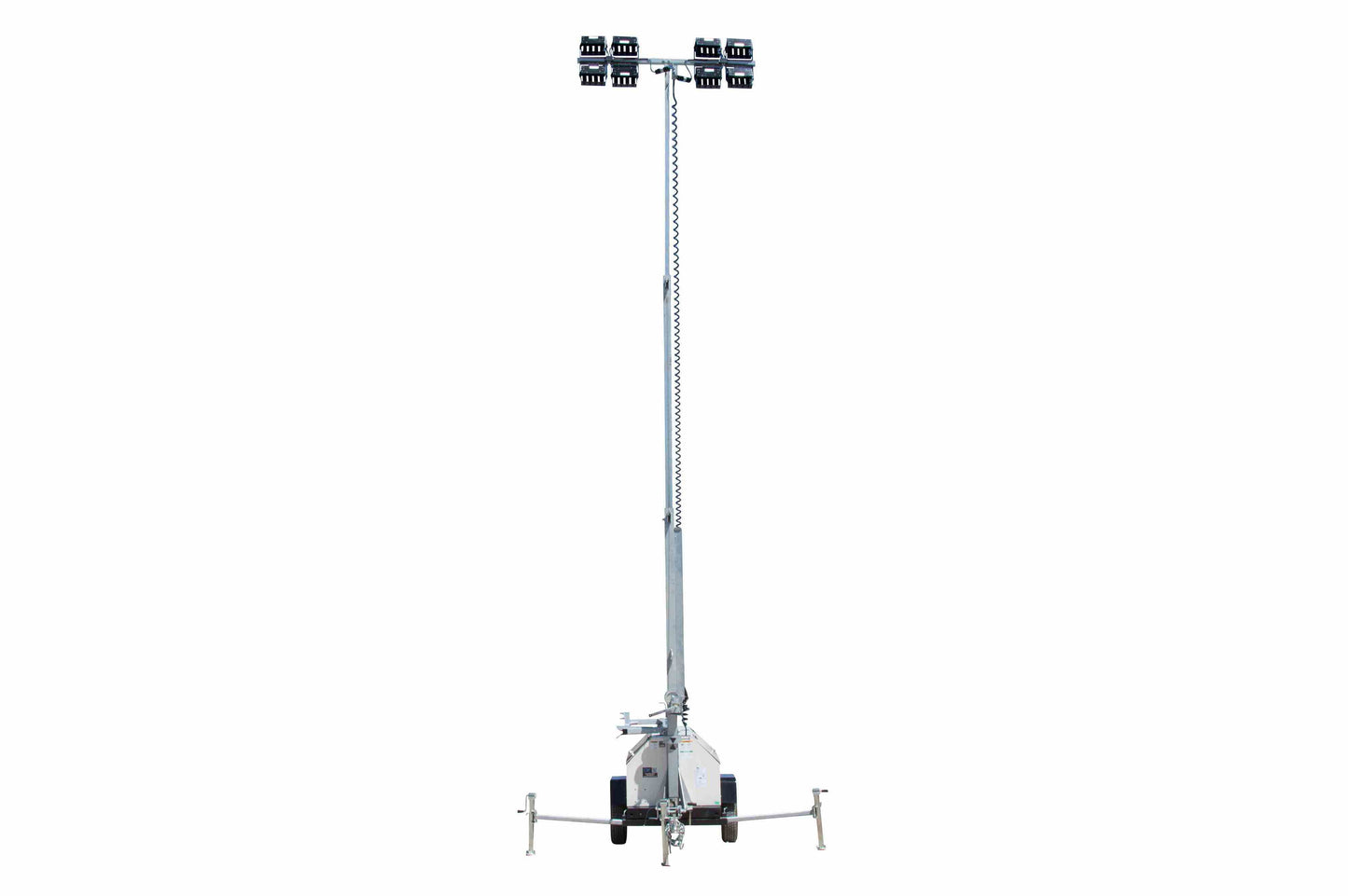

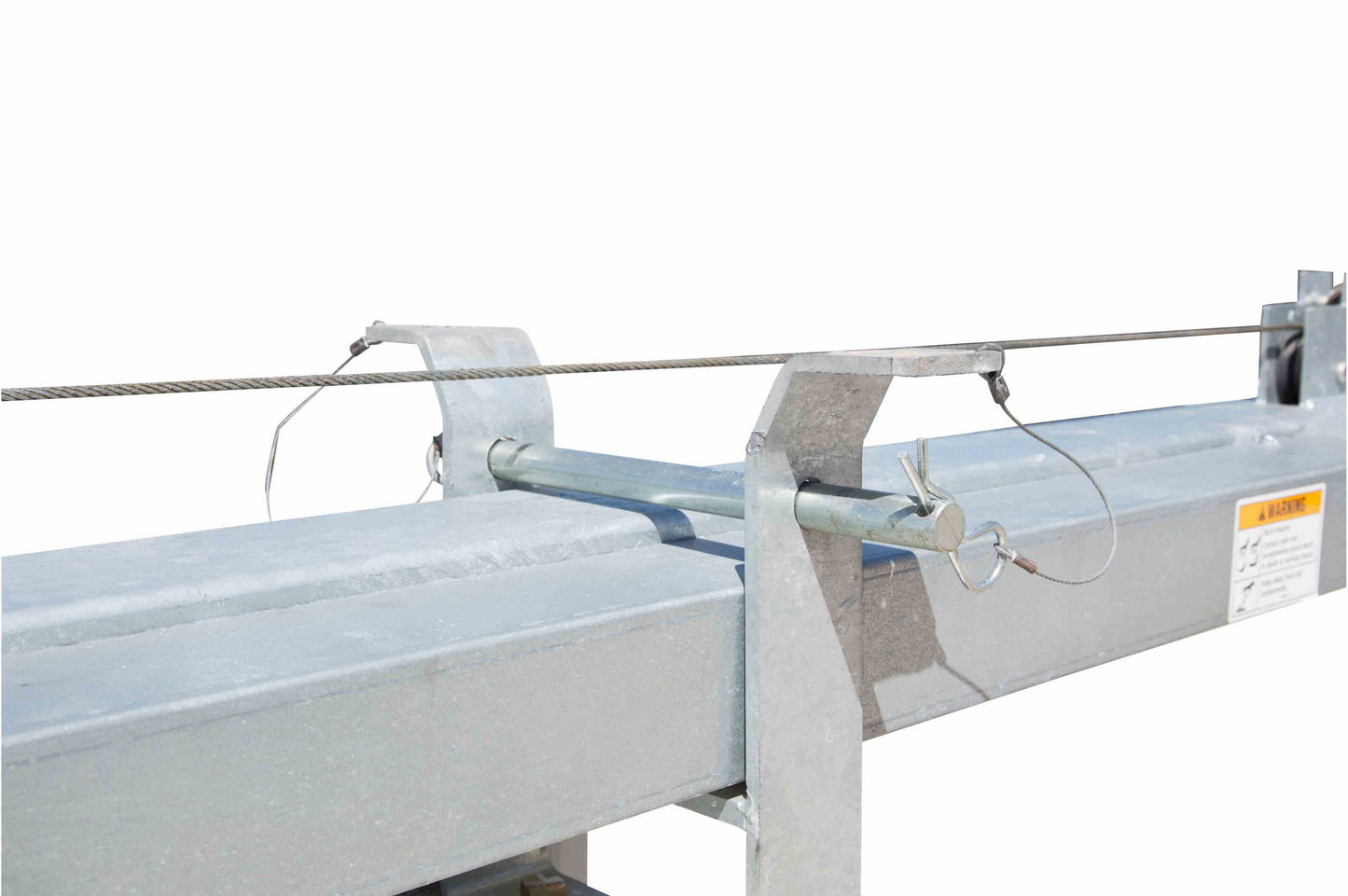

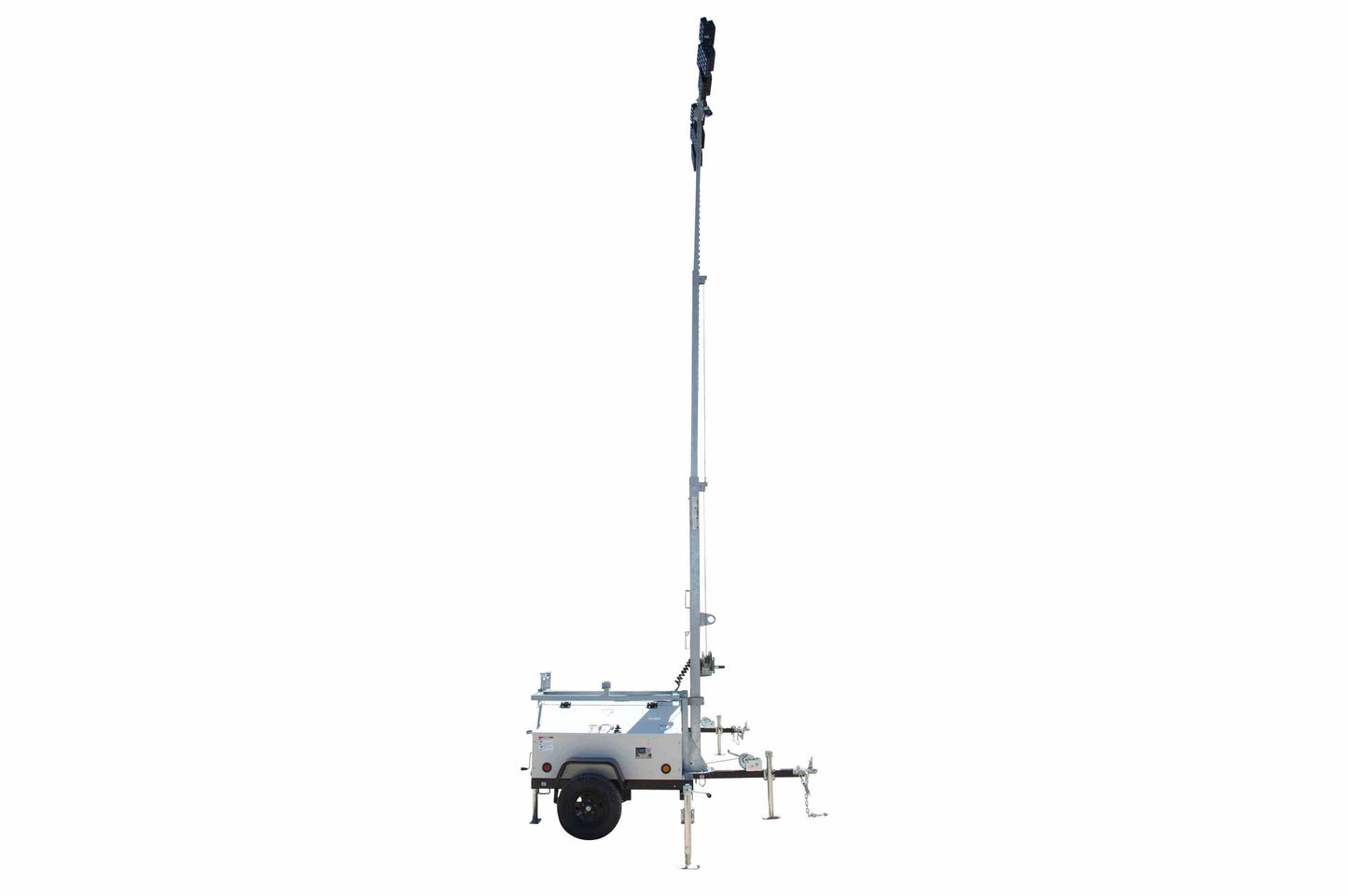

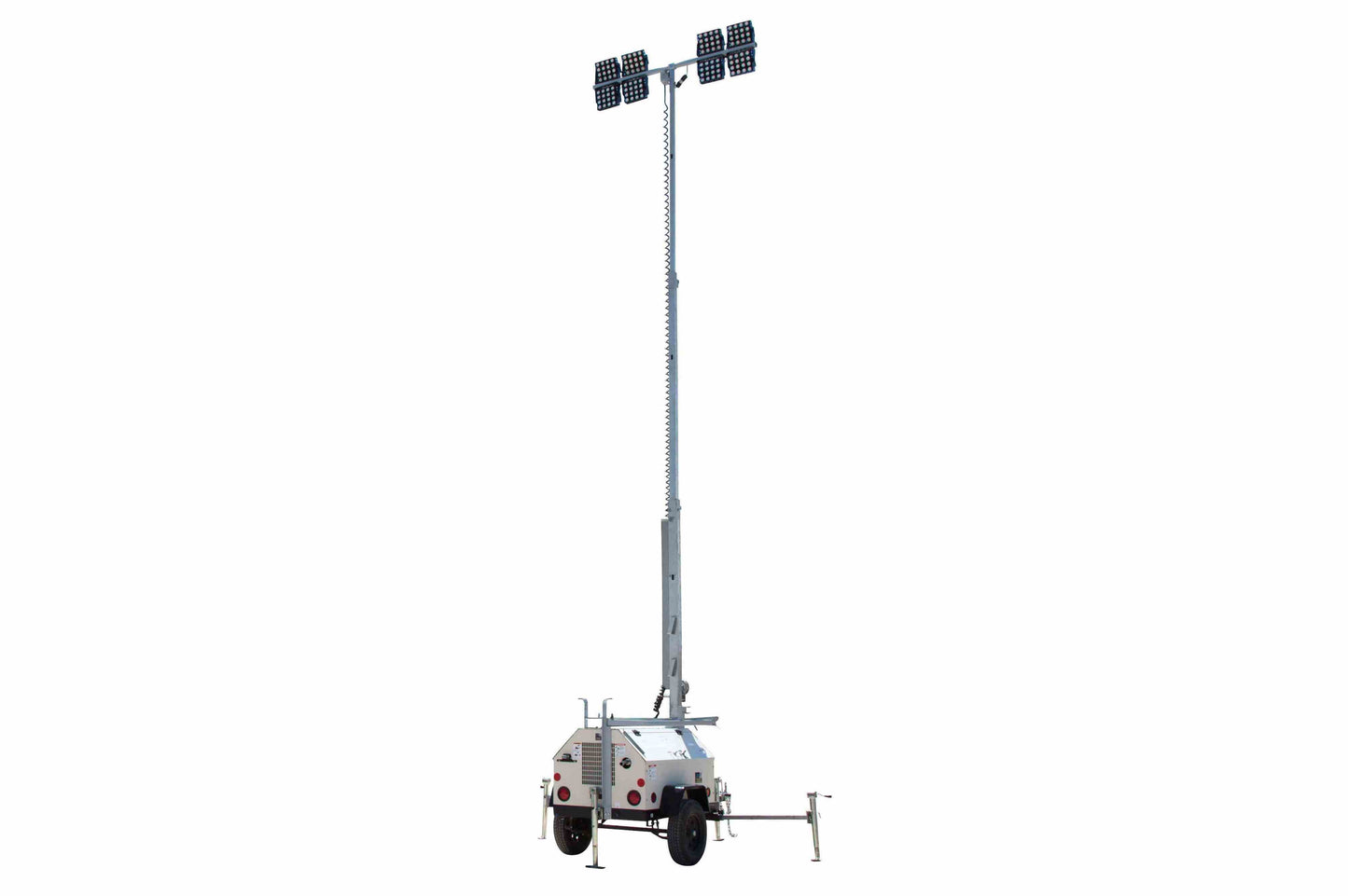

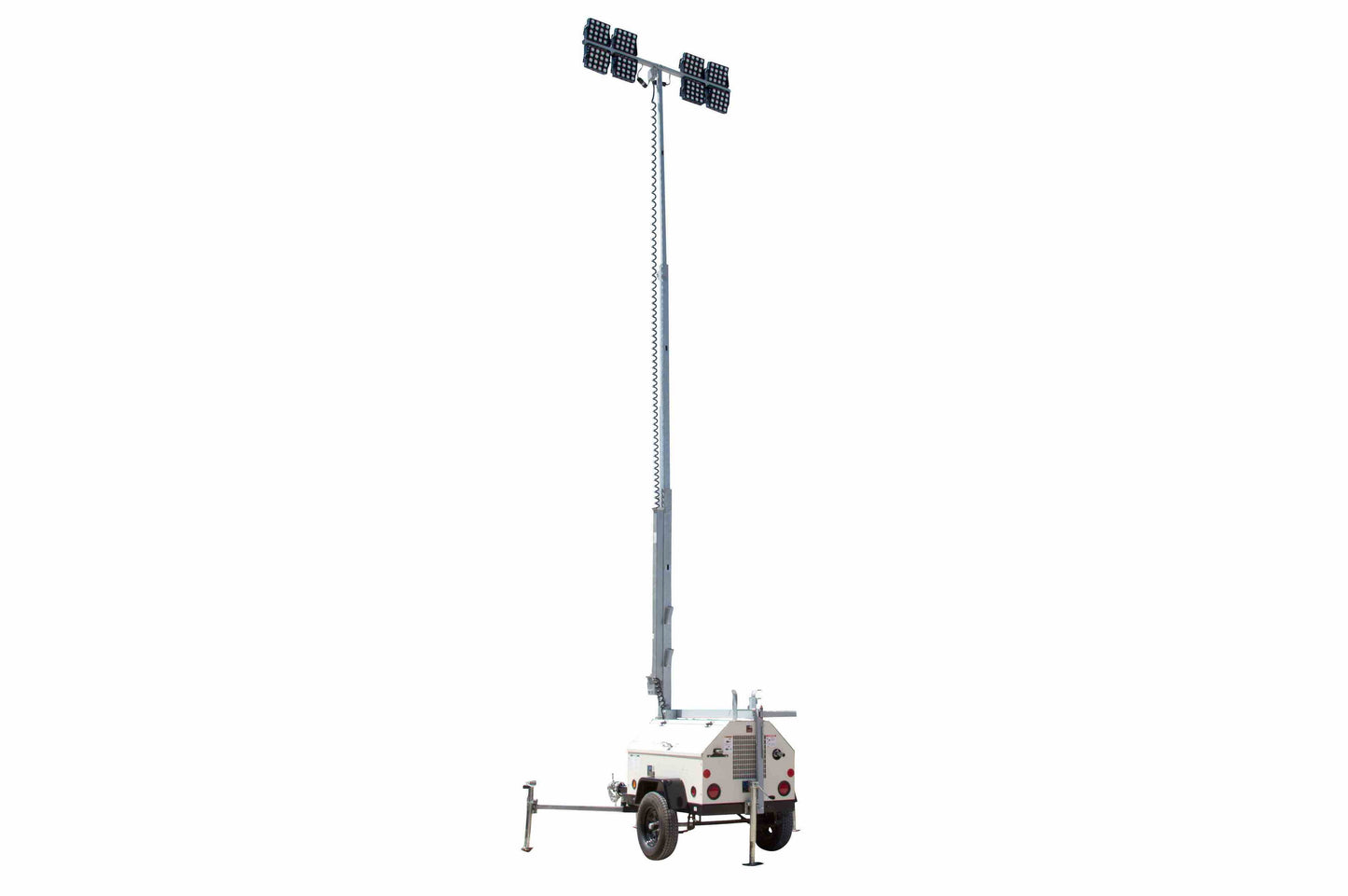

Telescoping Boom: The fold-over telescoping boom extends up to 30 feet through the use of an electric winch and allows for rotating the lights 359 degrees. The telescoping boom is capable of withstanding 50 mph winds when extended to its full height and the stabilizing outriggers are deployed.

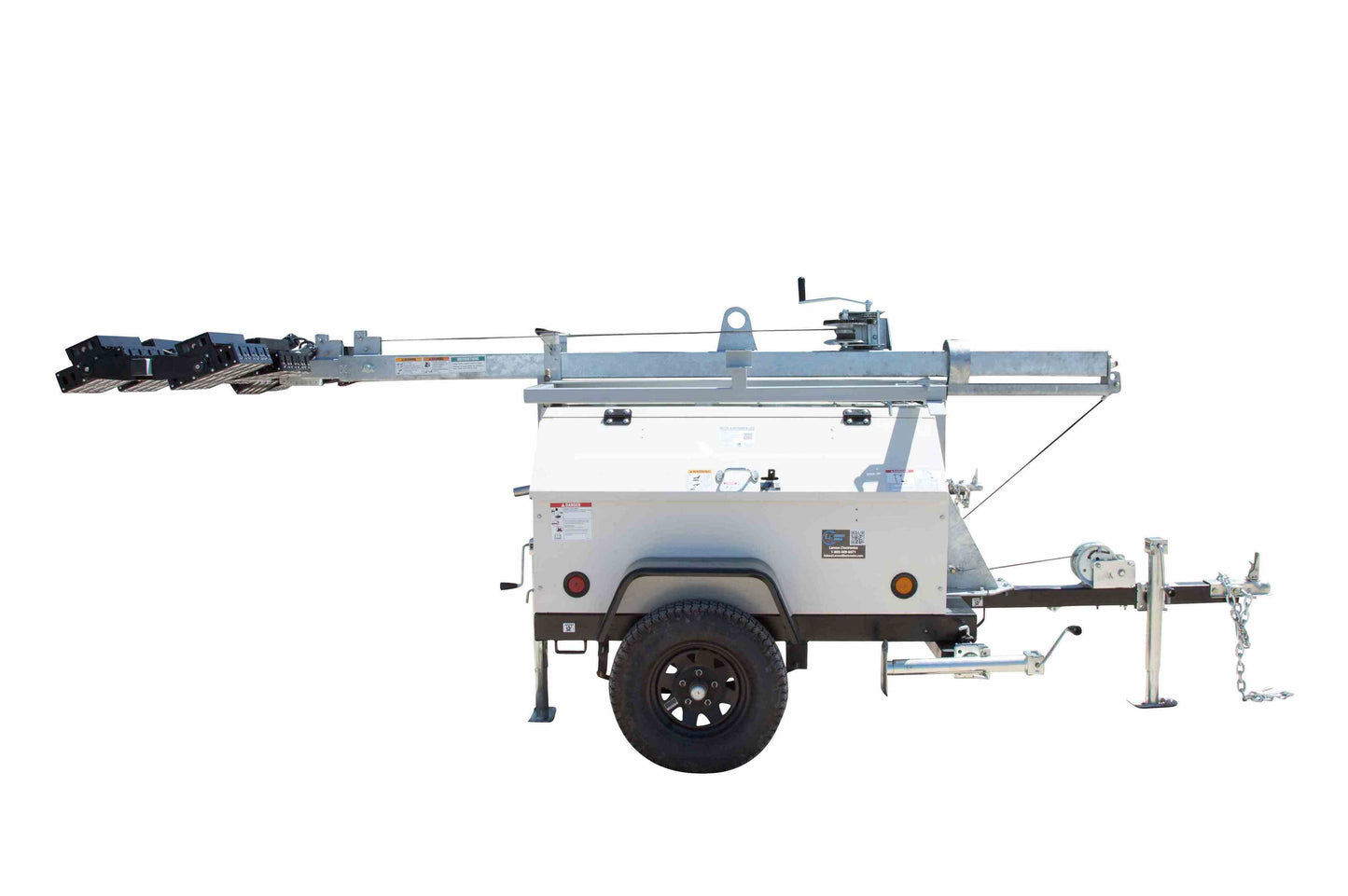

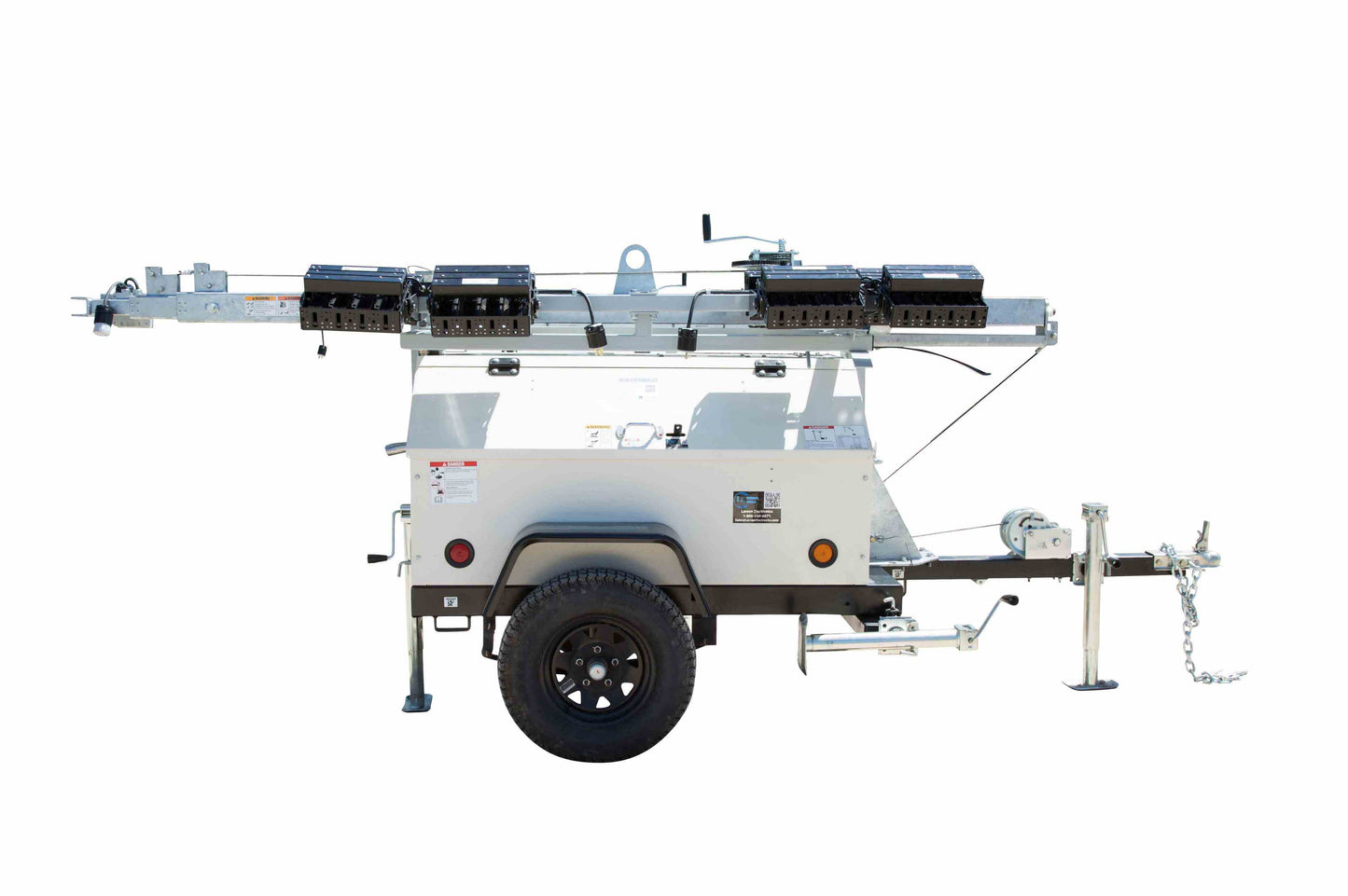

Housing: All of the operating components are housed within a protective compartment constructed of 14ga sheet steel, which is designed to provide airflow for cooling. Side wing doors provide access to the interior while latches provide secure closing when the unit is in use. The entire unit can be loaded and unloaded onto trucks via forklift skid pockets at the bottom of the system or four D rings. The entire unit is mounted onto a two-wheel trailer with a 2,200 lbs leaf spring axle. A standard reversible 2" ball hitch/3" NATO pintle hitch and two standard safety chains allow for easy hookup and towing.

Applications: This portable generator is suitable for use in remote locations, such as temporary camps, construction sites, military bases and areas without reliable access to the grid. It can be utilized to power a wide range of heavy duty tools and equipment, including laptops, portable machines and mobile devices. The unit’s robust recharging options offer flexibility in environments where access to reliable power sources are severely limited.

SPECIFICATIONS

WCDE-LE-12KW-4X500LTL-LED-EW-M1 Mobile Light Tower

Engine Specs:

• Engine: Isuzu
  Engine Type: Diesel, Liquid Water Cooled, EPA Final Tier 4
  Engine Speed: 1800 RPM
  No. of Cylinders: 4
  Horsepower: -
  Rated Prime Power: 12 kW

Fuel System Specs:

• Tank Type: Polyethylene Tank

• Fuel Capacity: 50 Gallons

• Runtime - Hr: -

• Fuel Consumption Gal/Hr: -

• Exterior Fill Port Diameter: 3.5"

Cooling/Lubrication System Specs:

• Air Filter: Dry Type Cartridge

• Oil Filter: Full Flow, Spin-on

• Service Interval: -

Generator Specs:

• Generator: Brushless

• Alternator: Winco

• Voltage: 120/240V, 1-phase, 60Hz

• Efficiency Rating: -

• Amps: -

• Voltage Regulation: +/-1% Voltage Regulation

• Battery: Wet Cell

• Exhaust: CARB (California) Compliant, EPA Tier 4 Final Compliant

• Fuel Filter: Included w/ Replaceable Element

Control Specs:

• Control Panel Type: External, Illuminated Control Panel w/ Sealed Switches

• Switch: 4-position, Key Activated - Off, Run, Glow, Start

• Meter: Digital Hour Meter

• Light Control: Individual On-Off Switch for Each Light Fixture

• LED Breakers: 15A Breakers per Circuit

Convenience Receptacles w/ Individual Breakers Specs:

• Main Breaker Capacity: 60A Main Breaker

• Breakers: (2) 30A, (2) 20A

• Receptacles: (1) 30A L6-30R NEMA Twist Lock [250V], (1) 30A L14-30R NEMA Twist Lock [125/250V], (2) 20A 5-15R/5-20R GFCI T-slot Duplex Outlet [120V]

Light Mast Specs:

Mast Type: Fold Over
Boom Height: Up to 30`
Boom Rotation: 359° Range of Motion, Adjustable from Ground during Full Extension, Rotation Lock
Materials: Aluminum
Finish: Powder Coated Black
Operation: Electric Winch System
Winch: 1,500 lbs
Cord: Self-retracting Coiled Mast Cord

Light Specs:

• Lamp Type: LED

• Lamp Qty: (4)

• Total Watts: 1,920W

• Single-lamp Watts: 480W

• Total Lumens: 259,200 lms

• Single-lamp Lumens: 64,800 lms

• Luminous Efficiency: 135 LPW

• LED Color Temperature: Cool White - 5500-6500K

• LED Life Expectancy: 80,000 hours

• Beam Angle: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood

• Optics Efficiency: 98% - PMMA High Transmittance Optics

• Ambient Temperature Range: -40°C to +80°C

• Materials: Die Cast Aluminum Housing, PMMA Optics

• Mounting: Trunnion Mount U-Bracket

• Waterproof Rating: IP67 LED Lights

Trailer/Housing Specs

• Enclosure Type: Durable, steel vented housing customized to store, protect and maximize functionality of power generation, power storage and light tower components

• Enclosure Material: 14ga Sheet Steel w/ Powder Coated Finish

• Dimensions: 145" L x 60" W x 88" H

• Max Towing Weight: 3,600 lbs

• Height Adjustment: Hitch Up and Down

• Hitch: Reversible 2” Ball Hitch / 3" NATO Pintle Hitch

• Wheelbase: 60"

• D Rings: (4) Side of Trailer

• Forklift Pockets: (2) Trailer Base for Low Point Access Lifting

• Pickeye: (1) Crane Hook Pickeye for High Point Access Lifting

• Safety Chains: 7,800 lb Safety Chains with Spring Loaded Safety Hooks for Connecting to Tow Vehicle

• Tongue: Removable w/ (1) 1000lb manual crank tongue jack

• Outriggers: (4) 2ft Extending Stabilizing Outriggers w/ 1000 lb Manual Crank Jacks

• Axle: (1) 5000 lb Axle

• Fenders: Steel

• Brake System: Electric

• Lighting: DOT Approved Tail, Side, Brake, Directional and License Plate Lights

• Wheels: (2) 16" Steel Rims

• Tires: (2) ST235/80R16 High Capacity Trailer Rated Tire

• Shipping Dimensions: -

• Weight: -

Protection

• Made in USA, Made in Texas

• BAA Compliant

• Buy American Act Compliant

• FAR 52.225-2 compliant

• 12 kW Genset

• 50 Gallon Fuel Capacity

• 30' Fold Over Mast

• Low Oil, High Engine Temp Auto Shut-Off

• Four Point Outrigger System

• Steel Trailer w/ Industrial Grade Paint Finish

• (4) LED Fixtures

• Independently Adjustable Light Heads

• 135 Lumens Per Watt Efficiency

• Withstands 50 Mph Winds at Full Extension

• 98% Transmission High Purity PMMA Optics

• 70% Lumen Retention after 80,000 Hours

• Multiple LED Banks for Heat Dispersion

• Rear Located Engine Controls, Lighting Controls and Receptacles

• Lift-up Enclosure w/ Hydraulic Lift Assist Arms for Engine Access and Fuel Tank

• Engine Controls and Lighting Controls Located Behind Hinged Door w/ Viewing Window

• Electric Winch


Larson Electronics LLC manufactures a wide variety of products, including custom built to spec designs. The pictures displayed for this unit are a general representation of form factor for the product line and may not accurately represent this exact configuration in every detail due to custom builds and changes between similar products in our standard catalog. The specifics for this configuration are listed in the specification table and supporting documentation (CAD files, Dimensional Drawing, Name Plate Diagram, Wiring Diagram, etc.). This means that specific details (receptacles, plugs, wires, connections, mounting brackets, external finishes, etc.) may not be accurately represented in images vs specifications. Please review specifications and do not order based solely on images.
