Product Description

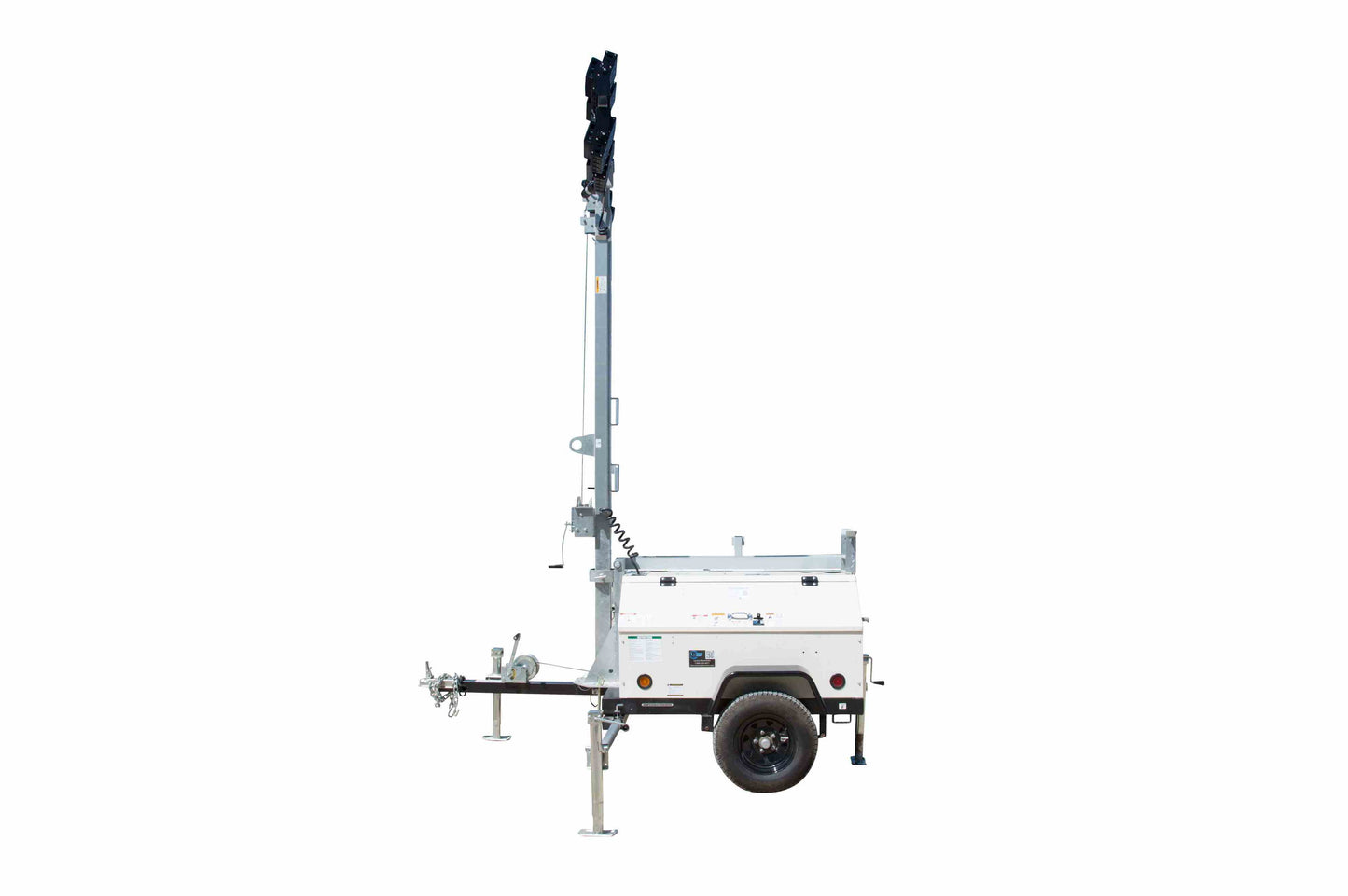

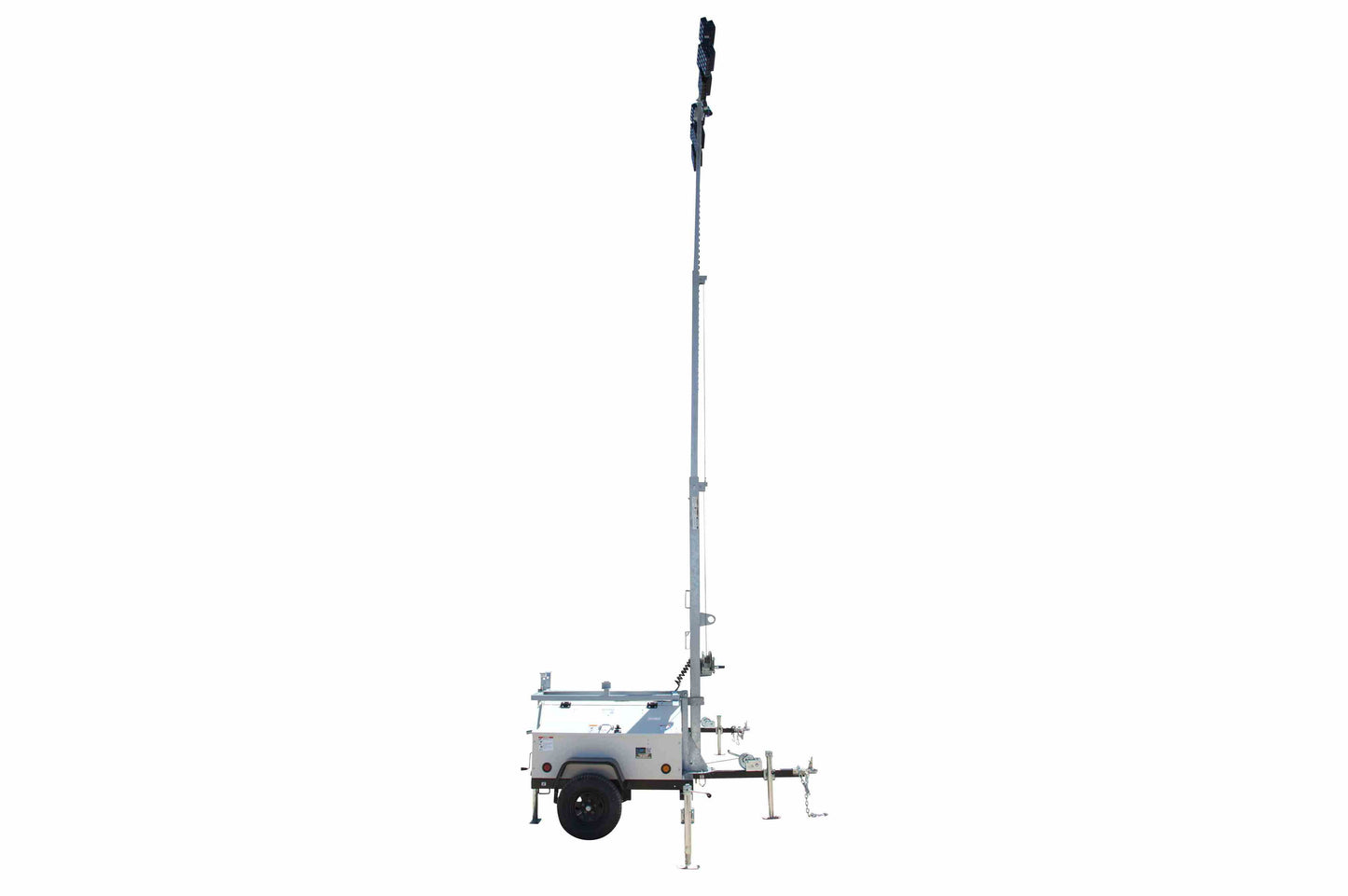

Larson Electronics 30' Portable LED Light Tower - 15kW Diesel Generator w/ 50 Gal Tank, (4) 1000W LED Lamps - Trailer Mount
Description

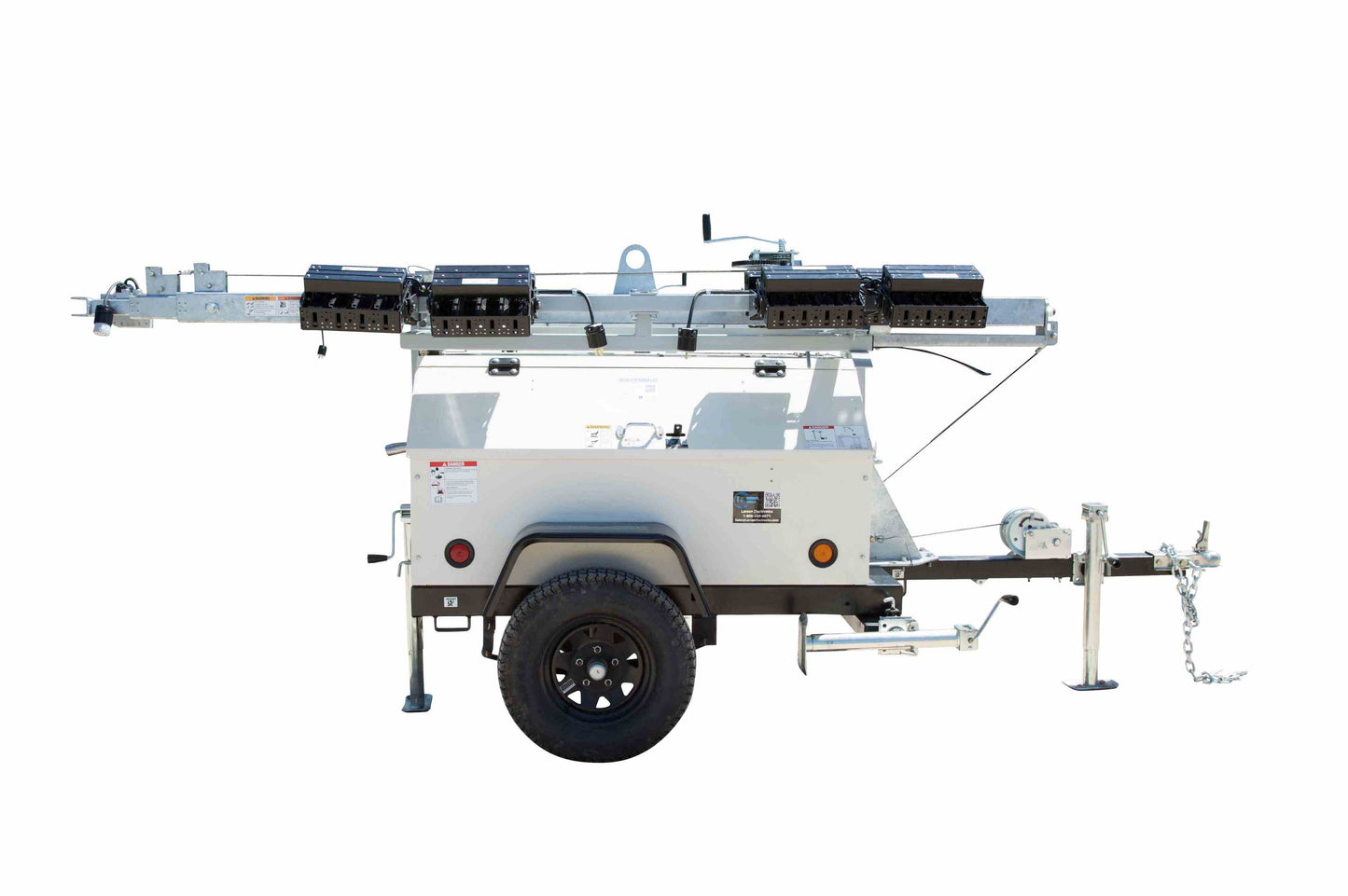

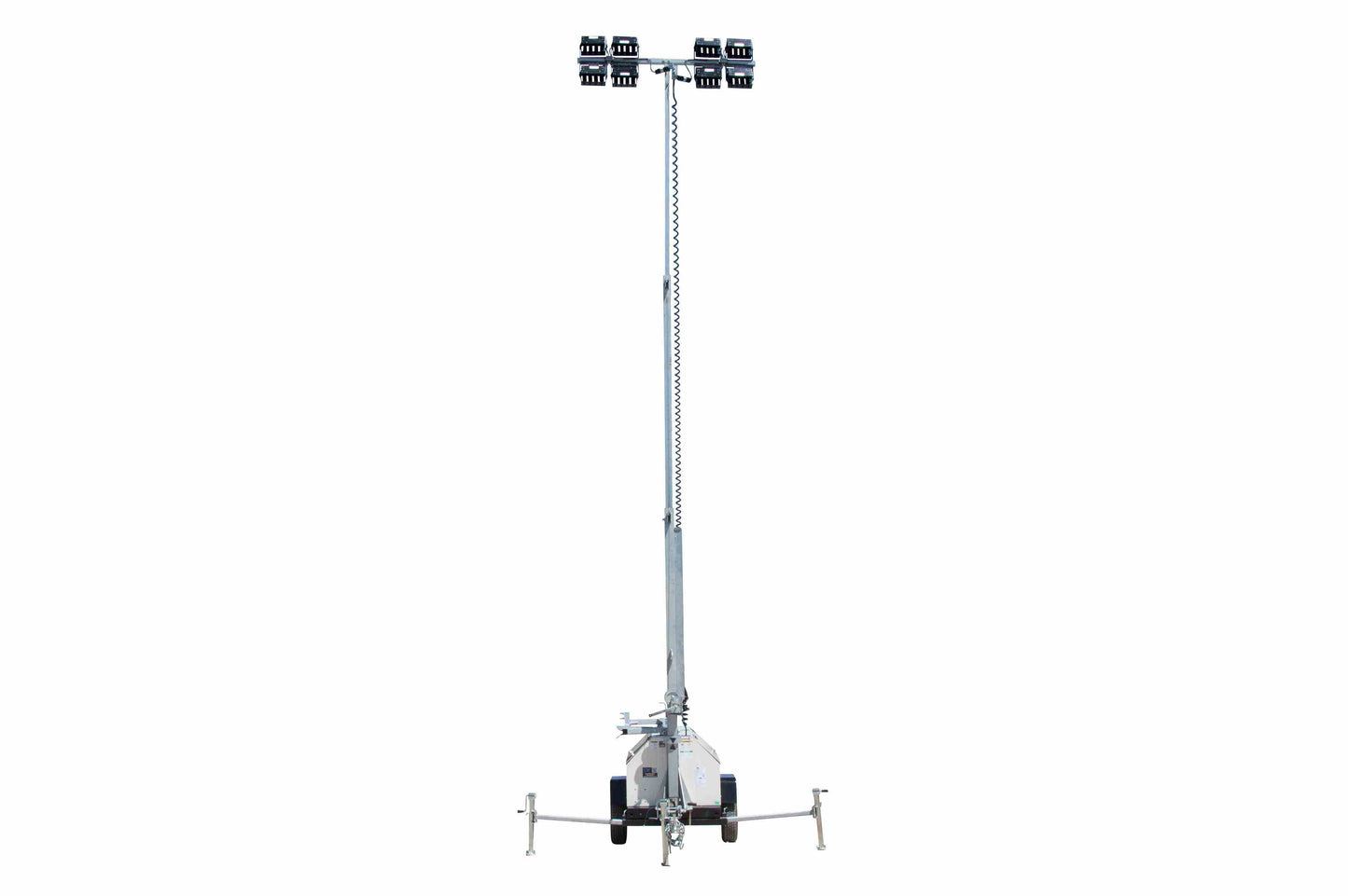

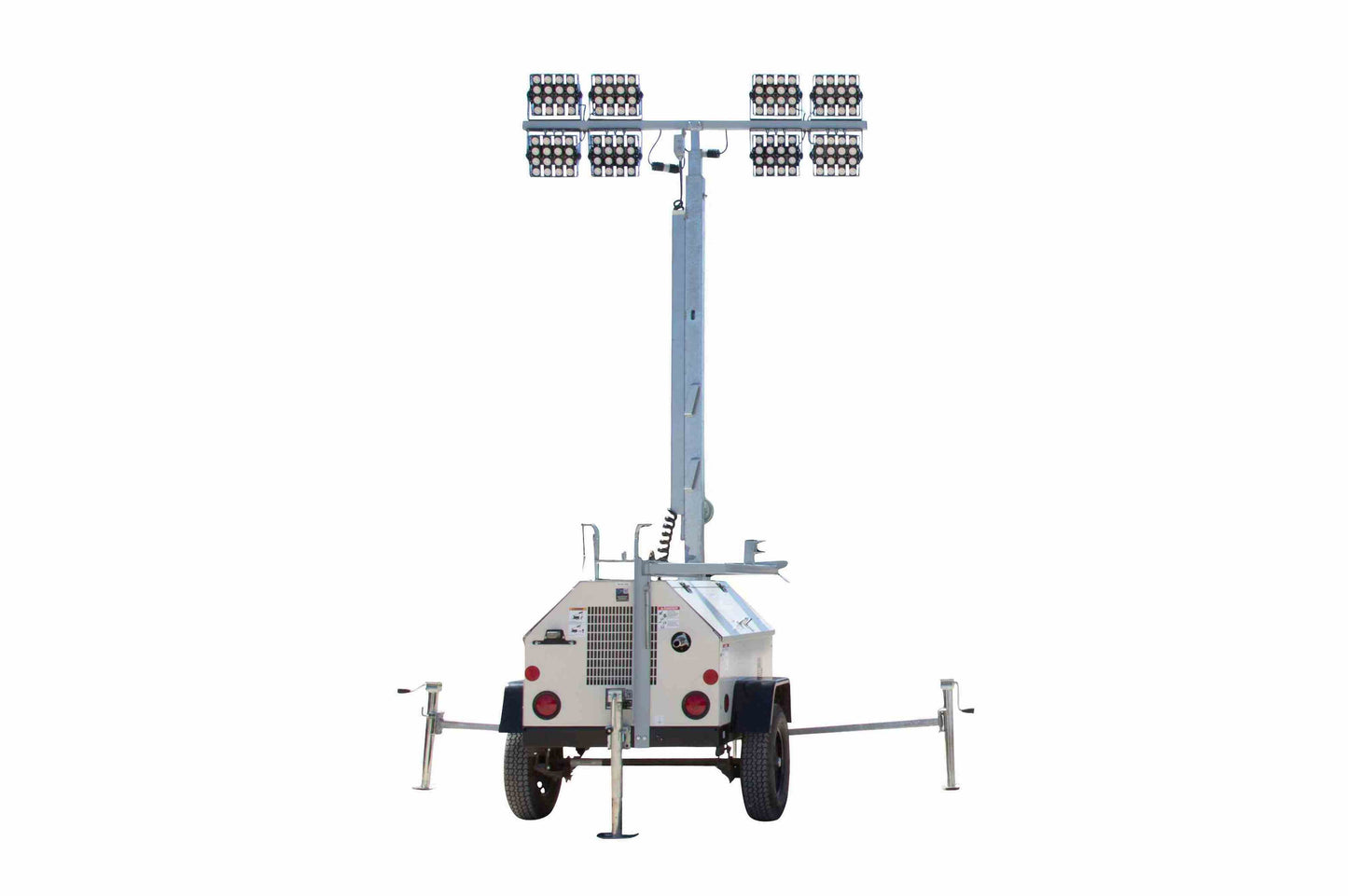

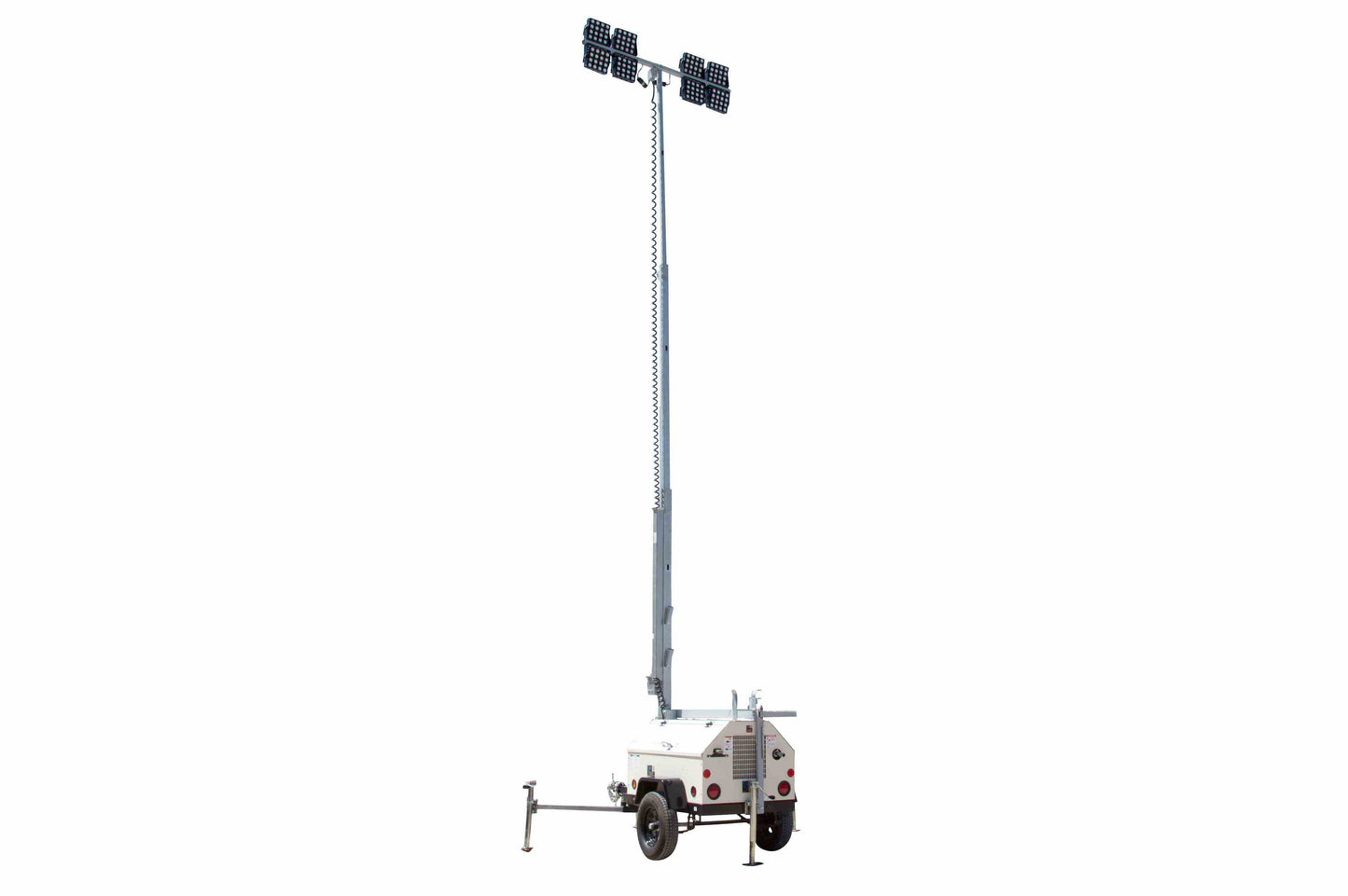

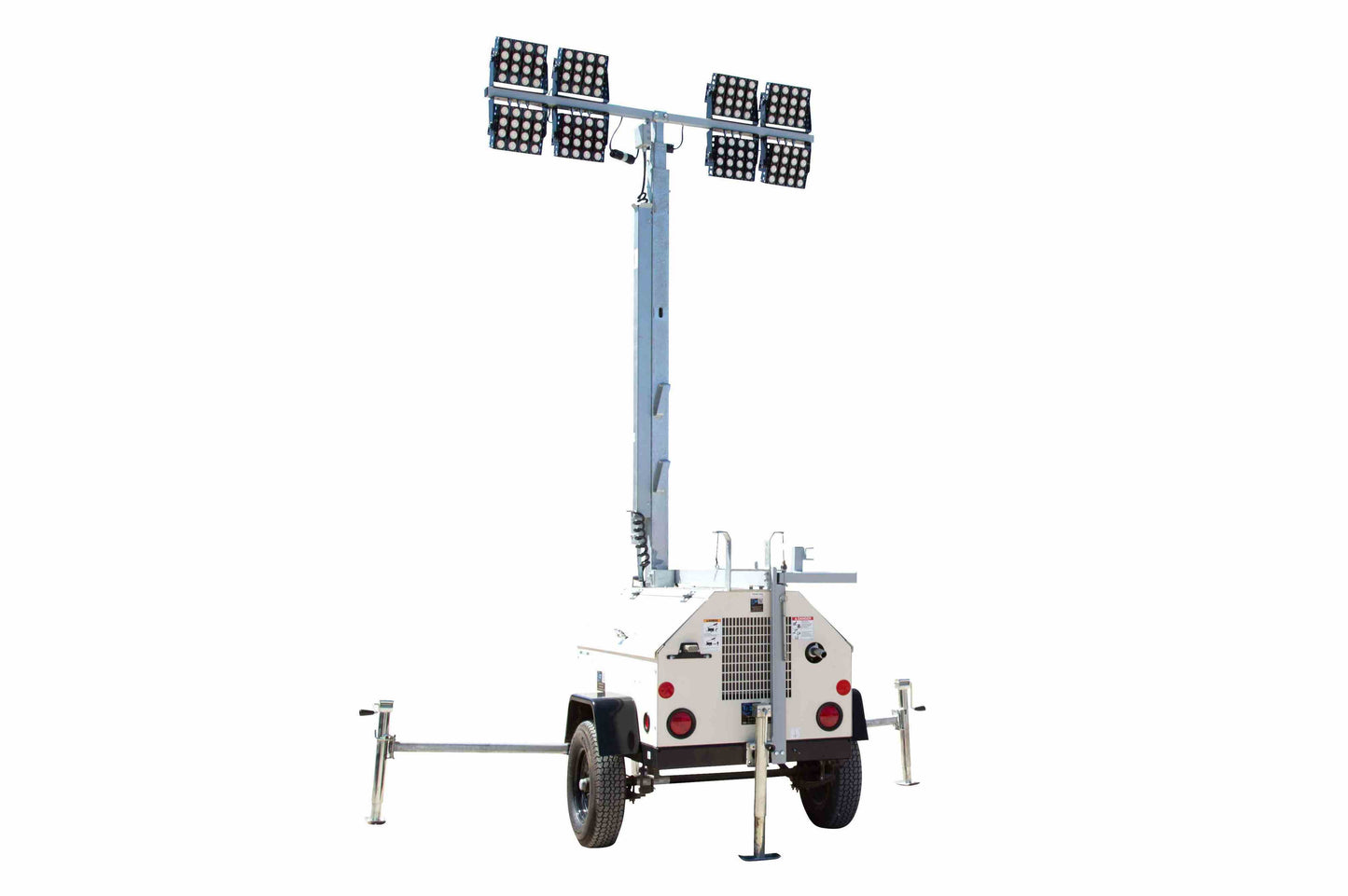

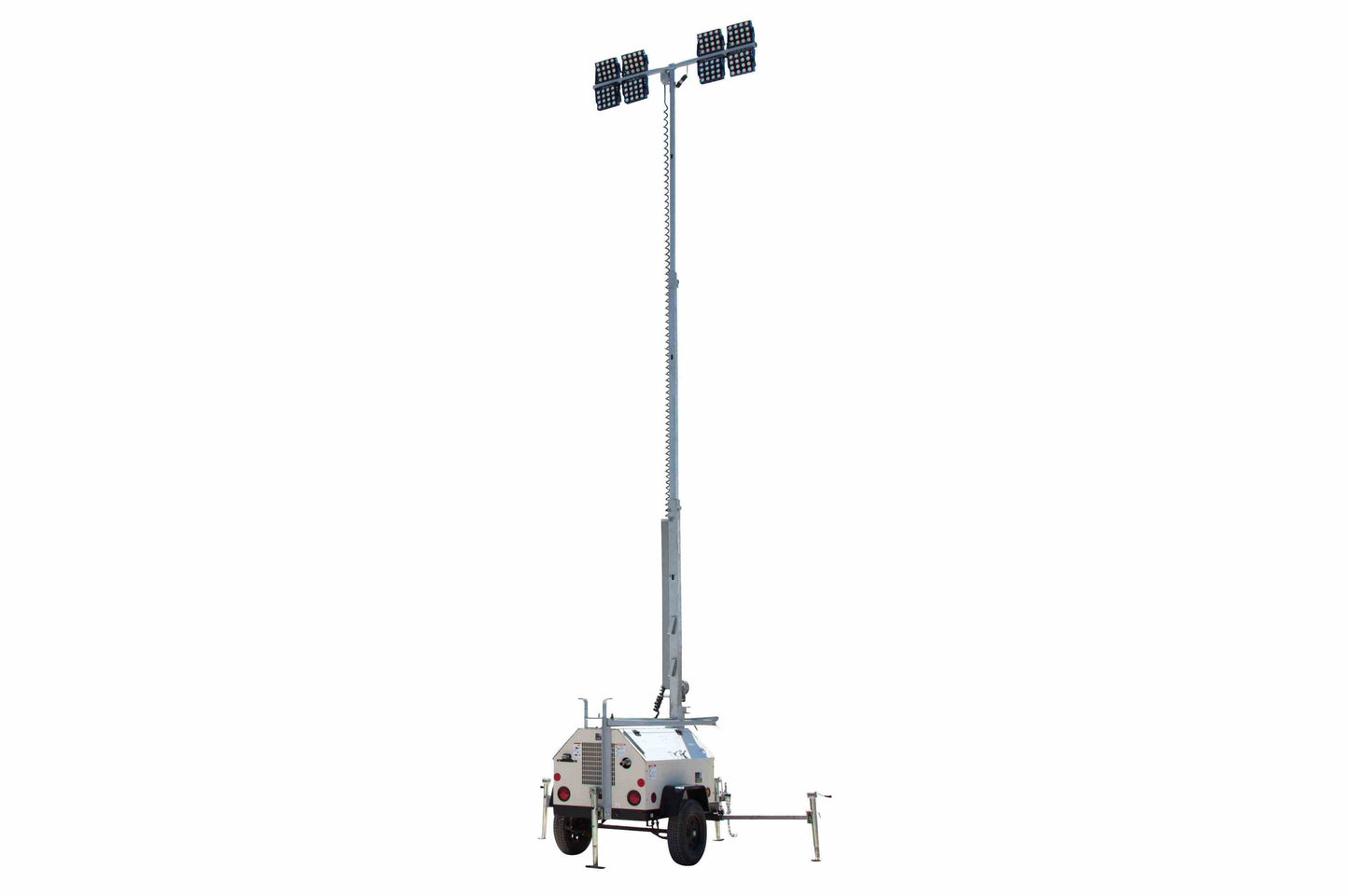

The WCDE-LE-15KW-4X1000LTL-LED-M1 Portable LED Light Tower from Larson Electronics is a robust towable lighting system powered by a 15 kW diesel generator. This system features a 30-foot telescoping mast that can be elevated using a manual winch to deploy four 1,000-watt LED floodlights. With a total light output of 656,000 lumens, the tower can illuminate a 2-acre outdoor area for over 40 hours without refueling when using the lights only, or 20 hours at full load.
Key Features
-
Lighting Power: Four 1,000-watt LED floodlights produce a total of 656,000 lumens.
-
Generator: 15 kW Isuzu diesel generator, liquid-cooled, 1,800 RPM for quieter and longer operation.
-
Runtime: 40+ hours on lights only, 20 hours at full load.
-
Telescoping Mast: 30-foot height with 360° rotation, withstands winds up to 65 mph.
-
Durability: IP67-rated LED lamps, capable of handling extreme conditions (-40°C to +80°C).
-
Control Panel: Individual light controls, automatic shutdown for low oil or high engine temperature.
-
Safety & Mobility: Mounted on a heavy-duty trailer with a 2,200 lbs leaf spring axle, includes safety chains, electric brake system, and forklift pockets for easy transportation.
Detailed Specifications
-
Engine: 4-cylinder Isuzu, diesel, 40 HP, 1800 RPM, EPA Final Tier 4 compliant.
-
Fuel System: 50-gallon polyethylene tank.
-
Voltage: 120/240V, 1-phase, 60Hz.
-
Lights: Four 1,000W LED lamps, 164,000 lumens each, 60° flood beam.
-
LED Lifespan: 80,000 hours, with 70% lumen retention.
-

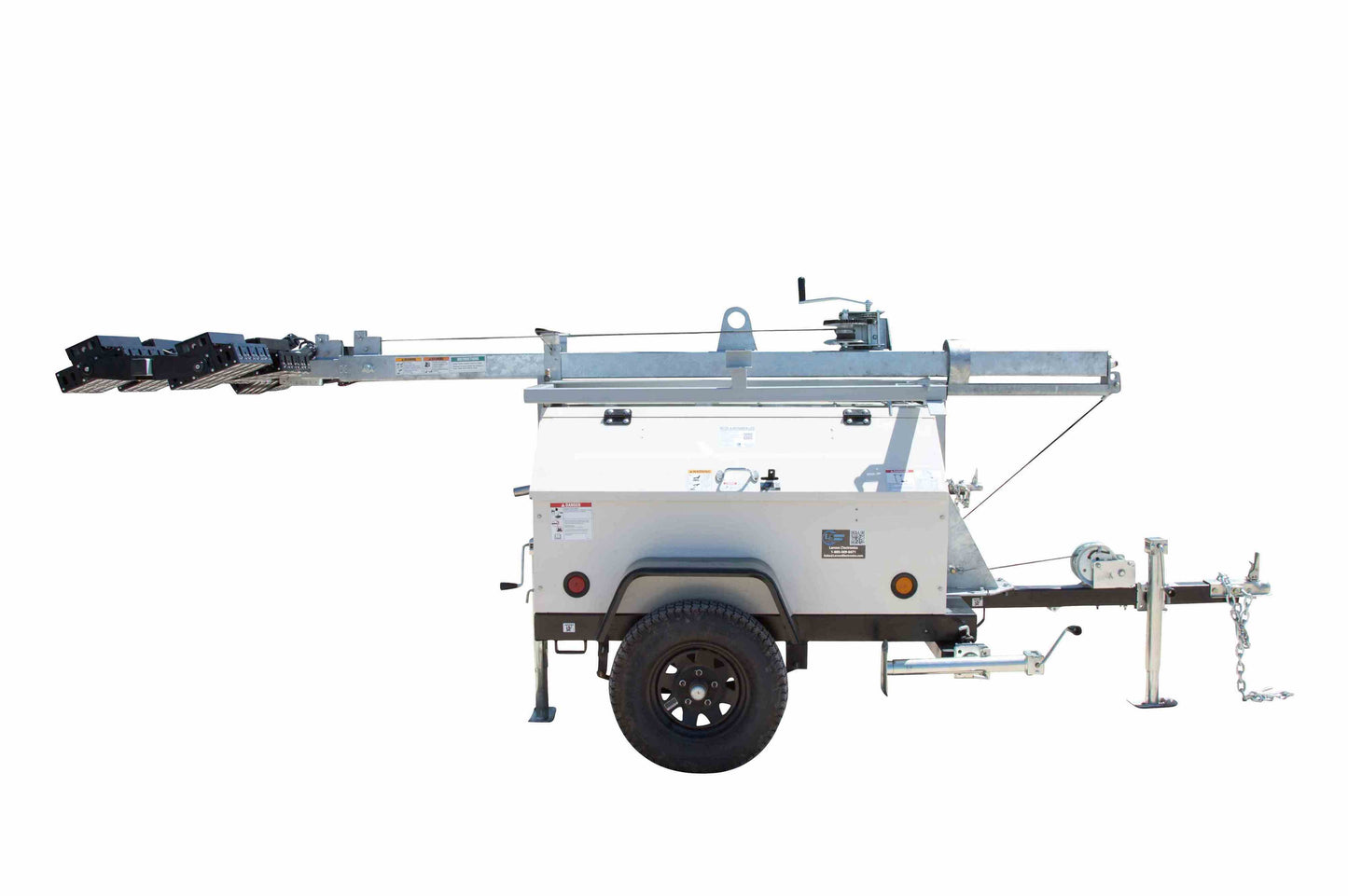

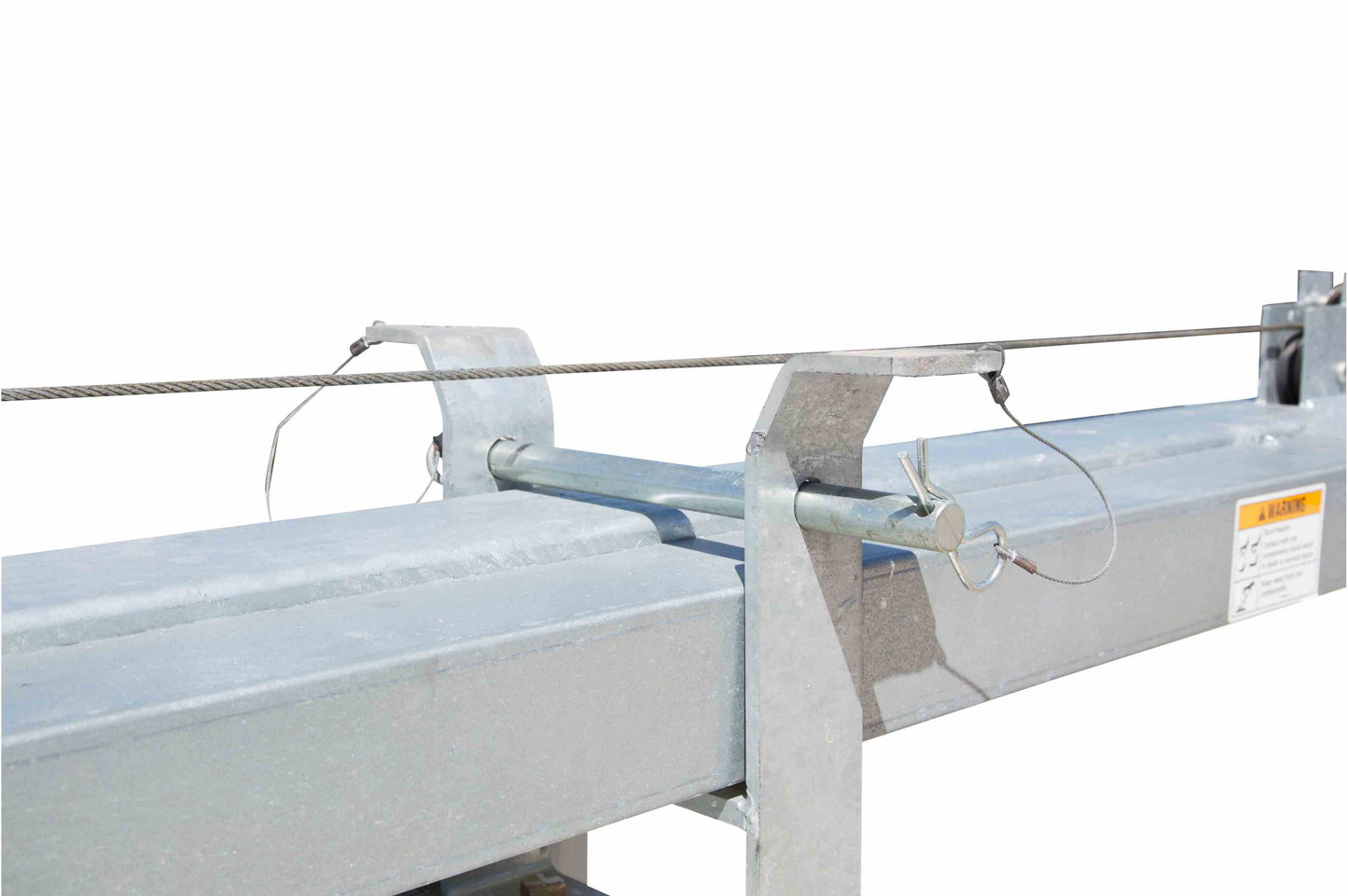

Mast: Manual crank-up, fold-over design, extends to 30 feet.
-
Trailer: Galvanized steel, dimensions 145" L x 60" W x 88" H, with a maximum towing speed of 55 mph.
-
Outriggers: Four 2-foot extending stabilizing outriggers with 1,000 lb manual crank jacks.
Applications:
- Emergency services
- Large-scale outdoor events
- Construction sites
- Mining and industrial operations
- Military bases
- Remote job sites
