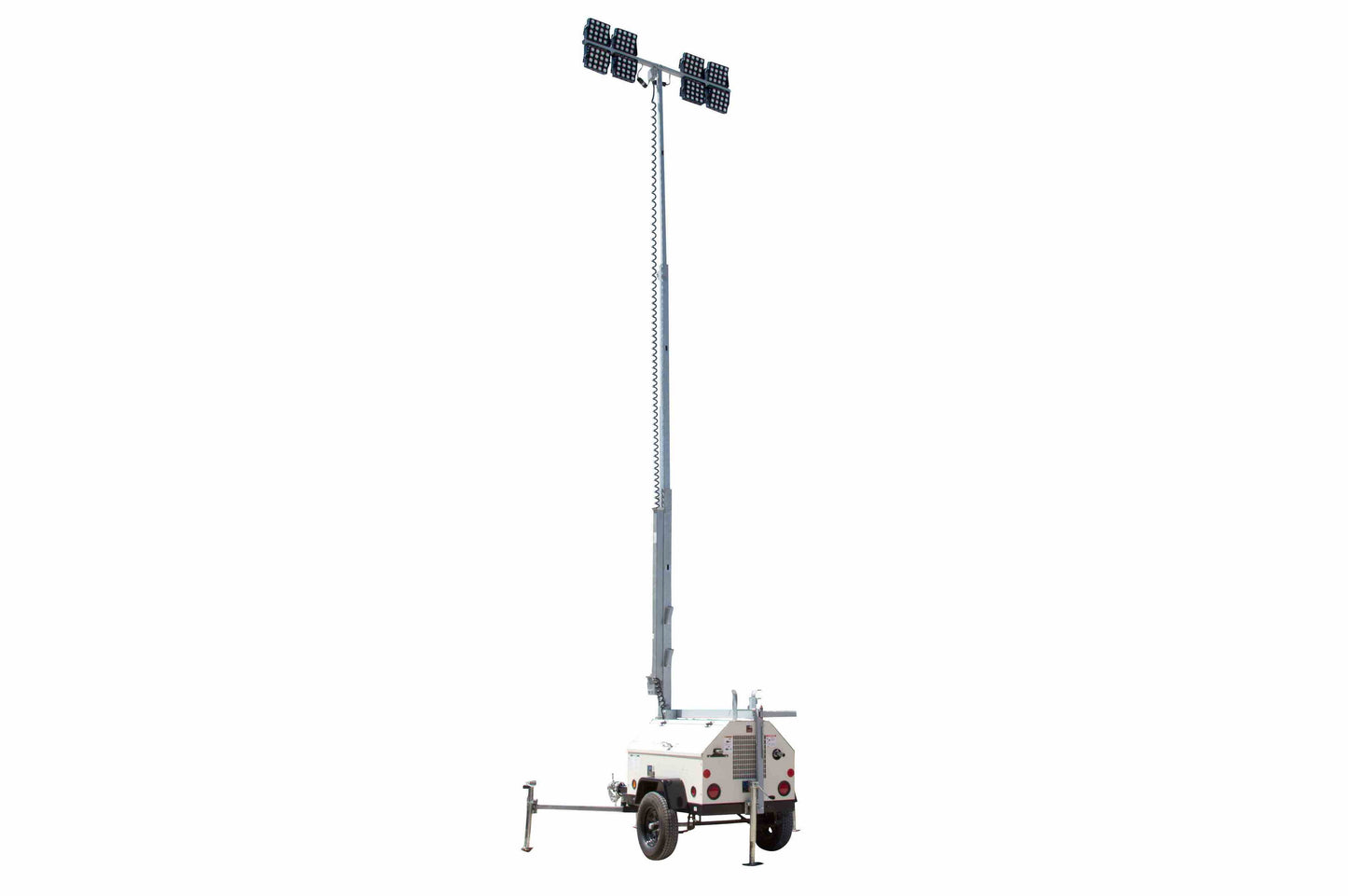

Larson Electronics 30' Portable LED Light Tower - 8kW Diesel Generator w/ 50 Gal Tank, (4) LED Lamps - Trailer Mount

Product Description

Larson Electronics 30' Portable LED Light Tower - 8kW Diesel Generator w/ 50 Gal Tank, (4) LED Lamps - Trailer Mount

Description

The WCDE-LE-12KW-4X500LTL-LED-EW-380Y.50HZ-M1 Portable LED Light Tower from Larson Electronics is a robust, towable lighting solution powered by a durable 8 kW Cummins diesel generator. Designed for efficient lighting in remote locations, construction sites, emergency situations, and large-scale events, this mobile light tower features four 480-watt LED floodlights that can provide continuous lighting for 65+ hours on a single tank of fuel. Manufactured in Texas, USA, the unit complies with the Buy American Act (BAA) and FAR 52.225-2 regulations

Key feature

• 8 kW Cummins diesel engine, liquid-cooled for high performance.

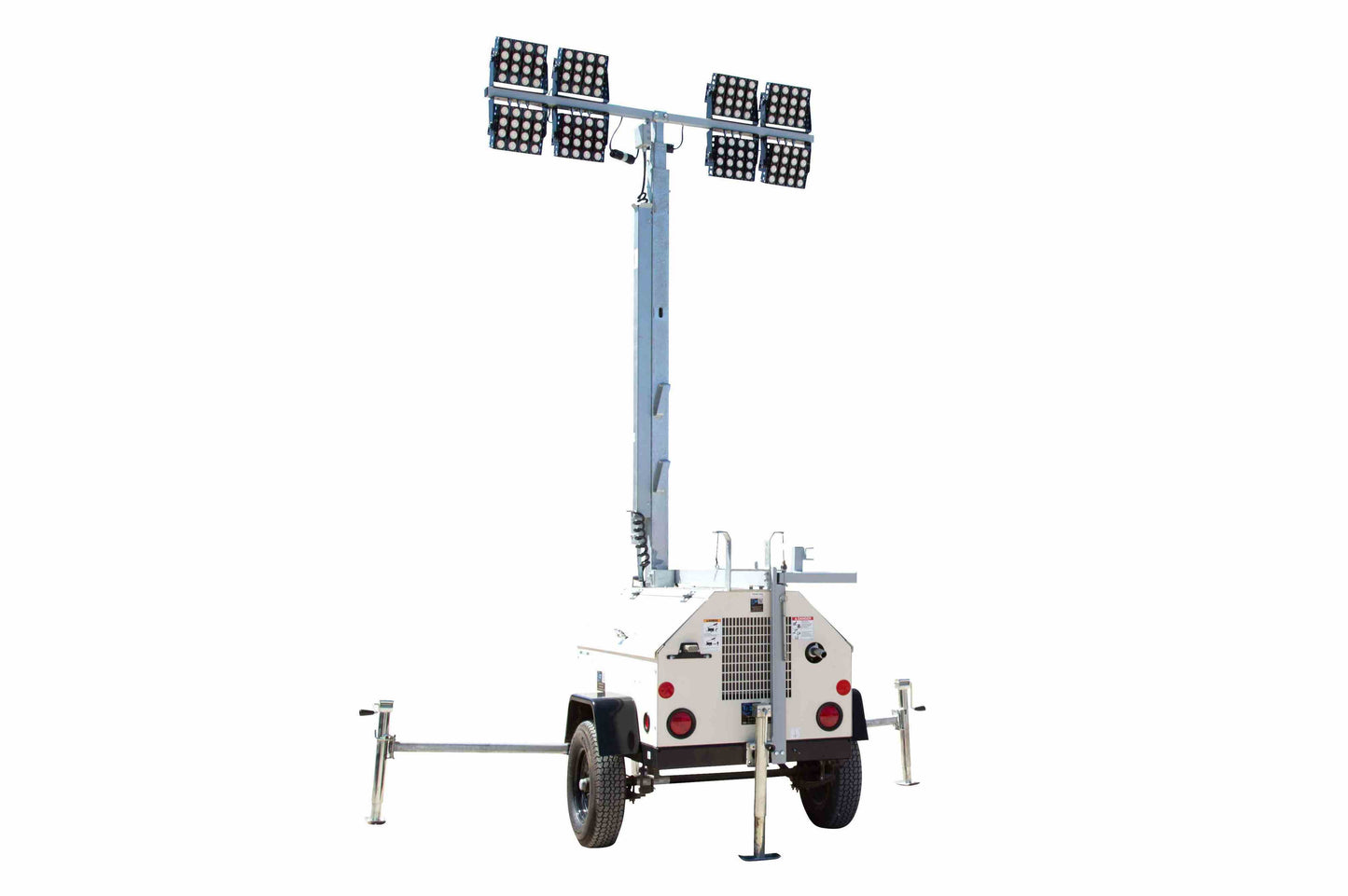

• Four 480-watt LED floodlights, producing 259,200 lumens total.
• 30-foot telescoping mast with manual winch for height adjustment and 359° rotation.
• 50-gallon polyethylene fuel tank with a runtime of 65+ hours for lights-only operation.
• Independent on/off controls for each LED fixture, protected by 15A circuit breakers.
• Designed to withstand 50 mph winds with fully extended mast and deployed outriggers.
• Made in the USA, BAA compliant, FAR 52.225-2 compliant.

Detailed Specifications

• Engine: Cummins, 4-cylinder, diesel, liquid water-cooled, EPA Final Tier 4.
• Engine Speed: 1800 RPM (lower RPM for quieter, more efficient operation).
• Rated Prime Power: 8 kW.
• Noise Level: 63 dBA at 23 feet.
• Fuel Tank Capacity: 50 gallons, polyethylene.
• Fuel Consumption:
• 1.26 gal/hr at 50% load.
• 1.68 gal/hr at 75% load.
• 2.10 gal/hr at 100% load.
• Voltage: 380Y/220V, 3-phase, 60 Hz.
• Generator Type: Brushless, with +/-1% voltage regulation.
• Battery: Wet cell for starting and operation.
• Control Panel: Sealed, illuminated, with a 4-position key switch (Off, Run, Glow, Start).
• Safety Features: Low oil pressure and high engine temperature automatic shutdown.

Light Specifications

• Lamp Type: CREE® LED.
• Lamp Power: 480 watts per lamp (4 lamps total).
• Total Light Output: 259,200 lumens (64,800 lumens per lamp).
• Beam Angle: 60° flood beam for wide-area illumination.
• LED Color Temperature: 5500K-6500K, cool white.
• LED Life Expectancy: 80,000 hours.
• Optics Efficiency: 98% PMMA high-transmittance optics for optimized light distribution.
• Heat Management: Individual heat sinks per LED bank to ensure optimal cooling and longer service life.
• Waterproof Rating: IP67 (resistant to dust, dirt, and immersion in water).
• Coverage: Capable of illuminating up to 1/2 acre (21,780 square feet).
• Materials: Die-cast aluminum housing with powder-coated black finish for durability in harsh environments.

Telescoping Mast Specifications:

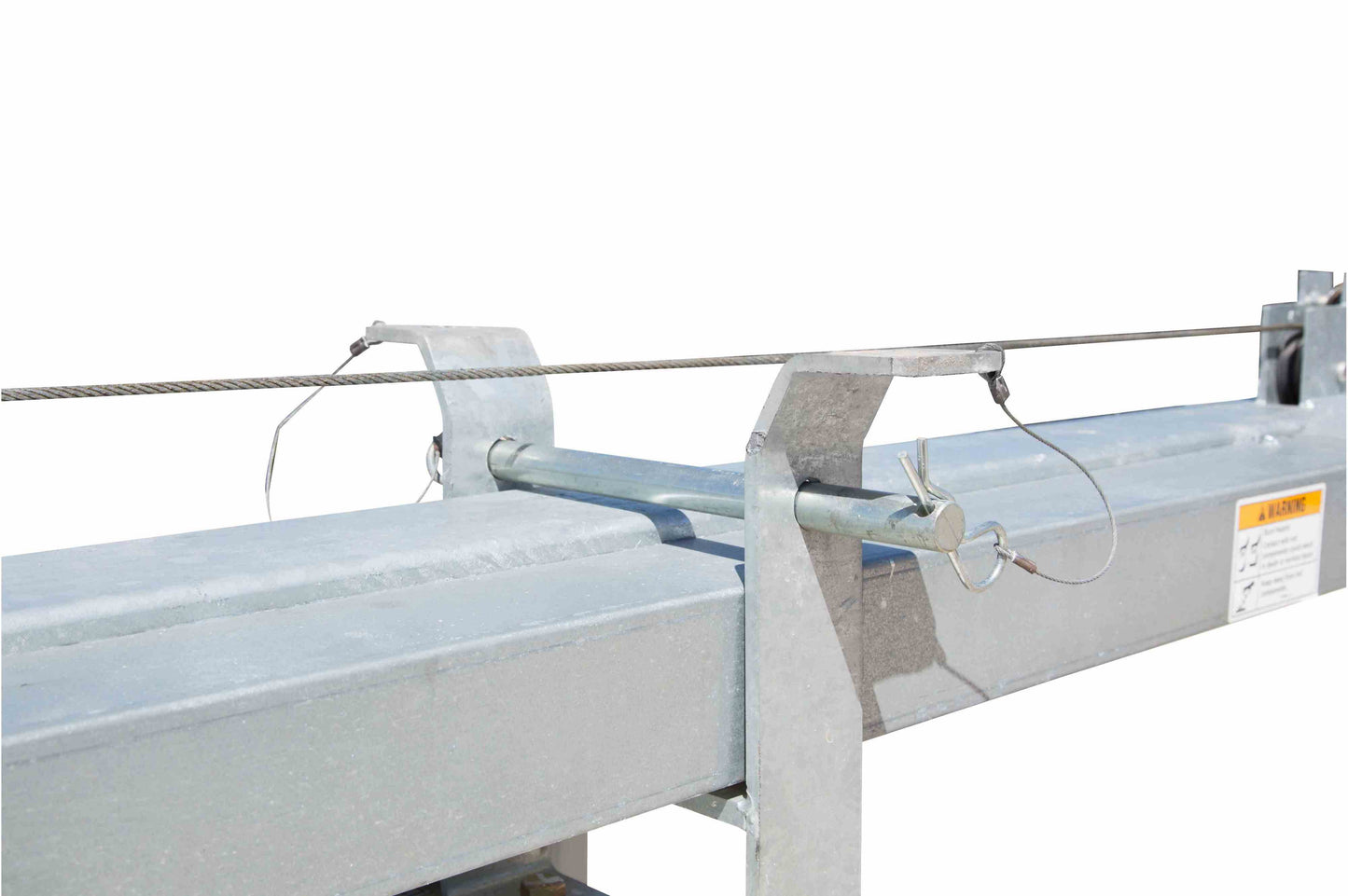

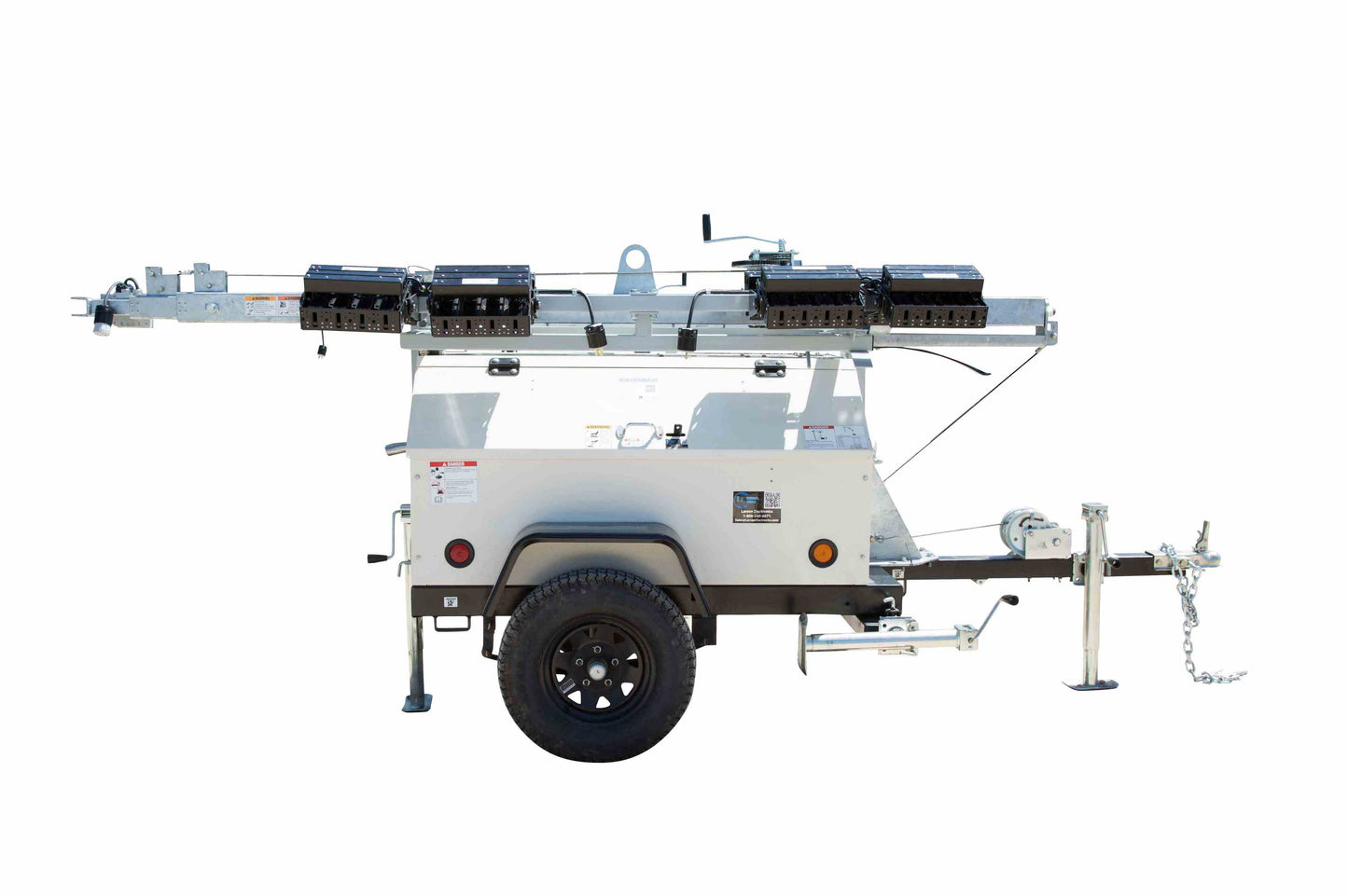

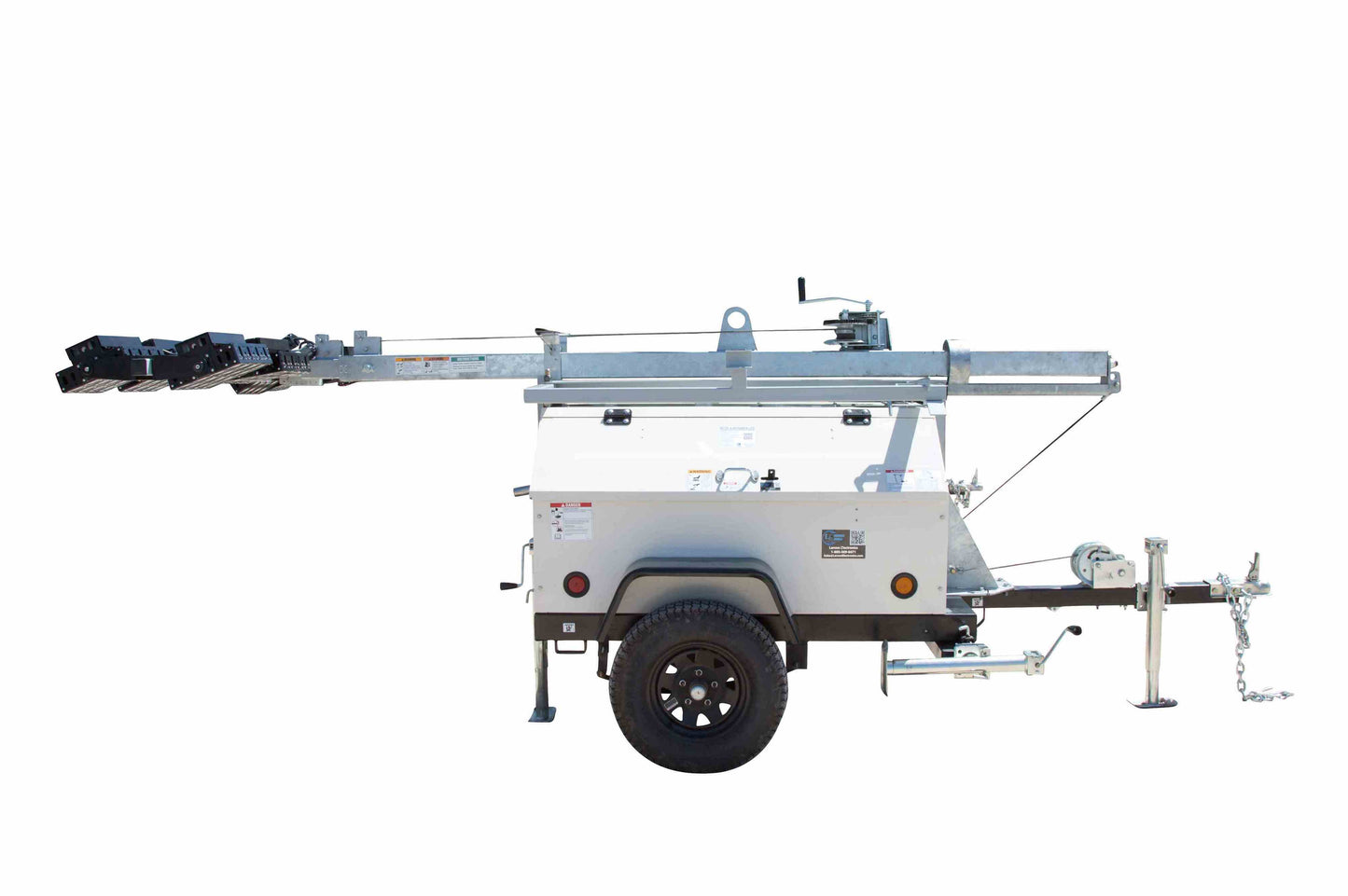

• Mast Type: Manual crank-up, fold-over design for easy transport.

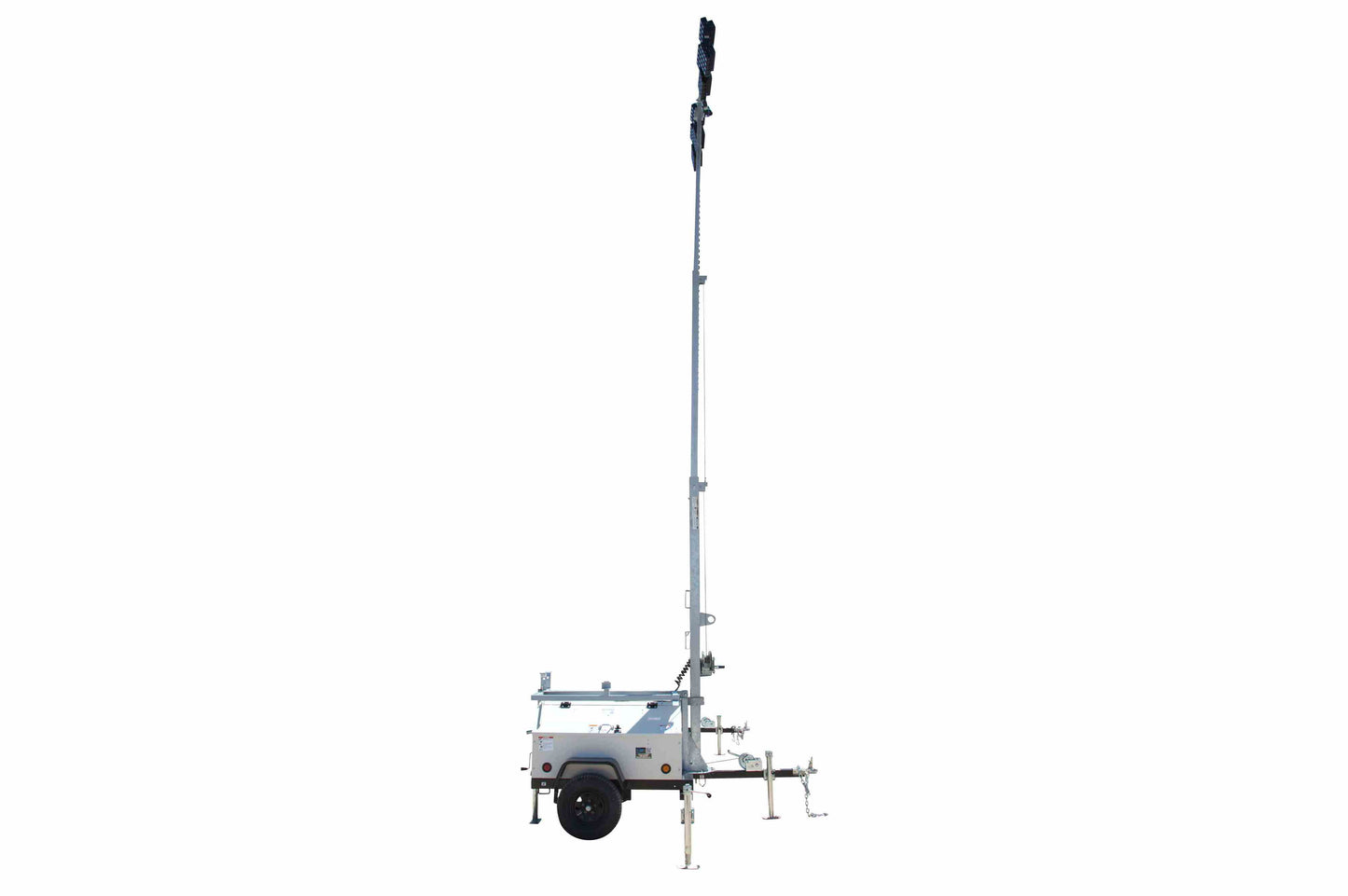

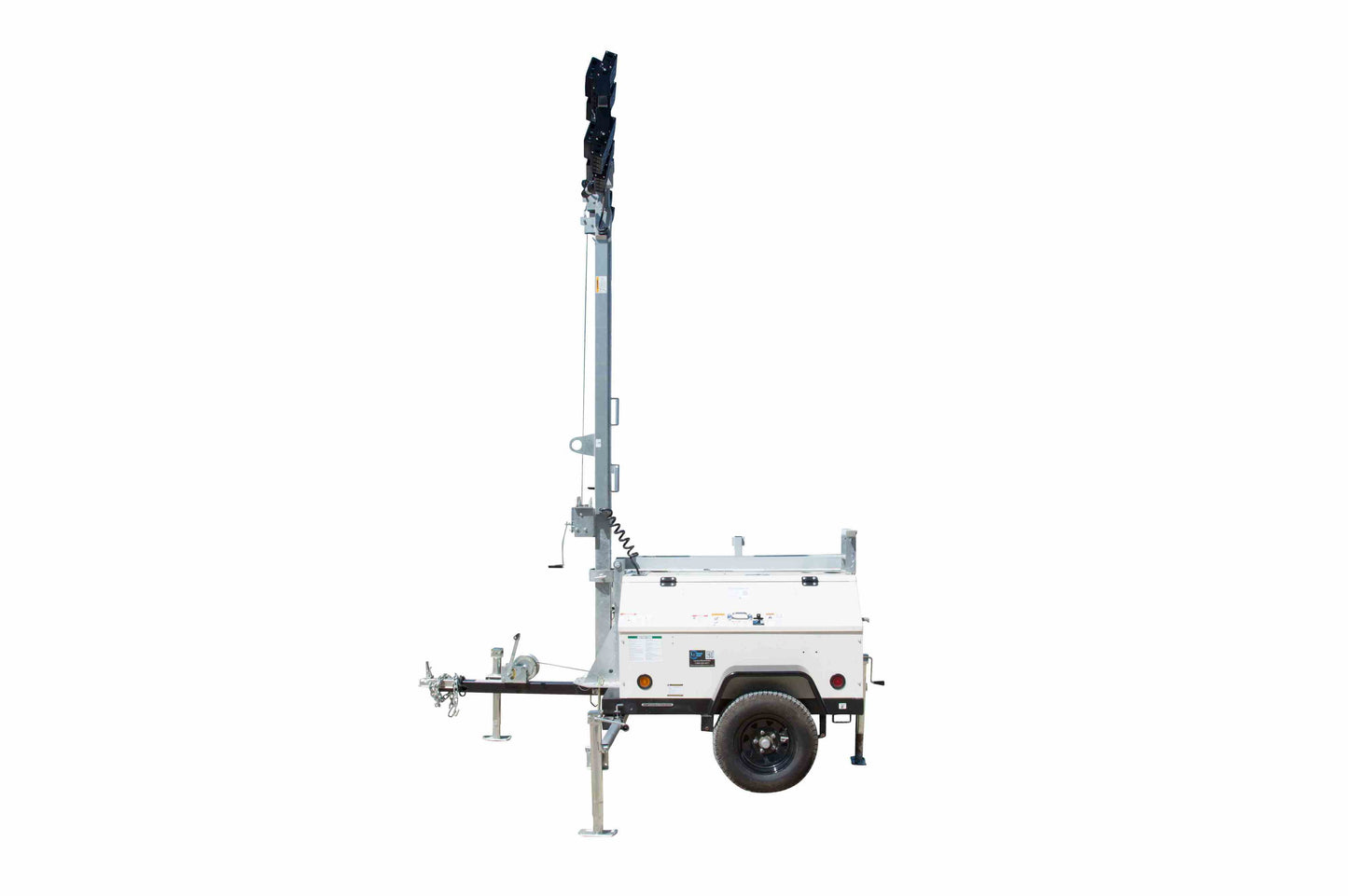

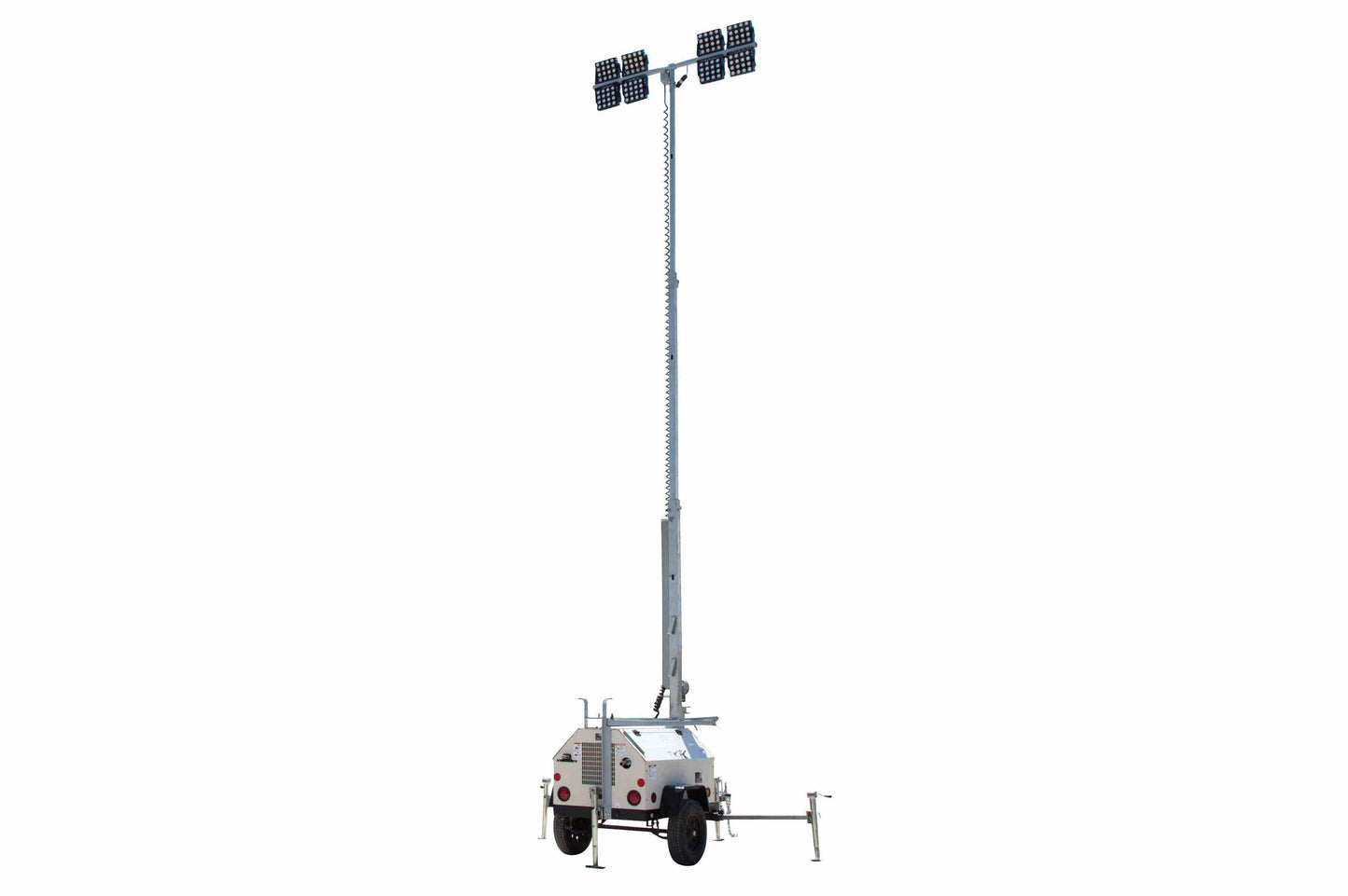

• Maximum Height: 30 feet.
• Mast Rotation: 359° for optimal light positioning and coverage.
• Materials: Galvanized aluminum for corrosion resistance.
• Operation: Self-braking, 1,500 lb capacity electric winch for safe and easy mast deployment.
• Cord: Self-retracting coiled mast cord for cable management.

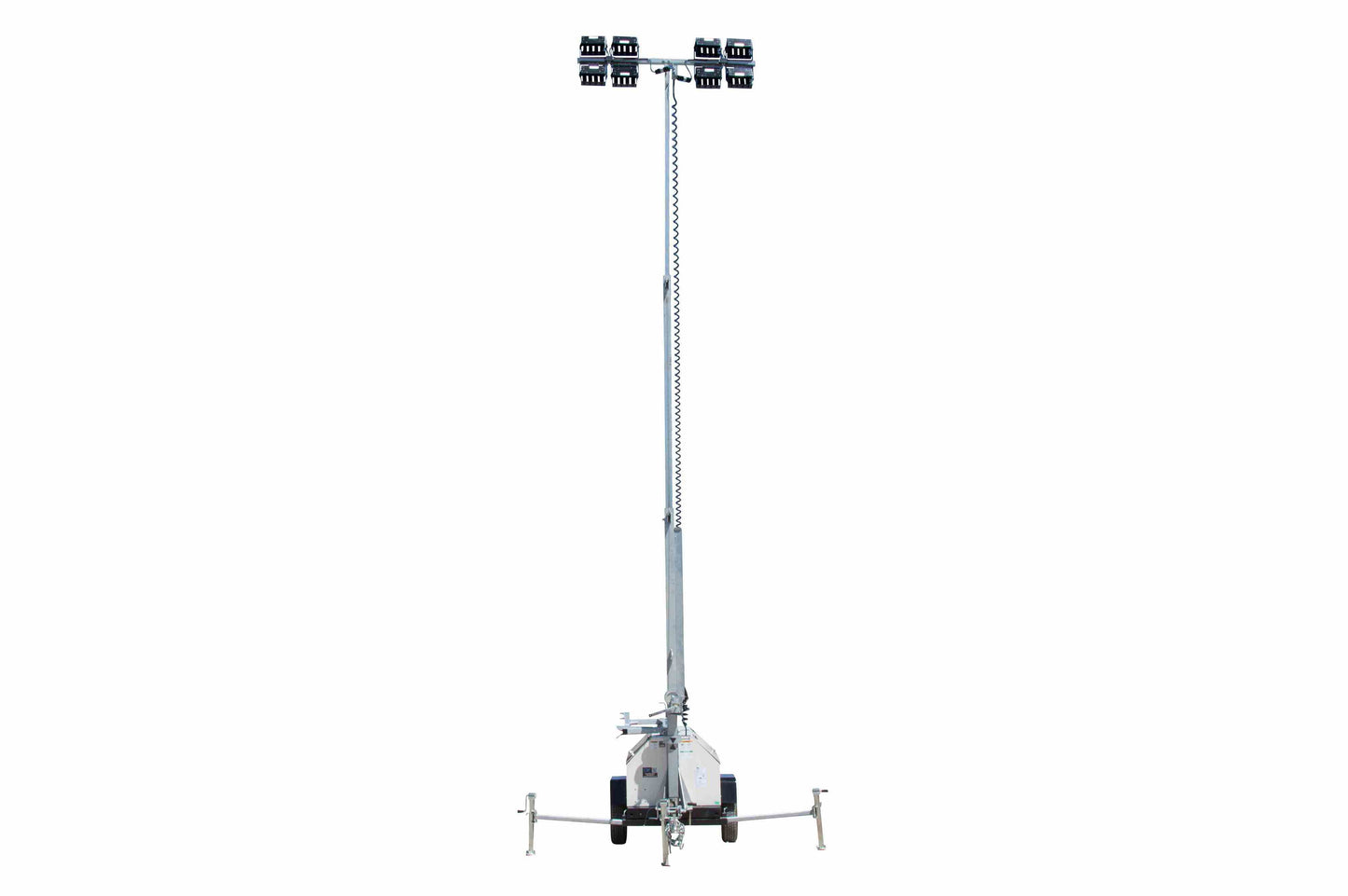

• Stabilization: Outriggers extend 2 feet, with 1000 lb manual crank jacks to provide stability in winds up to 50 mph.

Trailer Specifications:

• Dimensions: 145 inches (L) x 60 inches (W) x 88 inches (H).
• Weight: 3,600 lbs (maximum towing weight).
• Axle Capacity: 5000 lbs.
• Wheels: Two 16-inch steel rims with ST235/80R16 high-capacity trailer-rated tires.
• Hitch: 3-inch NATO pintle hitch with safety chains rated at 7,800 lbs.
• Forklift Pockets: Two pockets for easy transport with low-point access lifting.
• D-Rings: Four D-rings on the trailer sides for secure tie-down points.
• Outriggers: Four manual
