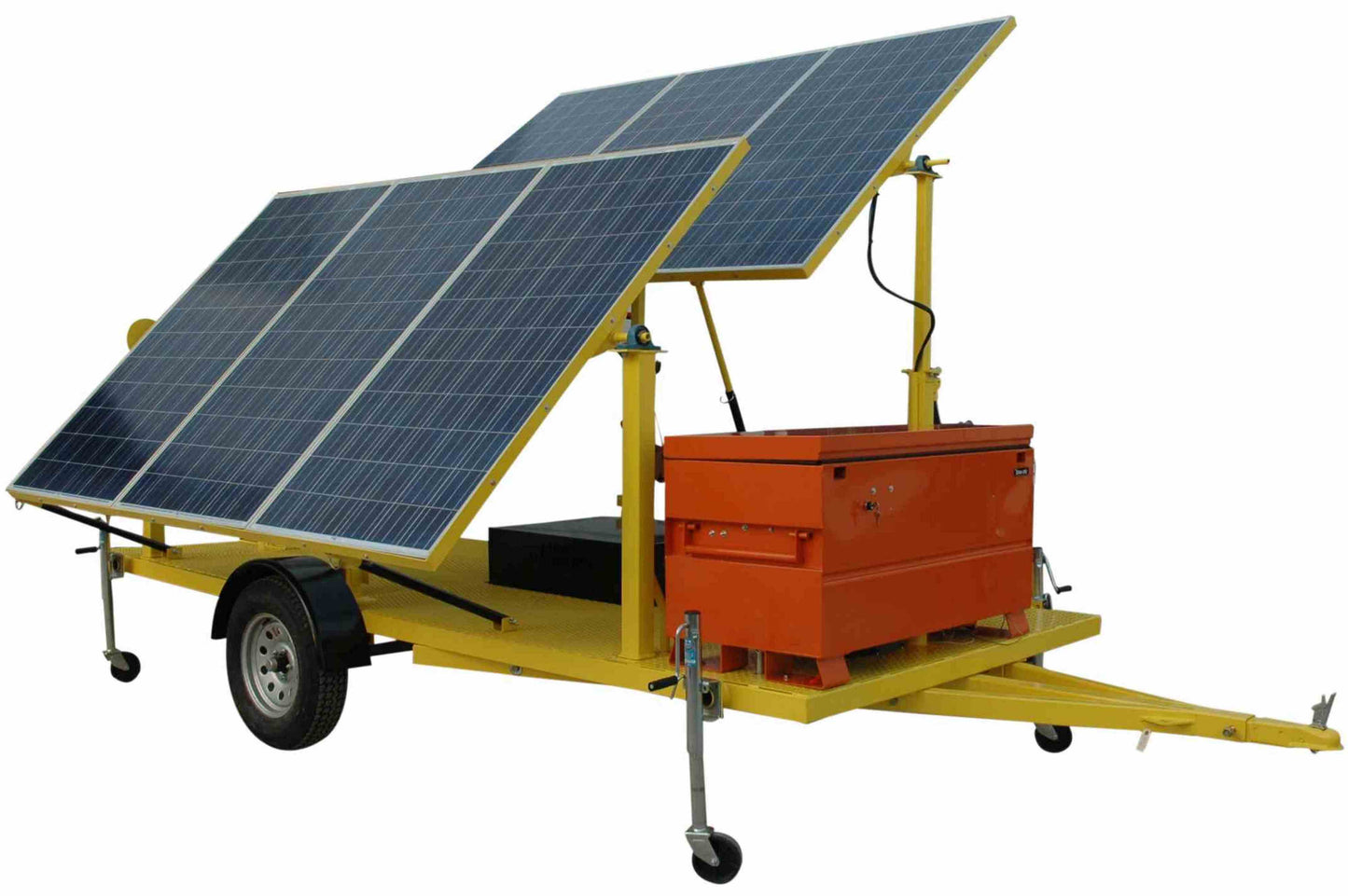

Larson Electronics 4.8KW Solar Powered Security System - (20) 240W Panels -11kW Diesel Gen - 120/240V Inverter

DESCRIPTION

The SPG-4.8K-1600A-ISDG.11KW--120.240V-100A-BC.40.240 from Larson Electronics is a Solar Powered System that is designed for outdoor and remote locations. This unit features twenty, 240W solar panels and an 11kW diesel generator.

This solar powered security system includes 4,800-watt solar panels, battery bank, accessible outlets, solar inverter and an 11kW diesel generator. All system components are secured on a trailer for seamless mobility.

Solar Panel Assembly: This unit is comprised of twenty, 240-watt weatherproof solar panels at 4,800 watts total. The panels can be deployed and adjusted manually in order to maximize sunlight intake. For backup power, the system features an 11kW diesel generator.

Battery/Outlets: The battery bank offers 1,600aH at 24V and comes with a 40-amp battery charger. Equipped with a 120/240V solar inverter, operators may access the following receptacles on the system: (2) 50-amp twist [120/240V] and (4) 20-amp [120V].

Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit.

Transport: All system components are secured on a heavy-duty trailer. This trailer measures 8`-W x 23` 6"-L x 10` 6"-H. At full deployment, the unit measures 12` 6"-W x 22`-L x 21`-H. This system weighs approximately 8,450 lbs.

SPECIFICATIONS

SPG-4.8K-1600A-ISDG.11KW--120.240V-100A-BC.40.240 Trailer Mounted Solar Panels

Solar Specs

• Panel Qty: (20)

• Total Panel Watts: 4,800W

• Single-Panel Watts: 240W

• Method of Deployment: Manual

• System Voltage: 24 Volts

• Battery Capacity: 1600aH @ 24V

• Battery Charger: 40A

• Outlets: (2) 50A Twist [120/240V], (4) 20A [120V]

• Solar Inverter: 120/240V

• Generator: 11kW Diesel

Trailer Specs

• Materials: -

• Transport Dimensions: 8'-W x 23' 6"-L x 10' 6"-H

• Deployed Dimensions: 12' 6"-W x 22'-L x 21'-H

• Dry Weight: 8,450 lbs

• Axle: -

• Suspension: -

• Outriggers: -

• Wheels: -

• Tires: -

• Weight: -

• Shipping: Common Freight

• Shipping Dimensions: -

• Shipping Weight: -

• Options: Length- Mounting-Fixtures

Quick Summary

• Fully Solar, No Fuel Needed


Larson Electronics LLC manufactures a wide variety of products, including custom built to spec designs. The pictures displayed for this unit are a general representation of form factor for the product line and may not accurately represent this exact configuration in every detail due to custom builds and changes between similar products in our standard catalog. The specifics for this configuration are listed in the specification table and supporting documentation (CAD files, Dimensional Drawing, Name Plate Diagram, Wiring Diagram, etc.). This means that specific details (receptacles, plugs, wires, connections, mounting brackets, external finishes, etc.) may not be accurately represented in images vs specifications. Please review specifications and do not order based solely on images.
