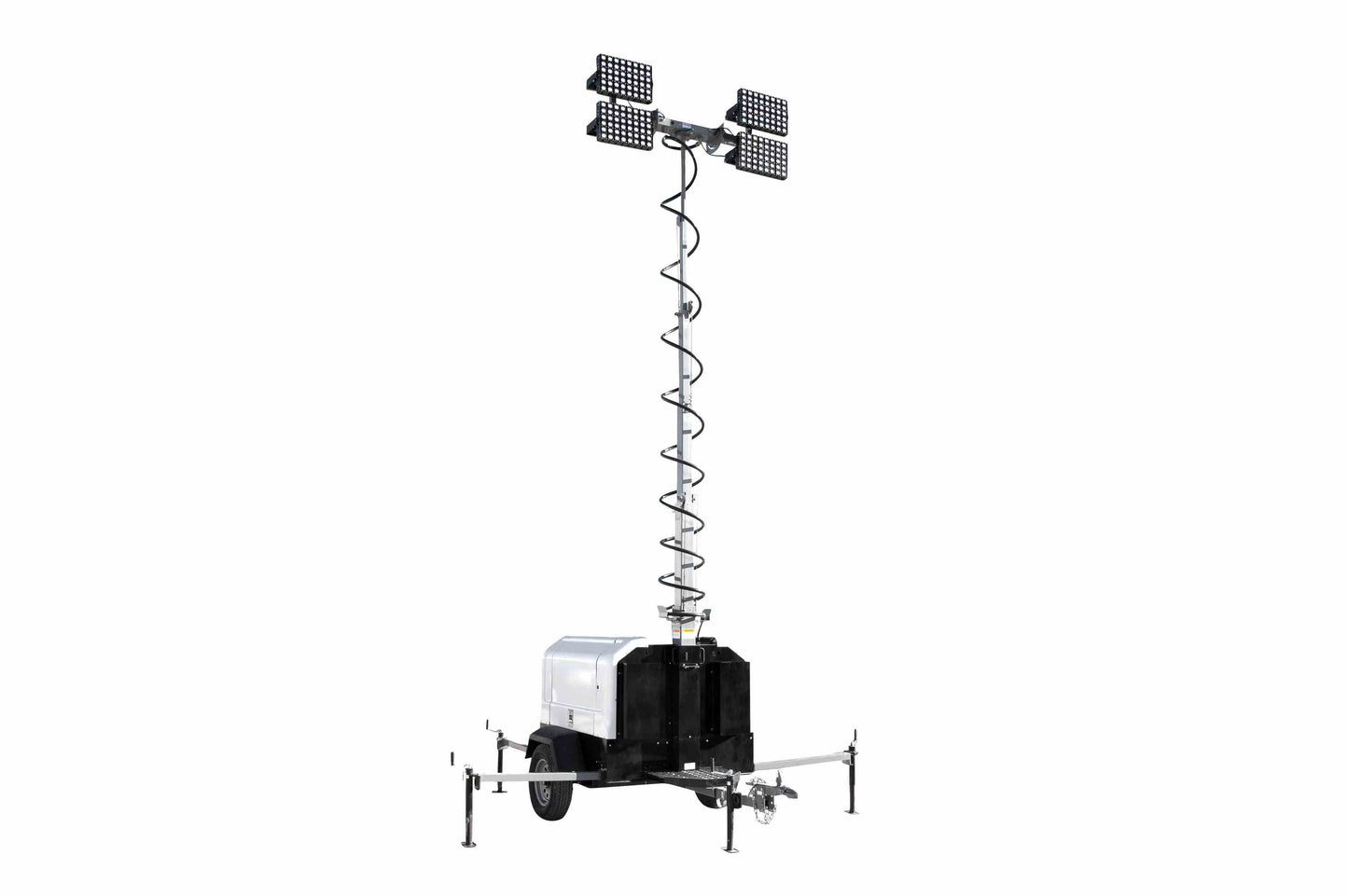

Larson Electronics 40' Hydraulic Light Tower w/ 30kw Diesel Engine Generator - (4) LED Lamps - 259,200 lms - 60G Fuel Tank

DESCRIPTION

The WCDE-30KW-40-4X500W-LED-MLK-R1 from Larson Electronics is a Hydraulic Light Tower with a 30kw Diesel Engine Generator that offers tough and durable construction, reliable and efficient performance, and high light output in an easy to operate, self-contained portable unit. This floodlight tower features 4 powerful LED lights and PMMA high purity optics to deliver 259,200 lumens of concentrated light. A 60-gallon generator mounted to a steel trailer provides stand alone power for 80 hours on a single tank of fuel, allowing operators to keep working no matter how remote the location. A hydraulic mast makes for easy deployment by operators. Rugged IP67 rated construction designed to withstand the rigors of harsh outdoor conditions and grueling heavy duty use make this light tower an ideal choice for industrial applications, construction sites, marine use, mining, and emergency services.

The WCDE-30KW-40-4X500W-LED-MLK-R1 light tower provides elevated illumination in outdoor and remote locations. This tower extends to 40` from the ground to the top of the mast with lights and collapses to 8.25` with the lights removed. The LED lighting system consists of four 480-watt LED lamps that produce 64,800 lumens each, for a total of 259,200 lumens of high intensity light while drawing only 1,920 watts of energy. Each light fixture has the individual power to brightly illuminate large areas and when combined, this metal halide floodlight tower provides ample lighting for a wide variety of needs.

Operators may also access a 30kw diesel generator with a 60-gallon fuel tank and a NEMA 3R panel with breakers and outlets for powering single-phase 120/240V equipment. All system components are secured to a single-axle trailer. With the light heads in a rotated position, two collapsed light towers can fit inside a 40` high cube container (without folding over).

Light Head Information: The WCDE-30KW-40-4X500W-LED-MLK-R1 from Larson Electronics is equipped with four GAU-LTL-500W-LED LED flood lights. The GAU-LTL-500W-LED offers intense light output and is ideal for flood lighting, high mast lighting, light towers, as well as industrial and outdoor lighting applications. With an 80,000+ hour service life, 120-277 volt compatibility, and IP67 waterproof rating, this LED flood light provides operators with a rugged and powerful LED alternative to 1500 watt metal halide lamps that uses little power and can withstand rugged use and abusive conditions.

The GAU-LTL-500W-LED LED light from Larson Electronics each produces 64,800 lumens of high intensity light while drawing only 480 watts at 5 amps from a 120 volt electrical system. Forty-Eight CREE® high output LEDs producing 1350 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights.

GAU-LTL-500W-LED lights are ideal replacements for fragile and hot running 1500 watt metal halide lamps. They offer low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for demanding applications where power and reliability is critical. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: high mast lighting, light towers, light plant LED retrofits, military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks, and parking lots to name a few.

LED Light Plant Comparison to Metal Halide

Light Head Durability: As well as unparalleled heat control, the GAU-LTL-500W-LED series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.

LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

Cree Specific: This lamp uses Cree LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These Cree LEDs generate a robust 135 lumens per watt effective lumen output and have a 70% lumen retention at 80,000 hours, giving them better efficiency and operational life than traditional light sources.

Generator: A 30kw generator with a liquid-cooled engine provides single-phase 120/240V power to this light tower. Equipped with 12V auto start, this diesel generator has a 60-gallon tank and provides a minimum of 80 hours of continuous operation. Because the light tower uses LED lamps, it requires less fuel to run than traditional metal halide lamps without sacrificing light output.

Panel: Operators may access a NEMA 3R 125-amp single-phase 120/240V main circuit breaker panel with receptacles to power various equipment. This panel contains one 50-amp 2-pole 250V main circuit breaker protecting one 50-amp 250V CS8269 receptacle, two 30-amp 2-pole 125/250V main circuit breakers protecting two 30-amp 125/250V L14-30R NEMA receptacles and six 20-amp 1-pole 125V main circuit breakers protecting six 20-amp 125V NEMA 5-20R GFCI duplex receptacles.

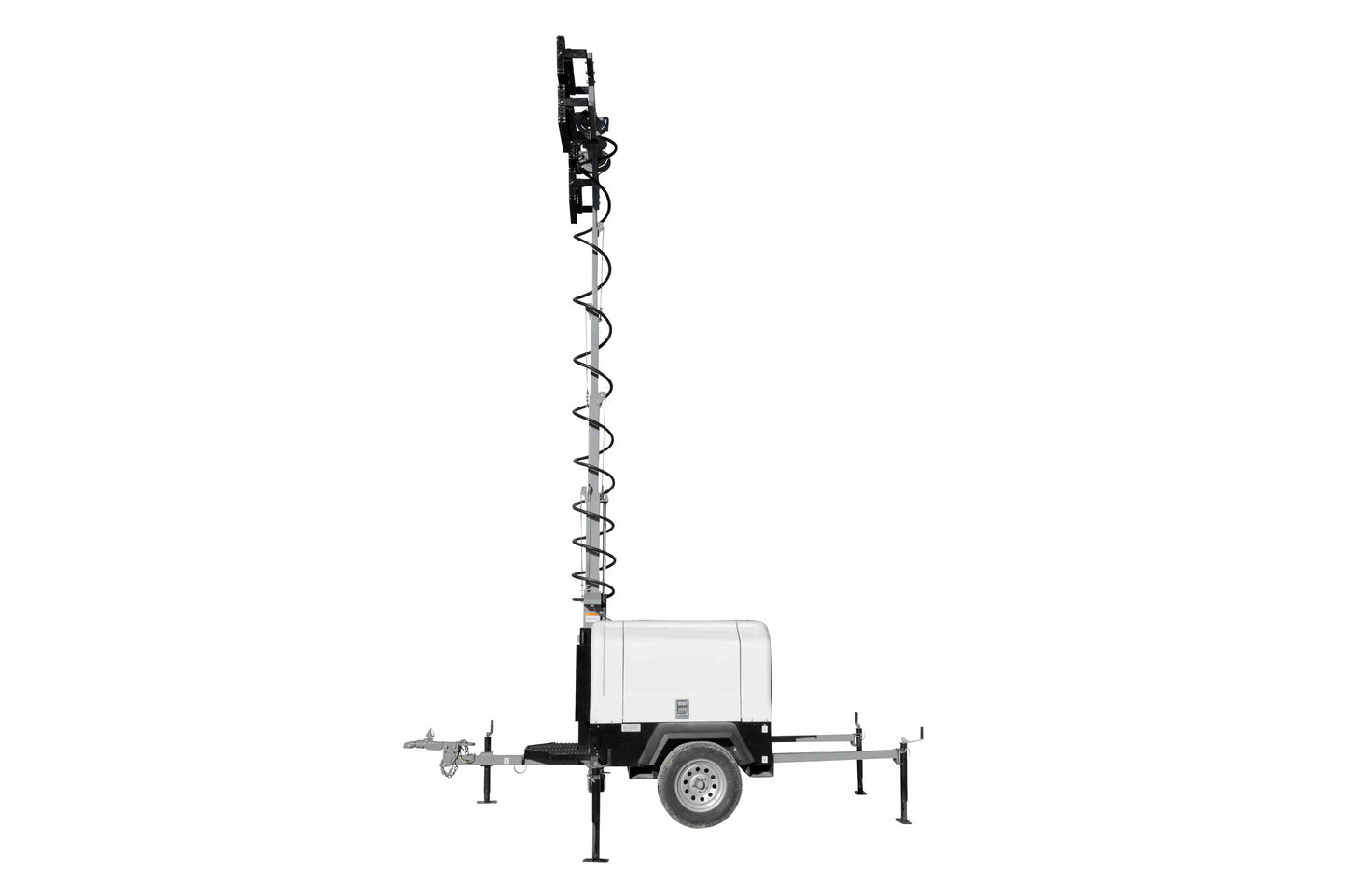

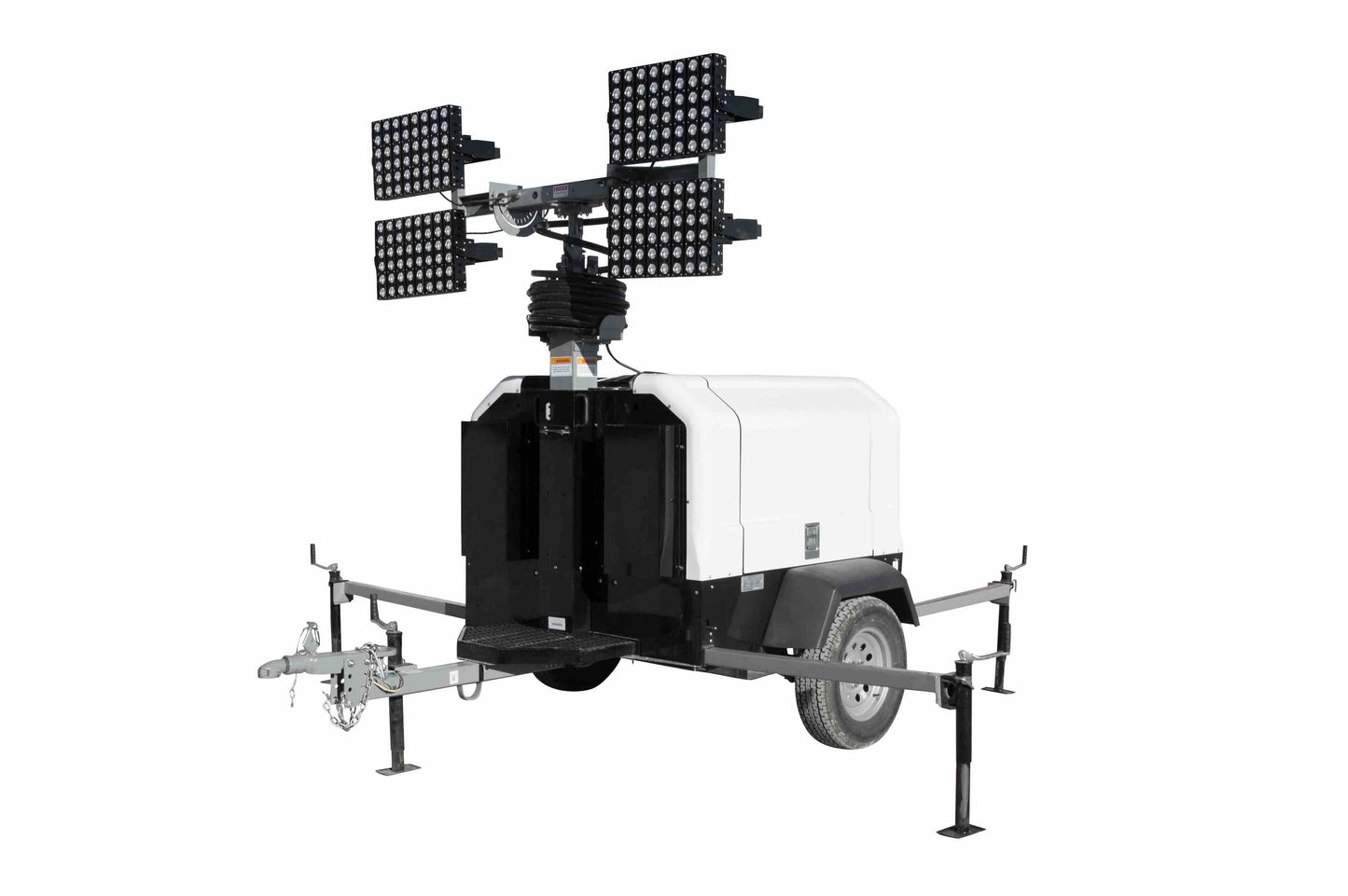

Tower & Trailer: At full extension, the entire unit reaches 40 feet from the ground to the top of the mast. The collapsed height is 8.25 feet without the lights. With the light heads in a rotated position, two collapsed light towers can fit inside a 40` high cube container (without folding over). Hydraulic operation allows operators to easily raise, lower, or rotate the mast through a full 359° of movement as needed. A stepping pad allows operators to make adjustments from the ground with ease. The light heads are trunnion mounted to the mast crosspieces using U brackets and can be individually adjusted while the tower is in the retracted position.

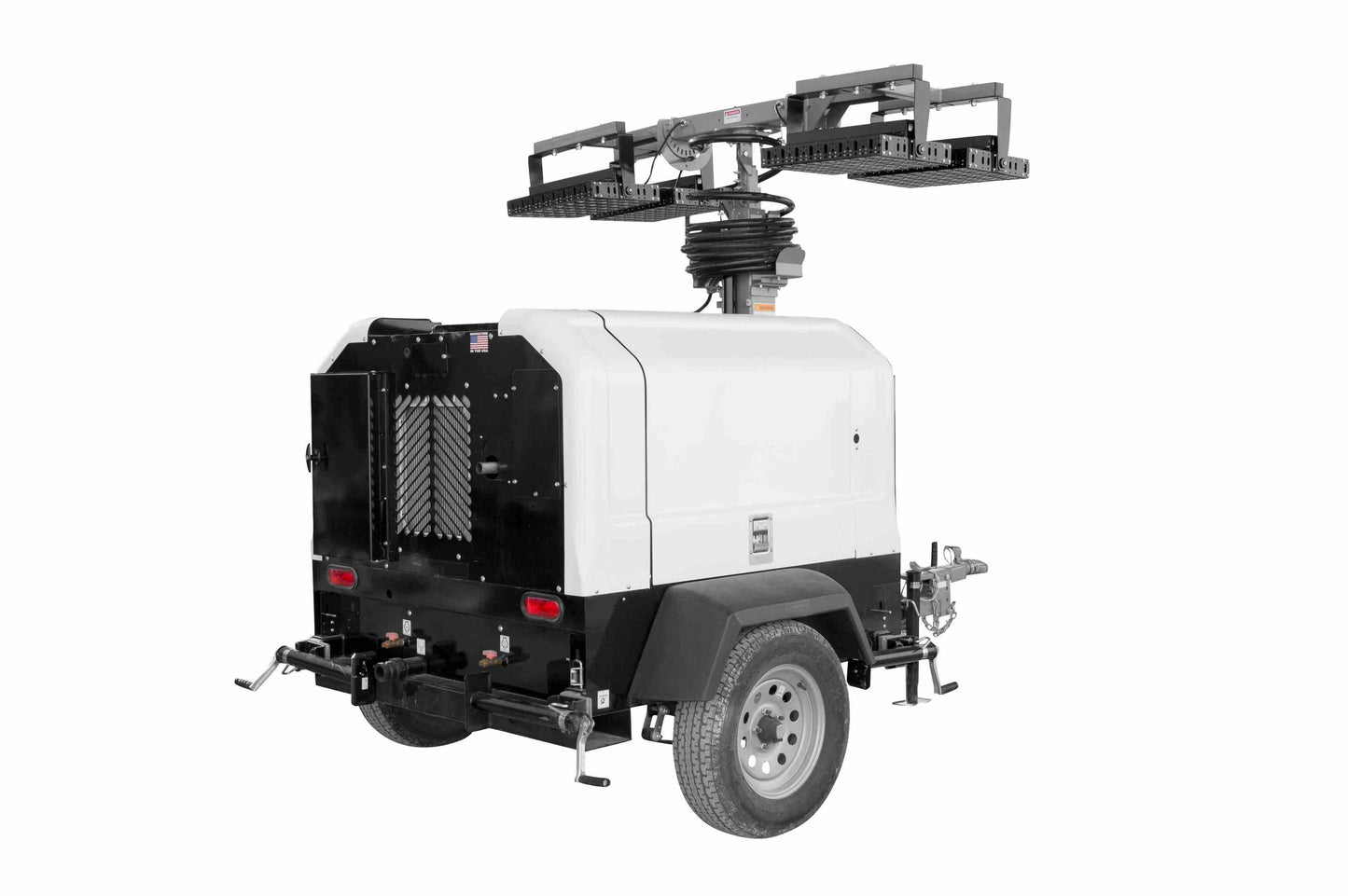

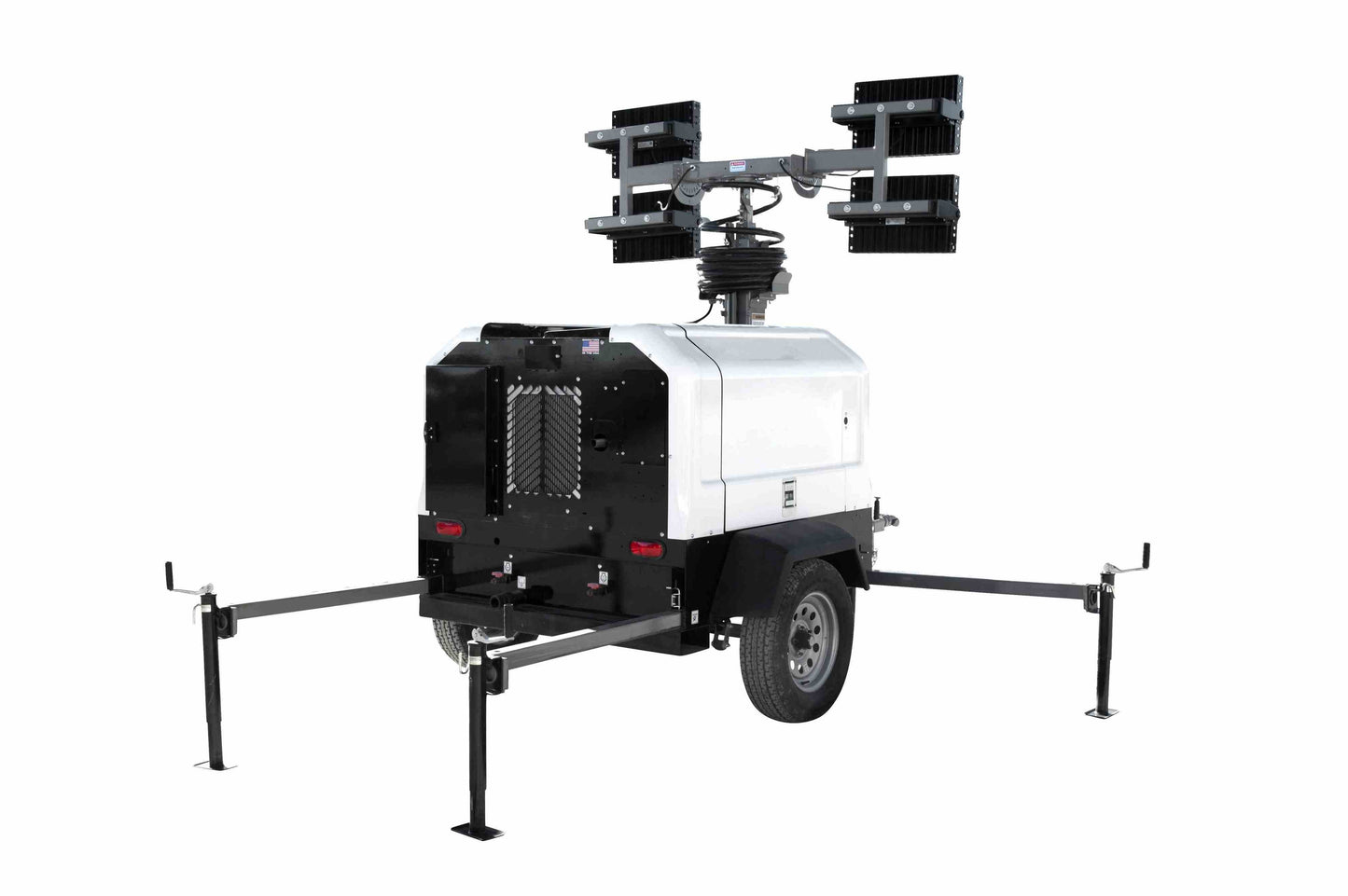

The trailer features a formed and welded steel frame, 13" tires and wheels, a 5-point stabilization system, and a foldable tongue with a reversible ball coupling/pintle hitch. The 5-point base consists of four 4` sliding outriggers each with a drop leg jack (two at the rear and one on each flank) and a 1,000lb stabilizing jack connected to the tongue. Both the main stabilizing jack and the outrigger jacks can be manually adjusted to the desired position using hand cranks. This 5-point design allows the unit to be operational in winds up to 55 mph. The reversible hitch consists of of a standard 2" ball coupling on one end and a 3" pintle towing hitch on the other end. To switch ends, the operator simply unbolts the hitch attachment, flips it to the desired end, and reinserts the bolt. This trailer also features forklift pockets for easy lifting and loading/unloading of the unit.

Applications: Construction, temporary lighting, road side illumination, plant turn arounds.

SPECIFICATIONS

WCDE-30KW-40-4X500W-LED-MLK-R1 LED Floodlight Tower w/ Hydraulic Mast

Light Tower Specs

• Tower Dimensions: 40` Raised (Ground to Top of Mast w/ Lights) to 8.25' (Fully Collapsed Mast w/o Lights)

• Weight: -    Dustproof

• Deployment Method: Hydraulics

• Tower Material: Galvanized Steel

Diesel Generator/Panel Specs

• Generator: 30kw Liquid Cooled

• Engine RPM: 1800 RPM

• Fuel Type: Diesel

• Starting System: 12V Auto Start

• Fuel Capacity: 60 Gallons

• Voltage: 120/240V AC, 1-phase

• Panel: 125A 120/240V 1-phase MCB N3R

• Breakers: (1) 50A 2P MCB [250V]; (2) 30A 2P MCB [125/250V], (6) 20A 1P MCB [125V]

• Outlets: (1) 50A CS8269 [250V]; (2) 30A NEMA L14-30R [125/250V], (6) 20A NEMA 5-20R GFCI Duplex [125V]

LED Light Specs

• Lamp Type: CREE® LED

• Lamp Qty: (4)

• Dimensions: -

• Voltage: -

• Total Watts: 1,920W

• Single-lamp Watts: 480W

• Total Lumens: 259,200 lms

• Single-lamp Lumens: 64,900 lms

• Luminous Efficacy: 135 Lm/W

• Lamp Life Expectancy: 80,000+ Hours

• Color Temp: Cool White 5500-6500K

• Beam Configurations: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood

• Ambient Operating Temperature: -40° to +85°C

• Light Materials: Die Cast Aluminum, PMMA Optics

• Mount: Tower

• Light Head Adjustability: Rotating

Trailer Specs

• Trailer Dimensions: -

• Materials: Steel

• Reversible Hitch: 2" Ball Coupling on One End, 3" Pintle Towing Hitch on Other End

• Tongue: Foldable

• Axle: Single

• Tires: (2) 13"

• Outriggers: (4) 4' Sliding Outriggers

• Storage: (2) Units w/ Rotated Light Heads Fit Inside a 40' Tall Cube Container

• Deployed Dimensions: 14'L x 14.5'W

• Transport Dimensions: 14'L x 7'W

• Shipping Weight: -

Quick Summary

• Superior LED Performance

• IP67 Waterproof

• PMMA High Transmittance Optics

• 359° Rotating Tower

• Rotating Light Head

• 80+ Hour Runtime on Single Tank

• Hydraulic Mast

Larson Electronics LLC manufactures a wide variety of products, including custom built to spec designs. The pictures displayed for this unit are a general representation of form factor for the product line and may not accurately represent this exact configuration in every detail due to custom builds and changes between similar products in our standard catalog. The specifics for this configuration are listed in the specification table and supporting documentation (CAD files, Dimensional Drawing, Name Plate Diagram, Wiring Diagram, etc.). This means that specific details (receptacles, plugs, wires, connections, mounting brackets, external finishes, etc.) may not be accurately represented in images vs specifications. Please review specifications and do not order based solely on images.
