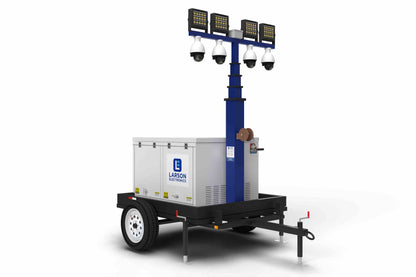

Larson Electronics 40' Telescoping Mobile Security Tower - 6 kW Diesel Gen - (4) LED Lamps, (4) Cameras, 2TB NVR, Router/WAP - Receptacles

Product Description

Larson Electronics 40' Telescoping Mobile Security Tower - 6 kW Diesel Gen - (4) LED Lamps, (4) Cameras, 2TB NVR, Router/WAP - Receptacles

Description

This security tower is designed for remote, long-duration surveillance and illumination with its water-cooled diesel engine powering a 6,000-watt generator. It includes four PTZ (Pan-Tilt-Zoom) day/night IP cameras, producing 1080p full-HD resolution with 20x optical zoom capabilities, ideal for outdoor and industrial applications requiring high-quality video monitoring. The system also includes four high-intensity LED floodlights, producing a total of 81,000 lumens to light up large areas, and a 2TB NVR (Network Video Recorder) for video storage and remote access.

The system runs for 120+ hours continuously without refueling and is equipped with an unlocked professional-grade router that supports major network carriers and provides secure Wi-Fi connectivity. The entire system is mounted on a durable trailer with stabilizing jacks, allowing for easy mobility and stable deployment in various environments.

Key Features

• Powerful Generator: 6,000-watt Kubota diesel engine with 120/240V output, operating for 120+ hours on a single tank.
• Surveillance Cameras: Four PTZ cameras offering 20x optical zoom and infrared (IR) night vision up to 492 feet.
• High-intensity LED Lighting: Four 150-watt CREE® LED lights, producing a total of 81,000 lumens to cover large areas.
• 2TB Network Video Recorder (NVR): Stores hours of footage and supports motion detection and other recording modes.
• Wireless Connectivity: Equipped with an unlocked professional-grade router supporting GSM, CDMA, LTE for wireless control and data access.
• Durability: IP67-rated lights and rugged trailer design for harsh environments, along with a telescoping boom that extends up to 40 feet.

Detailed Specifications

Power & Generator:

• Engine: Kubota D1105-BG-ET01, 4-cycle liquid-cooled diesel engine.
• Engine Speed: 1800 RPM.
• No. of Cylinders: 3.
• Fuel Tank Capacity: 30 gallons, providing 120+ hours of operation.
• Generator: 6,000 watts, 120/240V output, with 4-wire hookup for external grounding.
• Noise Level: 63 dB at 23 ft.
• Safety Features: Low oil pressure and high-temperature auto shutoff, dual fuel filters, and electric fuel delivery.

Lighting System:

• Total Lumens: 81,000 (four 150-watt lamps at 20,250 lumens each).
• LED Lifespan: 80,000 hours.
• Beam Options: 10° spot, 24° wide spot, 38° narrow flood, 60° flood, or 90° wide flood.
• Color Temperature: 6000K.
• Durability: IP67-rated, waterproof, dustproof, and vibration-resistant.
• Construction: Die-cast aluminum housing with PMMA optics for 98% transmittance efficiency.

Cameras:

• Type: PTZ day/night IP security cameras.
• Resolution: 1080p full-HD.
• Optical Zoom: 20x (4.7-94mm varifocal lens).
• Infrared (IR) Range: 492 feet with 850 nm wavelength.
• Minimum Illumination: 0.02 Lux (day), 0 Lux with IR (night).
• Video Compression: H.264, H.265, and MJPEG.
• Weather Resistance: IP66-rated.
• Viewing Angle: 58.3° (wide) to 3.2° (telephoto).

Network Video Recorder (NVR):

• Storage: 2TB SATA hard drive.
• FPS: 60 frames per second per channel.
• Compression Format: H.265, H.264, and H.264 OVC.
• Recording Modes: Schedule, Continuous, Motion Detection, and Event.
• Power Over Ethernet: Supports 802.3af and 802.3at.
• Video Outputs: VGA, HDMI, USB 2.0, and USB 3.0.
• Remote Access: Review footage via direct connection (monitor and mouse required).

Router & Wireless Connectivity:

• Type: Pepwave Surf SOHO Router.
• Carrier Support: GSM, CDMA, LTE (all major networks).
• Wi-Fi: Dual-band (2.4 GHz and 5 GHz), 3x3 MIMO for high throughput.
• Antenna: 12-foot external antenna, supporting frequencies 690-960 MHz, 1710-2170 MHz, and 2500-2700 MHz.

Telescoping Mast:

• Height: Up to 40 feet.
• Construction: Galvanized steel.
• Operation: Manual crank with self-braking winch.
• Wind Resistance: Can withstand 50 mph winds when fully extended and stabilized.

Trailer:

• Dimensions: 14' L x 6.5' W.
• Tires: Heavy-duty 15".
• Hitch: 2" ball and pintle hitch.
• Storage: Internal storage for the mast head.
• Stabilizing Jacks: Rear stabilizing jacks for deployment.

Applications:

• Security & Surveillance: Ideal for remote monitoring of events, construction sites, and industrial facilities.
• Large Events: Provides lighting and video surveillance for concerts, festivals, and gatherings.
• Law Enforcement & Military: Useful for covert operations, perimeter security, and tactical missions.
• Outdoor & Harsh Environments: Built for industrial areas, mining operations, and weather-exposed locations.
