Larson Electronics 45' Telescoping Mobile Security Tower - 6 kW Diesel Gen - (4) LED Lamps, (4) Cameras, 2TB NVR, Router/WAP - Receptacles

Product Description

Larson Electronics 45' Telescoping Mobile Security Tower - 6 kW Diesel Gen - (4) LED Lamps, (4) Cameras, 2TB NVR, Router/WAP - Receptacles

Description

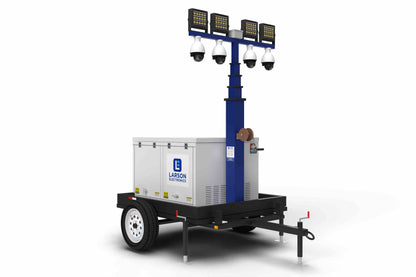

The WCDE-6K-45FT-4X2MP-PTZ-4X150LTL-LED-2TB-AP-W4G Mobile Security Tower is a fully standalone security surveillance system designed for remote monitoring in outdoor environments. Powered by a water-cooled Kubota diesel engine with a 6,000-watt generator, this unit supports four PTZ day/night IP cameras and four LED floodlights that can illuminate up to 81,000 lumens. Equipped with a 2TB network video recorder (NVR) and unlocked professional-grade wireless router, the system offers up to 120+ hours of continuous operation on a single tank of fuel. It is ideal for security, monitoring, and outdoor surveillance applications, providing reliable 24/7 coverage in industrial, commercial, and event settings.

Key Features

• Powerful Generator: 6,000-watt generator powered by a Kubota water-cooled diesel engine, delivering up to 120+ hours of continuous operation.
• Surveillance Cameras: Four PTZ IP cameras provide 1080p full-HD video with 20x optical zoom and infrared capability for night vision up to 492 feet.
• LED Lighting: Four 150-watt LED floodlights with 81,000 total lumens, IP67-rated for weatherproof durability.
• Storage: A 2TB NVR for video recording and storage with support for H.265 compression for efficient storage use.
• Wireless Connectivity: Equipped with an unlocked professional-grade router with dual-band 2.4 GHz and 5 GHz frequencies, supporting GSM, CDMA, and LTE networks.
• Rugged Design: The entire system is mounted on a heavy-duty trailer, with a galvanized steel telescoping mast that extends to 45 feet and can rotate 360 degrees for optimal positioning.
• Long-Lasting Performance: Can run 120+ hours continuously without refueling, and operates at a low noise level of 63 dB at 23 feet.

Detailed Specifications

Power & Engine

• Engine: Kubota D1105-BG-ET01, vertical, liquid-cooled, 4-cycle diesel engine
• Engine Speed: 1800 RPM
• Generator: Marathon Pancake, 120/240V single phase
• Fuel Tank Capacity: 30 gallons
• Runtime: 120+ hours on a full tank
• Voltage: 120/240V @ 60Hz
• Noise Level: 63 dB @ 23 ft
• Protection: Low oil, high engine temp auto shutoff, external grounding

Telescoping Mast

• Height: Extends up to 45 feet
• Material: Galvanized steel for corrosion resistance
• Winch: Manual hand crank, self-braking (2500lb capacity)
• Stages: Five sections
• Wind Resistance: Can withstand winds up to 50 mph when fully extended

Surveillance Cameras

• Camera Type: PTZ IP security cameras
• Resolution: 2.1 MP, 1920 x 1080 (1080p full-HD)
• Lens: 4.7-94mm varifocal lens with 20x optical zoom
• Infrared Range: 492 feet, wavelength 850nm for night vision
• Viewing Angle: 58.3° (wide) to 3.2° (tele)
• Weather Rating: IP66-rated for outdoor use in rain and fog
• Operating Temperature: -22°F to 149°F

Network Video Recorder (NVR)

• Channels: 8-channel NVR
• Storage: 2TB SATA hard drive
• Video Compression: Supports H.265, H.264, H.264 OVC
• Recording Modes: Schedule, continuous, motion detection, event
• Video Offload Format: MP4
• Two-way Audio: Supports two-way audio streaming
• Video Outputs: RCA, VGA, HDMI, USB 2.0 and USB 3.0
• Ethernet Ports: 9 RJ-45 interface ports
• Supported Standards: ONVIF Profile S, H.265 codec

Wireless Router & Antenna

• Router Type: Pepwave Surf SOHO router
• Connectivity: GSM, CDMA, LTE support, works with all major carriers
• Wi-Fi Frequency: 2.4 GHz (450 Mbps) and 5 GHz (1300 Mbps)
• LAN Ports: 4x 100/1000M Ethernet ports
• Antenna: 12-foot external antenna, frequencies 690960 MHz, 17102170 MHz, 2500~2700 MHz

LED Lighting

• Total Output: 81,000 lumens (20,250 lumens per lamp)
• Power Draw: 150 watts per lamp, 600 watts total
• LED Lifespan: 80,000 hours
• Color Temperature: 6000k
• Waterproof Rating: IP67
• Beam Configurations: Optional beam spreads (10°, 24°, 38°, 60°, 90°)

Trailer

• Dimensions: 14' L x 6.5' W
• Construction: Metal enclosure with internal mast head storage
• Hitch: 2" ball and pintle hitch
• Stabilizing Jacks: Rear jacks for stable deployment
• Tires: 15" heavy-duty tires

Applications

• Security and Monitoring: Ideal for outdoor surveillance, perimeter security, and law enforcement operations.
• Event Lighting: Provides high-intensity lighting for concerts and large events.
• Industrial Operations: Suitable for industrial sites that require extended, reliable lighting and surveillance.
• Emergency Services: Can be deployed in disaster response, emergency situations, and military operations for secure monitoring and illumination.

Additional Features:

• Heat Management: Advanced heat sinks per LED bank, allowing the LEDs to run at 90% capacity without overheating.
• Padlocks for Security: Padlock-ready design for securing key areas.
• Weatherproof Coiled Cable: Provides durable and flexible power connectivity.
• Low Maintenance: Easy access ports for oil and radiator draining, dual fuel filters for easy maintenance.
