Larson Electronics 50' Self-contained Megatower™ on Skid Mount - 200lbs Payload Capacity - Auto Retract - Anchor

Product Description

Larson Electronics 50' Self-contained Megatower™ on Skid Mount - 200lbs Payload Capacity - Auto Retract - Anchor

Description

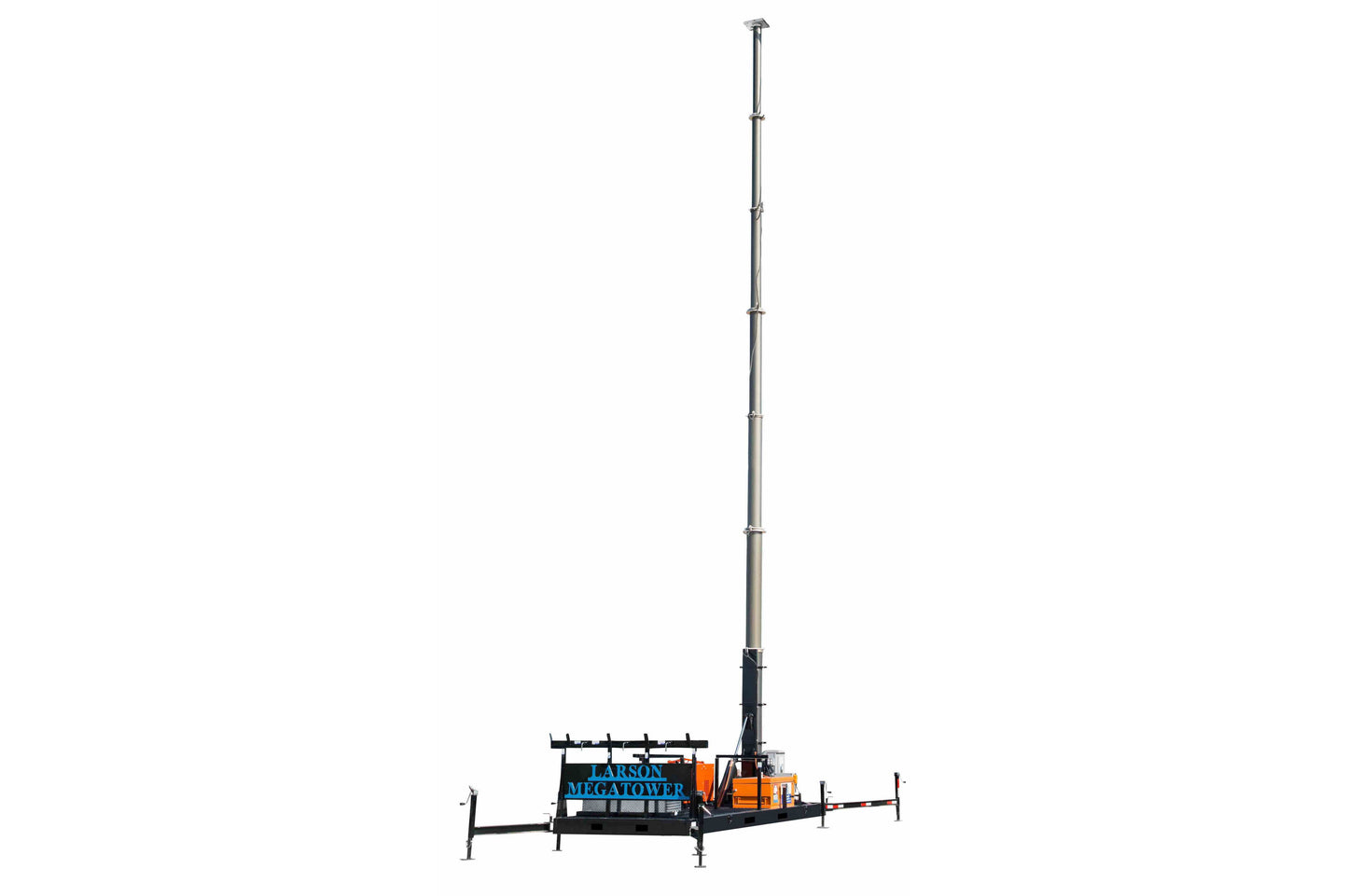

The Larson Electronics LM-SMWB-HLM50-200LB is a robust, hydraulic equipment tower designed for diverse illumination, surveillance, and broadcasting applications across industrial, mining, and construction environments. Capable of supporting up to 200 pounds of lights, cameras, or antennas, this mast extends to 50 feet for maximum coverage and retracts to 14 feet for compact storage and transportation.

Constructed from heat-treated aluminum with a galvanized finish, the seven-stage mast is elevated via a dual hydraulic system. The unit also features an auto-retract function that safely lowers the mast if wind speeds reach 40 mph, protecting equipment from excessive shaking and potential damage. With voltage configurations accommodating 120/240V single-phase, 240V/120 three-phase, and 208Y/120 three-phase, this tower is designed to meet the demands of various worksite power setups.

The LM-SMWB-HLM50-200LB is skid-mounted, finished with industrial-grade Dupont™ paint for rust resistance, and equipped with eight retractable outriggers for enhanced stability. Each of the six 7,000 lb hand crank jacks is attached to pivoting outriggers, ensuring optimal leveling on uneven ground. The unit’s cold weather package includes de-icing for hydraulic components and a heated battery system, making it ideal for sub-zero climates.

Key Features

• Telescoping Mast: Extends from 14 feet to 50 feet, ideal for large-area lighting and high-elevation equipment deployment.
• Auto-Retract in High Winds: Automatically lowers the mast at wind speeds over 40 mph for enhanced stability.
• Cold Weather Compatibility: De-icing system and heated battery allow operation in extreme cold.
• Skid Mount Stability: Equipped with a heavy-duty skid mount with crane pickeyes for easy transport and optional anchoring to concrete pads.
• Versatile Voltage Options: Compatible with single and three-phase configurations for flexible power connections.

 Detailed Specifications

Suggested Applications:

• Temporary large-area illumination for construction and mining sites
• Industrial-grade equipment deployment for surveillance or broadcasting
• Outdoor event and job site lighting, even in remote locations

Package Includes:

• LM-SMWB-HLM50-200LB Skid Mounted Tower
• 125A Main Breaker Panel with Push Button Controls
• 10,000 lb Leveling Jacks
• Cold Weather Package Components

Important Notes:

This unit is custom-built for industrial stability and resilience. Images are representative; configurations may vary. Consult specifications before ordering.

Available Documentation:

CAD files, Dimensional Drawings, Wiring Diagrams
