Product Description
Larson Electronics 50' Stationary High Intensity LED Tower - Tapered Pole - (15) 480W LED Lights - Removable 380Y/220V, 50 Hz Wye-N E-winch
Description

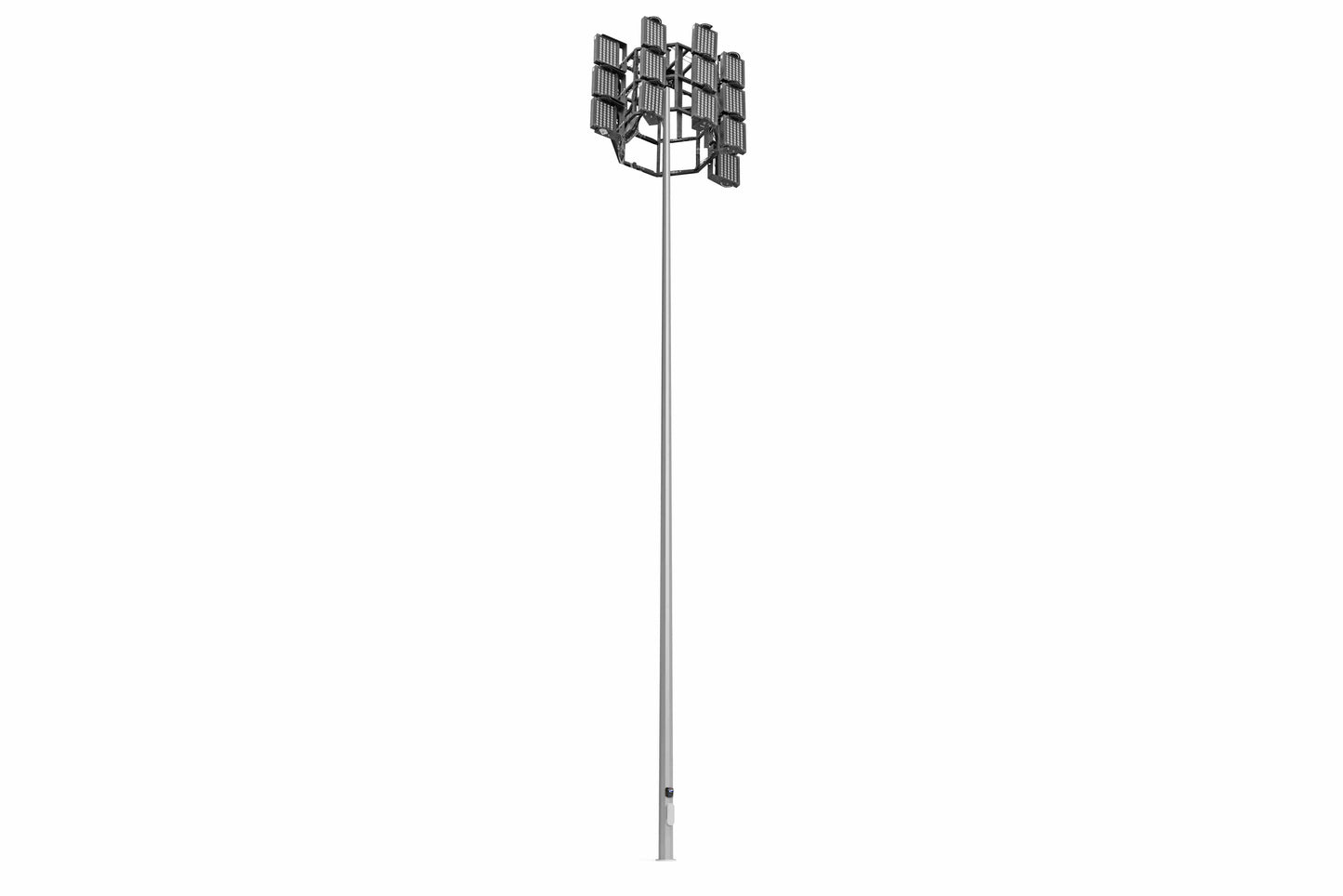

The Larson Electronics LM-HMW-50-1S-15X500LTL-LED-EWH-380Y.220 is a powerful, stationary LED light tower designed for robust outdoor lighting applications. Engineered for permanent installation on concrete pads, this single-stage, 50-foot mast provides exceptional illumination with fifteen 480W Cree LED fixtures. Producing a combined 972,000 lumens, the tower is suitable for construction sites, security perimeters, and remote area lighting. Built to operate on 380Y/220V, 50 Hz, Wye-N power configurations, this unit caters to demanding international requirements.
The light heads include 0-10V dimming capability, allowing operators to easily adjust brightness to meet specific lighting needs. Each fixture is paired with PMMA optics for optimal light transmittance and a focused 25° spot beam, providing concentrated illumination over vast areas. Optional beam angles are available, including flood and wide flood spreads for enhanced versatility.

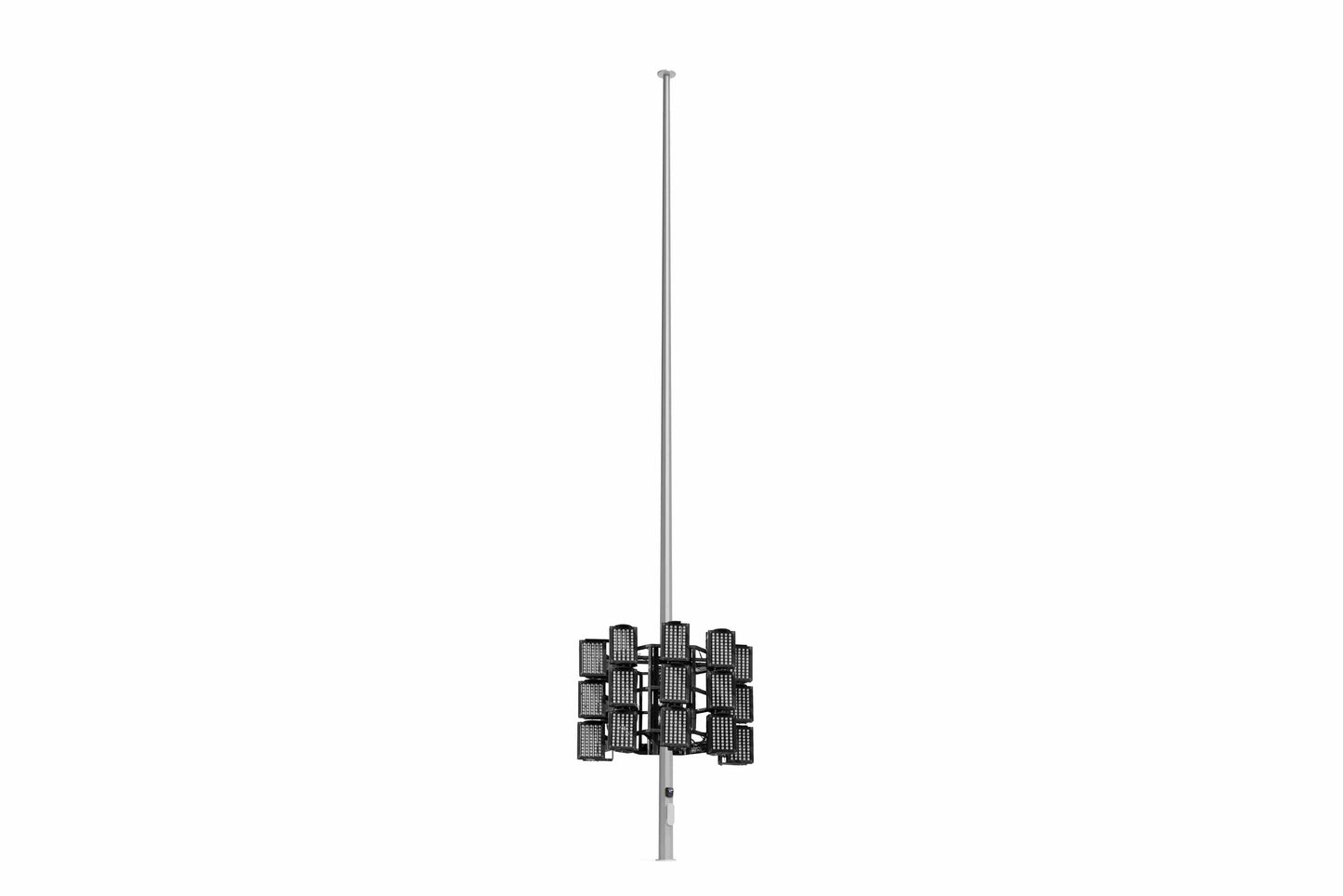

Constructed from powder-coated steel, the mast features a tapered design with an 8.25" pole tip diameter and a 24.45" pole butt diameter for stability. The removable electric winch simplifies mast elevation and retraction, making field servicing quick and efficient. Designed with resilience in mind, the LEDs are equipped with individual heat sinks, 6 kV surge protection, and vibration resistance for reliable operation in extreme environments.
Key Features
- 50-Foot Stationary Mast: Permanent installation for high elevation lighting, supported by a sturdy steel base.
- High-Output LED System: Fifteen 480W LED fixtures provide precise, energy-efficient lighting.
- Enhanced Durability: IP67-rated LEDs with aluminum housings, 6 kV surge protection, and waterproof construction.
- User-Friendly Control: Individual breaker switches per LED bank and 0-10V dimming for tailored brightness control.
- Field Serviceable Design: Removable winch and modular light heads for quick, on-site maintenance.
Detailed Specifications
| Specification | Details |
|---|---|
| Total Tower Height | 50 feet |
| Mast Diameter | 8.25" Tip x 24.45" Butt |
| Voltage | 380Y/220V, 50 Hz Wye-N |
| Lamp Type | Cree LED |
| Lamp Count | 15 x 480W |
| Total Lumens | 972,000 (64,800 per lamp) |
| Lighting Configuration | Flood Beam, One-Sided/Directional |
| Surge Protection | 6 kV |
| Finish | Powder-Coated Steel |
| Control System | NEMA 3R Panel with Breakers, 0-10V Dimming |
Suggested Applications:
- Long-term outdoor lighting for construction, industrial, and security applications
- Large-scale event and emergency lighting
- Reliable illumination in high-wind or remote locations
Package Includes:
- LM-HMW-50-1S-15X500LTL-LED-EWH-380Y.220 Light Tower
- 15 x 480W GAU-LTL-500W-LED Fixtures
- NEMA 3R Control Panel with individual dimming and on/off breakers
Important Notes:
This product is engineered for durability and safety in harsh environments. Please consult specifications for accurate product details. Custom configurations are available upon request.
Available Documentation:
CAD files, Dimensional Drawings, Wiring Diagrams.
