Larson Electronics 50' Stationary High Intensity LED Tower - Tapered Pole - (15) 480W LED Lights - Removable E-winch
Description

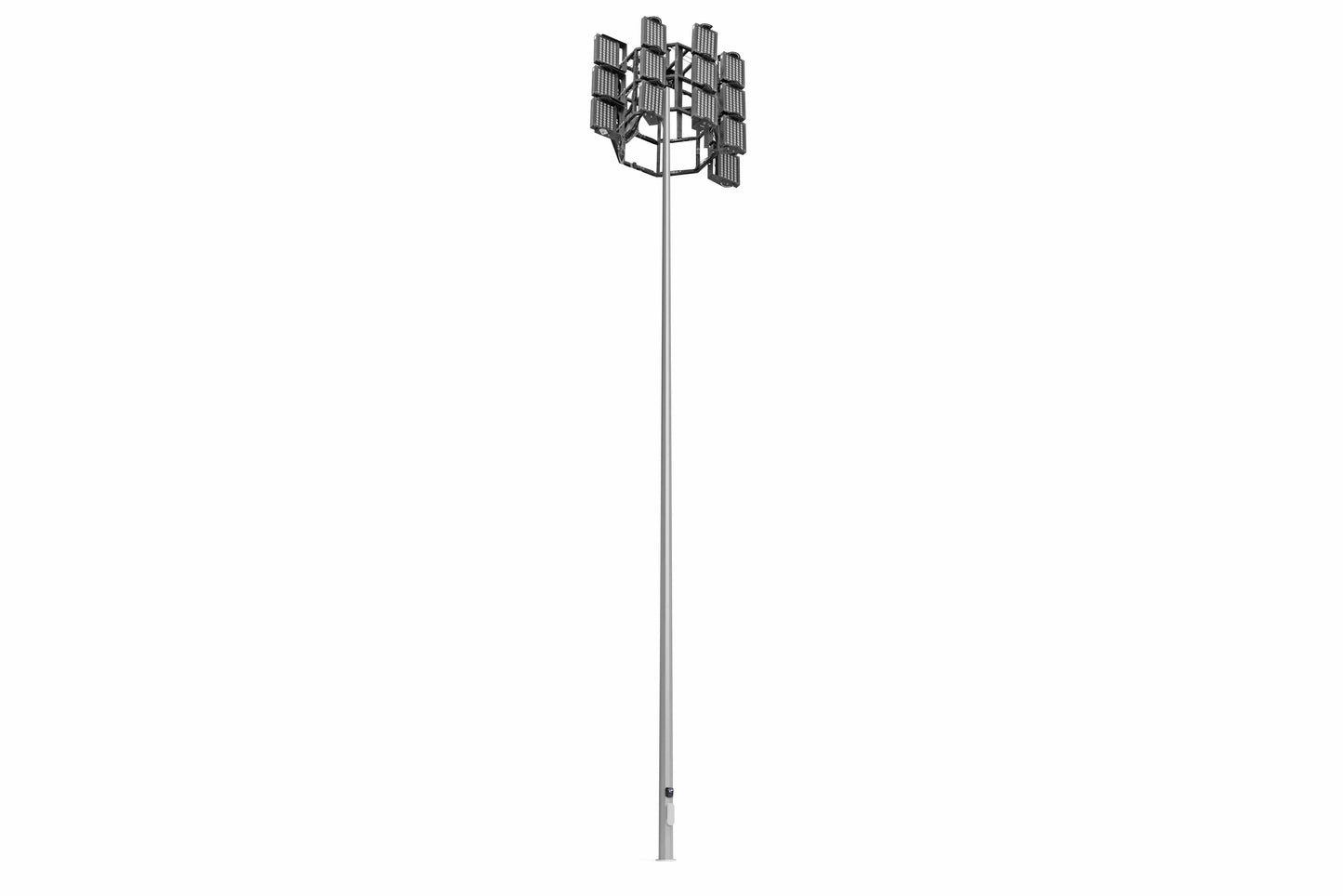

The Larson Electronics LM-HMW-50-1S-15X500LTL-LED-EWH-240V LED Light Tower is engineered to provide unparalleled illumination for expansive outdoor areas, including construction sites, security zones, and large events. The single-stage, 50-foot tapered mast is built for permanent installations, mounted securely on concrete pads for long-term stability. Featuring 15 GAU-LTL-500W-LED fixtures, each light head outputs 64,800 lumens, resulting in a combined 972,000 lumens. The IP67-rated LEDs offer reliable performance in extreme environmental conditions.

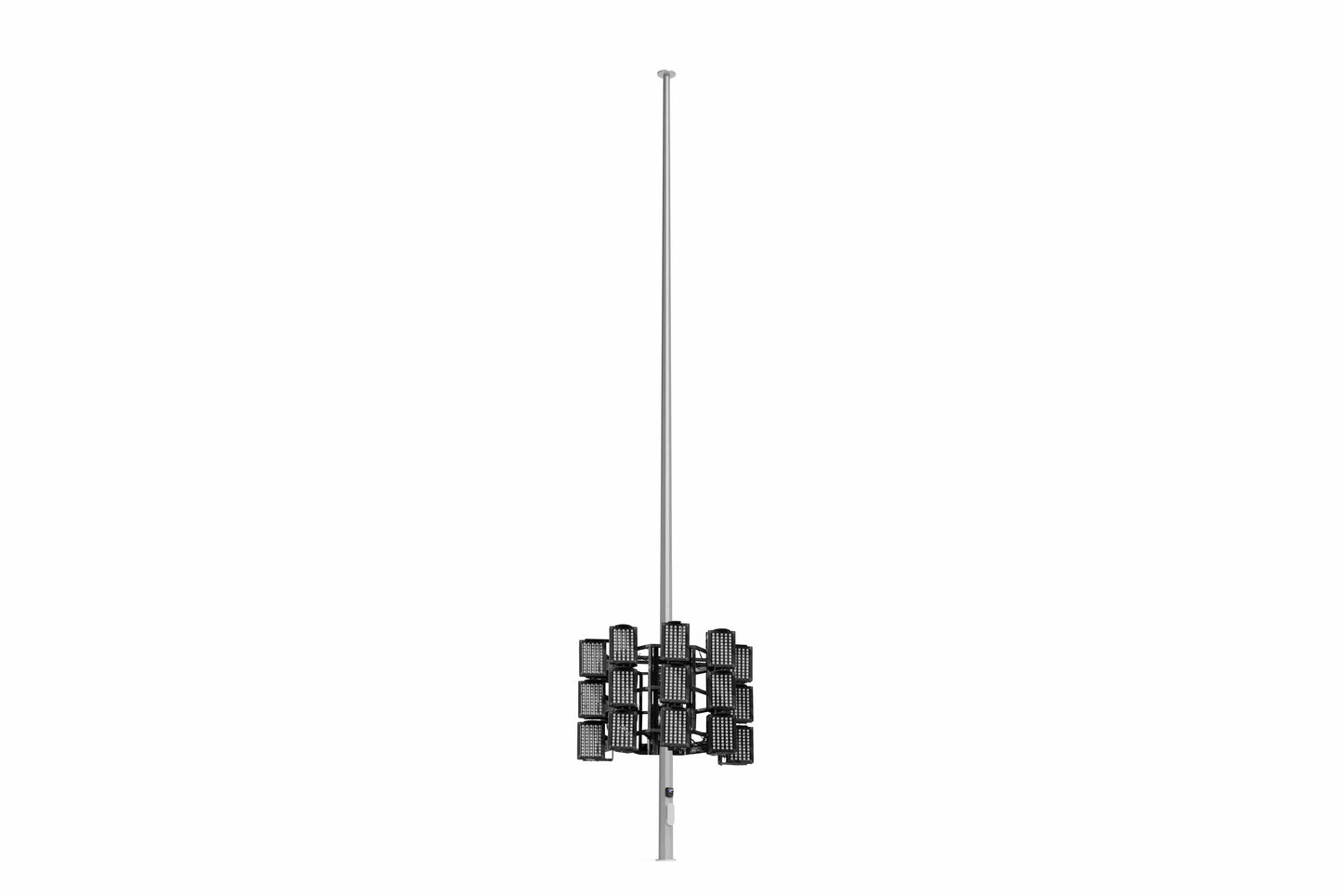

The mast’s robust tapered design features an 8.25" pole tip diameter and a 24.45" pole butt diameter. Operators can easily raise and lower the tower using a removable electric winch, which, once set up, can be removed while the gear and clutch system remains at the base for safety and convenience.
Built for longevity, each LED fixture is equipped with PMMA high purity optics, providing a focused 25° spot beam for extended reach and optional wider flood optics for broader coverage. The LED modules are specially designed with heat sinks for efficient thermal management, supporting up to 80,000 hours of lumen maintenance.
Key Features
- Fixed Installation Light Mast: 50-foot mast with a stable setup on concrete, ideal for permanent industrial lighting.
- LED High-Output Floodlights: Each 480W fixture delivers 64,800 lumens, achieving high visibility across extensive areas.
- Heat Management System: Advanced heat sinks for consistent LED performance, with minimal color shift over time.
- Waterproof and Weather-Resistant: IP67-rated LED fixtures ensure durability under harsh environmental conditions.
- Customizable Light Coverage: Adjustable LED angles and optional optics for spot or flood beam patterns.
Detailed Specifications
| Specification | Details |
|---|---|
| Total Tower Height | 50 feet |
| Tapered Mast Dimensions | 8.25" Pole Tip Diameter x 24.45" Pole Butt Diameter |
| Winch Type | Removable Electric Winch |
| Installation Type | Permanent on Concrete Pad |
| Lamp Type | CREE LED |
| Lamp Count | 15 x 480W |
| Total Lumen Output | 972,000 (64,800 per fixture) |
| Lighting Configuration | Flood Beam, One-Sided/Directional |
| Finish | Powder-Coated Steel |
| Control System | NEMA 3R Breaker Panel |
Suggested Applications:
- Permanent lighting for large construction and industrial sites
- Security and surveillance illumination
- Remote area lighting for events
- Extended operation in severe environmental conditions
Package Includes:
- LM-HMW-50-1S-15X500LTL-LED-EWH-240V Light Tower
- 15 x 480W GAU-LTL-500W-LED Fixtures
- NEMA 3R Control Panel with individual breakers per light bank
Important Notes:
The unit's design ensures optimal performance and safety in challenging conditions. Images are illustrative and may not represent exact product specifications. Please review specifications and contact Larson Electronics for custom configurations if needed.
