Larson Electronics 50' Telescoping Megatower™ w/ (16) 1500W MH Lights - 13-50' Fold Over Five Stage Light Plant - 360°

DESCRIPTION

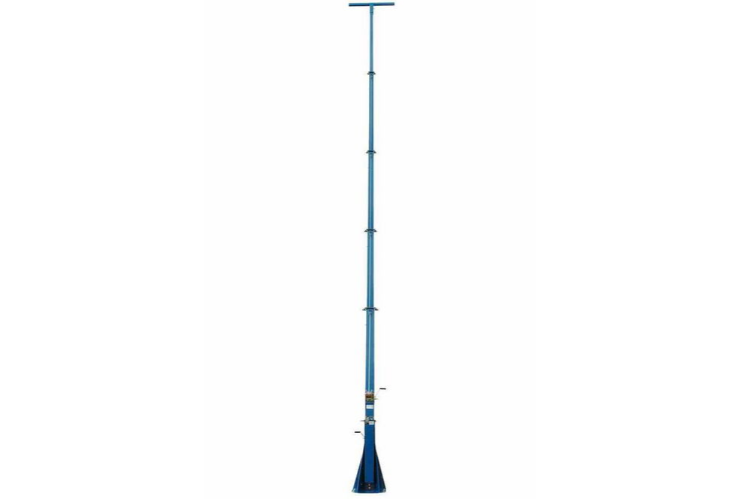

This telescoping five stage steel Megatower™ from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 50` for effective coverage. This light boom can be extended to 50` for maximum area coverage and collapsed to 13` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 11` in length and 7" by 7" by 3/16" thick, lower section 11.19` in length and 6" by 6" by 3/16" thick, middle section 11.38` in length and 5" by 5" by 1/8" thick, upper section 11.56` and 4" by 4" by 1/8" thick, and top section 12.1` in length and 3" by 3" by 1/8" thick. Each section has a minimum of 1` overlap. The mast is elevated using an included 3,500 lbs hand winch with 3/16" galvanized cable and extended to its full height using a second 3,500 lbs hand winch.

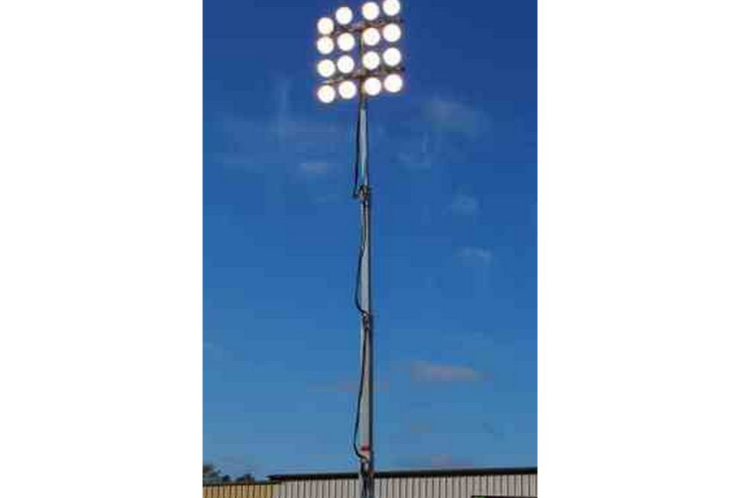

This fold over light tower is equipped with sixteen of our wet area suitable HID-22-15M-SL-REM metal halide floodlight fixtures producing a combined total of approximately 2,400,000 lumens at 24,000 watts. Each fixture produces 150,000 lumens of high intensity light while drawing only 1500 watts at 6.25 amps for a combined 100 amp draw on a 240 volt electrical system. These industrial grade light fixtures are UL 1572 listed and approved for use wet locations. The lights are wired to four NEMA 3R junction boxes at the top of the tower, with a 48" by 96" NEMA 3R remote ballast enclosure at the base of the tower and four 10 foot of #10 Type-W cables extending from the base mast and terminated in an L6-30 (240V), L7-30 (277V), or L8-30 (480V) twist lock plugs for input power. A NEMA 3R control box houses the on/off switches for the sixteen metal halide lamps. Each lamp has an individual switch and can be powered on or off independently from the rest of the light fixtures. This allows operators the ability to power as many or as few light fixtures as needed to illuminate the work area.
The lamp fixtures mounted atop this fold over light mast have 19” reflectors and are constructed of aluminum with a clear tempered glass lens which is secured into place with a heavy duty gasket and single ring lock. These floodlights produce a wide flood light pattern. Each floodlight is securely fastened to the light boom via an adjustable U-bracket that allows the operator to independently adjust each lamp both vertically and horizontally. Each fixture includes an internal support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom.

The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 18" by 18" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 44" wide by 48" tall and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment.

The LM family of telescoping Megatower™ feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 13`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand.

This light tower weighs approximately 550 lbs and can easily support and lift the sixteen metal halide light fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5` long, 4` wide, 5` tall and weighs approximately 1400 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual hand winches included standard or optional electric winches.

Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the LED10WSA-160, LEDLB-200X2E, LEDLB-160X2E or LEDLB-80x2E.

SPECIFICATIONS

LM-50-5S-16X1500W - 50` Five Stage Megatower™

Mast Specs

  • Length: Telescoping from 13` to 50`
  • Weight: +-550 lbs
  • Capacity: 150 lbs
  • Materials: Steel
  • Finish: Powder Coated - Gloss Blue
  • Operation: (2) 1,000lbs Manual Winches, Electric Optional
  • Cable: 3/16" Galvanized Aircraft Cable
  • Mounting: 1/4" thick, 18"x18" Base Plate
  • Anchor Bolts: (6) 9/16" Bolts

Lamp Specs

  • Lamp Type: Metal Halide
  • Lamp Qty: 16
  • Lamp Wattage: 24,000 (1500W each)
  • Lamp Lumens: 2,400,000 (150,000 each)
  • Lamp Efficiency: 100 Lumens per Watt
  • Lamp Wiring: (4) 16/7 SOOW Cables Up Mast
  • Ballast Wiring: (4) #10 Type-W Cable w/ Cord Caps
  • Cord Caps: (4) L6-30 (240V), L7-30 (277V), or L8-30 (480V)


Quick Summary

  • 13` to 50` Foot Light Mast
  • Steel Construction
  • Power Coated Finish
  • (16) 1500W MH Light Heads
  • Removable Mast Head
  • 125 mph Wind Resistance
  • Manual or Optional Electric Operation

Larson Electronics LLC manufactures a wide variety of products, including custom built to spec designs. The pictures displayed for this unit are a general representation of form factor for the product line and may not accurately represent this exact configuration in every detail due to custom builds and changes between similar products in our standard catalog. The specifics for this configuration are listed in the specification table and supporting documentation (CAD files, Dimensional Drawing, Name Plate Diagram, Wiring Diagram, etc.). This means that specific details (receptacles, plugs, wires, connections, mounting brackets, external finishes, etc.) may not be accurately represented in images vs specifications. Please review specifications and do not order based solely on images.
