Larson Electronics 6,000 Watt Generator - Water Cooled Diesel Engine - 50' Megatower™ - 12 LED Fixtures

Product Description

Larson Electronics 6,000 Watt Generator - Water Cooled Diesel Engine - 50' Megatower™ - 12 LED Fixtures

WCDE-4-50-12X160WSA-LED Mobile Megatower™

DESCRIPTION

The WCDE-4-50-12X160WSA-LED is a high-performance, mobile, towable lighting tower powered by a water-cooled Kubota diesel engine and a 6,000-watt generator. Designed for use in large-scale outdoor operations, this Megatower™ produces 176,676 lumens of light using twelve 160-watt LED lamps. It is built for applications such as construction, emergency response, industrial operations, and large event lighting. The system is capable of running for 60 continuous hours on a 30-gallon diesel tank without needing a refill.

Key Features

• Power Source: Kubota water-cooled diesel engine (1800 RPM) powering a 6,000-watt generator.
• Lighting Capacity: Twelve 160-watt LED lamps producing a combined 176,676 lumens.
• Run Time: Capable of continuous operation for 60 hours without refueling.

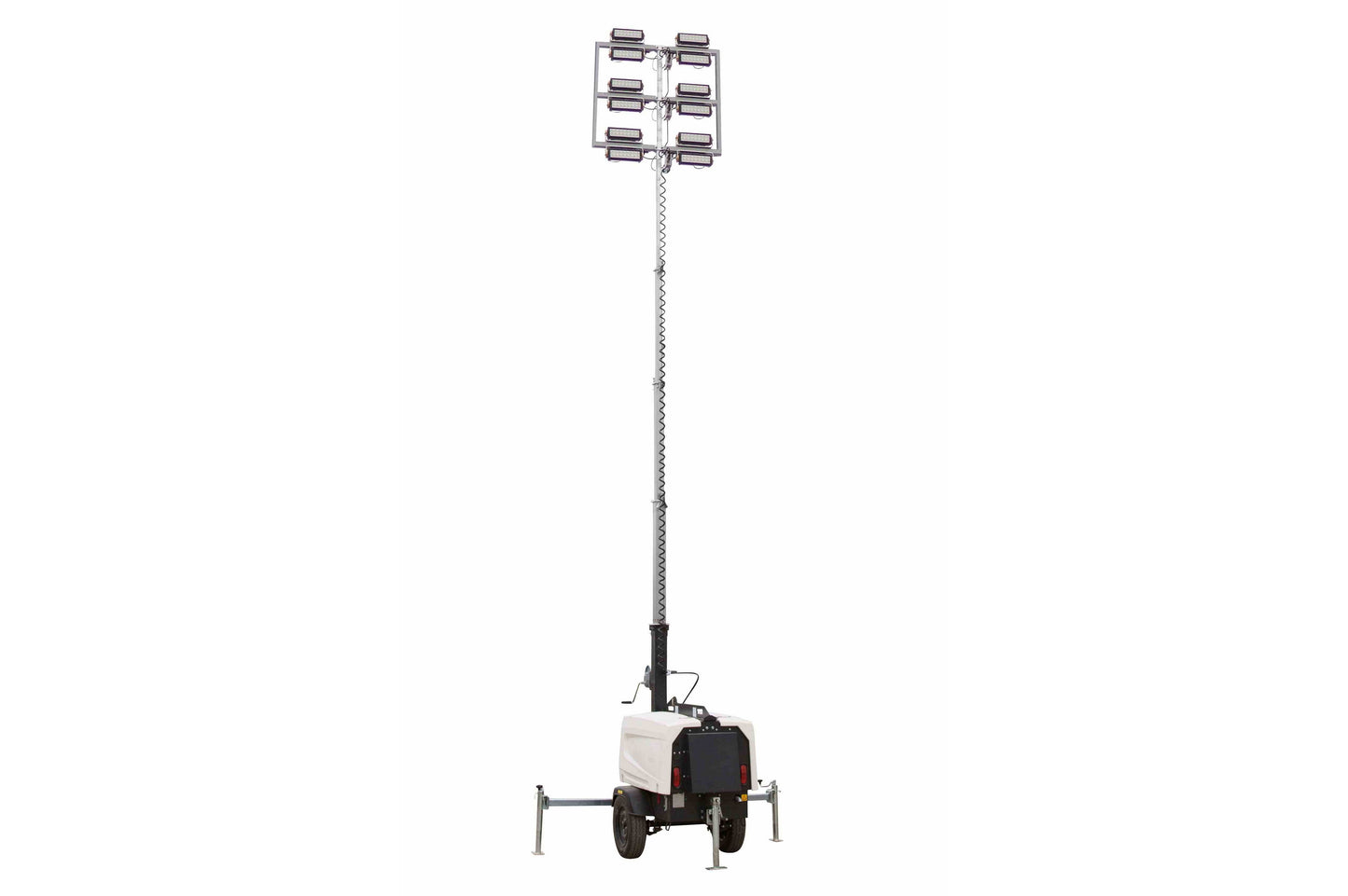

• Telescoping Light Mast: Extends up to 50 feet, capable of rotating 360 degrees for maximum coverage.
• Area Coverage: The system can illuminate an area of 4-6 acres.
• Noise Level: Operates at a low noise level of 63 dB at 23 feet.

Durability

• IP69K Rated Construction: Withstands extreme environmental conditions, including rapid temperature changes (-40°C to +80°C).
• Waterproof: Rated to withstand submersion up to three meters and high-pressure washdowns.
• Vibration Resistance: LEDs rated up to 60Grms for resistance to heavy vibrations, ideal for harsh working environments.
• Heat Management: Advanced heat management through pulse width modulation (PWM) to prevent overheating, ensuring 70% lumen maintenance even after 50,000 hours of operation.

Adjustable Lighting

• Mounting Brackets: The LED lamps are equipped with trunnion-style mounting brackets for 360° vertical movement, allowing precise adjustment. The mounting system is designed with shock dampening inserts to protect the light fixtures from damage in harsh conditions.

Controls

• Centralized Control Panel: Includes four circuit breaker switches for individual light control and an hour meter to track operation time.
• Safety Features: Automatic shutdown for low oil pressure and high engine temperature.
• Auxiliary Power: Includes a 120V GFCI duplex receptacle and a 240V twist-lock receptacle for auxiliary power needs.

Telescoping Boom

• Boom Construction: The telescoping boom has five sections, extending up to 50 feet. It is constructed from carbon steel with a powder-coated finish to resist rusting and corrosion.

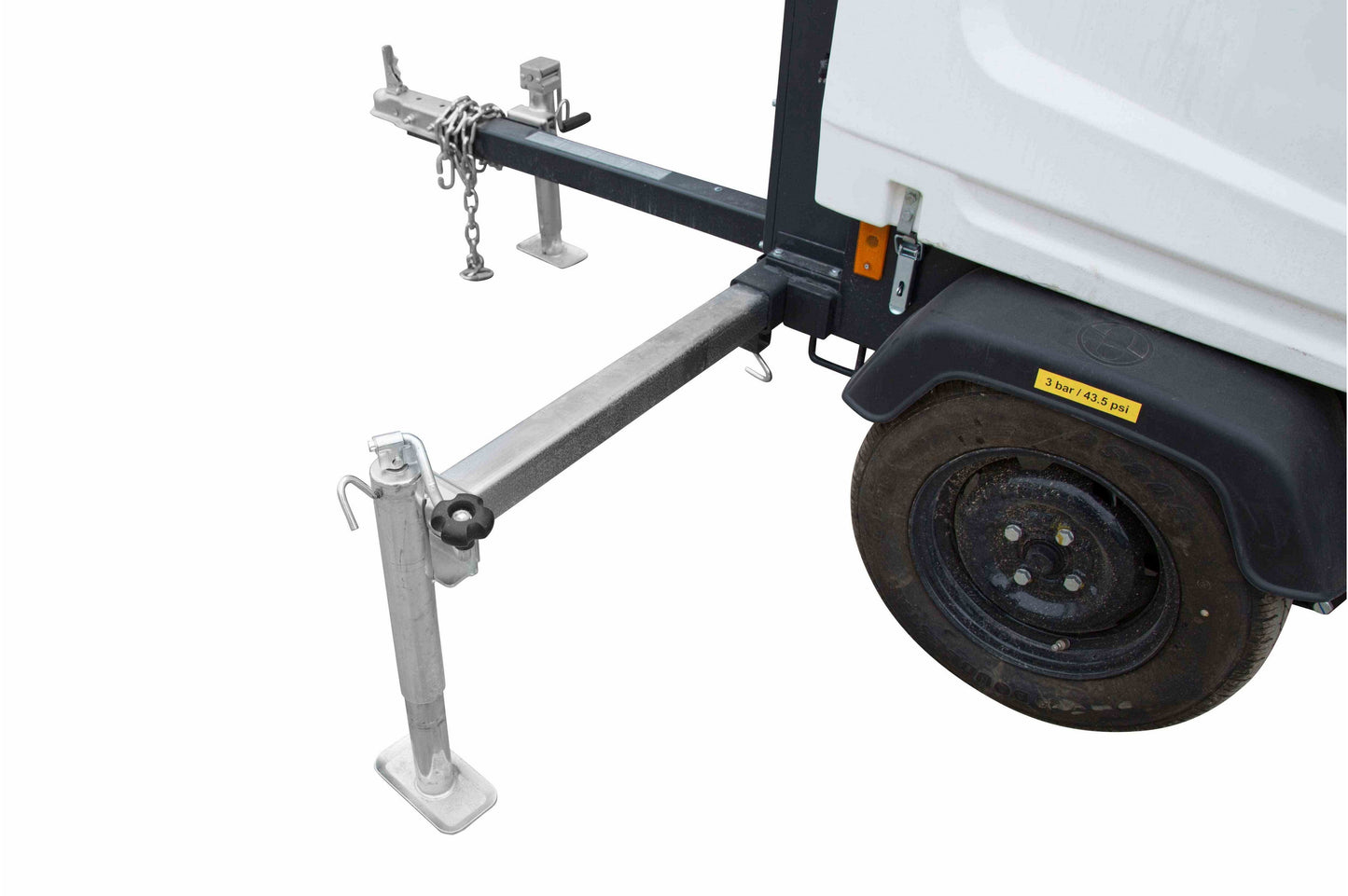

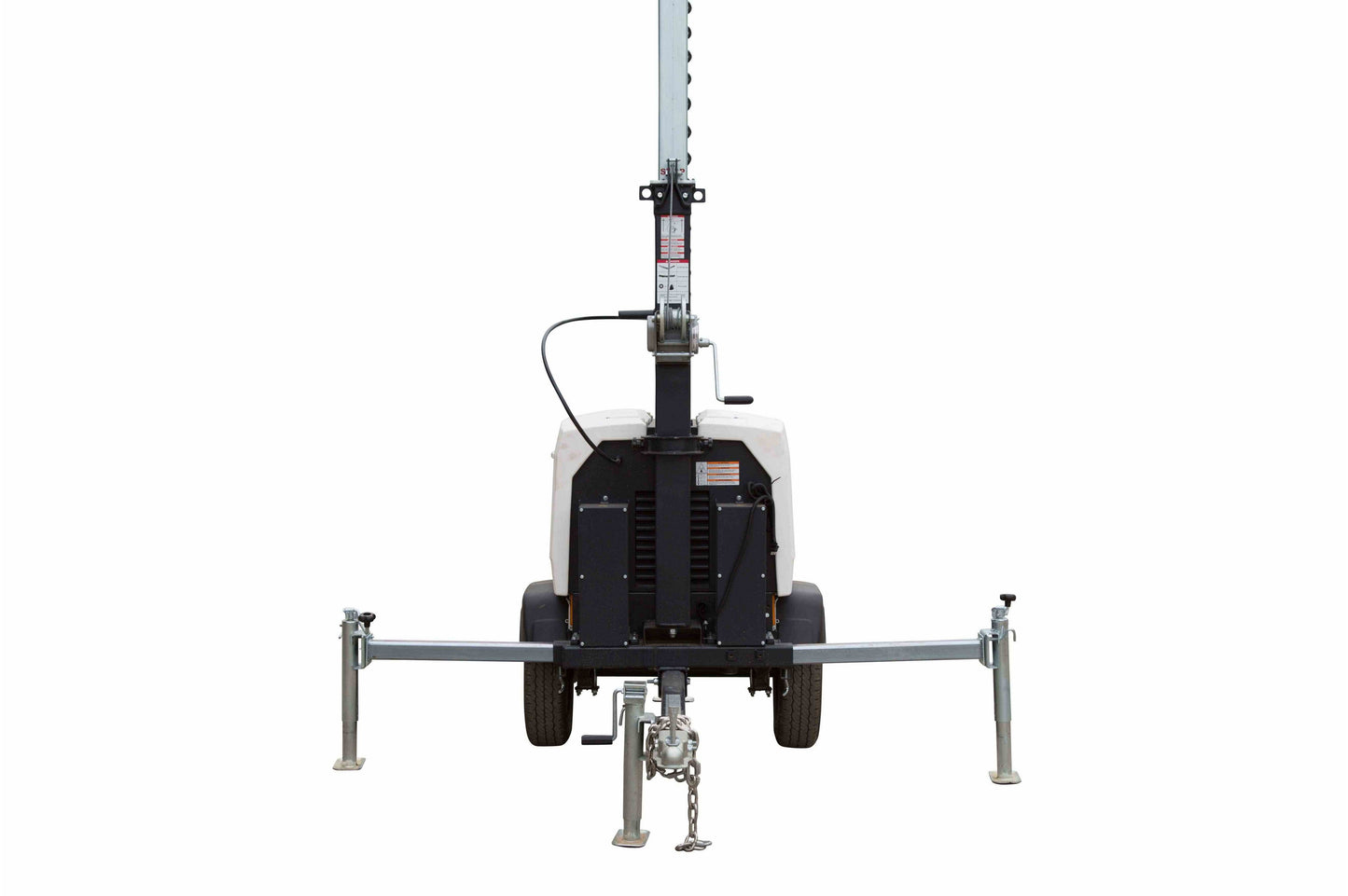

• Stability: The unit is stabilized by a three-point outrigger system, which allows it to withstand 65 mph winds when fully extended.

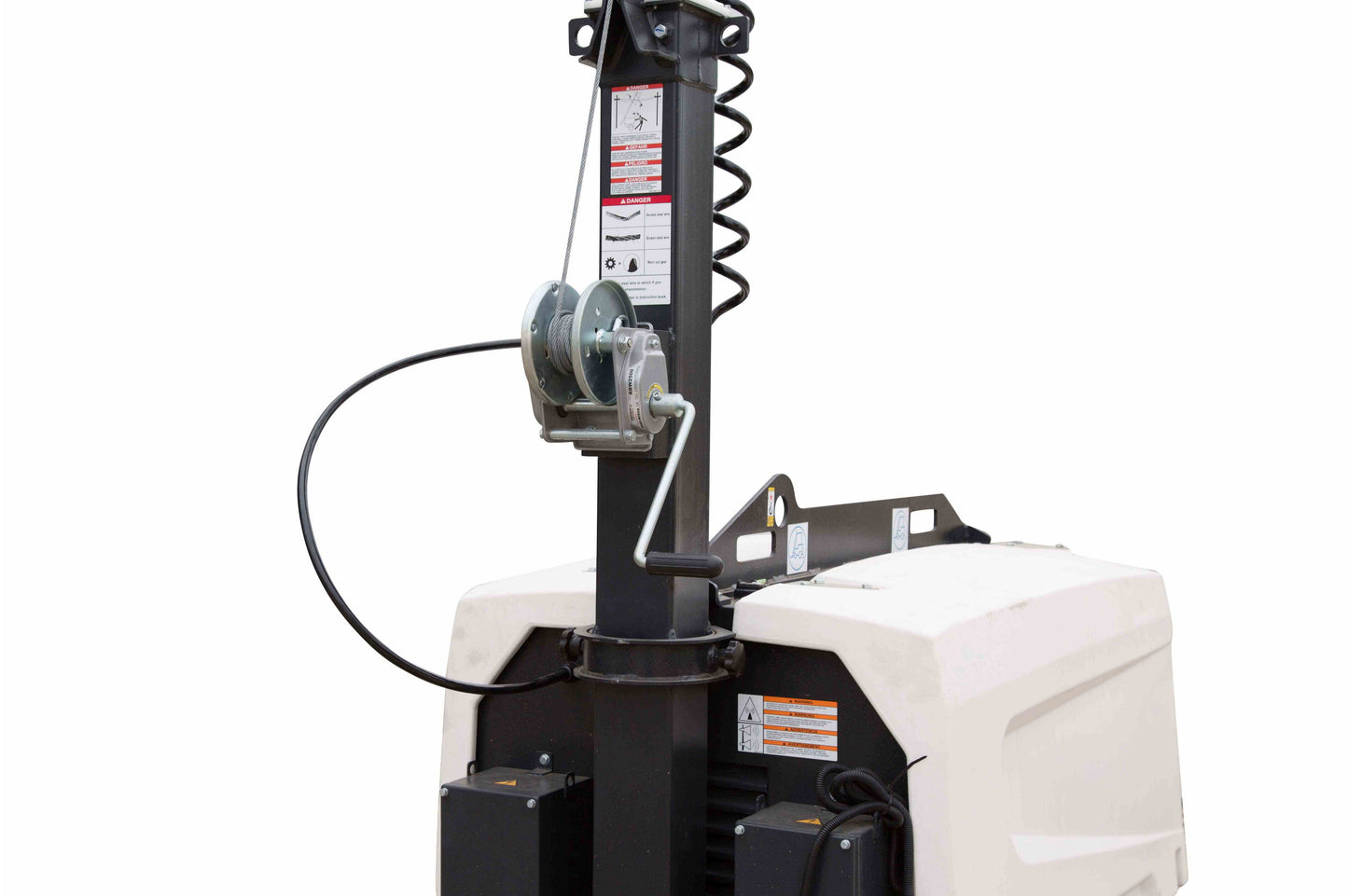

• Winch System: Two self-braking winches allow manual control of boom extension and vertical positioning.

Housing & Trailer

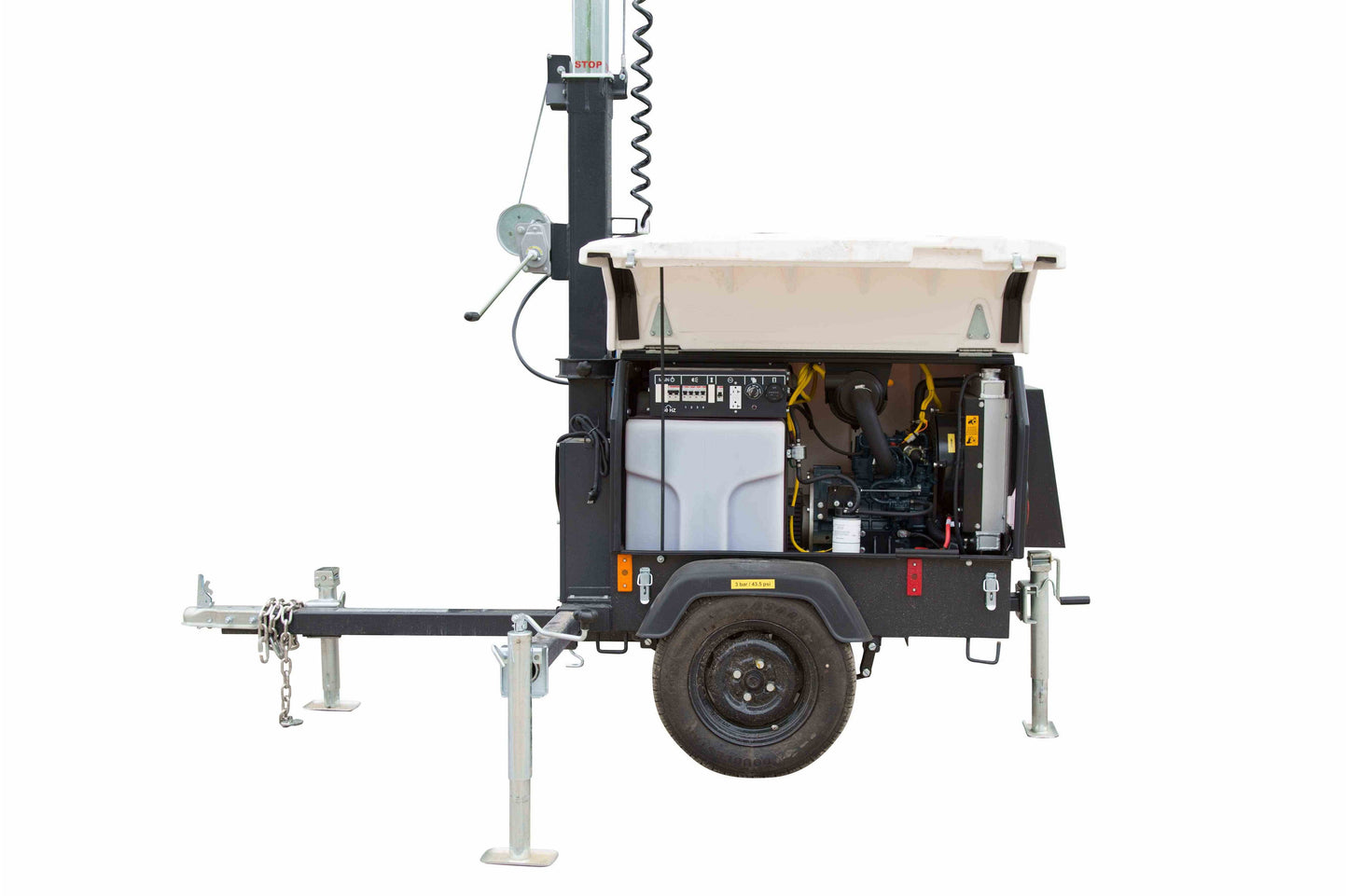

• Protective Housing: The operating components are housed in a 14-gauge steel compartment with airflow for cooling. The design reduces noise levels and protects internal components.

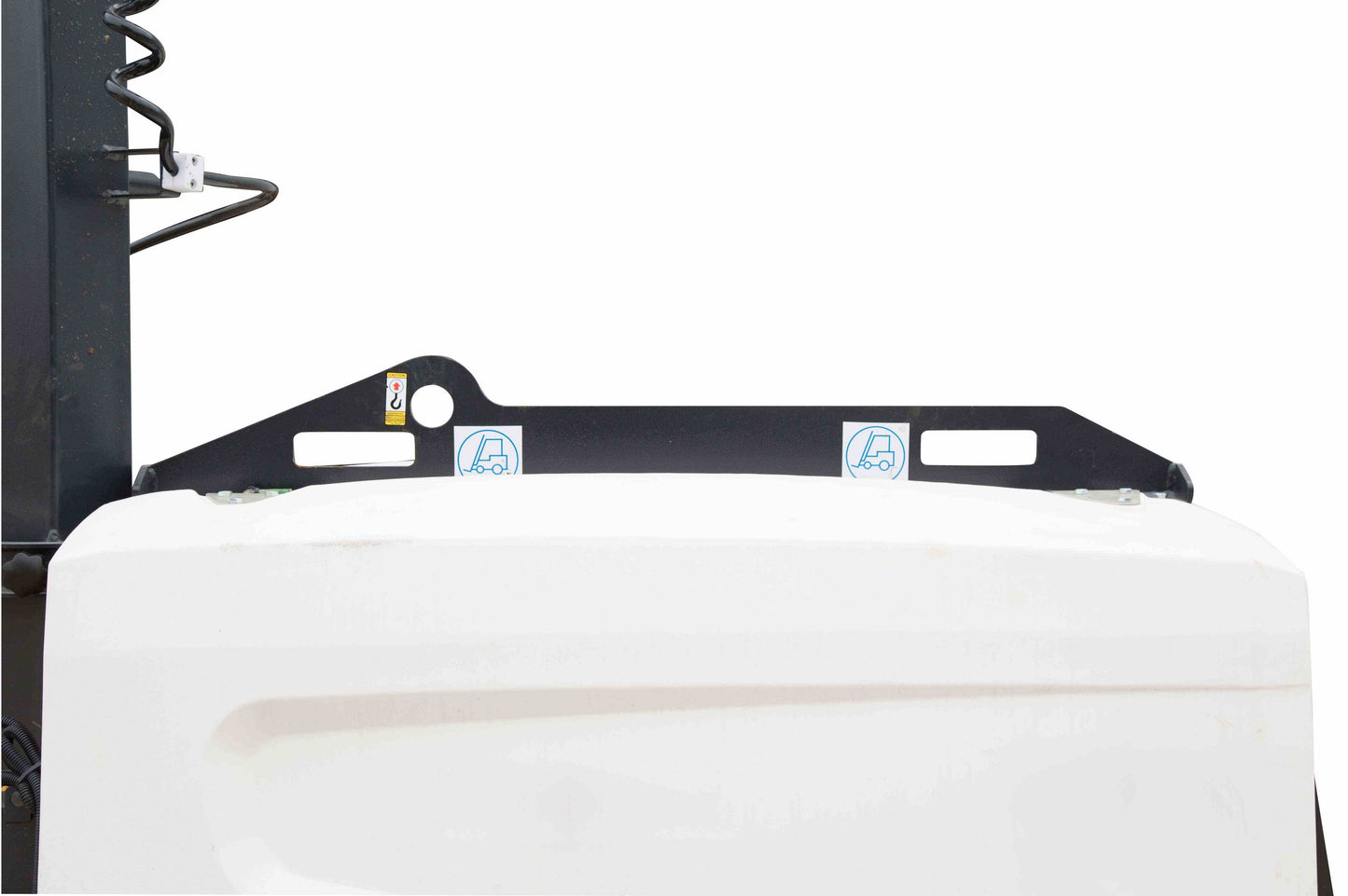

• Trailer Mount: Mounted on a two-wheel trailer with a 2,000 lbs leaf spring axle. The trailer uses a 2" ball coupling for easy towing, and the unit can be loaded/unloaded via forklift sleeves.

Detailed Specifications

Advanced Lighting & Heat Management

• LED10WSA Series LEDs: The lighting system is equipped with Larson Electronics' LED10WSA series LEDs, designed to offer the highest durability and efficiency. These LEDs are protected by polycarbonate lenses and housed in extruded aluminum to withstand extreme weather conditions, heavy vibrations, and constant exposure to dust and debris.
• Pulse Width Modulation (PWM): This technology ensures efficient heat management, preventing overheating and ensuring longer LED life.

Safety Features

• Automatic Shutoff: Low oil pressure and high engine temperature shutoff for protection during extended operation.
• Outrigger System: Provides stability even in high winds. The system includes adjustable jacks for leveling.
• Noise Control: Designed with a commercial-grade muffler system, this unit operates at a minimal 63 dB noise level, making it suitable for noise-sensitive environments.

Usage Applications

This mobile Megatower™ is ideal for:

• Construction Sites
• Emergency Operations
• Large Outdoor Events
• Mining & Industrial Operations
• Military & Disaster Response

Additional Information

• Customization: Larson Electronics offers custom-built products based on specific requirements. While the images provided represent the general product, detailed specifications such as receptacles, mounting brackets, external finishes, etc., may vary based on custom builds.
• Warranty & Support: Contact Larson Electronics for warranty details, technical support, or to request custom configurations.
