Larson Electronics 65' Fold-Over Light Mast - (20) 500W LEDs - Auto Retract - Designed for Installation on Concrete Pad

DESCRIPTION

The LM-HA-SMP-50-16X500LTL-LED LED Light Plant is a high power light tower package. This unit is equipped with twenty 500-watt LED lights producing 67,500 lumens each, for a combined total of 1,350,000 lumens of light. This unit includes a hydraulic telescoping light mast which can elevate twenty high output LED lamps to heights above 50`. Equipped with auto retract for automated management of the mast, the hydraulic tower is capable of reaching heights up to 656` with the light head assembly, which measures 15` in height. This mobile floodlight package is ideal for large scale event illumination, construction, mining, and industrial operations.

This telescoping seven stage hydraulic light mast from Larson Electronics is designed to allow operators to quickly and safely deploy up to 10,000 watts of high intensity LED lighting in locations where illumination must be elevated to heights above 50` (from ground to mast head; 65` in total height with 15` light head assembly) for effective coverage. This light boom can be collapsed to 22` for applications where a footprint smaller is required. The tower is constructed of heat treated aluminum tubing with 2.69` foot of overlap per section. The mast is elevated using an included hydraulic ram and extended to its full height using a second hydraulic system.

A 90" wide by 109.5" tall and 2" by 2" by 1/4" thick steel mast head is attached to the upper section of the mast which provides a strong and stable platform for the twenty 500-watt LED light heads.

Lights: The LM-HA-SMP-50-16X500LTL-LED Hydraulic LED Megatower™ from Larson Electronics features twenty GAU-LTL-500W-LED fixtures that each draw 500 watts, for a total fixture wattage of 10,000 watts. Each module produces 67,500 lumens at a color temperature of 5000K for an impressive lumen total of 1,350,000 lumens which provides operators with a superior lighting solution for even the most challenging areas to illuminate. To ensure even coverage of wide areas, the LED modules used on this hydraulic light plant are configured in Larson Electronics for even distribution pattern.

LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

Durability: As well as unparalleled heat control, the LED lights used in the LM-HA-SMP-50-16X500LTL-LED also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +85° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.

Heat Management: Heat is the single largest factor in premature LED failure and color shifting. The heat-sink on the LED modules has been engineered to provide optimum heat dissipation. Each LED module has been sized for proper passive cooling to prevent premature failure of LEDs or color shifting and to eliminate the need for an active cooling system typically associated with high powered LED systems.

Telescoping Boom: The hydraulic telescoping boom is constructed of heat treated aluminum with a powder coated finish and extends above 50` in height from the ground to the mast head and 65` of total height with the light assembly (measures 15` in height). This boom is raised from and lowered to the folded position by a single hydraulic ram and extended or retracted by a second hydraulic system.

Auto Retract: To prevent damage and shaking from strong winds during operation, this LED light tower is equipped with a robust wind monitoring system. When exposed to strong winds, such as 40 mph, the system automatically retracts the mast for safe operation. In a retracted state, operators must re-adjust the height of the mast back to its original height (or another preferred height). This cutting-edge feature is designed to improve safety at industrial work sites.

This light plant can withstand 35 mph winds before auto retract when fully extended, with standard guy wires to the outriggers. When guy wires are applied 60 feet out from the side of the trailer, the LED light tower can withstand 50 mph winds before auto retract. When auto retract is activated, operators must send the mast back to its original position or preferred height setting.

Wiring/Controls: The LED light heads are grouped into banks of four. Each bank in wired into the NEMA 3R breaker control box at the base of the mast. Operators control the light heads via an on/off switched breaker per bank of four light heads. The hydraulics and battery charger are also powered from within this breaker box. The mast elevation is controlled by a push button switch to operate the hydraulic ram allowing operators to raise the mast to the upright position. The vertical deployment is operated by a second push button switch allowing operators to extend it to its full 65` height or retract it to the collapsed height.

Voltage: The LM-HA-SMP-50-16X500LTL-LED is available in several different voltage options. The options are as follows: 120/240V 1PH, 240V/120 3PH, 208V/120 3PH, or 480V/277 3PH. Please make your selection when ordering.

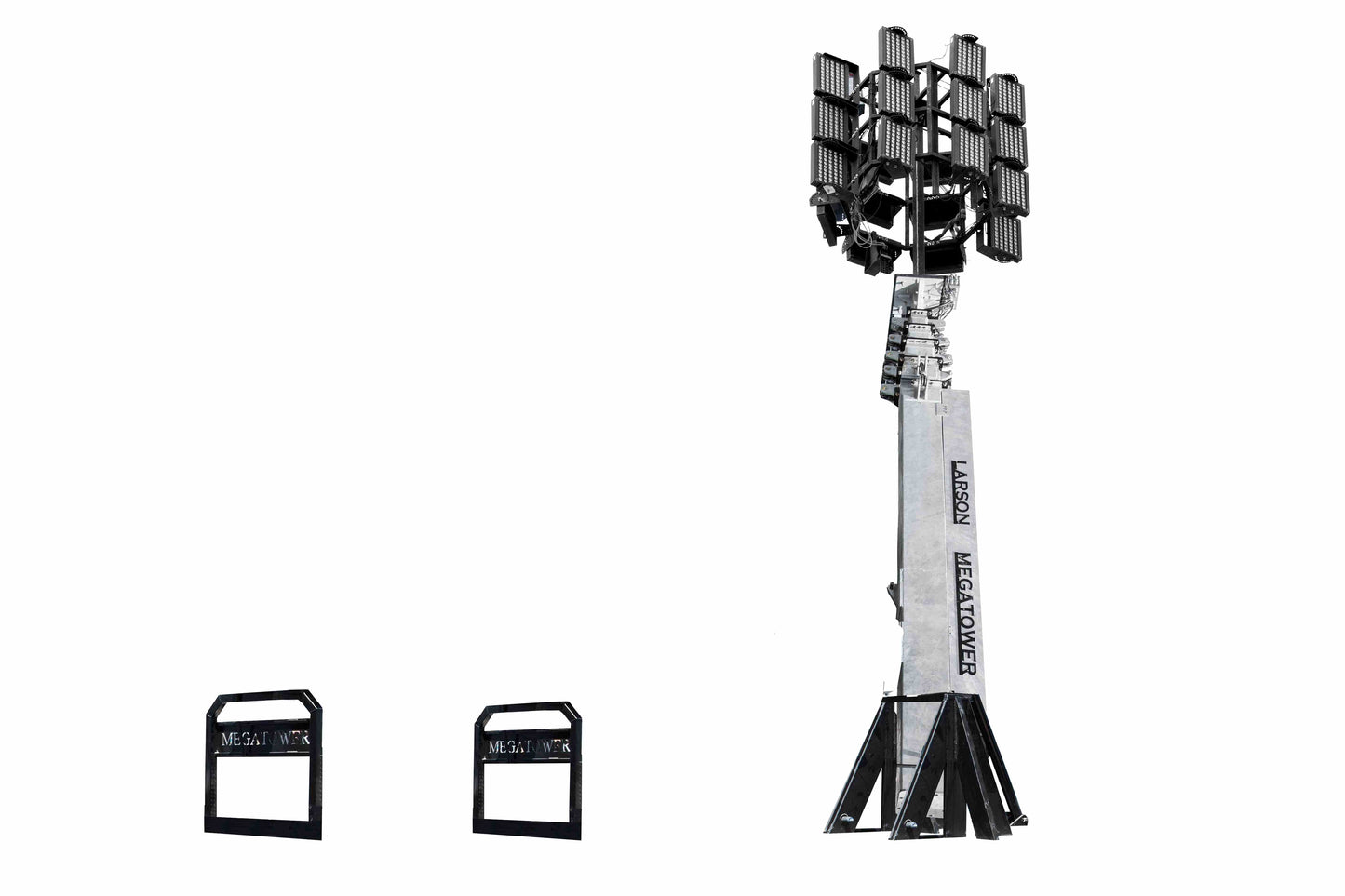

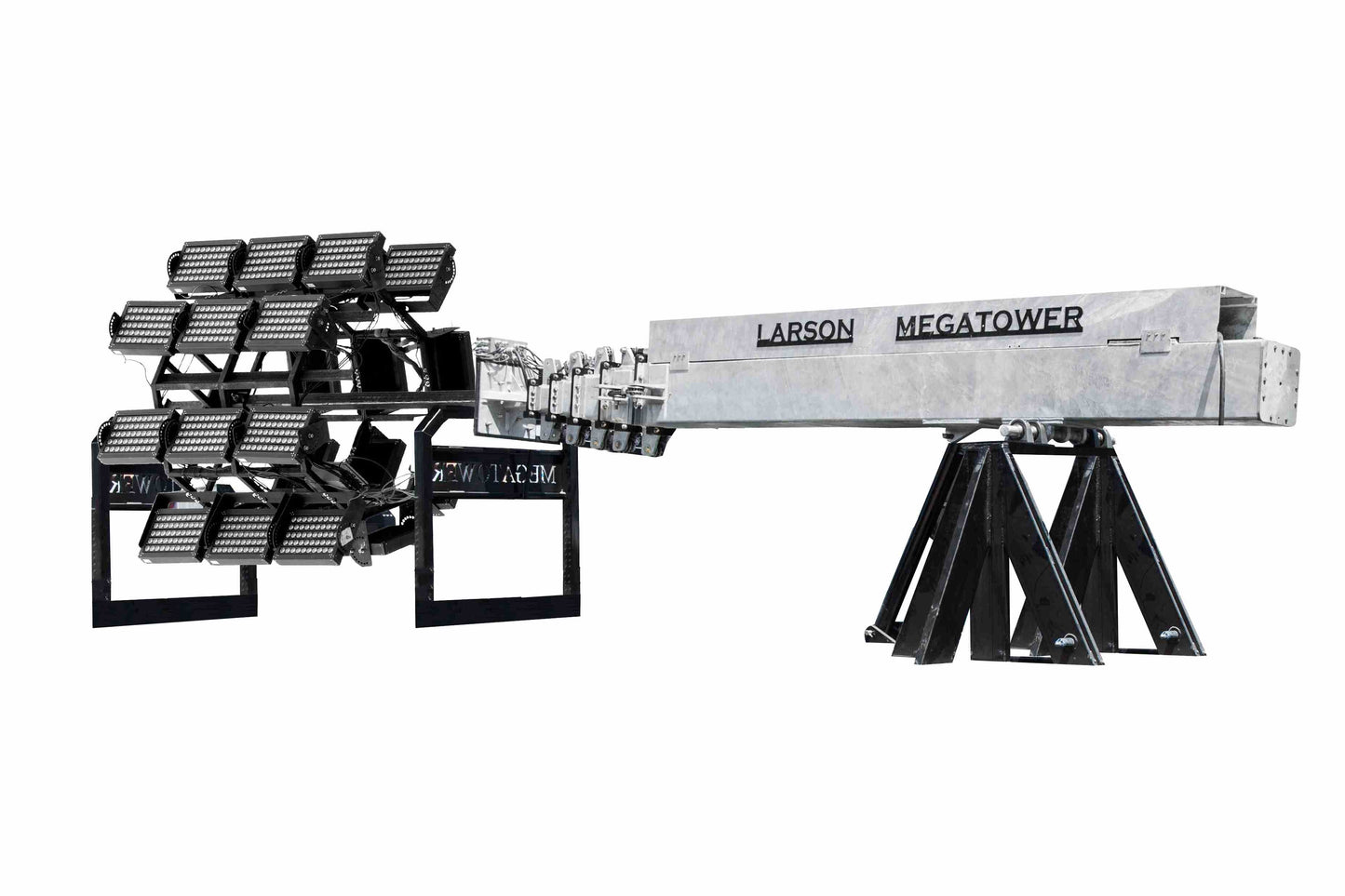

Pad Mount: The entire unit is designed to be mounted onto a dedicated concrete pad. The LM-HA-SMP-50-16X500LTL-LED includes a two piece base. One of the base pieces supports the mast when it is in the folded over position and the other supports the mast head and lights while in the folded over position.

We offer a choice of finishing, equipped light heads, and with or without gensets. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Optional diesel generators and fuel cells can be equipped from factory, or retrofitted after purchase.

Suggested Applications: Temporary lighting, construction site illumination, outdoor event lighting, job site lighting and any other application that requires a self-contained source of illumination capable of covering a very large area effectively.

SPECIFICATIONS

LM-HA-SMP-50-16X500LTL-LED Pad Mounted Fold-Over LED Megatower™

Light Mast Specs

• Tower Length: 22' to 50'+ (Total Height of 65' w/ 15' of Light Assembly)

• Lamp Qty: 20

• Materials: Heat Treated 6063B/T5 Aluminum

• Finish: Galvanized

• Operation: Hydraulic

• Voltage: 120/240V 1PH, 240V/120 3PH, 208V/120 3PH, or 480V/277 3PH

Light Head Specs

• Lamp Type: LED

• Total Wattage: 10,000W (500W per lamp)

• Total Lumens: 1,350,000 (67,500 per lamp)

• Voltage: Universal - 100-277V AC

• Lighting Configuration: Flood Beam Pattern

• Mounting: Concrete Pad Mount

Quick Summary

• Multiple LED Banks for Heat Dispersion

• 135 Lumens Per Watt Efficiency

• 70% Lumen Retention after 80,000 Hours

• Switched Breaker System per Lamp Head

• IP67 Waterproof LED Fixtures

• Hydraulic Aluminum Mast

• Powered Boom Deployment

• High Output LED Lamps

• Extreme Area Coverage

• Direct Replacement for (20) 1000W MH Light Plants

• 10,000W LED compared to 20,000W MH

• 1,350,000 Total Lumen Output

• Independently Adjustable Light Heads

Larson Electronics LLC manufactures a wide variety of products, including custom built to spec designs. The pictures displayed for this unit are a general representation of form factor for the product line and may not accurately represent this exact configuration in every detail due to custom builds and changes between similar products in our standard catalog. The specifics for this configuration are listed in the specification table and supporting documentation (CAD files, Dimensional Drawing, Name Plate Diagram, Wiring Diagram, etc.). This means that specific details (receptacles, plugs, wires, connections, mounting brackets, external finishes, etc.) may not be accurately represented in images vs specifications. Please review specifications and do not order based solely on images.
