Larson Electronics 65' Hydraulic Megatower™ on 21' Trailer - (16) 500W LED Fixtures - IP67 - Replacement for 1000W MH

DESCRIPTION

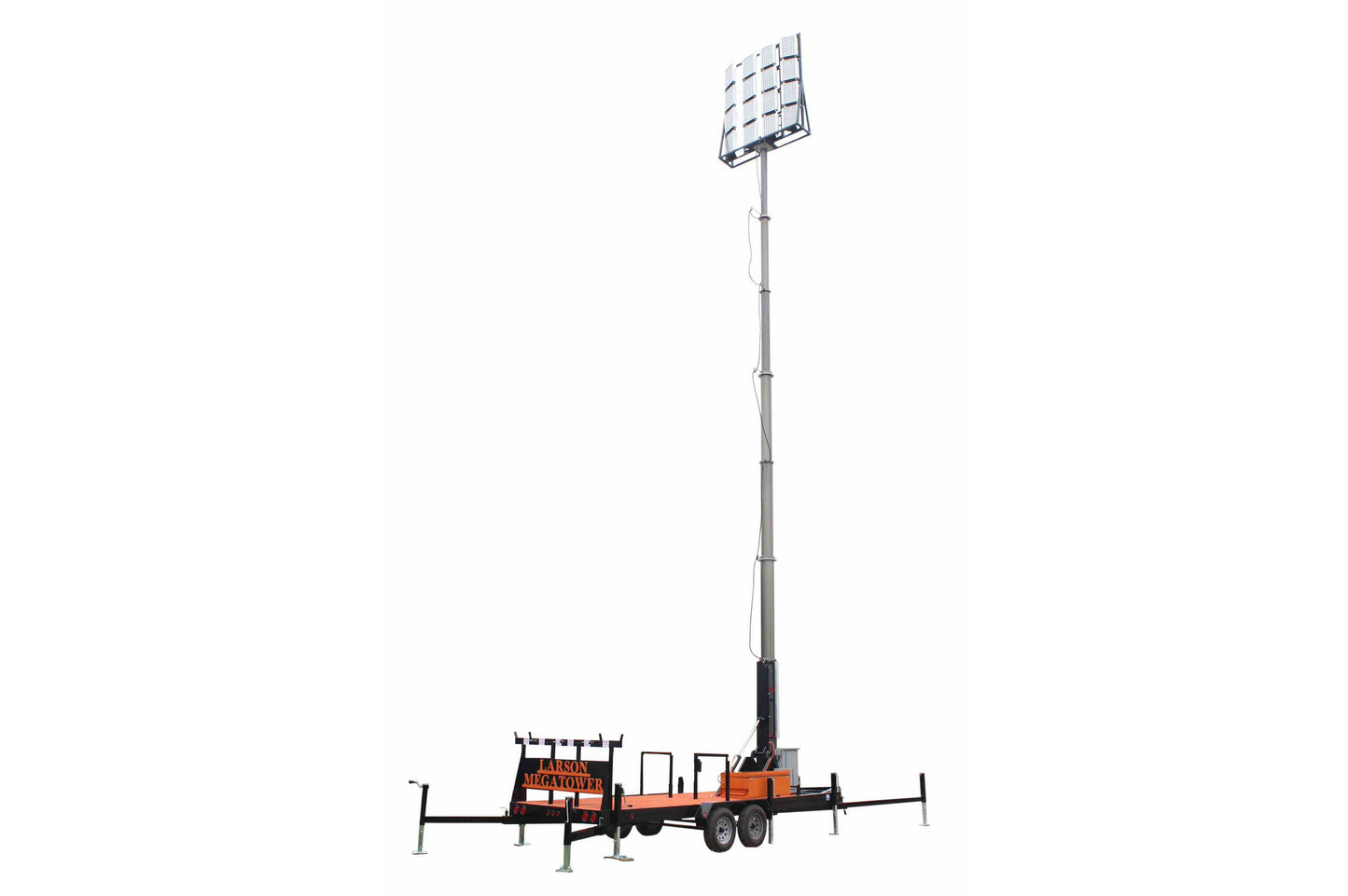

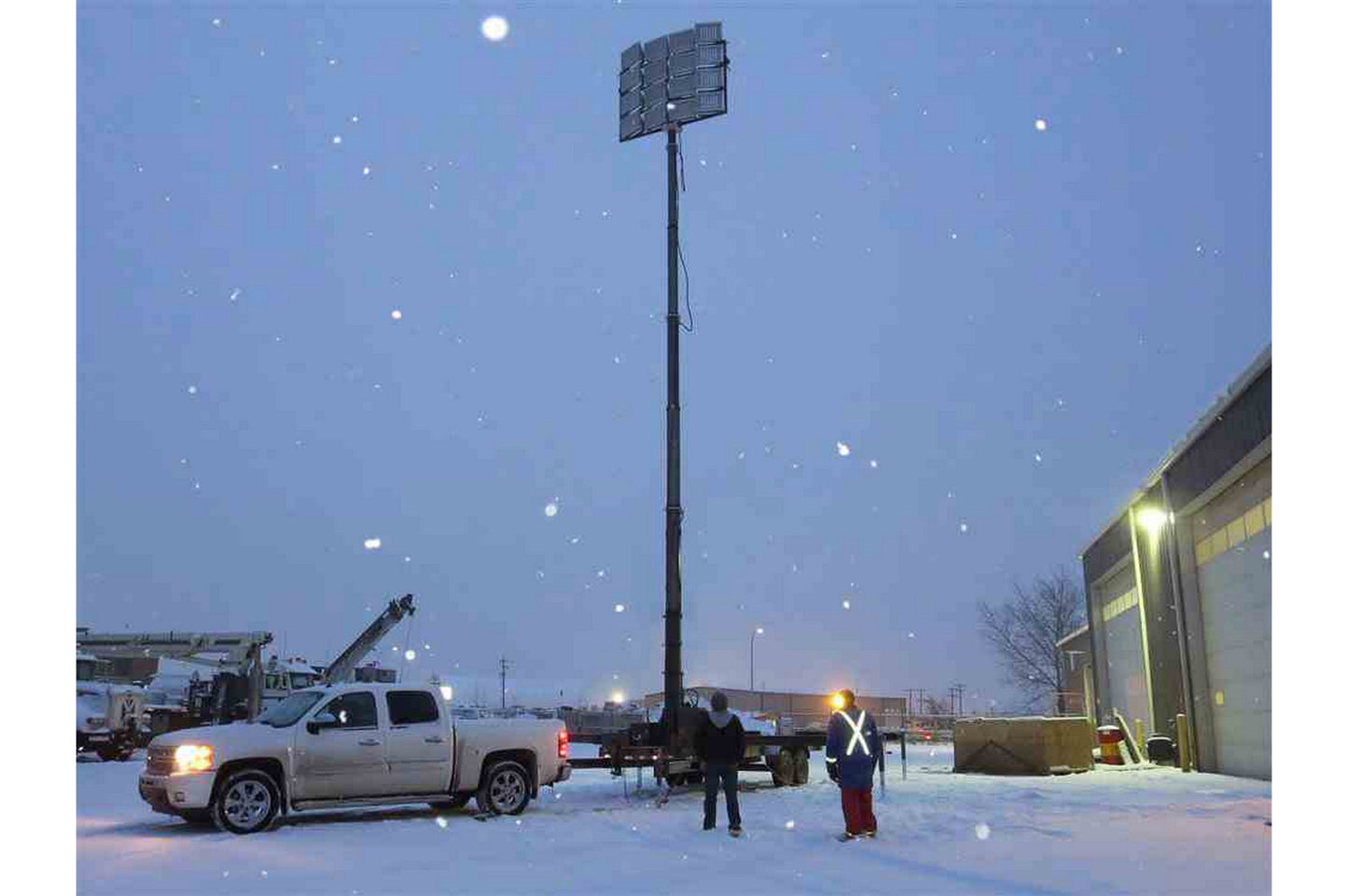

The LM-HA-65-TLR-16X500LTL-LED LED Light Plant is a self contained, towable, high power light tower package. This unit operates on 120-277V AC (universal) and features sixteen 500-watt LED lights producing 67,500 lumens each, for a combined total of 1,080,000 lumens of light. This light tower includes a hydraulic telescoping light mast which can elevate sixteen high output LED lamps to heights above 65`. The hydraulic tower is capable of reaching heights up to 74` with the light head assembly, which measures 9` in height. This mobile floodlight package is ideal for large scale event illumination, construction, mining, industrial operations, and anywhere a mobile full power lighting system capable of extended operation is needed.

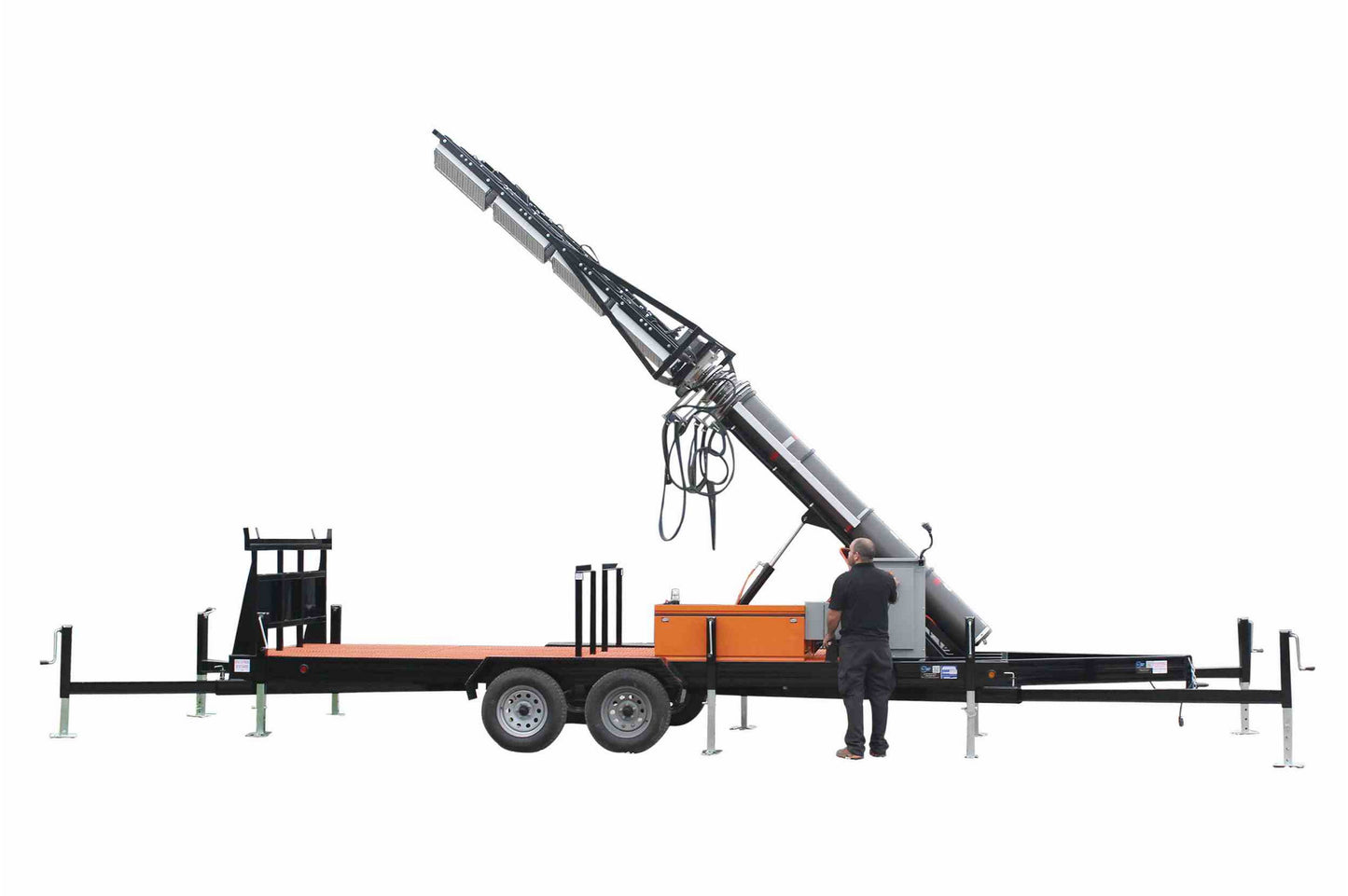

This telescoping seven stage hydraulic light mast from Larson Electronics is designed to allow operators to quickly and safely deploy up to 8,000 watts of high intensity LED lighting in locations where illumination must be elevated to heights above 65` (from ground to mast head; 74` in total height with 9` light head assembly) for effective coverage. This light boom can be collapsed to 22` for applications where a footprint smaller is required. The tower is constructed of heat treated aluminum tubing with 2.69` foot of overlap per section. The mast is elevated using an included hydraulic ram and extended to its full height using a second hydraulic system.

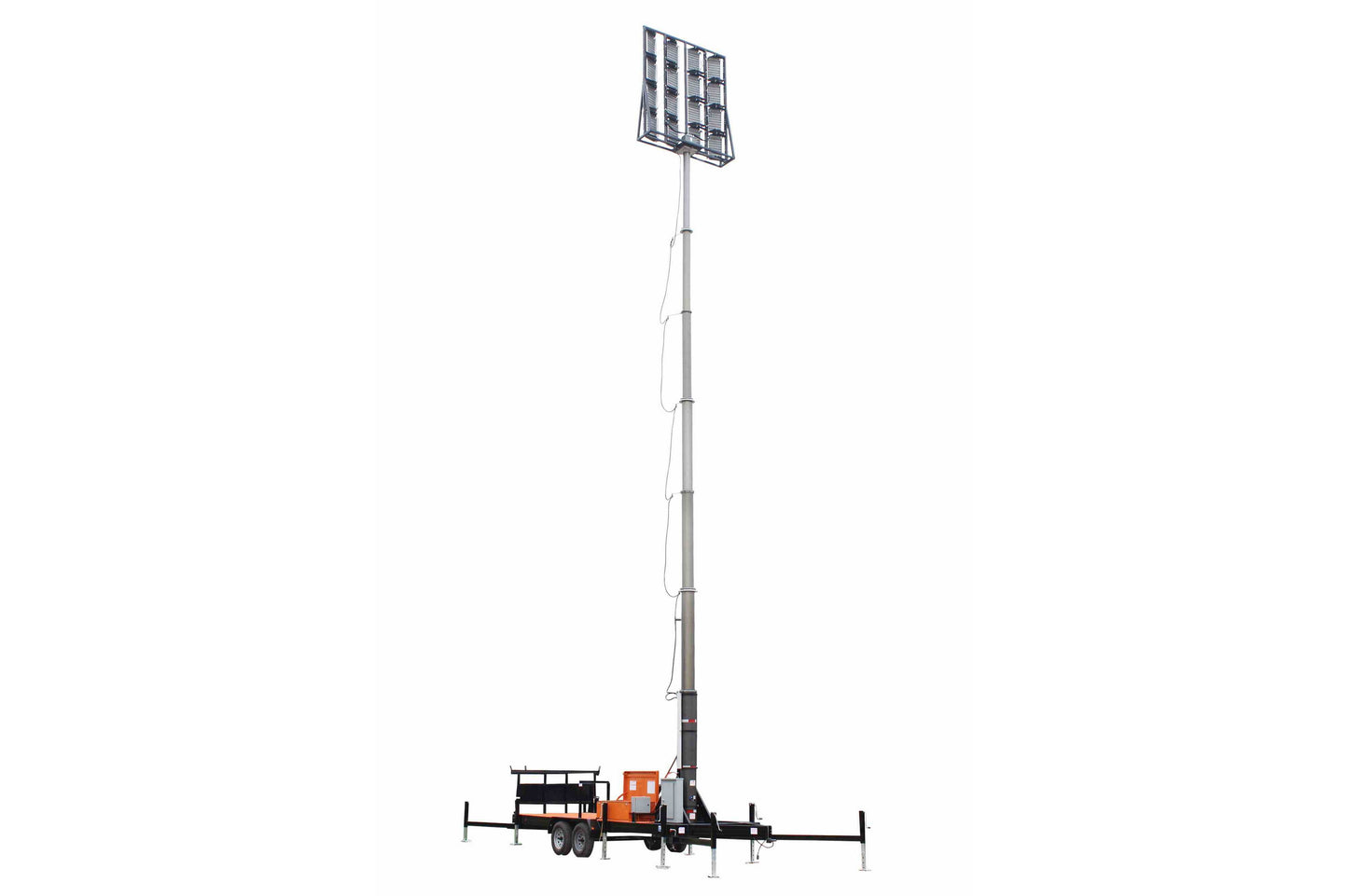

A 90" wide by 109.5" tall and 2" by 2" by 1/4" thick steel mast head is attached to the upper section of the mast which provides a strong and stable platform for the sixteen 500-watt LED light heads.

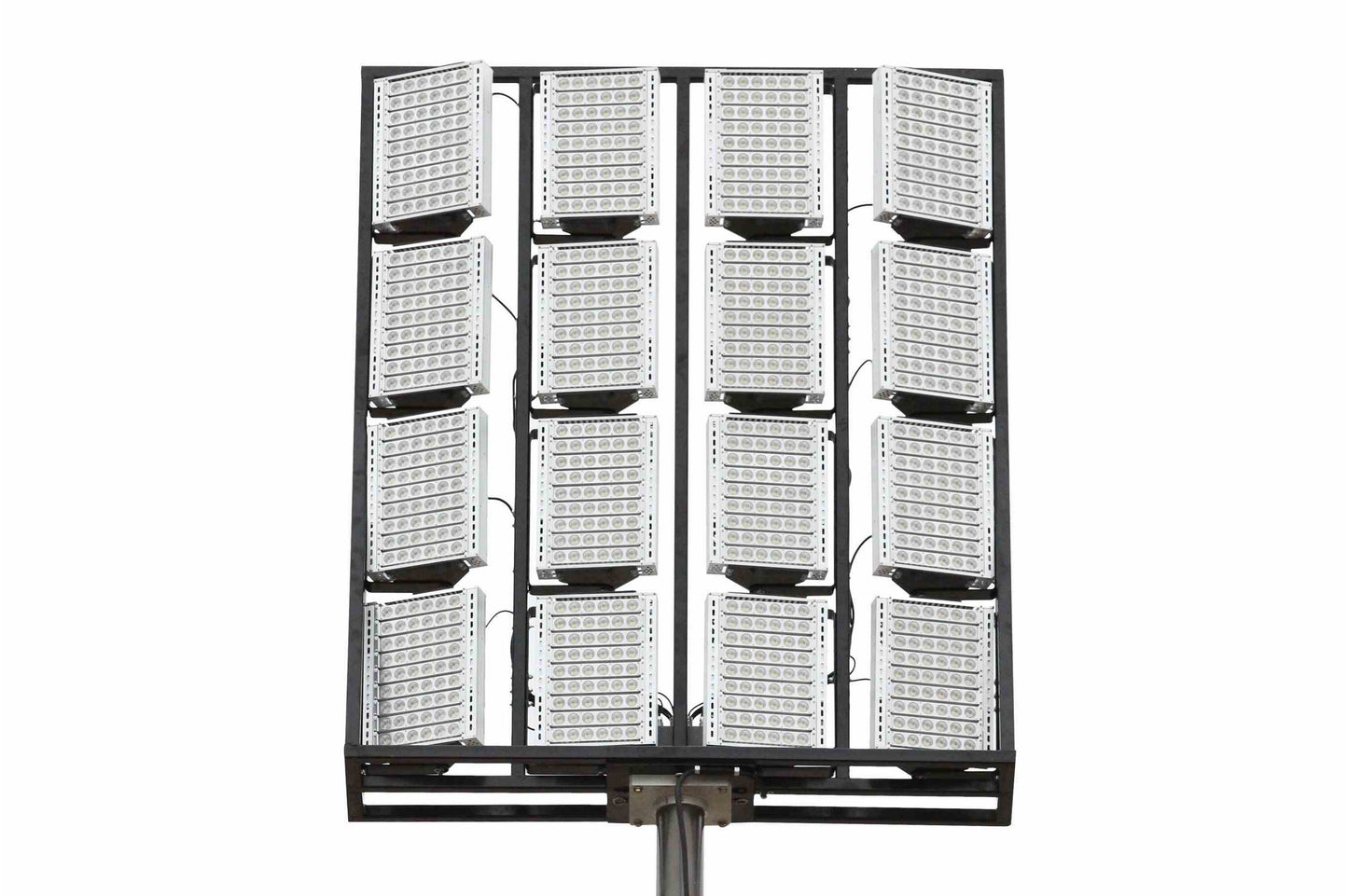

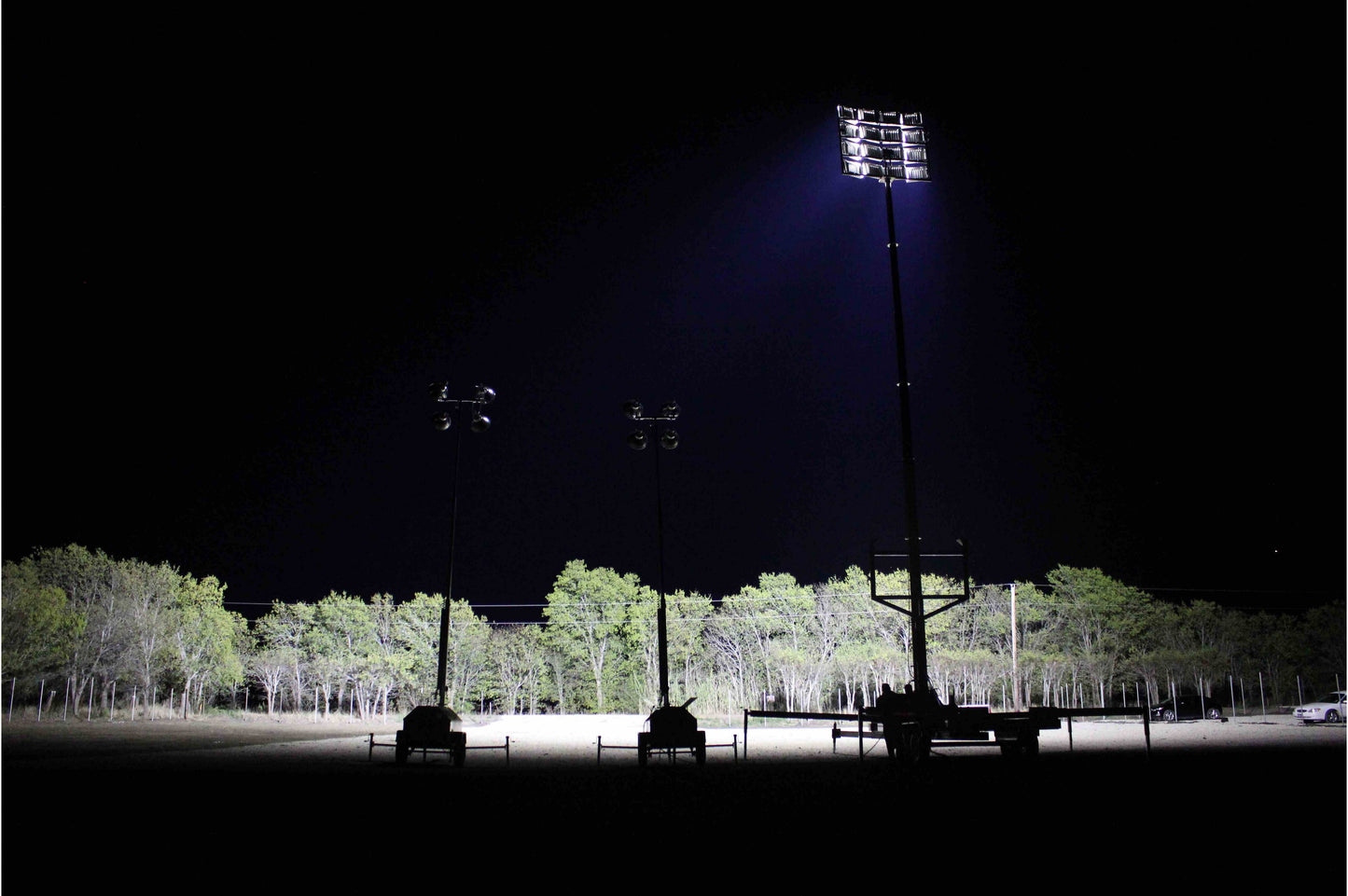

Lights: The LM-HA-65-TLR-16X500LTL-LED Hydraulic LED Megatower™ from Larson Electronics features sixteen GAU-LTL-500W-LED fixtures that each draw 500 watts, for a total fixture wattage of 8,000 watts. Each module produces 67,500 lumens at a color temperature of 5000K for an impressive lumen total of 1,080,000 lumens which provides operators with a superior lighting solution for even the most challenging areas to illuminate. To ensure even coverage of wide areas, the LED modules used on this hydraulic light plant are configured in Larson Electronics for even distribution pattern.

LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

Durability: As well as unparalleled heat control, the LED lights used in the LM-HA-65-TLR-16X500LTL-LED also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +85° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.

Heat Management: Heat is the single largest factor in premature LED failure and color shifting. The heat-sink on the LED modules has been engineered to provide optimum heat dissipation. Each LED module has been sized for proper passive cooling to prevent premature failure of LEDs or color shifting and to eliminate the need for an active cooling system typically associated with high powered LED systems.

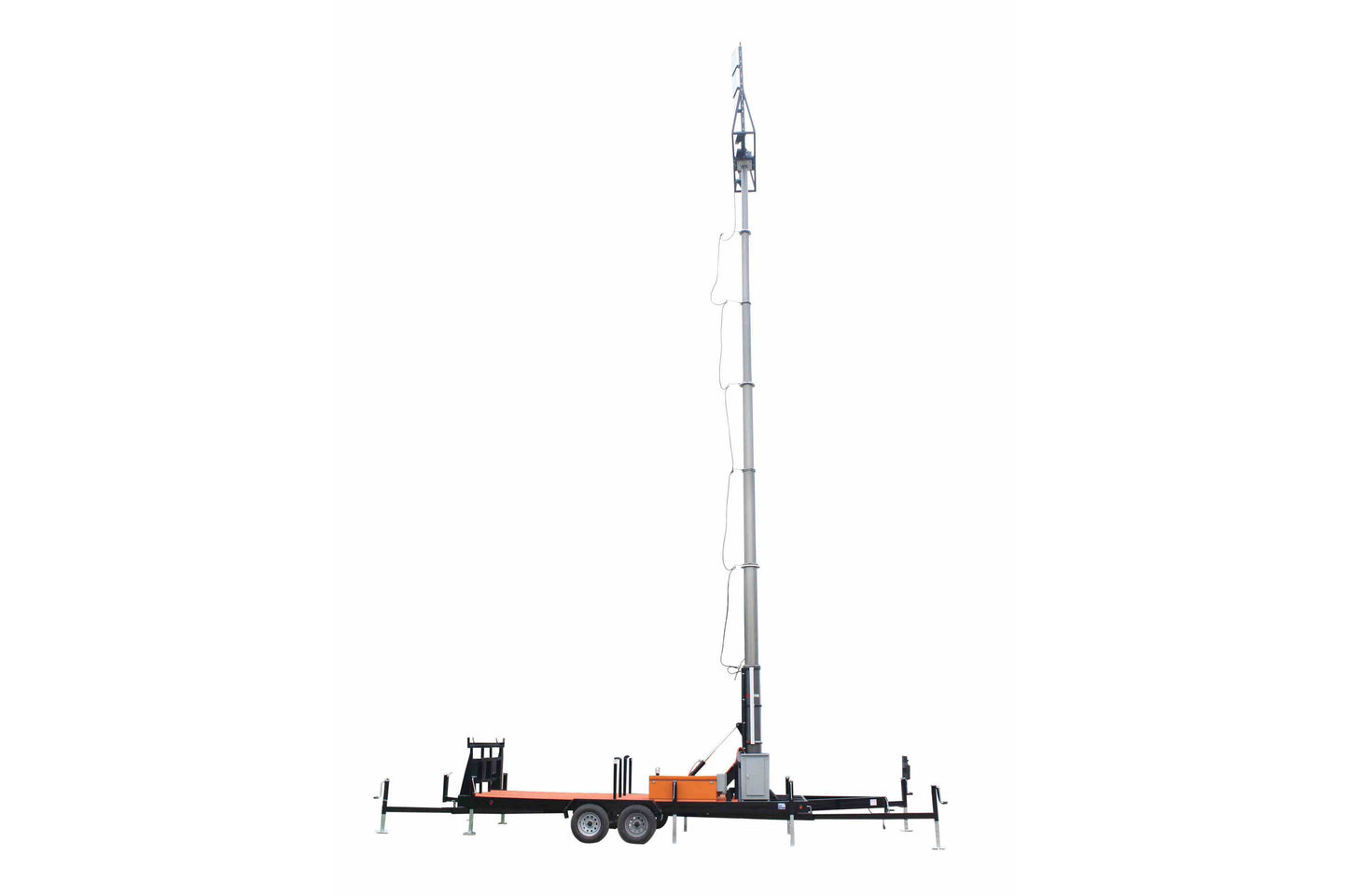

Telescoping Boom: The hydarulic telescoping boom is constructed of heat treated aluminum with a powder coated finish and extends above 65` in height from the ground to the mast head and 74` of total height with the light assembly (measures 9` in height). This boom is raised from and lowered to the folded position by a single hydraulic ram and extended or retracted by a second hydraulic system.

Wiring/Controls: The LED light heads are grouped into banks of four. Each bank in wired into the NEMA 3R breaker control box at the base of the mast. Operators control the light heads via an on/off switched breaker per bank of four light heads. The hydraulics and battery charger are also powered from within this breaker box. The mast elevation is controlled by a push button switch to operate the hydraulic ram allowing operators to raise the mast to the upright position. The vertical deployment is operated by a second push button switch allowing operators to extend it to its full 58` height or retract it to the collapsed height.

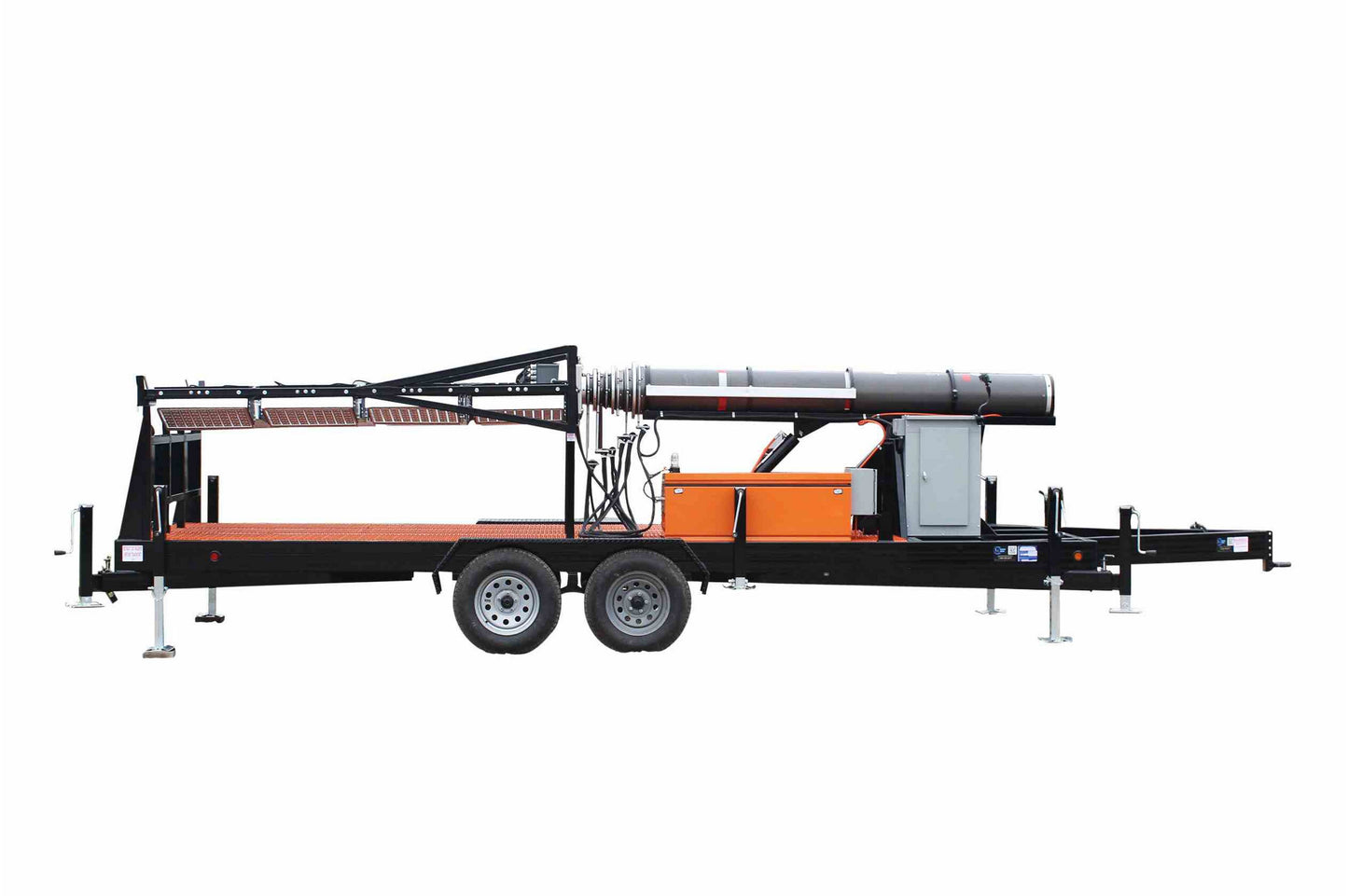

Trailer: The entire unit is mounted onto a four wheel, tandem axle trailer constructed of 8" box steel equipped with torsion axles. Each torsion axle is rated at 7,000 lbs and equipped with P235/80R16 tubeless tires and wheels. The rear axle is equipped with electric brakes. Tongue weight is rated at 650 lbs and an adjustable 3" lunnett eye for pintle hitches provides secure hookup to tow vehicles. A single 7,000 lbs rated tongue jack provides a stable connect-disconnect platform as well as additional stability during tower deployment. Standard heavy duty safety chains are included. This trailer also includes a front mounted storage area for stowing tools and accessories. The trailer is finished in industrial grade Dupont™ paint for protection against rust and corrosion and provides an attractive finish. Overall dimensions of the entire trailer and boom assembly in the stowed for travel configuration is 21` long by 8` wide.

Six 7,000 lbs hand crank jacks are used for raising the trailer up off the ground, and four 7,000 lbs hand crank jacks mounted on extending outriggers are used for leveling and stabilizing the trailer assembly. Each of the four jacks are attached to a pivoting outrigger constructed of 6` by 6" by 6.3" steel I-beams. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 6` out from the side of the trailer for added stability. This light plant can withstand 35 mph winds when fully extended. When lowered to 30`, the mast can withstand 50 mph winds. When lowered to 22`, the mast can withstand wind speeds up to 95 mph with gusts of 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.

We offer a choice of finishing, equipped light heads, and with or without gensets. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Optional diesel generators and fuel cells can be equipped from factory, or retrofitted after purchase.

Cold Weather Package: The LM-HA-65-TLR-16X500LTL-LED is designed to withstand extreme cold environments and harsh winters. The hydraulic system is equipped with a de-icing system to prevent the hydraulic lines and system from freezing from moisture building within system. This de-icing system uses an environmentally friendly (non-toxic) fluid. All hydraulic lines are equipped with cold weather rated hydraulic hoses rated for -65°C and fitted with metallic hardware. All the hydraulic controls are housed within an insulated and weather tight enclosure. This hydraulic control box features 1/2" thick polystyrene foam insulation and heat trace.

The hydraulic system features -65°C cold weather rated rubber hydraulic hoses with metallic fittings and a cold weather rated high viscosity hydraulic fluid. The battery system that powers the hydraulic system features a cold weather rated sealed acid glass mat 12 volt battery wrapped in a heated battery blanket. A cold weather rated battery charger keeps the 12 volt battery charged. All battery components are enclosed within a NEMA 3R housing. All electrical components are wired using cold weather rated SOOW cable with rated to -50°C that features high flexibility, and extreme abrasion, acid, oil, and water resistance even in sub-zero climates.

Suggested Applications: Temporary lighting, construction site illumination, outdoor event lighting, job site lighting and any other application that requires a self-contained source of illumination capable of covering a very large area effectively.

SPECIFICATIONS

LM-HA-65-TLR-16X500LTL-LED Trailer Mounted LED Megatower™

Light Mast Specs

• Tower Length: 22` to 65`+ (Total Height of 74` w/ 9` of Light Assembly)

• Lamp Qty: 16

• Materials: Heat Treated 6063B/T5 Aluminum

• Finish: Powder Coated

• Operation: Hydraulic

Light Head Specs

• Lamp Type: LED

• Total Wattage: 8,000W (500W per lamp)

• Total Lumens: 1,080,000 (67,500 per lamp)

• Voltage: Universal - 100-277V AC

• Lighting Configuration: Flood Beam Pattern

Trailer Specs

• Materials: Steel
• Trailer Dimensions: 21`-L x 8`-W trailer bed
• Height (Mast Collapsed): 9` 7"-H
• Height (Mast Extended): 58`-H
• Footprint (Outriggers Extended): 28`-6" x 19`-11"
• Hitch: 3" Lunnett    6-Point Outrigger System
• Wiring: 7-Pin Flat    10,000 lb Leveling Jacks
• Axles: 7,000 lbs Torsion w/ Electric Brakes
• Suspension: Torsion
• Outriggers: (6) 6` x 6" x 6" I-Beams Retractable w/ (6) 10,000 lbs Manual Leveling Jacks
• Wheels: (4) 16" 5x4.5" Steel Rims    Contact us for special requirements
• Tires: (4) P235/80R16

Quick Summary

• 22` to 65`+ Light Mast

• Hydraulic Aluminum Mast

• Steel Construction Trailer

• Hydraulic Mast Operation

• Powered Boom Deployment

• High Output LED Lamps

• Extreme Area Coverage

• 8,000W LED compared to 16,000W MH

• 1,080,000 Total Lumen Output

• Independently Adjustable Light Heads

• Dial-in Adjustability per light head

• 98% Transmission High Purity PMMA Optics

• Multiple LED Banks for Heat Dispersion

• 135 Lumens Per Watt Efficiency

• 70% Lumen Retention after 80,000 Hours

• Switched Breaker System per Lamp Head

• IP67 Waterproof LED Fixtures

• All Equipment Mounted on a 21` x 8` Trailer

• Steel Trailer w/ Industrial Grade Paint Finish

• Towable Height Under 13` w/ Light Heads

• Cold Weather Package Factory Installed

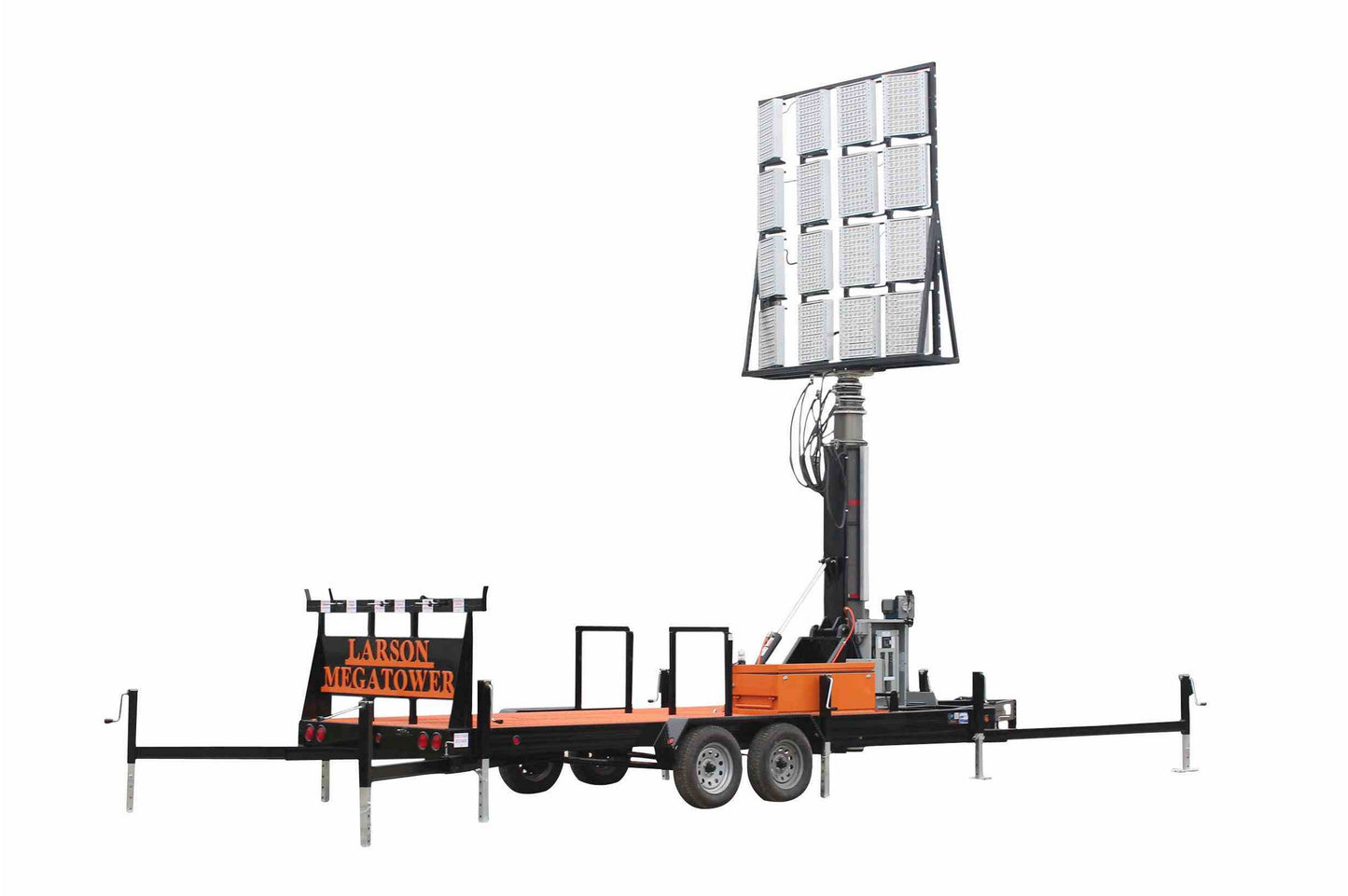

Larson Electronics LLC manufactures a wide variety of products, including custom built to spec designs. The pictures displayed for this unit are a general representation of form factor for the product line and may not accurately represent this exact configuration in every detail due to custom builds and changes between similar products in our standard catalog. The specifics for this configuration are listed in the specification table and supporting documentation (CAD files, Dimensional Drawing, Name Plate Diagram, Wiring Diagram, etc.). This means that specific details (receptacles, plugs, wires, connections, mounting brackets, external finishes, etc.) may not be accurately represented in images vs specifications. Please review specifications and do not order based solely on images.
