Larson Electronics 65' Megatower™ - Skid Mount - 480V 1PH - (20) 500W LEDs - Auto Retract - Disconnect Switch, Camlocks

DESCRIPTION

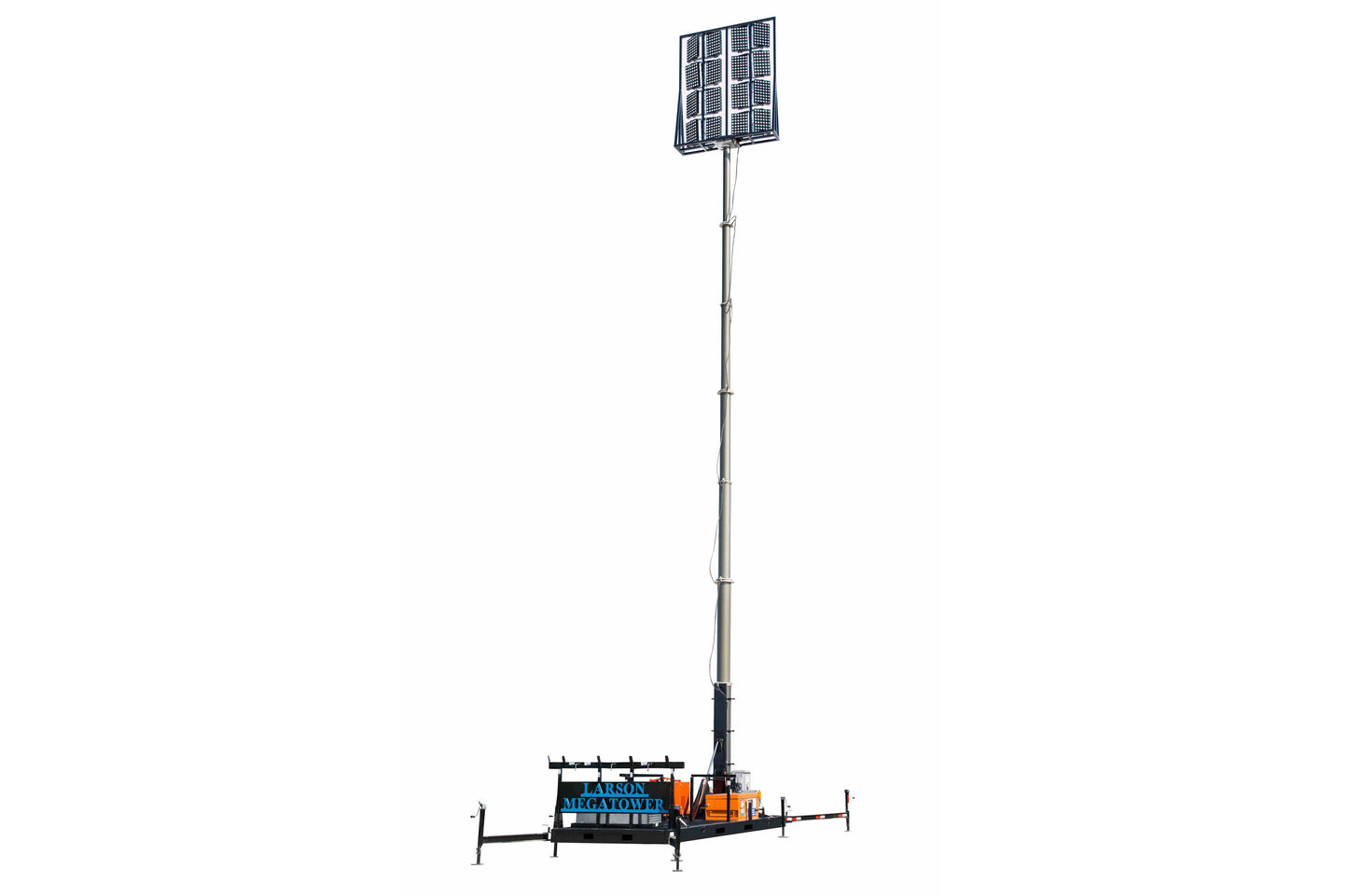

The LM-SMWB-HLM65-20X500LTL-LED-480V.1P-MOD1 LED Light Plant is a high power light tower package. This unit operates on 480V single phase and includes a hydraulic telescoping light mast which can elevate twenty high output LED lamps to heights above 65`. Equipped with auto retract/wind speed monitoring system for automated management of the mast and an anchor for robust stability during deployment, the hydraulic tower is capable of reaching heights up to 74` with the light head assembly, which measures 9` in height. This mobile floodlight package is ideal for large scale event illumination, construction, mining, industrial operations, and anywhere a mobile full power lighting system capable of extended operation is needed.

This telescoping seven stage hydraulic light mast from Larson Electronics is designed to allow operators to quickly and safely deploy up to 10,000 watts of high intensity LED lighting in locations where illumination must be elevated to heights above 65` (from ground to mast head; 74` in total height with 9` light head assembly) for effective coverage. This light boom can be collapsed to 22` for applications where a footprint smaller is required. The tower is constructed of heat treated aluminum tubing with 2.69` foot of overlap per section. The mast is elevated using an included hydraulic ram and extended to its full height using a second hydraulic system.

A 90" wide by 109.5" tall and 2" by 2" by 1/4" thick steel mast head is attached to the upper section of the mast which provides a strong and stable platform for the twenty 500-watt LED light heads.

Lights: The LM-SMWB-HLM65-20X500LTL-LED-480V.1P-MOD1 Hydraulic LED Megatower™ from Larson Electronics features twenty GAU-LTL-500W-LED fixtures that each draw 500 watts, for a total fixture wattage of 10,000 watts. Each module produces 67,500 lumens at a color temperature of 5000K for an impressive lumen total of 1,350,000 lumens which provides operators with a superior lighting solution for even the most challenging areas to illuminate. To ensure even coverage of wide areas, the LED modules used on this hydraulic light plant are configured in Larson Electronics for even distribution pattern.

LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

Durability: As well as unparalleled heat control, the LED lights used in the LM-SMWB-HLM65-20X500LTL-LED-480V.1P-MOD1 also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +85° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.

Heat Management: Heat is the single largest factor in premature LED failure and color shifting. The heat-sink on the LED modules has been engineered to provide optimum heat dissipation. Each LED module has been sized for proper passive cooling to prevent premature failure of LEDs or color shifting and to eliminate the need for an active cooling system typically associated with high powered LED systems.

Telescoping Boom: The hydraulic telescoping boom is constructed of heat treated aluminum with a powder coated finish and extends above 65` in height from the ground to the mast head and 74` of total height with the light assembly (measures 9` in height). This boom is raised from and lowered to the folded position by a single hydraulic ram and extended or retracted by a second hydraulic system.

Auto Retract: To prevent damage and shaking from strong winds during operation, this LED light tower is equipped with a robust wind monitoring system. When exposed to strong winds, such as 40 mph, the system automatically retracts the mast for safe operation. In a retracted state, operators must re-adjust the height of the mast back to its original height (or another preferred height). This cutting-edge feature is designed to improve safety at industrial work sites.

This light plant can withstand 35 mph winds before auto retract when fully extended, with standard guy wires to the outriggers. When guy wires are applied 60 feet out from the side of the trailer, the LED light tower can withstand 50 mph winds before auto retract. When auto retract is activated, operators must send the mast back to its original position or preferred height setting.

Wiring/Controls: The LED light heads are grouped into banks of four. Each bank in wired into the NEMA 3R breaker control box at the base of the mast. Operators control the light heads via an on/off switched breaker per bank of four light heads. The hydraulics and battery charger are also powered from within this breaker box. The mast elevation is controlled by a push button switch to operate the hydraulic ram allowing operators to raise the mast to the upright position. The vertical deployment is operated by a second push button switch allowing operators to extend it to its full 58` height or retract it to the collapsed height.

For connecting input power, the system is equipped with one set of 400-amp cam-locks. A primary disconnect is available for quick and safe disconnection from input power during use.

Skid Mount: The entire unit is mounted onto a large skid mount system for incorporating all of the necessary lighting equipment/components in one, readily available package. This skid mount includes a front mounted storage area for stowing tools and accessories. The skid mount is finished in industrial grade Dupont™ paint for protection against rust and corrosion and provides an attractive finish. Overall dimensions of the entire mounting system and boom assembly in the stowed for travel configuration is 21` long by 8` wide. Pickeyes located at every corner of the unit are available for transporting via crane lift or air transport in remote locations.
Six 7,000 lbs hand crank jacks are used for raising the unit up off the ground, and four 7,000 lbs hand crank jacks mounted on extending outriggers are used for leveling and stabilizing the assembly. Each of the four jacks are attached to a pivoting outrigger constructed of 6` by 6" by 6.3" steel I-beams. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 6` out from the side of the unit for added stability. Custom builds can be provided for higher wind speed resistance when fully raised.

An anchor at the bottom of the skid provides stability, which can be deployed to a concrete pad.

We offer a choice of finishing, equipped light heads, and with or without gensets. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Optional diesel generators and fuel cells can be equipped from factory, or retrofitted after purchase.

Cold Weather Package: The LM-SMWB-HLM65-20X500LTL-LED-480V.1P-MOD1 is designed to withstand extreme cold environments and harsh winters. The hydraulic system is equipped with a de-icing system to prevent the hydraulic lines and system from freezing from moisture building within system. This de-icing system uses an environmentally friendly (non-toxic) fluid. All hydraulic lines are equipped with cold weather rated hydraulic hoses rated for -65°C and fitted with metallic hardware. All the hydraulic controls are housed within an insulated and weather tight enclosure. This hydraulic control box features 1/2" thick polystyrene foam insulation and heat trace.

The hydraulic system features -65°C cold weather rated rubber hydraulic hoses with metallic fittings and a cold weather rated high viscosity hydraulic fluid. The battery system that powers the hydraulic system features a cold weather rated sealed acid glass mat 12 volt battery wrapped in a heated battery blanket. A cold weather rated battery charger keeps the 12 volt battery charged. All battery components are enclosed within a NEMA 3R housing. All electrical components are wired using cold weather rated SOOW cable with rated to -50°C that features high flexibility, and extreme abrasion, acid, oil, and water resistance even in sub-zero climates.

Suggested Applications: Temporary lighting, construction site illumination, outdoor event lighting, job site lighting and any other application that requires a self-contained source of illumination capable of covering a very large area effectively.

SPECIFICATIONS

LM-SMWB-HLM65-20X500LTL-LED-480V.1P-MOD1 Skid Mounted LED Megatower™

Light Mast Specs

• Tower Length: 22` to 65`+ (Total Height of 74` w/ 9` of Light Assembly)
• Lamp Qty: 20
• Materials: Heat Treated 6063B/T5 Aluminum
• Finish: Galvanized
• Operation: Hydraulic
• Safety: Wind Speed Monitoring System/Auto Retract

Light Head Specs

• Lamp Type: LED
• Total Wattage: 10,000W (500W per lamp)
• Total Lumens: 1,350,000 (67,500 per lamp)
• Voltage: 480V AC 1PH
• Lighting Configuration: Flood Beam Pattern

System Specs

• Voltage: 480V AC 1PH
• Primary Input: 400A Cam-locks
• Primary Protection: Disconnect

Skid Mount Specs

• Materials: Steel
• Skid Dimensions: -
• Height (Mast Collapsed): 9` 7"-H
• Height (Mast Extended): 58`-H
• Footprint: 36.64` x 8.5`"
• Footprint (Outriggers Extended): 36.55` x 18.2`"
• Outriggers: (4) 6` x 6" x 6" I-Beams Retractable w/ (6) 10,000 lbs Manual Leveling Jack
• Windload Rating (before Auto Retract): 35mph w/ Guy Wires to Outriggers; 50 mph w/ Guy Wires to Ground - 60` Out from Trailer
• Safety: Anchor
• Weight: -

• Shipping: Common Freight

• Shipping Weight: -

Quick Summary

• 33.5` to 77` Light Mast

• Hydraulic Aluminum Mast

• Steel Construction Skid Mount

• Hydraulic Mast Operation

• Powered Boom Deployment

• High Output LED Lamps

• Extreme Area Coverage

• Direct Replacement for (20) 1000W MH Light Plants

• 10,000W LED compared to 20,000W MH

• 1,350,000 Total Lumen Output

• Independently Adjustable Light Heads

• Dial-in Adjustability per light head

• 98% Transmission High Purity PMMA Optics

• Multiple LED Banks for Heat Dispersion

• 135 Lumens Per Watt Efficiency

• 70% Lumen Retention after 80,000 Hours

• IP67 Waterproof LED Fixtures

• All Equipment Mounted on Skid Mount

• Steel Skid Mount w/ Industrial Grade Paint Finish

• Movable Height Under 13` w/ Light Heads

• 4-Point Outrigger System

• 10,000 lb Leveling Jacks

• Powered Boom Deployment

• Crane Pickeyes

• Can be Anchored to Concrete Pads

• Wind Speed Monitoring System

Larson Electronics LLC manufactures a wide variety of products, including custom built to spec designs. The pictures displayed for this unit are a general representation of form factor for the product line and may not accurately represent this exact configuration in every detail due to custom builds and changes between similar products in our standard catalog. The specifics for this configuration are listed in the specification table and supporting documentation (CAD files, Dimensional Drawing, Name Plate Diagram, Wiring Diagram, etc.). This means that specific details (receptacles, plugs, wires, connections, mounting brackets, external finishes, etc.) may not be accurately represented in images vs specifications. Please review specifications and do not order based solely on images.
