Larson Electronics 85' Hydraulic Megatower™ on 28' Trailer - (20) 500W LED Fixtures - IP67 - Replacement for 1500W MH

Product Description

Larson Electronics 85' Hydraulic Megatower™ on 28' Trailer - (20) 500W LED Fixtures - IP67 - Replacement for 1500W MH

Description

The LM-HA-85-TLR-16X500LTL-LED LED Light Plant by Larson Electronics is a powerful, self-contained, towable LED lighting system designed for maximum illumination in large-scale applications. Operating on universal 120-277V AC, this unit features twenty 500-watt LED lights, delivering a total of 1,200,000 lumens. The hydraulic telescoping mast can elevate the lights to 94 feet with the light head assembly, making it ideal for construction sites, events, industrial operations, and mining areas requiring extensive and reliable lighting.

Key Features

• Lumen Output: 1,200,000 lumens (60,000 lumens per LED module) for comprehensive area coverage

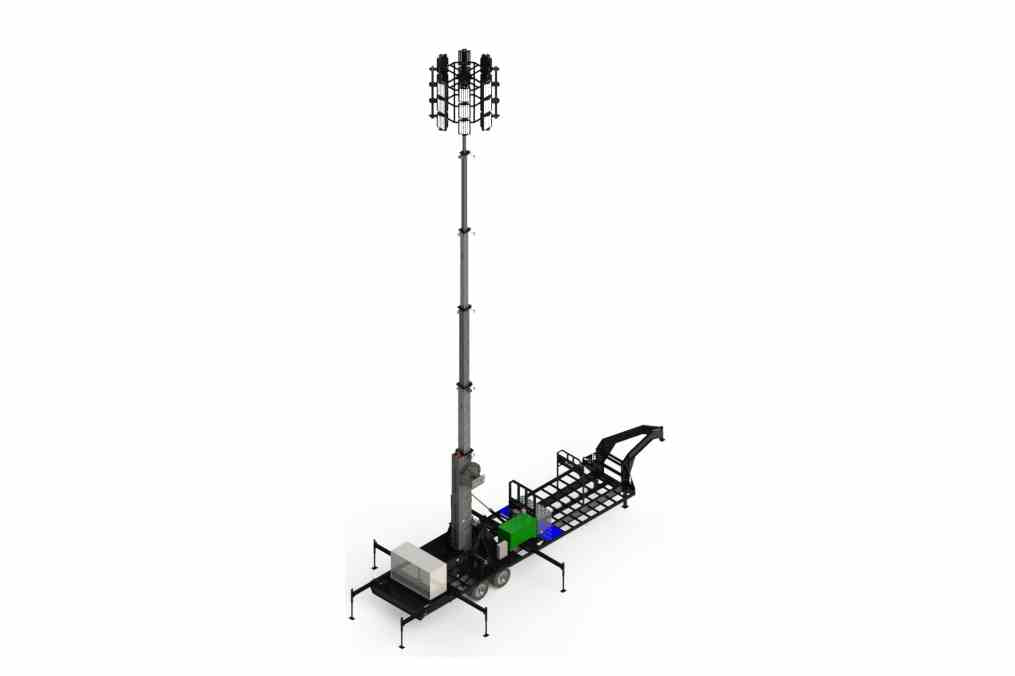

• Mast Height: Hydraulic aluminum telescoping mast extends from 22 to 85 feet, reaching 94 feet with the 9-foot light head assembly
• Construction and Durability: Powder-coated aluminum mast with heat sinks for optimized cooling; IP67-rated LED heads for waterproof and dustproof durability
• Cold Weather Package: Includes de-icing system, heated hydraulic lines, battery blanket, and insulated control box for operation in temperatures down to -65°C

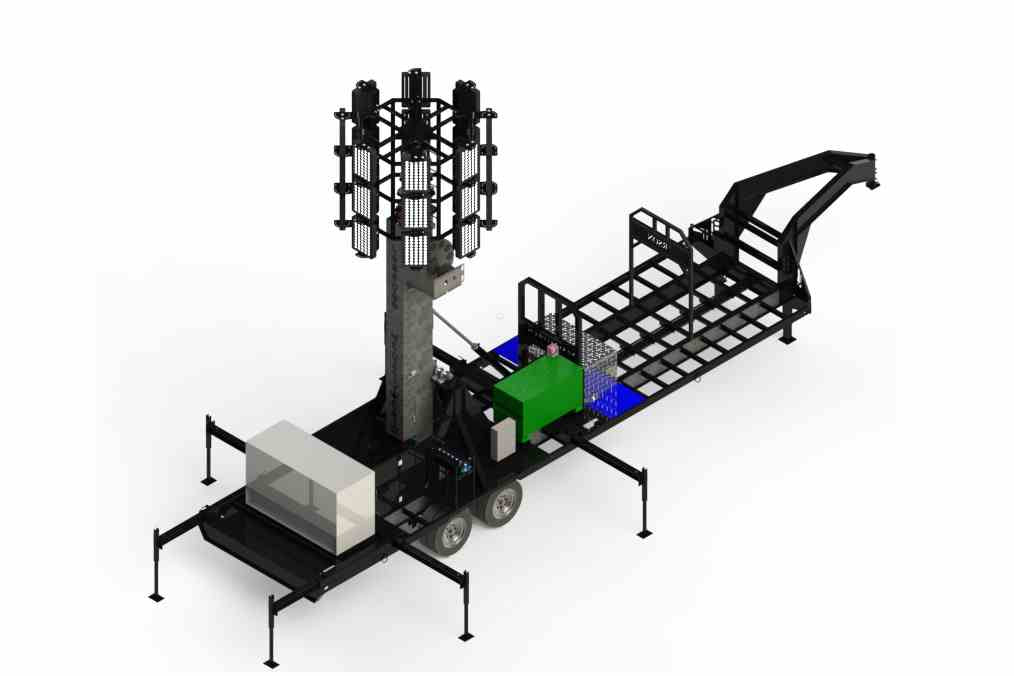

• Trailer and Transport: Mounted on a robust 28-foot steel trailer with 7,000 lbs torsion axles, electric brakes, and heavy-duty safety chains for secure towing

Detailed Specifications

• Lighting Configuration:

  • Lamp Type: CREE LED, 10,000W total output
  • Color Temperature: 5000K
  • Efficiency: 130 lumens per watt, with 70% lumen retention after 80,000 hours

• Mast Operation:

  • Telescoping Range: 22 to 85 feet (94 feet with light head assembly)
  • Boom Control: Hydraulic elevation and extension with push-button control

• Trailer Specifications:

  • Dimensions: 28 feet long by 8 feet wide
  • Suspension: 7,000 lbs torsion axles with P235/80R16 tires
  • Outriggers: 6-point, retractable I-beam outriggers for stability against winds up to 125 mph when lowered

Durability and Heat Management

Designed for heavy-duty environments, the LED heads are equipped with advanced heat sinks to ensure efficient passive cooling, reducing the risk of premature failure or color shifting. IP67-rated waterproof construction provides resilience against dust, dirt, and moisture, making this light tower suitable for rugged job sites and outdoor conditions.

Environmental Benefits

LED technology offers immediate full illumination without warm-up time, reduced heat output, and is fully recyclable. The LEDs' solid-state construction avoids the hazards of traditional bulbs, such as accidental burns or harmful gases, enhancing both safety and environmental impact.

Applications

This lighting system is ideal for large outdoor projects, temporary construction lighting, emergency response setups, industrial job sites, and any scenario needing an extensive, reliable lighting solution.

Quick Summary

• Adjustable Light Heads: 20 independent LED heads for precise positioning and uniform illumination
• Cold Weather Ready: Factory-installed cold weather package with rated hydraulic fluid, de-icing features, and battery heater
• Long Lifespan: 98% transmission high purity PMMA optics with multiple LED banks for heat dispersion
• Breakers and Controls: Individual breakers per lamp head for energy efficiency and control

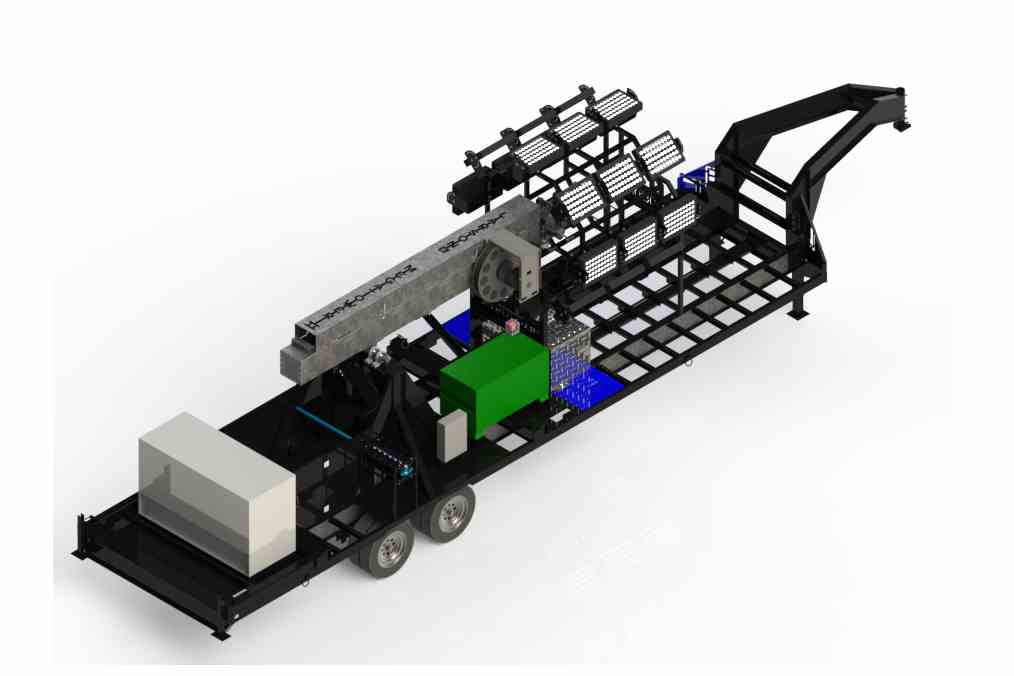

• Towing and Transport: Stowable under 13 feet for easy transport on a standard 28-foot steel trailer with durable industrial-grade paint
