Larson Electronics Dual Station EV Charger - 240V, 1-phase - Level 2 Charger, (2) Ports - Pedestal Mount/Outdoor Rated

Larson Electronics Dual Station EV Charger - 240V, 1-phase - Level 2 Charger, (2) Ports - Pedestal Mount/Outdoor Rated

Regular price $21,904.56
Regular price Sale price $21,904.56
Sale Sold out
Customizable
Fast
24/7 Support
  • Dual Port Charging: Offers two 7.2kW Level 2 charging ports with 240V AC for efficient EV charging.
  • User-Friendly LCD Screen: 5.7" color touchscreen with real-time updates, UV-protected for durability.
  • Flexible Payment Options: Compatible with ChargePoint app and card payments for convenience.
  • Reliable Connectivity: Equipped with LTE modem and 2.4 GHz Wi-Fi for remote access and monitoring.
  • Weather Resistant: Type 3R enclosure allows for reliable indoor and outdoor use in diverse conditions.
View full details

Products Description

Larson Electronics Dual Station EV Charger - 240V, 1-phase - Level 2 Charger, (2) Ports - Pedestal Mount/Outdoor Rated

DESCRIPTION

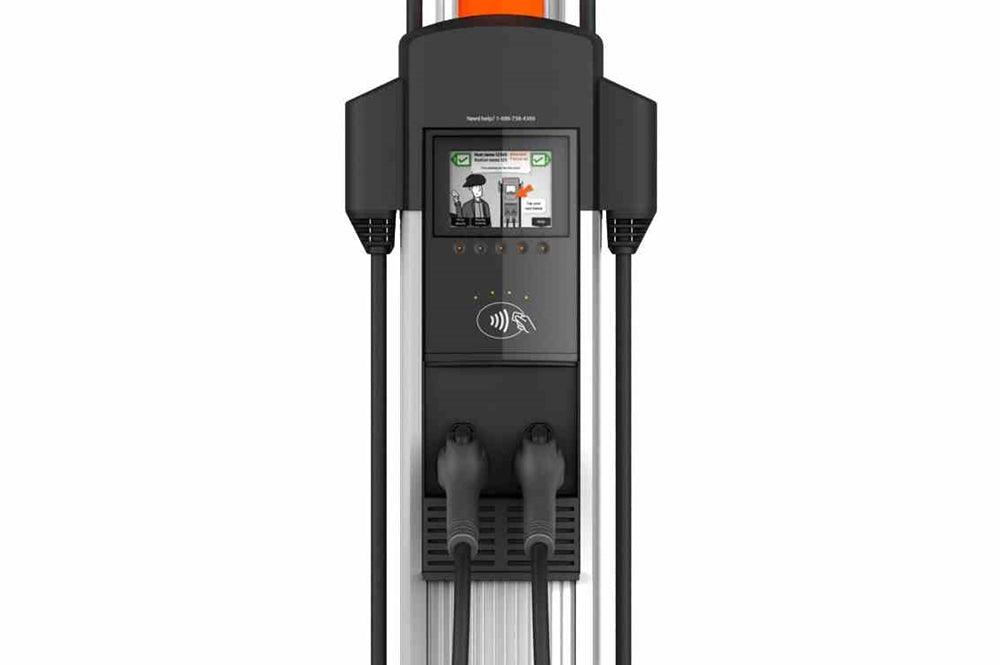

The Larson Electronics EV-CHS-GT-WR-1P-240V-7.2KW-2X-M1 is a commercial-grade dual-port EV charging station ideal for commercial locations, parking lots, and EV charging hubs. Equipped with two 7.2kW Level 2 charging ports, this station provides efficient, simultaneous charging for two electric vehicles via SAE J1772 connectors. Designed with a 5.7" LCD touchscreen, the station allows users to view updates and charging instructions, while property owners benefit from cloud-based management and 24/7 monitoring capabilities.

This charging station’s pedestal base simplifies installation and requires no additional stand, making it adaptable to various locations. The station includes a secure payment system via the ChargePoint app or card, with real-time management for seamless operation and reporting. Integrated safety features include surge protection, ground fault detection, and plug-out detection per SAE J1772 standards, ensuring safe and reliable charging sessions.

Key Features

  • High Power Output: 7.2kW per port for efficient Level 2 charging (240V AC at 30A per port).

  • Real-Time Monitoring: 24/7 cloud-based platform for remote management and monitoring.

  • Flexible Connectivity: Integrated LTE modem with Wi-Fi support (2.4 GHz) for network access.

  • User-Friendly Payment Options: Accepts payments via ChargePoint app or card for convenient transactions.

  • Durable Construction: Type 3R weather-resistant enclosure suitable for indoor and outdoor settings.

  • Safety-Certified Design: Equipped with surge protection, ground fault monitoring, and open safety ground detection for safe operation.

Detailed Specifications

Specification

Details

Voltage

240V AC, 1-phase

Maximum Output

7.2kW per port

Amps

30A @ 240V AC x 2

Charging Level

Level 2

Screen

5.7" Color LCD, UV Protected

Payment Methods

ChargePoint app and card

Surge Protection

6kV @ 3,000A

Connector Type

(2) SAE J1772

Operating Temp Range

-40°C to 50°C

Mounting

Pedestal Base

Suggested Applications

  • EV charging stations in commercial sites and parking lots.

  • Multi-user charging hubs in urban areas and retail locations.

  • Fleet charging in corporate, industrial, or transportation hubs

Package Includes

  • EV-CHS-GT-WR-1P-240V-7.2KW-2X-M1 Dual Port EV Charging Station

  • Pedestal mount for secure installation.

Important Notes

Images are for illustrative purposes; actual configuration may vary.
