Larson Electronics MegaTower 50' Pneumatic Megatower™ - 21 Foot Trailer - Extends 22-58 Feet - (16) 480 Watt LED Lights
Description

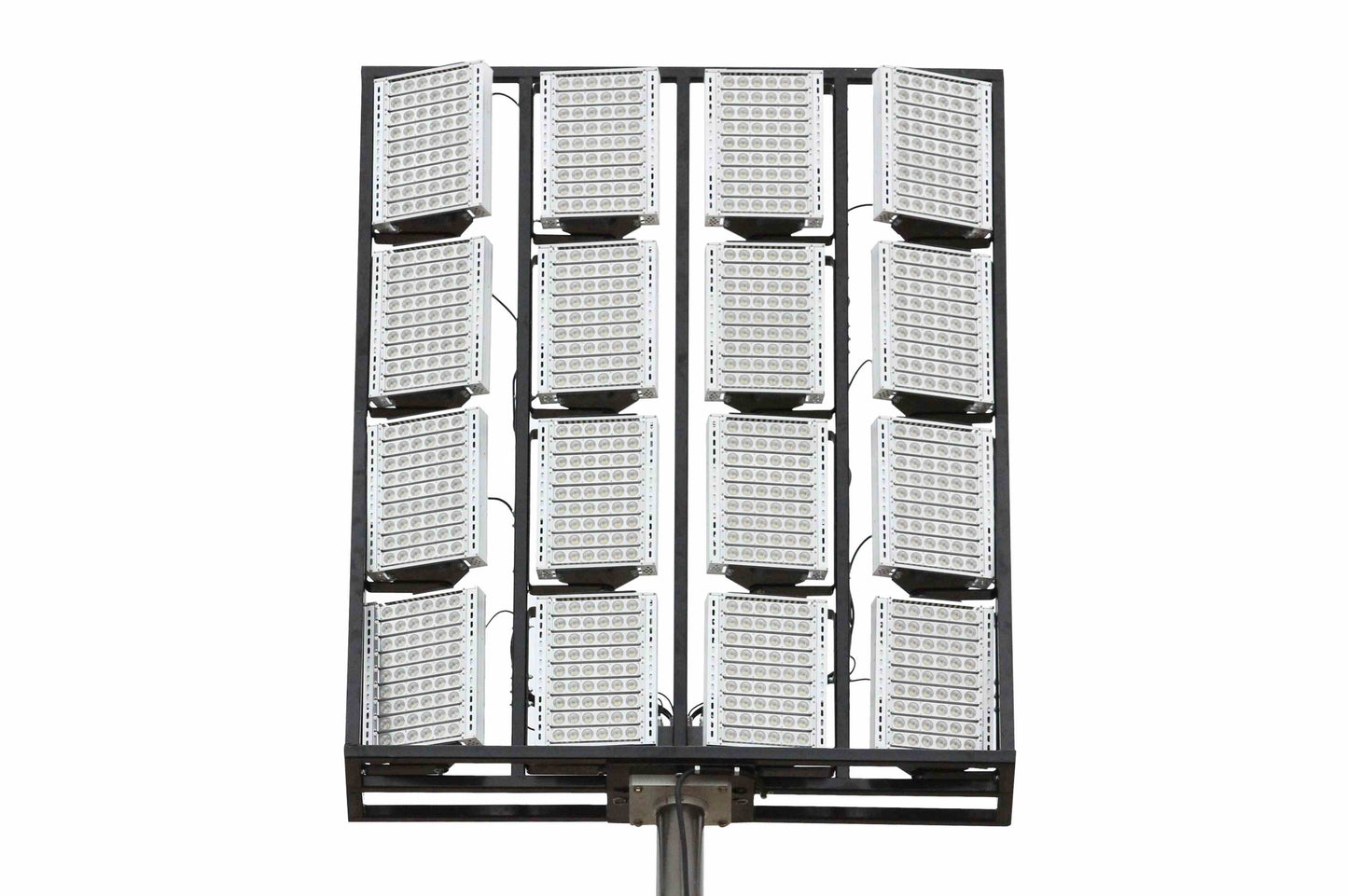

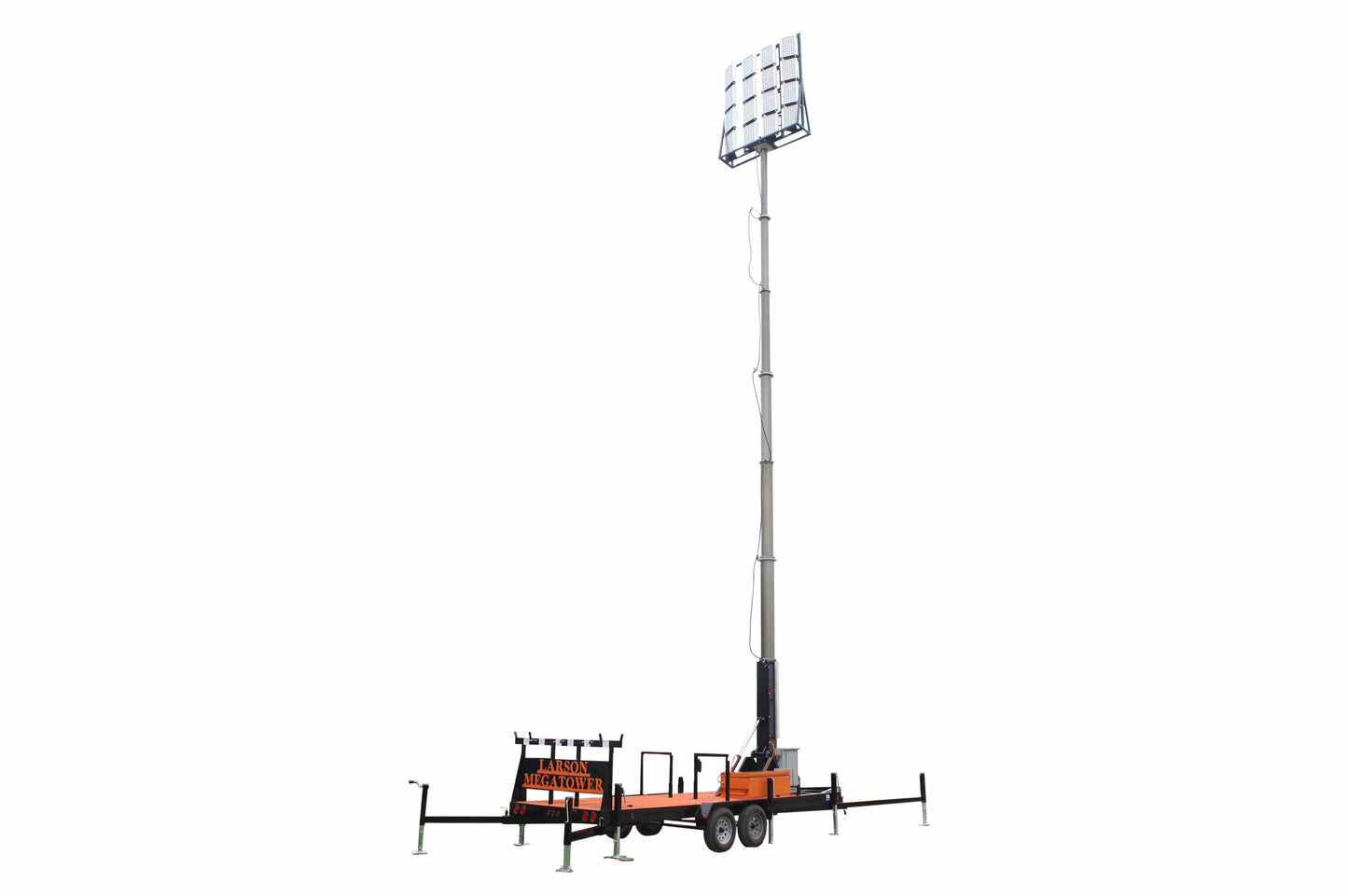

The LM-50-5S-TLR-16X400LTL-LED Megatower™ by Larson Electronics is a seven-stage telescoping light tower designed for reliable, high-intensity LED illumination over large areas. This Megatower™ reaches up to 58 feet in height for maximum coverage, and can retract to 22 feet when a compact profile is needed. It features sixteen 500-watt LED light heads producing up to 1,036,800 lumens of light, mounted on a stable, powder-coated aluminum mast head with a hydraulic lift system.
Key Features
- Lumens: 1,036,800 lumens (64,800 lumens per light head)
- Wattage: 7,680 watts total (480 watts per head)
- LED Configuration: CREE™ high-output LEDs with a choice of beam spreads from 10° spot to 90° flood for adaptable illumination
- Durability: IP67-rated for waterproof, dustproof, and rugged use; temperature resistant from -40°C to +80°C
- Heat Management: Individual heat sinks on each LED cluster to maintain brightness and reduce heat
- LED Lifespan: Over 80,000 hours with 70% lumen maintenance
Construction and Operation
- Mast Material: Heat-treated 6063B/T5 aluminum with powder coating

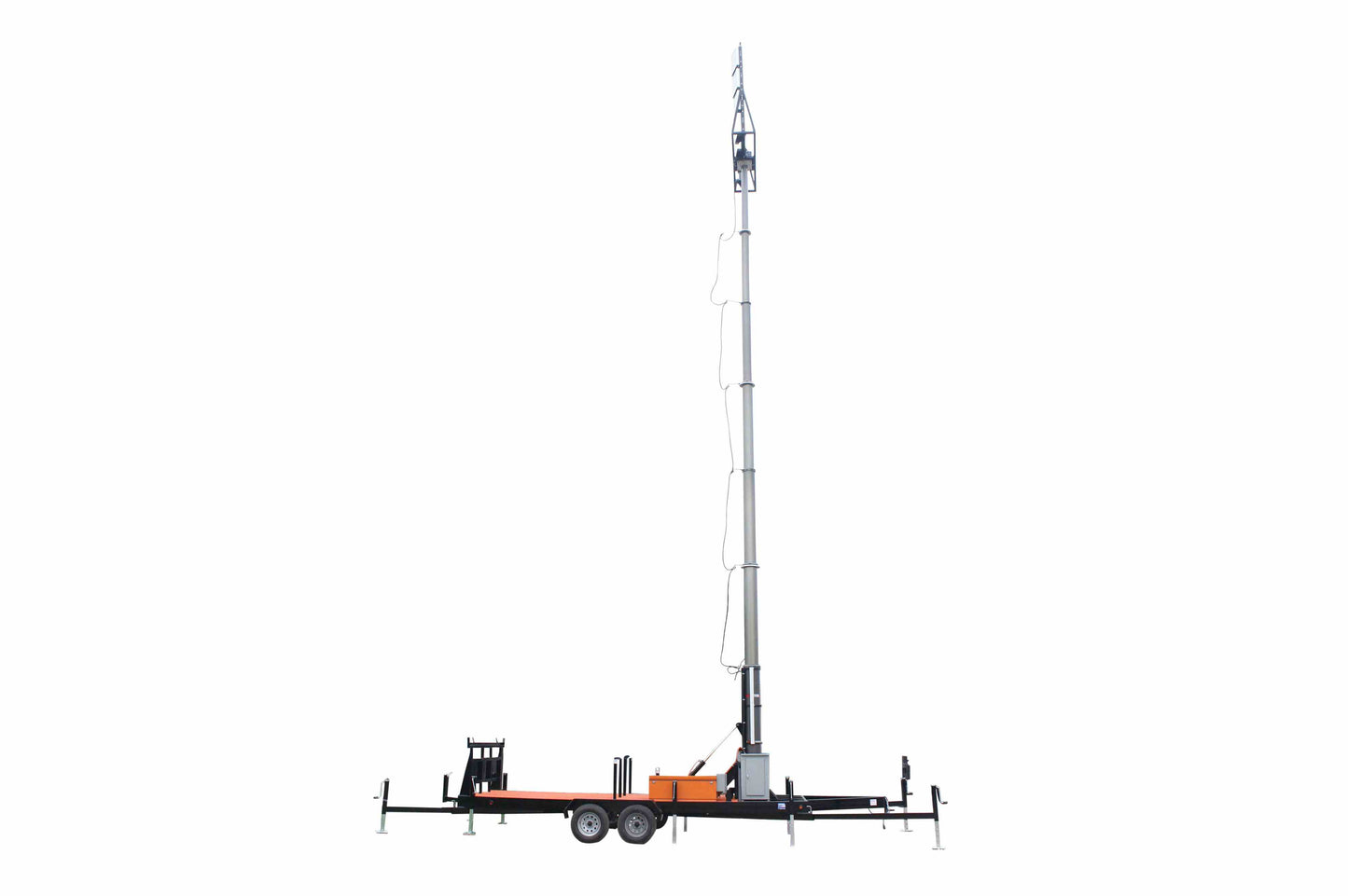

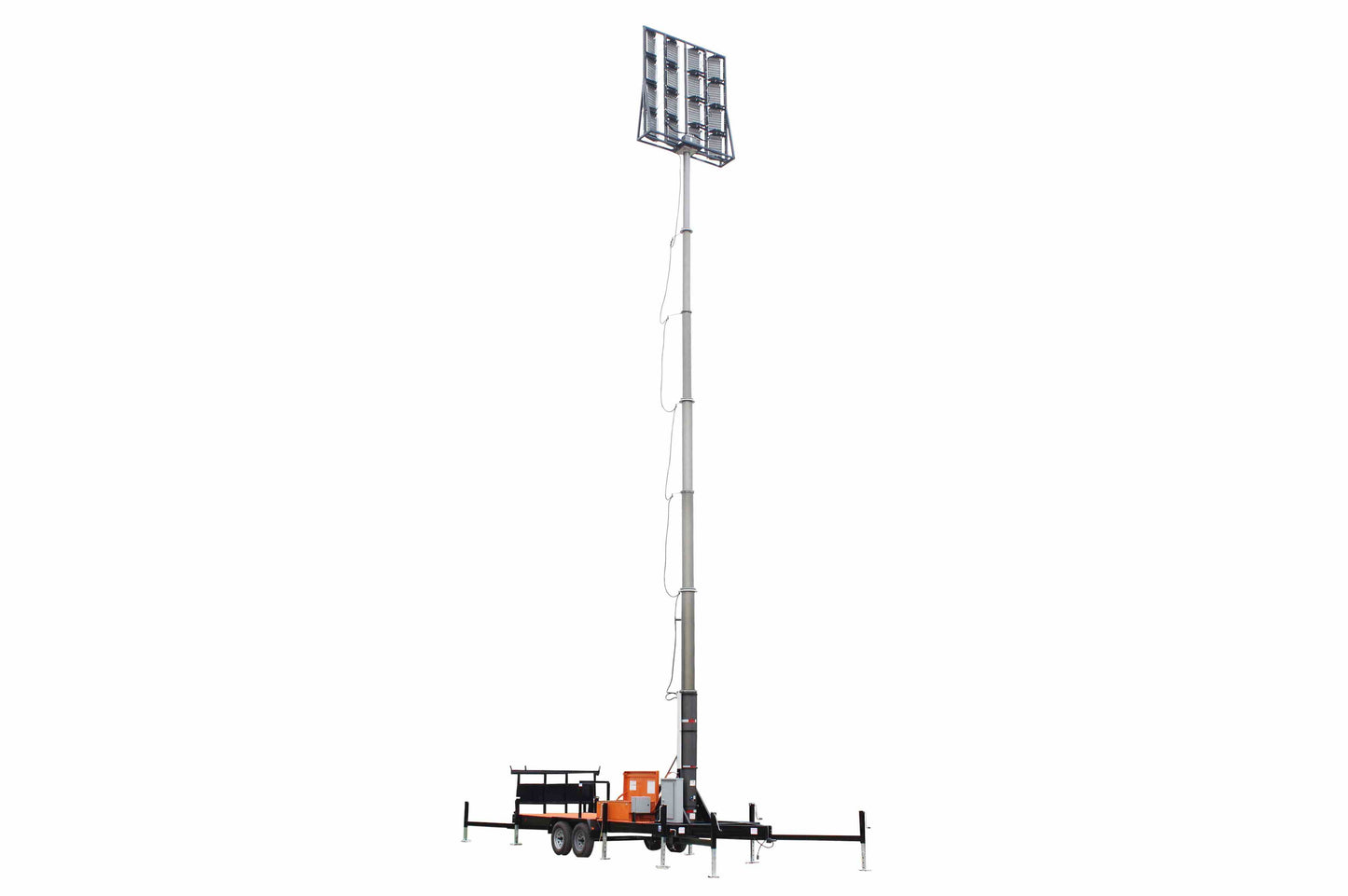

- Height: Adjustable from 22 to 58 feet, with a hydraulic ram and pneumatic air compressor system for deployment
- Stability: Rated to withstand up to 125 mph winds (fully retracted) or 95 mph (lowered to 22 feet)
Trailer and Stability

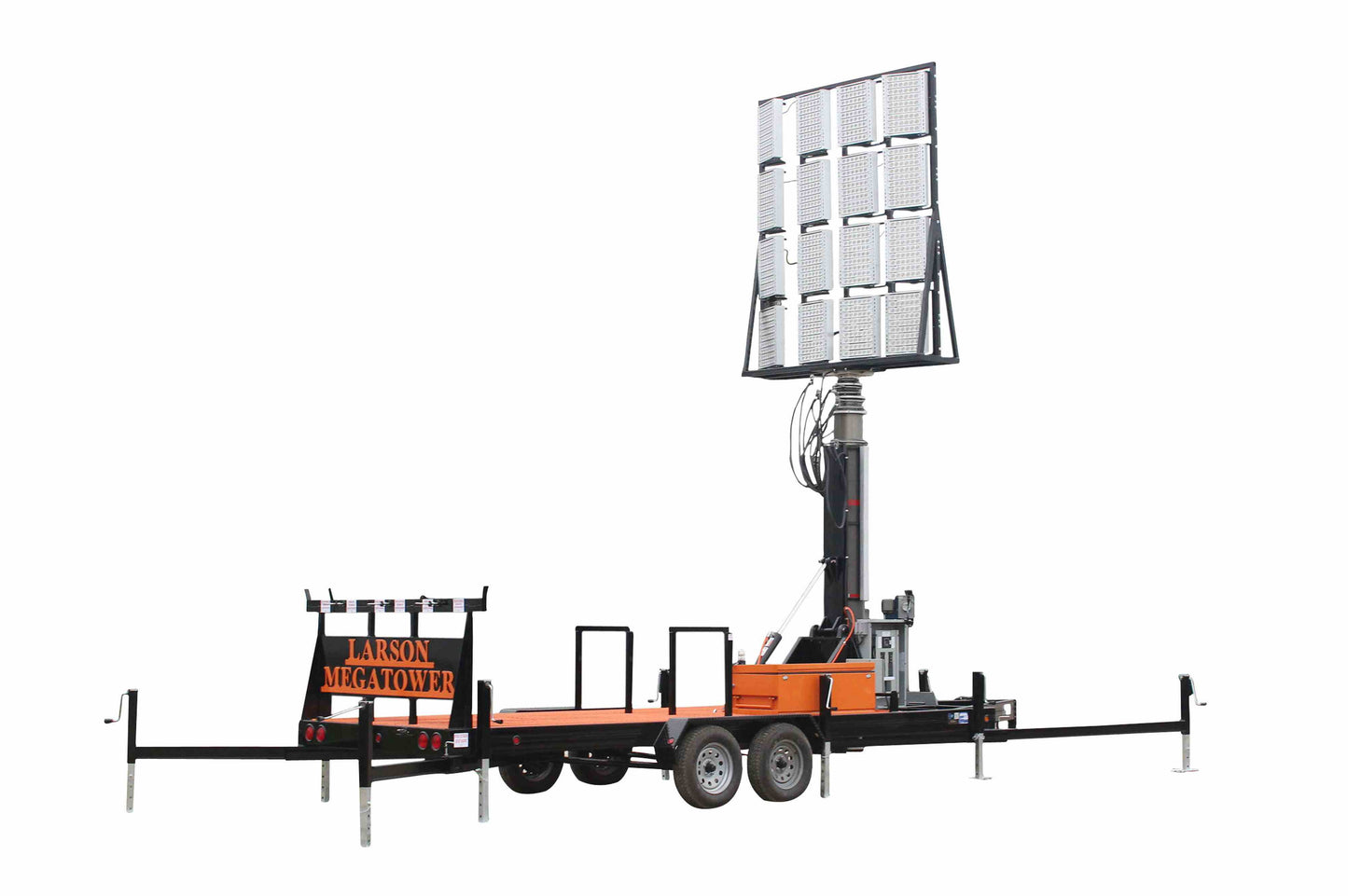

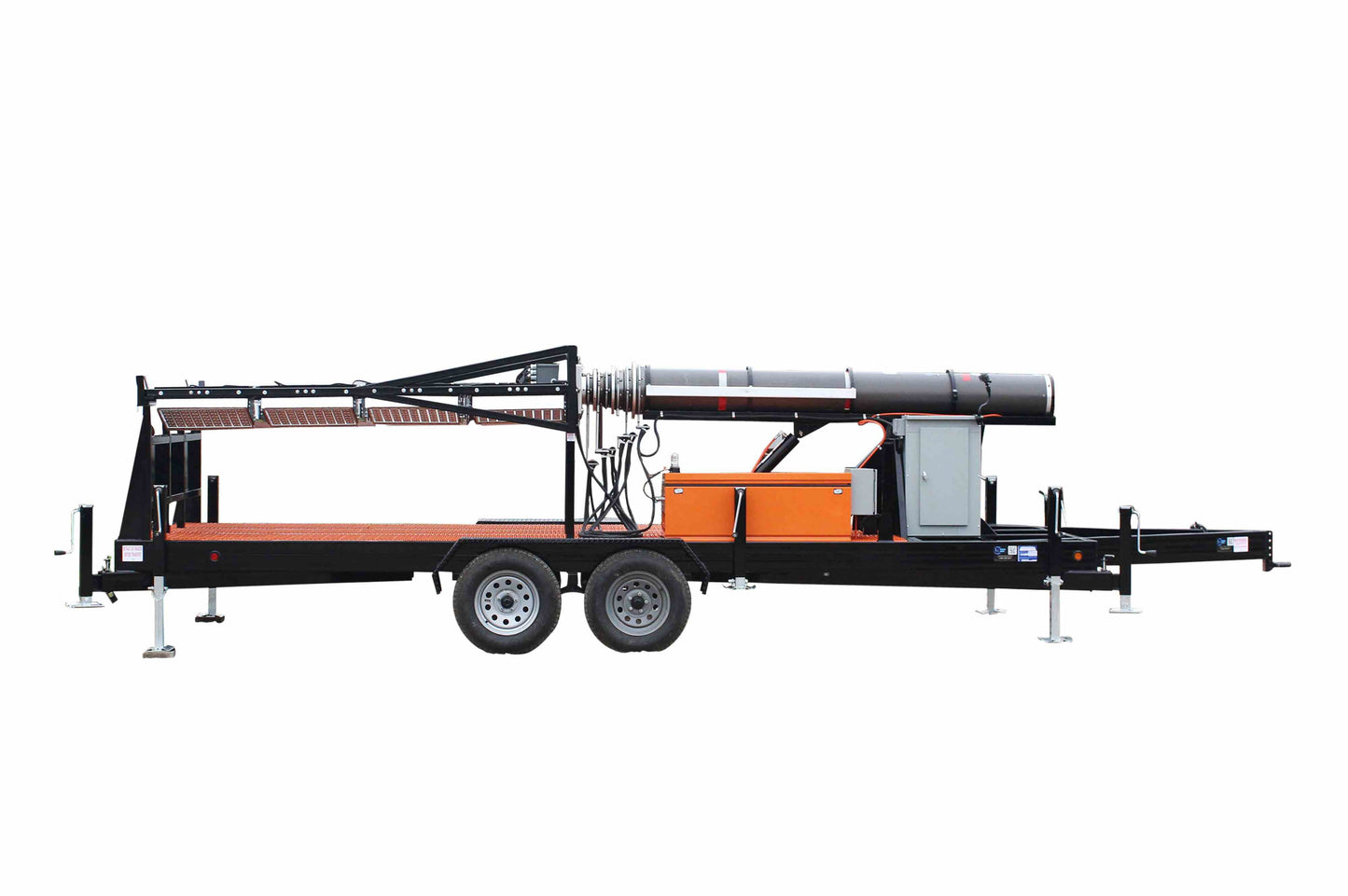

- Dimensions: 21 feet long by 7 feet wide trailer bed, expanding to a 34’ x 12’ footprint with outriggers extended
- Outriggers: Four 6-foot I-beams with leveling jacks, each rated at 7,000 lbs
- Trailer Construction: 8-inch steel box frame finished with industrial-grade Dupont™ paint for rust and corrosion protection
- Axles: Tandem 7,000 lb axles with electric brakes; P235/80R16 tubeless tires

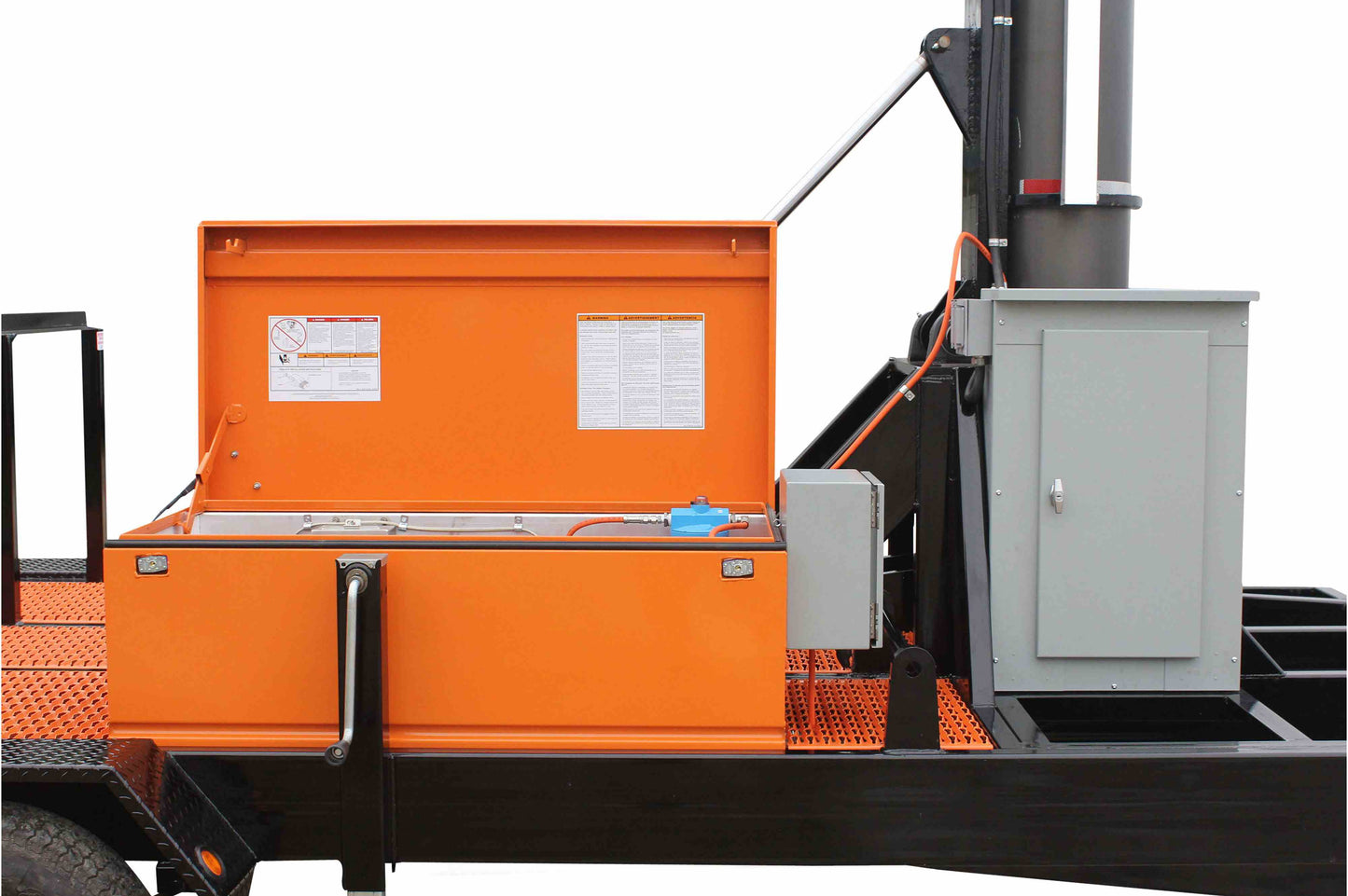

Control System
- Control Box: NEMA 3R breaker panel with individual on/off switches for each LED bank
- Power Input: Compatible with 240/120V or 208/120V, with a 20-foot SOOW power cable

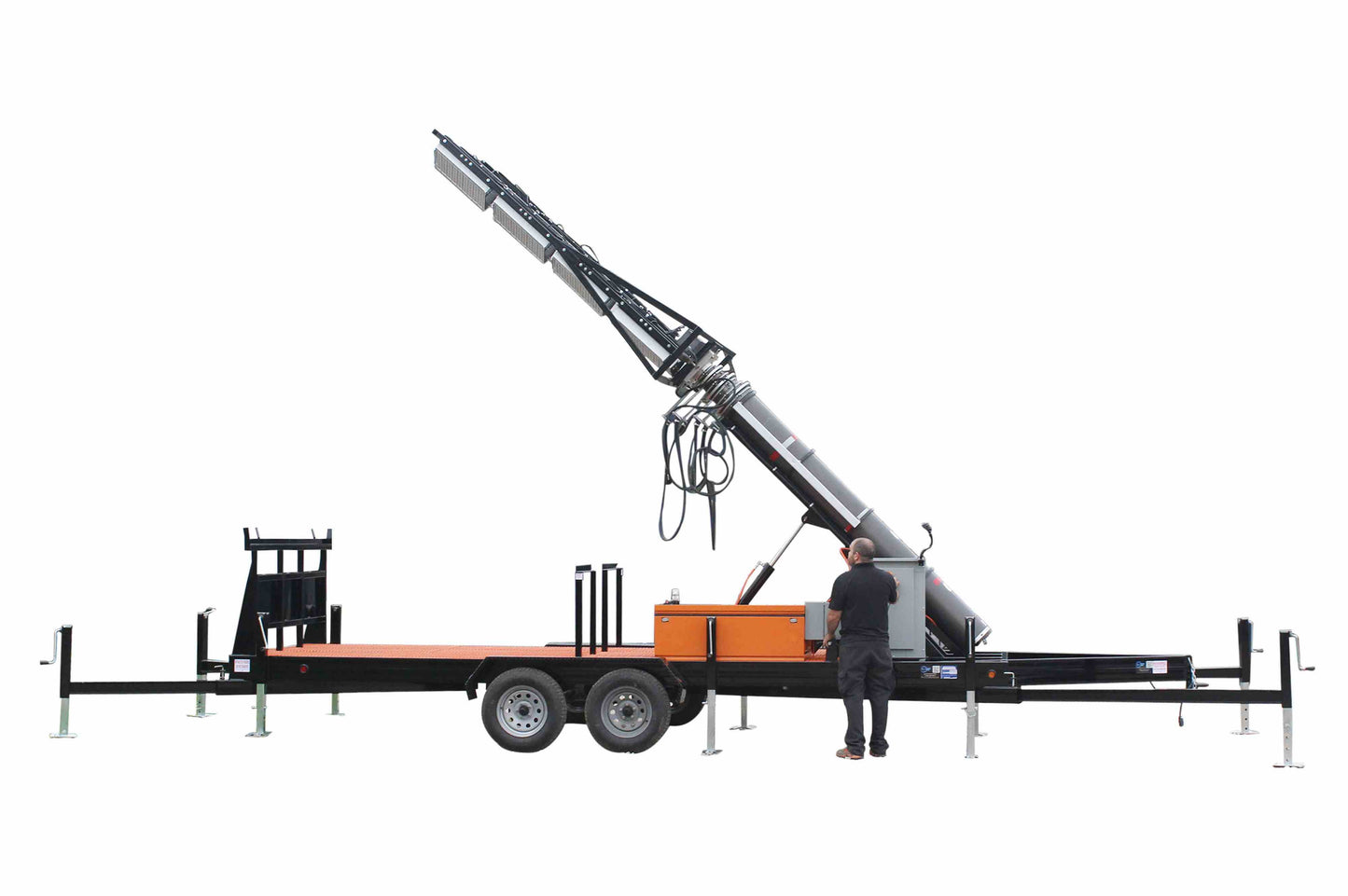

- Hydraulic and Pneumatic Controls: Operated by a push-button switch and up/down lever for smooth vertical extension and retraction
Cold Weather Package

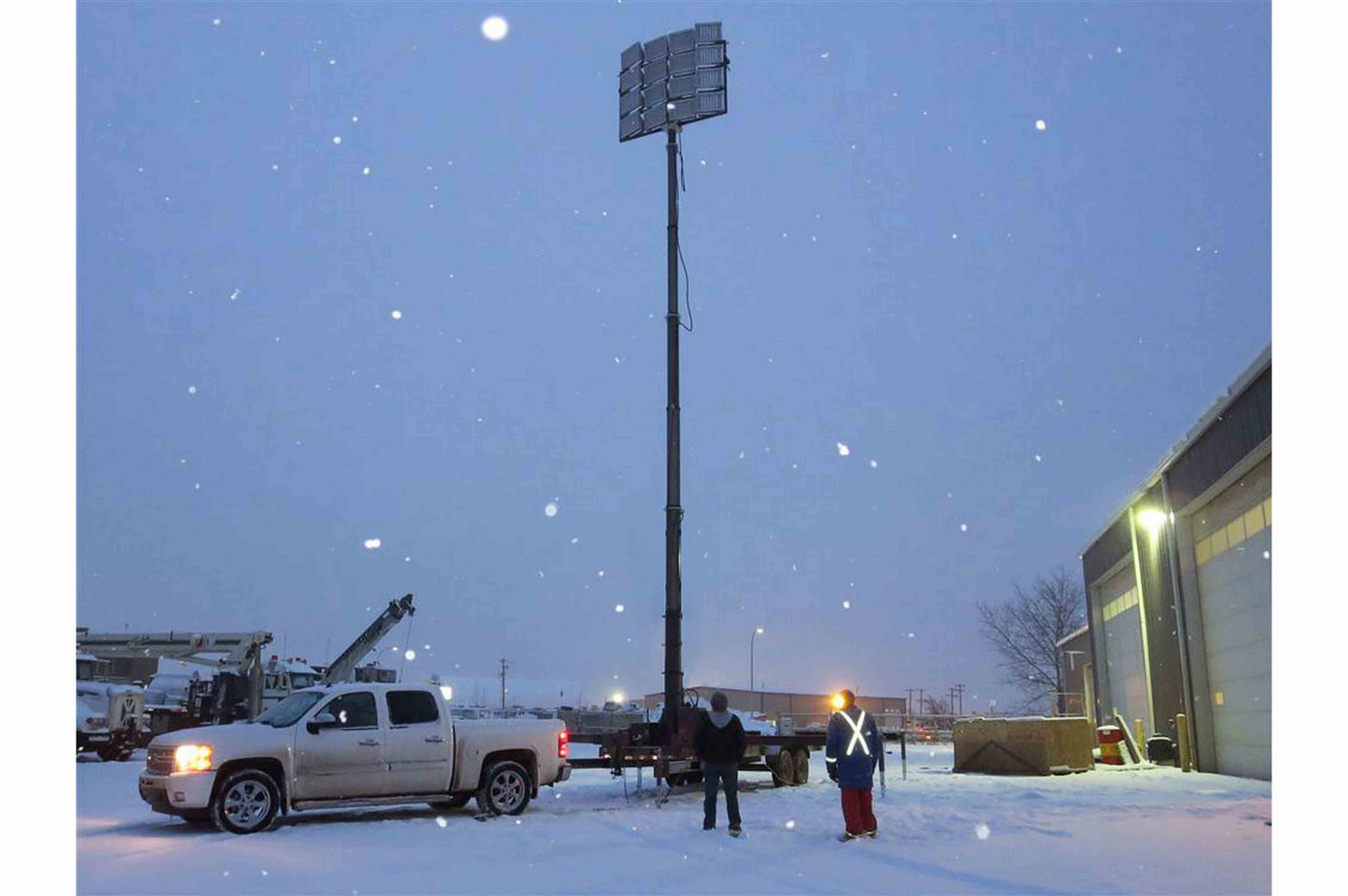

Equipped for extreme cold with a de-icing system, heated pneumatic and hydraulic controls, and insulated battery and compressor housing, this Megatower™ operates reliably in temperatures as low as -65°C.
Applications

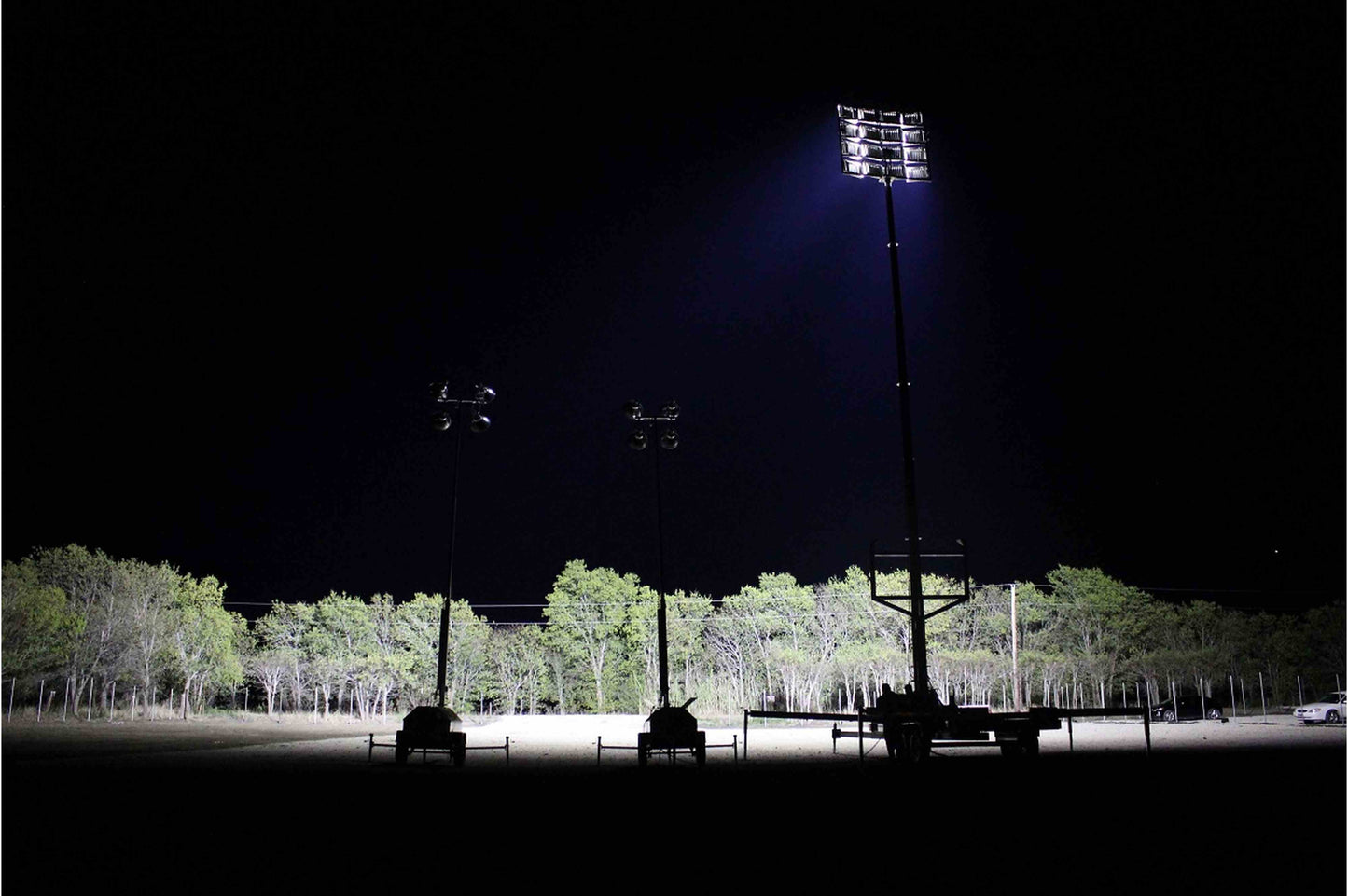

Ideal for construction sites, security lighting, and emergency response, this Megatower™ is versatile for temporary and large-area lighting needs.
Detailed Specifications
| Feature | Details |
|---|---|
| Tower Height | 22 feet (retracted) to 58 feet (extended) |
| Light Heads | 16 x 480-watt CREE™ LED fixtures |
| Beam Angle Options | 10°, 25°, 38°, 60°, and 90° |
| Trailer Dimensions | 21’ x 7’ (extends to 34’ x 12’) |
| Voltage | 240/120V or 208/120V AC |
| Temperature Range | -40°C to +80°C (extreme cold capability to -65°C) |
| Wind Rating | Up to 125 mph (retracted) |
| Weight Rating | 7,000 lbs per axle, 7,000 lb tongue weight |
| Outriggers | 4 x 6’ x 6” x 6” I-beams with leveling jacks |
Additional Options
- Customization: Various LED light heads and beam spreads, or retrofit with diesel generators
- Finishes: Powder-coated options for enhanced durability
- Maintenance: Includes a front storage area for tools and accessories
