Larson Electronics MegaTower 50' Pneumatic Megatower™- 21 Foot Trailer - Extends 22-58 Feet - (16) 480 Watt LED Lights

Product Description

Larson Electronics MegaTower 50' Pneumatic Megatower™- 21 Foot Trailer - Extends 22-58 Feet - (16) 480 Watt LED Lights

Description

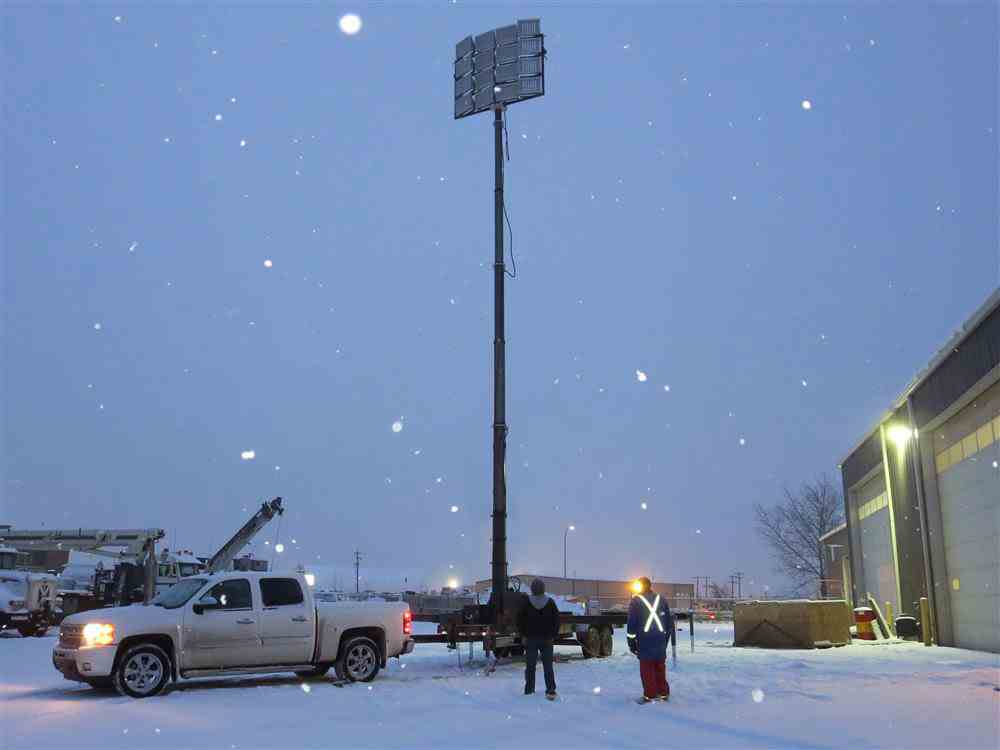

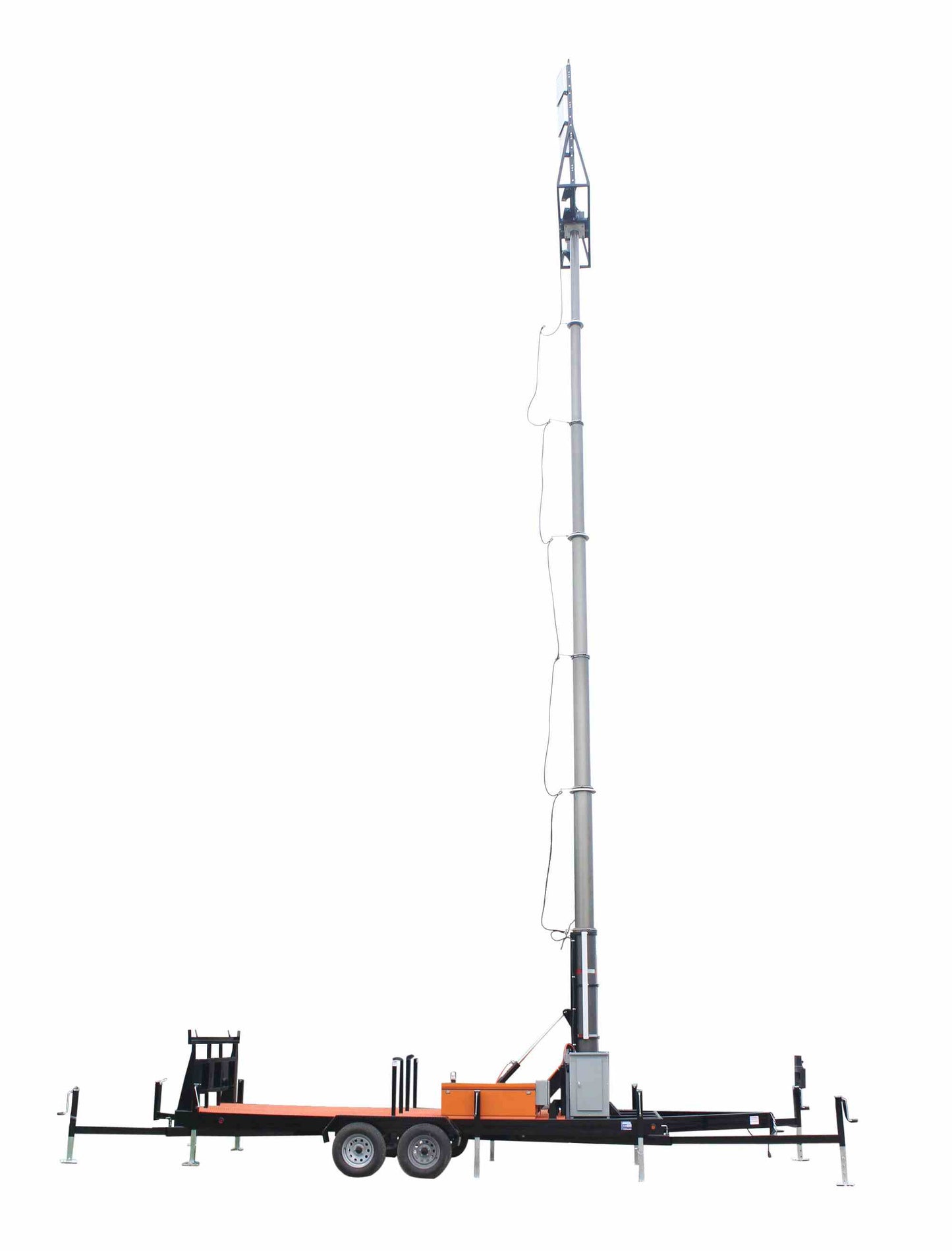

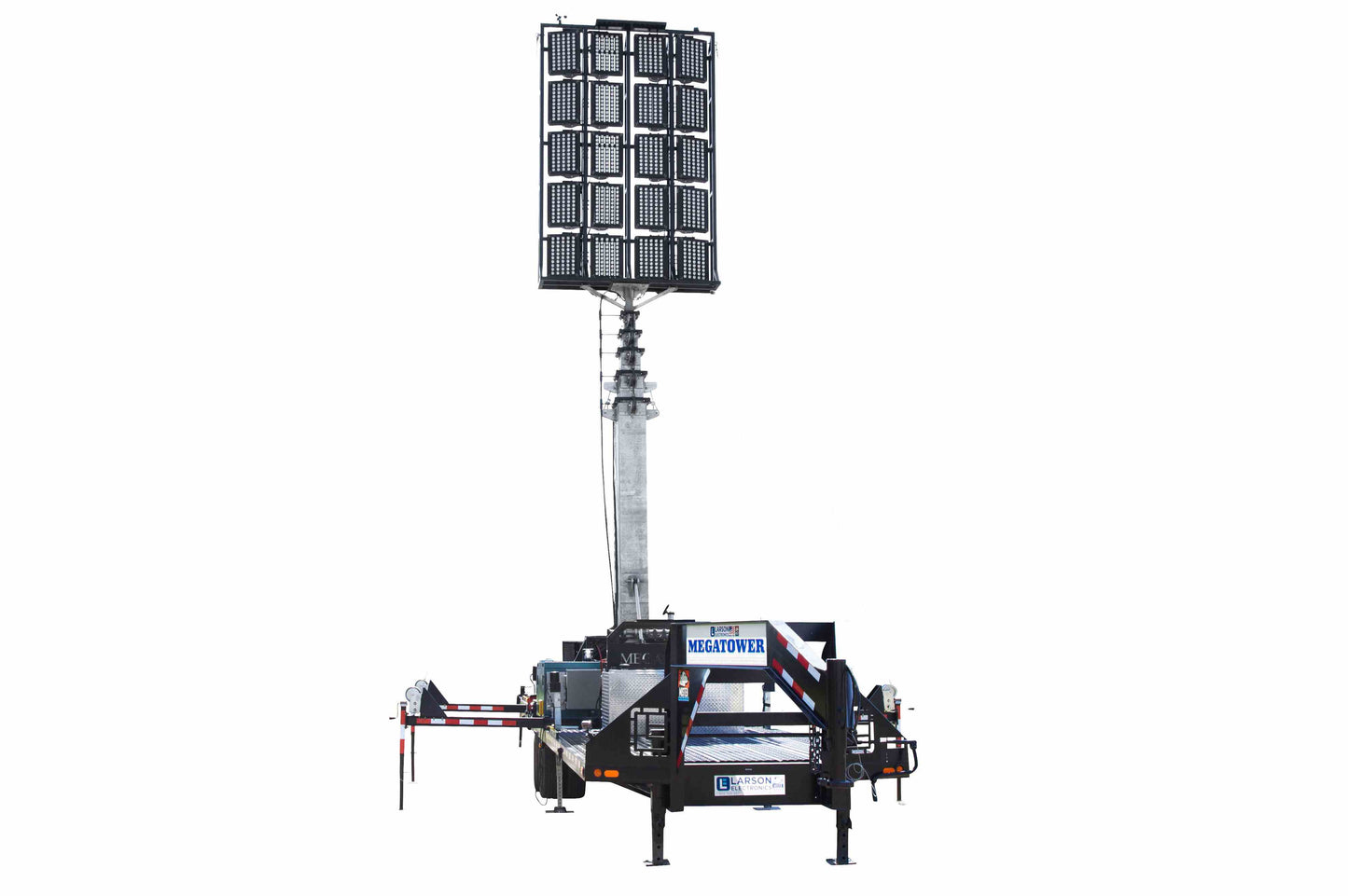

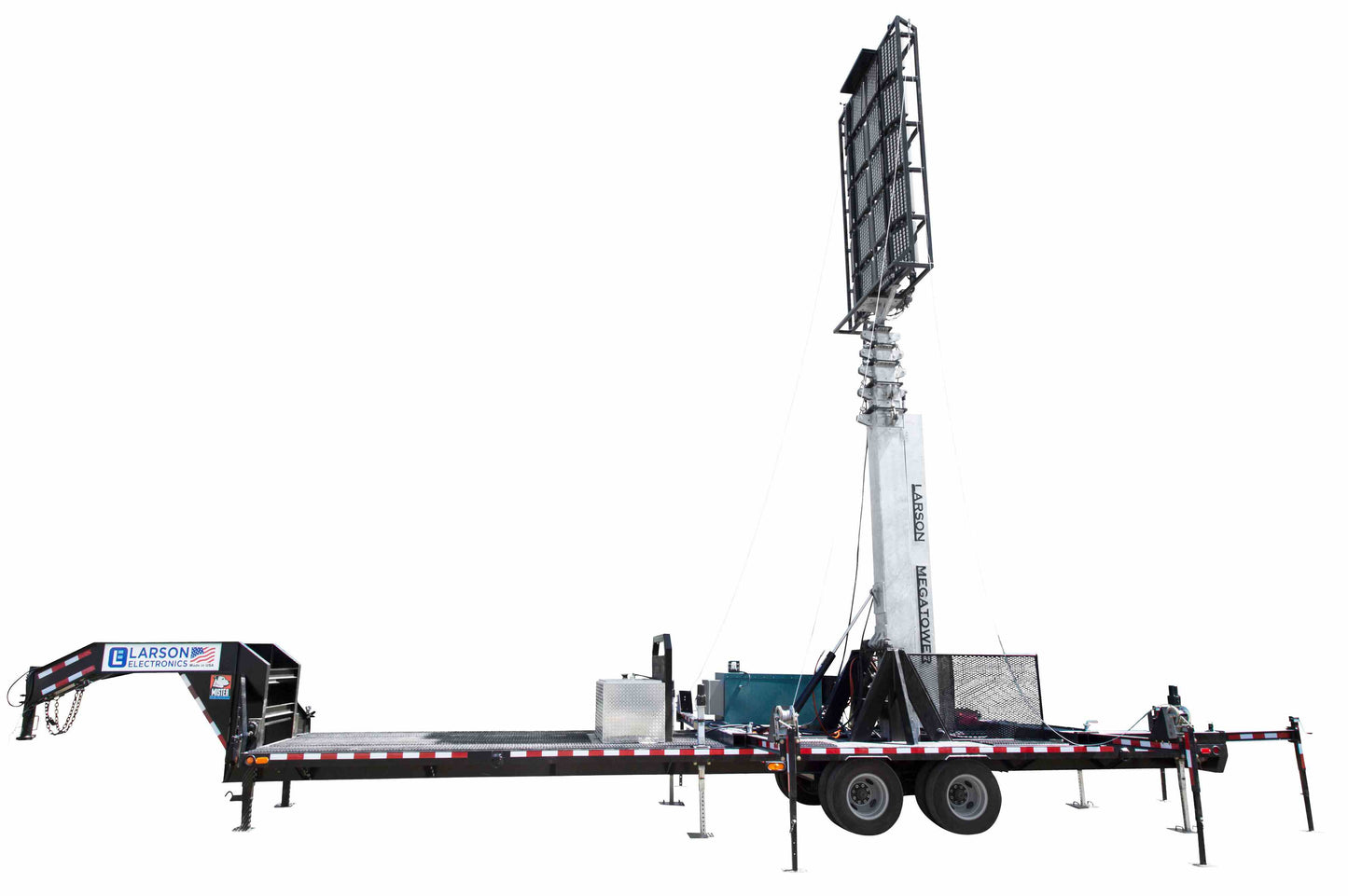

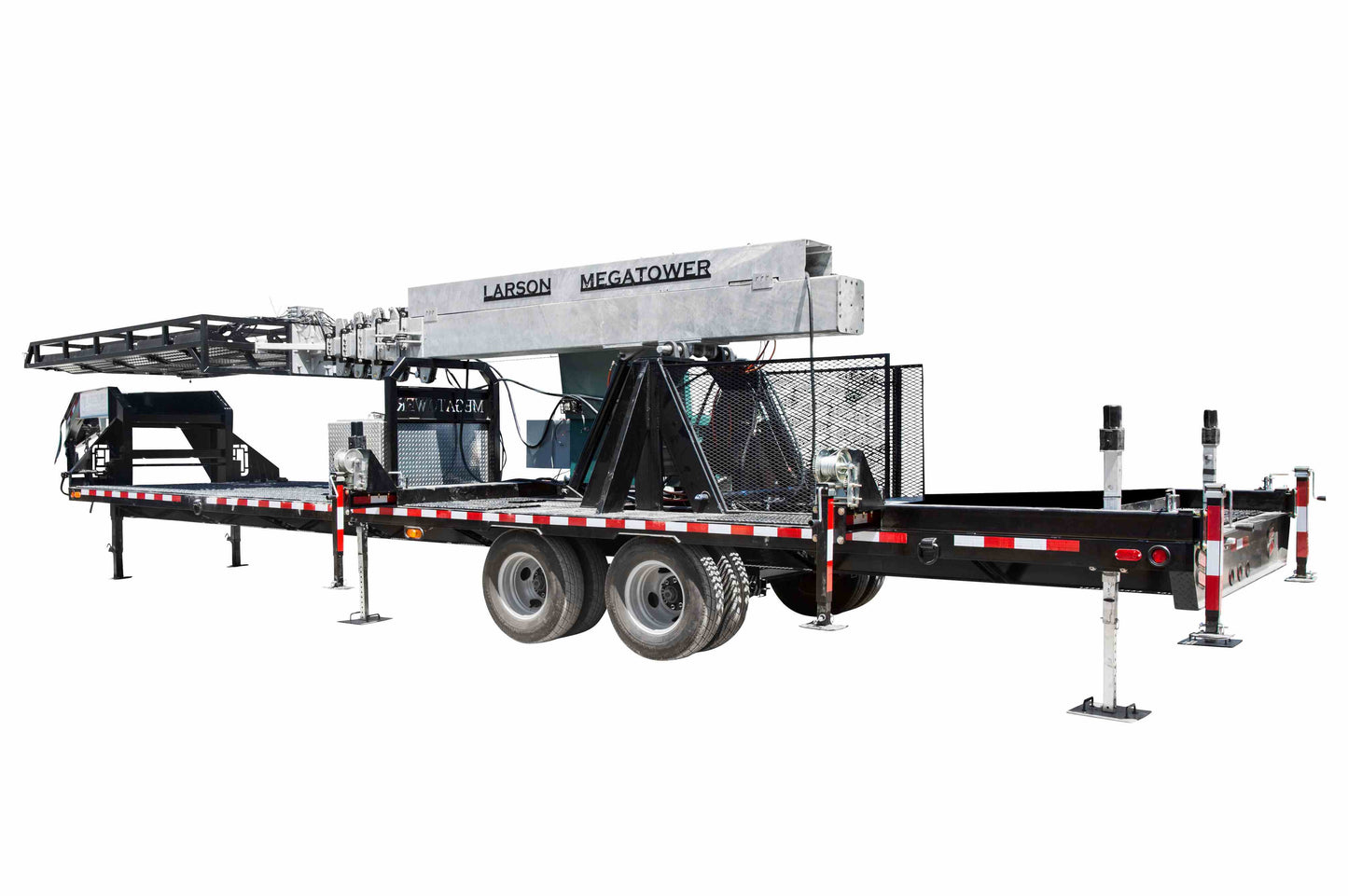

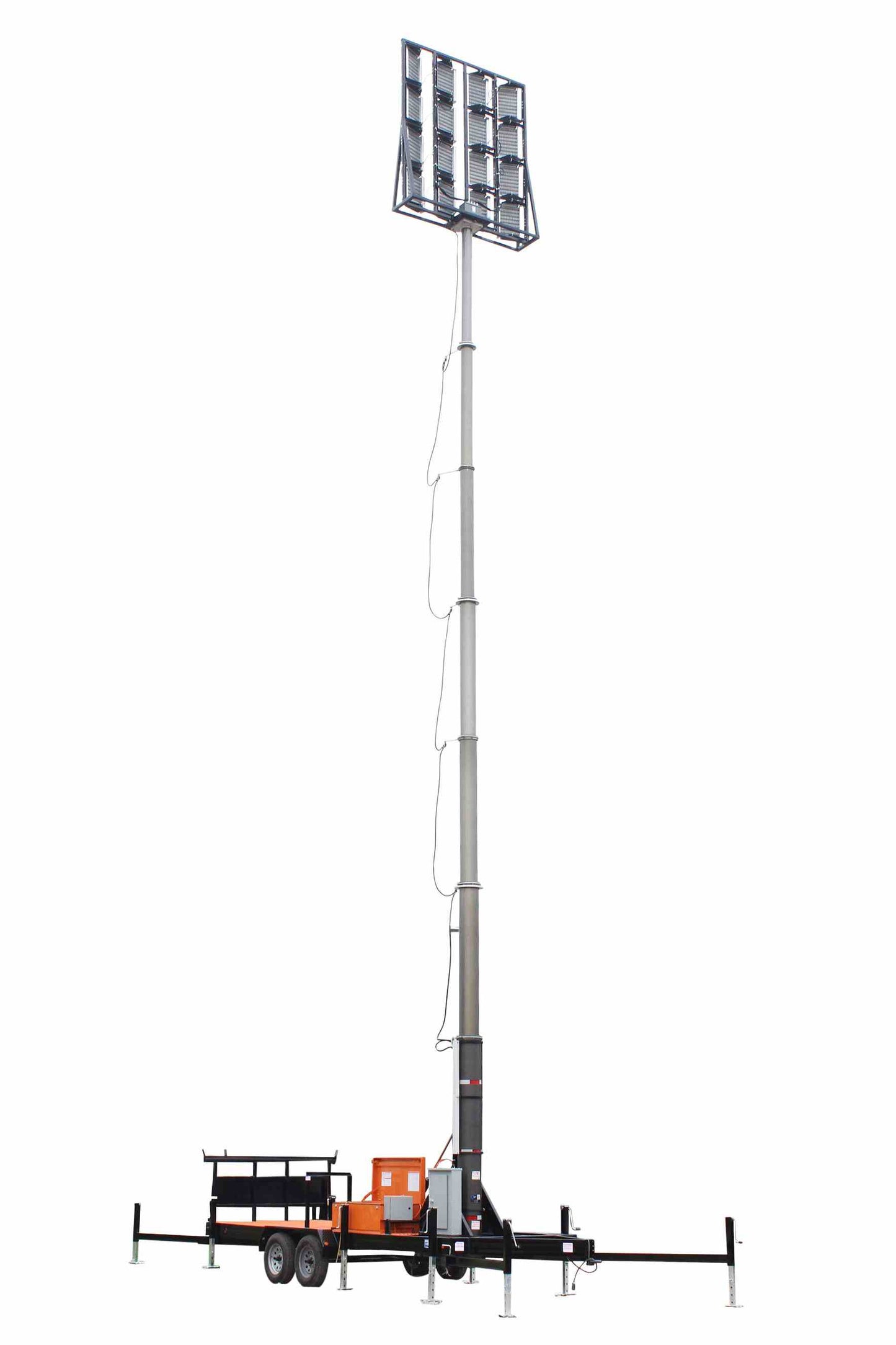

The Larson Electronics LM-50-5S-TLR-16X320WSA-LED Trailer Mounted Megatower™ is engineered for high-intensity lighting needs in expansive and demanding environments. This portable, seven-stage pneumatic light mast extends up to 58 feet, producing a massive 1,036,800 lumens from sixteen 480-watt CREE LED light heads, designed for optimal energy efficiency and reliability. Constructed with heat-treated aluminum and steel, it is built to perform in rugged conditions and equipped with a cold-weather package, making it suitable for extreme climates.

Key Features

• Extendable Pneumatic Mast: Expands from 22 feet to 58 feet, allowing flexible deployment for area coverage and compact footprint options.
• High-Output LED Lighting: Sixteen 480-watt LEDs produce up to 1,036,800 lumens, with options for flood or spot beam configurations for tailored illumination.
• Robust Build and Stability: Made from heat-treated 6063B/T5 aluminum with powder coating, with IP67-rated light heads and a 4-point retractable outrigger system for stability against winds up to 125 mph.
• Cold Weather Preparedness: Features a de-icing system, hydraulic hoses rated to -65°C, insulated battery enclosures, and a heated air compressor, ensuring functionality in sub-zero conditions.
• Easy Deployment: Operator-friendly controls for mast elevation and lighting adjustments, grouped light banks, and NEMA 3R breaker box for seamless operation.
• Trailer Compatibility: Mounted on a sturdy tandem-axle trailer with electric brakes, a front storage compartment, and pintle hitch for easy towing.

Detailed Specifications

• Total Lumens: 1,036,800 (64,800 lumens per lamp)
• LED Life Expectancy: 50,000+ hours
• Mast Height: 22’ collapsed to 58’ extended
• Wind Resistance: Up to 125 mph when fully retracted
• Power: 240/120V or 208/120V, SOOW cable rated to -50°C
• Cold Weather Components: Hydraulic fluid, battery blankets, and air compressor with heat trace, rated for -65°C

Applications

Ideal for construction sites, large events, and remote security applications, the LM-50-5S-TLR Megatower™ delivers reliable, high-power lighting with the durability and flexibility to withstand extreme environmental conditions.
