Larson Electronics Portable Electric Vehicle Charging Station - 30A Level 2 Charger, Single Port - 12.5kW Diesel Generator, 10G Fuel Tank

Larson Electronics Portable Electric Vehicle Charging Station - 30A Level 2 Charger, Single Port - 12.5kW Diesel Generator, 10G Fuel Tank

Regular price $55,050.35
Regular price Sale price $55,050.35
Sale Sold out
Customizable
Fast
24/7 Support
  • High-Power Charging: Delivers 7.2 kW with 30A output for fast, Level 2 EV charging.
  • Diesel Generator Powered: 12.5 kW Cummins generator provides reliable, off-grid energy.
  • Extended Runtime: 10-gallon tank supports up to 12 hours of continuous charging.
  • Convenient Cable Management: Includes an 18-foot SAE J1772 cable with a storage bracket.
  • Flexible Timer Settings: Options for delayed charging at 2, 4, 6, and 8 hours for added convenience.
View full details

Product Description

Larson Electronics Portable Electric Vehicle Charging Station - 30A Level 2 Charger, Single Port - 12.5kW Diesel Generator, 10G Fuel Tank

Description

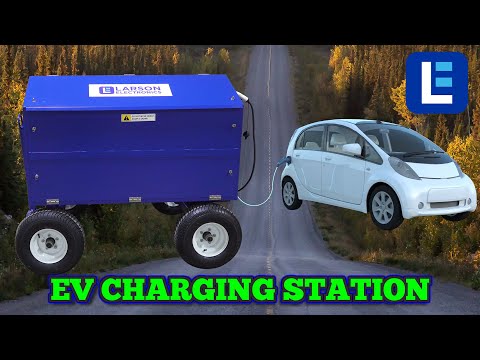

The EV-CHS-PCS.D-1P-240V-M1 Portable Electric Vehicle Charging Station by Larson Electronics is a powerful, diesel-powered solution designed for mobile and off-grid EV charging applications. Equipped with a robust 24.8 HP Cummins engine, this unit provides up to 7.2 kW of Level 2 charging, significantly faster than typical EV charging cables. Capable of running up to 12 hours on a full 10-gallon tank, this station is perfect for roadside assistance, remote locations, temporary setups, and emergency sites where reliable charging is essential.

Designed with user convenience in mind, this station includes a delay timer with preset intervals (2, 4, 6, and 8 hours), as well as a straightforward indicator light system for real-time charging status. The NEMA 3R-rated construction ensures resilience to various environments, making it a durable choice for both indoor and outdoor use.

Key Features

  • Level 2 Fast Charging: Delivers 7.2 kW at 30 amps, enabling charging speeds up to 6x faster than standard EV chargers.
  • Diesel-Powered Flexibility: Operates independently of the grid with a powerful 12.5 kW diesel generator, ideal for remote locations and emergency roadside assistance.
  • Broad Vehicle Compatibility: Compatible with Nissan, Chevrolet, BMW, Ford, Tesla, and other models using SAE J1772 adapters or connectors.
  • Long Runtime and Durable Generator: 24.8 HP Cummins engine with a 10-gallon fuel tank provides up to 12 hours of continuous charging.
  • Weather-Resistant Construction: NEMA 3R-rated for both indoor and outdoor use, ensuring protection against dust and moisture.
  • User-Friendly Timer Settings: Delay timer options (2, 4, 6, and 8 hours) for scheduled charging.
  • Real-Time Charging Status: Indicator lights display charging progress and system status.

Detailed Specifications

Feature Details
Engine Type Cummins, Liquid-cooled 4-cycle, 24.8 HP
Output 7.2 kW at 30 amps (suitable for Level 2 EV charging)
Fuel Consumption 0.7 gal/hr at 50% load1.3 gal/hr at 100% load
Noise Level 70 dB at 10 feet60 dB at 50 feet
Charging Connector SAE J1772, 18-foot cable
Protection Rating NEMA 3R (Robust for indoor and outdoor operation)


Suggested Applications:

This charging station is designed for emergency roadside assistance, remote charging locations, delivery fleet operations, campgrounds, commercial parking areas, ports, apartment complexes, and event venues, offering a versatile charging solution wherever grid power is unavailable.
