LJ-TECH AG ORCHARD SPRAYER ROBOT MODEL S450 & CONTAINER MODULE
DESCRIPTION
The LG-TECH AG Orchard Sprayer Robot S450 is a cutting-edge piece of agricultural technology designed to enhance orchard management. Here are some key features and benefits:
- Labor Cost Reduction: By automating tasks, the S450 reduces the need for manual labor, saving costs on hiring workers.
- Increased Productivity: Continuous operation and multi-tasking capabilities mean more work gets done in less time.
- Improved Efficiency: Autonomous navigation and precision agriculture techniques lead to better management of orchards.
- Enhanced Yield Quality: Precise pruning and weeding contribute to healthier trees and better quality fruit.
Future Prospects:
As technology continues to advance, robots like the S450 are expected to play an increasingly significant role in modern farming practices, further improving efficiency, reducing costs, and boosting productivity.
Container Module
A module for transporting heavy things that must be installed on the autonomous driving platform.
SPECIFICATIONS
Practical Design
-
Powerful Performance:
- Hybrid power with a diesel engine.
- Long endurance and a large spray tank.
-
Versatile:
- Suitable for most orchards with a zero turning radius.
-

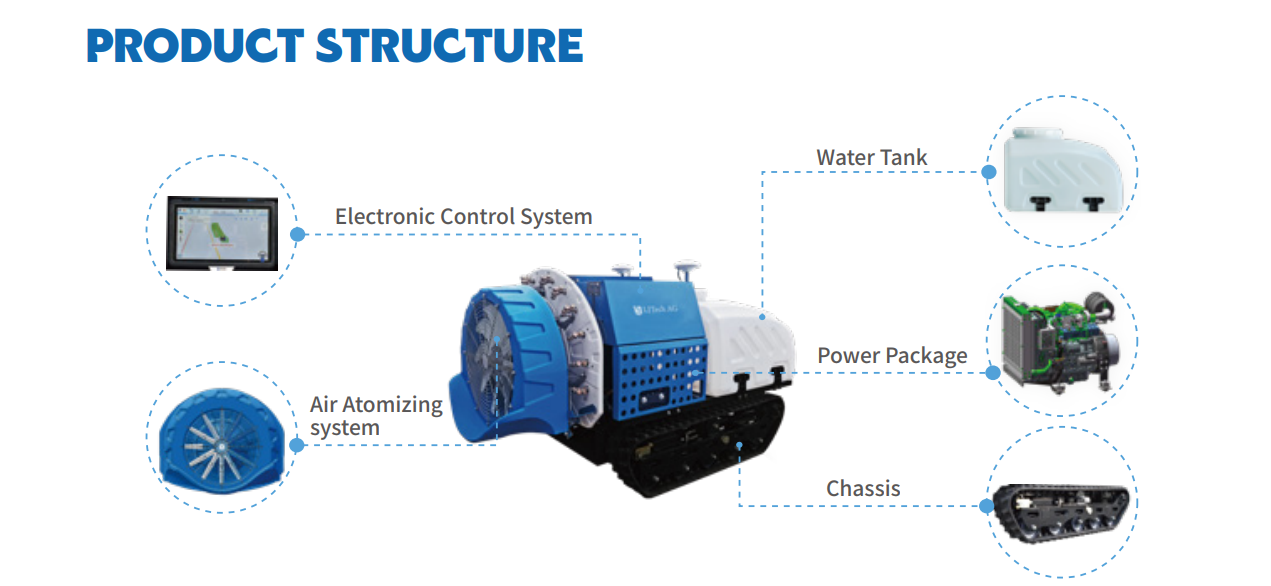

Electronic Control System:
- Includes components like a water tank, power package, chassis, and air atomizing system.
Dedicated Spray System for Orchards
-
Automizing System:
- Effective range with significant width and height.
-
Plunger Pump:
- High-pressure delivery for strong penetration and minimal drift.
-
Dual-caliber Nozzles:
- Adjustable pressure, wind speed, baffle, and nozzle to save pesticide.
-
Filtration System:
- Double prevention of water passage blockage.
Efficient Spraying
-
-
Comprehensive Solutions:
- One-person management of multiple machines via a smart refilling platform.
-
All-day Operation:
- Adapts to dark environments and operates over large areas daily.
-
Increased Efficiency:
- Significantly higher efficiency compared to manual labor and traditional machinery.
- Highly effective spray reduces pesticide use by a substantial percentage.
-
Comprehensive Solutions:
Category | Details |
---|---|
Power Types | |
Overall dimensions | 2100mm(L) x 1200mm(W) x 1200mm(H) |
Unloaded weight | 55kg |
Max load capacity | 450kg |
Chassis clearance | ≥150mm |
Grounding type | Track chassis |
Travel speed | 0 - 3km/h |
Endurance time | ≥1h / ≥15km |
Climbing angle | ≤25° for short slope; ≤15° for constant slope |
Engine power | 13kW |
Internal battery | 48V (optional) |
Generator rating | 5kW (optional) |
IP Rating | Not specified |
Spray System | |
Water tank capacity | 450L |
Rated flow rate | 0.3~4.5MPa |
Flow rate adjustment | 2~20L/min |
Number of nozzles | 8~12pcs |
Atomization droplet | 50~200μm |
Navigation | |
Ways of navigation | RTK + Beidou/GPS |
Cloud Platform | |
Data management | Big data management platform, APP of Smart phone |
OPTIONS
Standard
Remote control
- Serial No.: 1
- Supporting Hardware: Smart remote controller
- Upcharge per unit: /
Low level alarm
- Serial No.: 2
- Supporting Hardware: Liquid level gauge
- Upcharge per unit: USD 500
Option
Intelligent Navigation
- Serial No.: 3
- Supporting Hardware: Mobile base station
- Upcharge per unit: USD 1500
Unmanned supply without AGV/CES not supported
- Serial No.: 4
- Upcharge per unit: USD 2000
Additional Section for Body Color
- Body Color: LTOC (Need Autonomous No.)
- Upcharge per unit: USD 200
How To Get An Options Quote:
Option 1:
“Contact Us to make sure you are getting the best upgrades & options possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Click on the Chat button box that is in the bottom right of your screen
Step 3. Please tell us which Upgraded options you are looking for and any info you thinks relevant
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
