Product Description
Loflin Fabrication | 4-In-1 Combo Bucket | 60" To 96" Width | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION
Introducing the Loflin Fabrication 4 In 1 Bucket, a versatile and robust skid steer attachment designed to optimize your work efficiency on the job site. This innovative bucket is engineered to perform multiple tasks, making it an essential tool for contractors, landscapers, and agricultural professionals alike.
The 4 In 1 Bucket features two 2½” x 8” hydraulic cylinders, providing powerful operation and a generous 38” opening width for easy loading and unloading. Constructed with 1/2” thick steel side plates, this bucket is built to withstand the rigors of heavy use while ensuring durability and longevity.
Equipped with a 3/4” thick x 6” wide front cutting edge and a 5/8” thick x 6” wide heat-treated bolt-on reversible double edge for the rear dozing edge, this bucket is designed for maximum efficiency in various applications. The cutting edges are welded together rather than wrapped around, ensuring longer wear and added durability.
The 4 In 1 Bucket is available with or without teeth and can be customized with an optional front bolt-on edge. The 1/4” thick reinforced steel floor plate adds to the bucket's strength, while the reinforced quick attach system ensures a secure connection to your skid steer.
With sizes ranging from 60” to 96” and custom options available, the Loflin 4 In 1 Bucket is job site ready, equipped with high-quality Parker brand hoses, fittings, and couplers. Safety treads are included as standard, providing operators with greater traction and support when entering and exiting the cab.
Key Features
- Multi-Function Capability Designed for grading, digging, loading, backfilling, and grappling, delivering four essential tools in one attachment.
- Heavy-Duty Hydraulic Cylinders Equipped with two 2½" x 8" hydraulic cylinders, ensuring smooth and powerful operation.
- Oversized Greasable Pins 1¼" pins provide enhanced durability and effortless movement, extending lifespan.
- Hydraulic Flow 15 To 25 GPM For Skid Steer
- Wide Opening for Efficient Handling 38" opening width, accommodating large materials and quick loading.
- High-Strength Steel Construction Features ½” thick steel side plates, reinforced for maximum durability.
- Precision Cutting Edges Comes with a ¾” thick x 6″ wide front cutting edge and a 5/8" thick x 6″ heat-treated bolt-on reversible dozing edge, ensuring clean and controlled material manipulation.
- Optional Bolt-On Edge for Added Versatility Available for customized cutting and extended wear resistance.
- Available with or without Teeth or Toothbar Allows for tailored bucket functionality based on project requirements.
- 1/4″ Reinforced Steel Floor Plate Provides stability and support for heavy loads.
- Reinforced Quick Attach System Ensures secure and stable connection to skid steer loaders, optimizing efficiency and maneuverability.
- Premium Hydraulic Components Equipped with Parker brand hoses, fittings, and couplers, ensuring job-site-ready reliability.
- Operator Safety Features Includes treaded step for stability, allowing safe and easy machine access.
- Versatile Size Options Available in 60″, 66″, 72″, 78″, 84″, 90″, and 96″ widths, with custom sizes available upon request.
Detailed Specifications
For Skid Steer
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | 4-In-1 Combo Bucket |
| Type | Multi-Purpose Skid Steer Bucket |
| Working Width Options | 60″, 66″, 72″, 78″, 84″, 90″, 96″ (and custom sizes available) |
| Hydraulic Cylinders | Two 2 ½” X 8″ |
| Opening Width | 38″ |
| Side Plate Thickness | ½” thick steel |
| Front Cutting Edge | ¾” thick X 6″ wide |
| Rear Cutting Edge (Dozing) | ⅝” thick X 6″ wide, heat-treated bolt-on reversible double edge |
| Optional Front Edge | Available with optional front bolt-on edge |
| Tooth Options | Available with or without teeth; with or without toothbar (not with bolt-on-edge) |
| Floor Plate Thickness | ¼” thick reinforced steel |
| Hydraulic Flow | 15 To 25 GPM For Skid Steer |
| Quick Attach | Reinforced |
| Hose & Fittings | Parker brand (jobsite ready) |
| Operator Step | Treaded step |
| Axle Type | N/A (Skid Steer Attachment) |
| Compatibility | Universal Skid Steer Compatibility |
| Key Benefit | Transforms your skid steer into a versatile multi-tasking machine, combining dozing, grappling, scooping, and grading capabilities. |

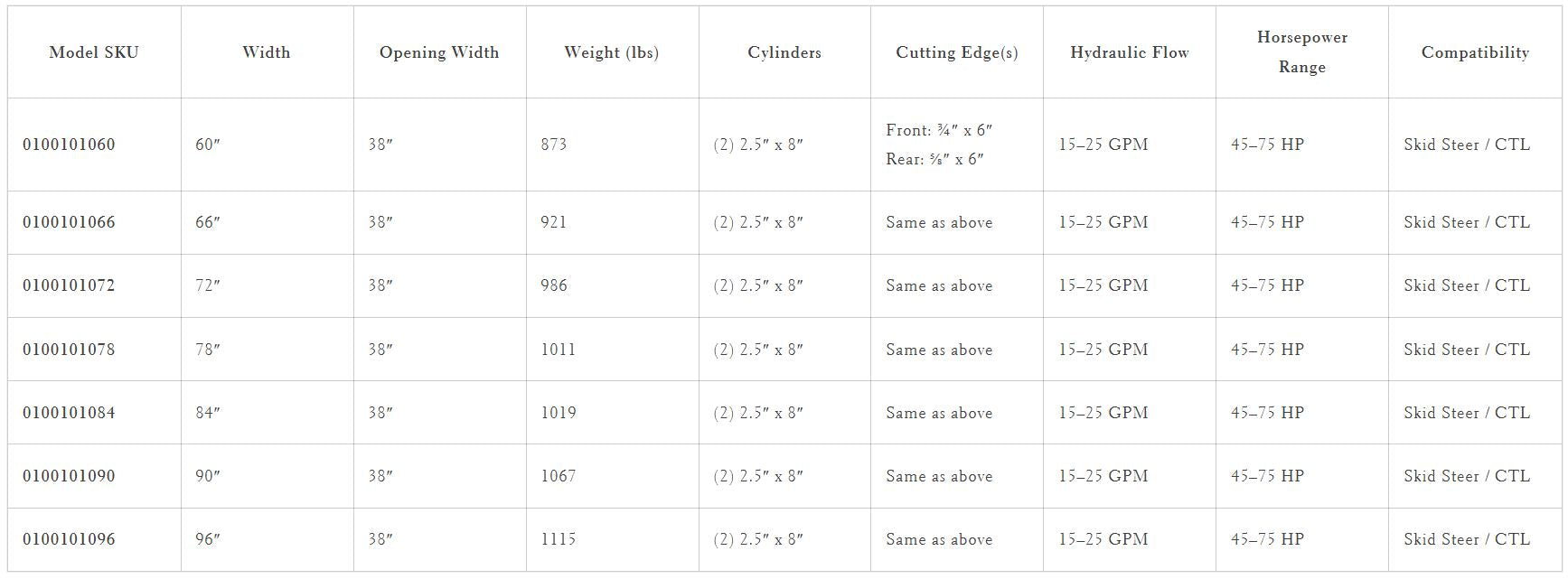

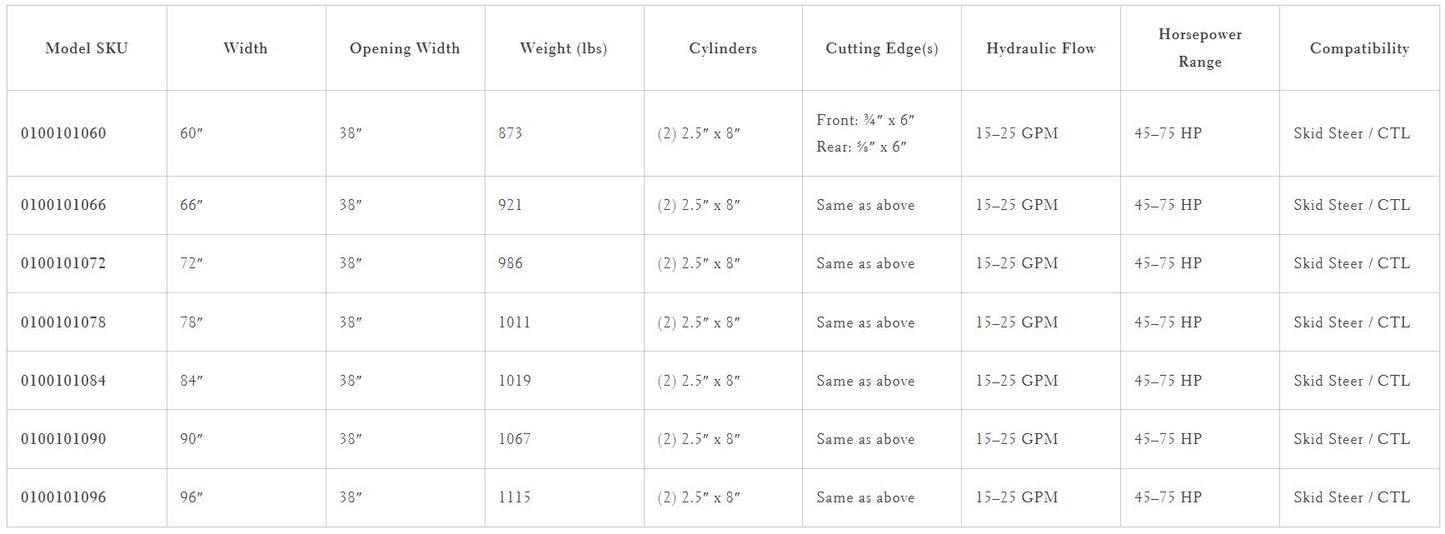

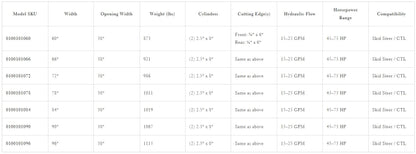

| Attribute |
010010- 1060 |
010010- 1066 |
|---|---|---|
| Width | 60″ | 66″ |
| Opening Width | 38″ | 38″ |
| Weight (lbs) | 873 | 921 |
| Cylinders | (2) 2.5″ x 8″ | (2) 2.5″ x 8″ |
| Cutting Edge(s) | Front: ¾″ x 6″ Rear: ⅝″ x 6″ | Same as above |
| Hydraulic Flow | 15–25 GPM | 15–25 GPM |
| Horsepower Range | 45–75 HP | 45–75 HP |
| Compatibility | Skid Steer / CTL | Skid Steer / CTL |
Comparison Chart
| Attribute |
010010- 1072 |
010010- 1078 |
|---|---|---|
| Width | 72″ | 78″ |
| Opening Width | 38″ | 38″ |
| Weight (lbs) | 986 | 1011 |
| Cylinders | (2) 2.5″ x 8″ | (2) 2.5″ x 8″ |
| Cutting Edge(s) | Same as above | Same as above |
| Hydraulic Flow | 15–25 GPM | 15–25 GPM |
| Horsepower Range | 45–75 HP | 45–75 HP |
| Compatibility | Skid Steer / CTL | Skid Steer / CTL |
| Attribute |
010010- 1084 |
010010- 1090 |
|---|---|---|
| Width | 84″ | 90″ |
| Opening Width | 38″ | 38″ |
| Weight (lbs) | 1019 | 1067 |
| Cylinders | (2) 2.5″ x 8″ | (2) 2.5″ x 8″ |
| Cutting Edge(s) | Same as above | Same as above |
| Hydraulic Flow | 15–25 GPM | 15–25 GPM |
| Horsepower Range | 45–75 HP | 45–75 HP |
| Compatibility | Skid Steer / CTL | Skid Steer / CTL |
| Attribute |
010010- 1084 |
010010- 1090 |
|---|---|---|
| Width | 84″ | 90″ |
| Opening Width | 38″ | 38″ |
| Weight (lbs) | 1019 | 1067 |
| Cylinders | (2) 2.5″ x 8″ | (2) 2.5″ x 8″ |
| Cutting Edge(s) | Same as above | Same as above |
| Hydraulic Flow | 15–25 GPM | 15–25 GPM |
| Horsepower Range | 45–75 HP | 45–75 HP |
| Compatibility | Skid Steer / CTL | Skid Steer / CTL |
| Attribute | 0100101096 |
|---|---|
| Width | 96″ |
| Opening Width | 38″ |
| Weight (lbs) | 1115 |
| Cylinders | (2) 2.5″ x 8″ |
| Cutting Edge(s) | Same as above |
| Hydraulic Flow | 15–25 GPM |
| Horsepower Range | 45–75 HP |
| Compatibility | Skid Steer / CTL |
