Product Description
Loflin Fabrication | 4-N-1 Bucket | 36" – 54" Width | Dual 2"x6" Cylinders | Hydraulic Flow 14-43 GPM | Horsepower 18-35 HP | For Mini Skid Steers & Tractors
DESCRIPTION

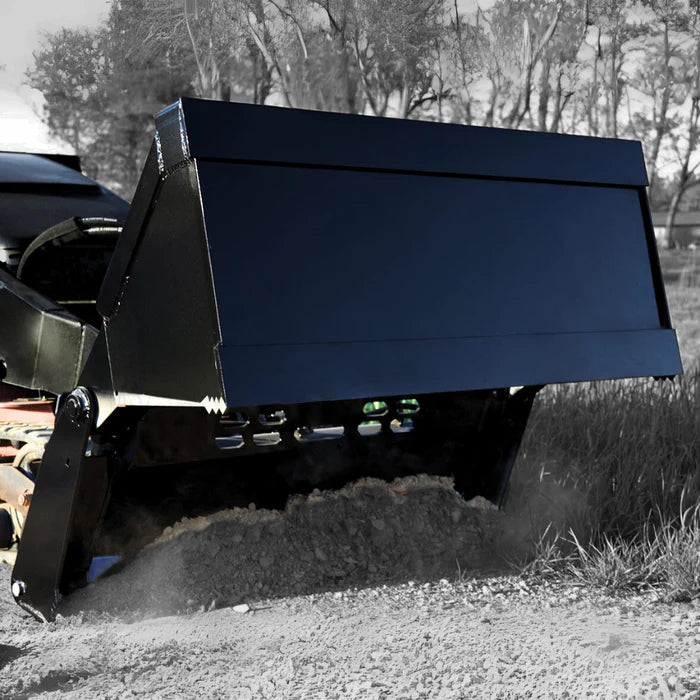

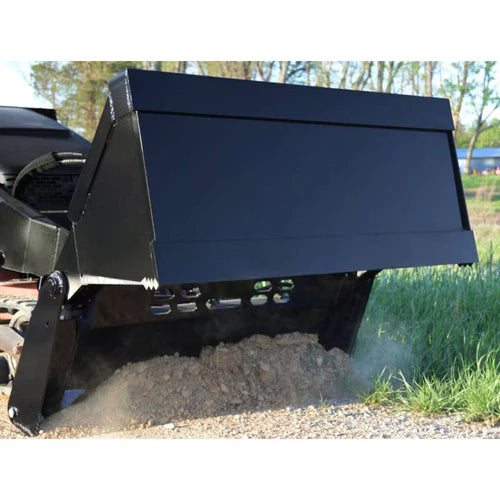

The Loflin Fabrication Mini Skid Steer & Compact Tractor 4-N-1 Bucket is a powerful, versatile, and durable attachment designed to maximize efficiency on the job site. Whether you're loading, dozing, scraping, or grabbing materials, this innovative bucket seamlessly transitions between four essential functions, eliminating the need for multiple attachments.
Built with reinforced steel construction, this bucket ensures long-lasting durability, tackling heavy-duty workloads with ease. The dual 2" x 6" hydraulic cylinders provide smooth, powerful operation, allowing for precise control and effortless transitions between functions. Oversized greasable pins extend the lifespan of the attachment, ensuring reliable performance in demanding environments.

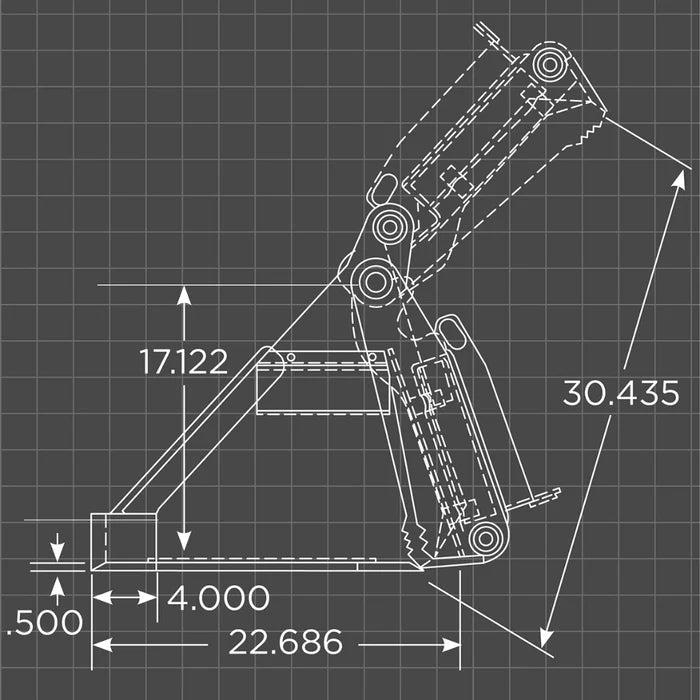

The front cutting edge is ½” thick x 4" wide, with a rear dozing edge heat-treated for enhanced durability. Operators can choose optional bolt-on cutting edges, teeth, and tooth bars, adapting the bucket to specific applications. With an opening width of 30 7⁄16", this attachment accommodates a wide range of materials, making it the go-to choice for professionals in landscaping, construction, and property maintenance.
Stocked with Toro Dingo and Bobcat MT50 mounts, this attachment features a reinforced quick-attach system for seamless installation. It is also customizable for compact tractors, ensuring universal compatibility across various equipment models.
Key Features
- 4-in-1 Functionality: Acts as a bucket, dozer, grapple, and box blade all in one.
- Dual 2" x 6" Hydraulic Cylinders: Heavy-duty hydraulic control for superior clamping and movement.
- Premium Steel Construction: Built with ¼" reinforced steel floor plate and ¼" steel side plates for strength and durability.
- Heavy-Duty Cutting Edges: ½" thick x 4" wide front and rear cutting edges (heat-treated for wear resistance).
- Optional Accessories: Front bolt-on edge, tooth bar, and removable teeth available for added performance.
- Reinforced Quick-Attach Mount: Ensures stable connection with mini skid steers and compact tractors.
- Parker Hydraulics Included: Outfitted with high-quality Parker hoses, couplers, and fittings ready for immediate use.
- Multiple Size Options: Choose from 36", 42", 48", and 54" widths to match your application.
- Custom Mounts Available: Compatible with Toro Dingo, Bobcat MT50, and various compact tractors.
- Powder-Coated Finish: Resists corrosion and maintains its sharp, professional appearance.
Detailed Specifications
| Feature | Specification |
|---|---|
| Functionality | 4-in-1: Scoop, Doze, Grapple, and Backfill |
| Hydraulic Cylinders | Two 2" x 6" cylinders |
| Cutting Edges | Front & rear: ½" thick x 4" wide heat-treated steel |
| Side Plate Thickness | ¼" thick steel |
| Floor Plate Thickness | ¼" thick reinforced steel |
| Opening Width | 30 7⁄16” |
| Hydraulic Components | Parker brand hoses, fittings, and couplers |
| Finish | Powder-coated |
| Available Widths | 36", 42", 48", and 54" |
| Available Mounts | Toro Dingo, Bobcat MT50, Compact Tractor, Custom Mounts Available |
| Optional Upgrades | Tooth bar, bolt-on cutting edge, removable teeth |
| Quick Attach Compatibility | Reinforced skid steer-style mounts |
| Made In | USA |
